Here you will find all available parts and drawings of the 'Makita 4101R'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

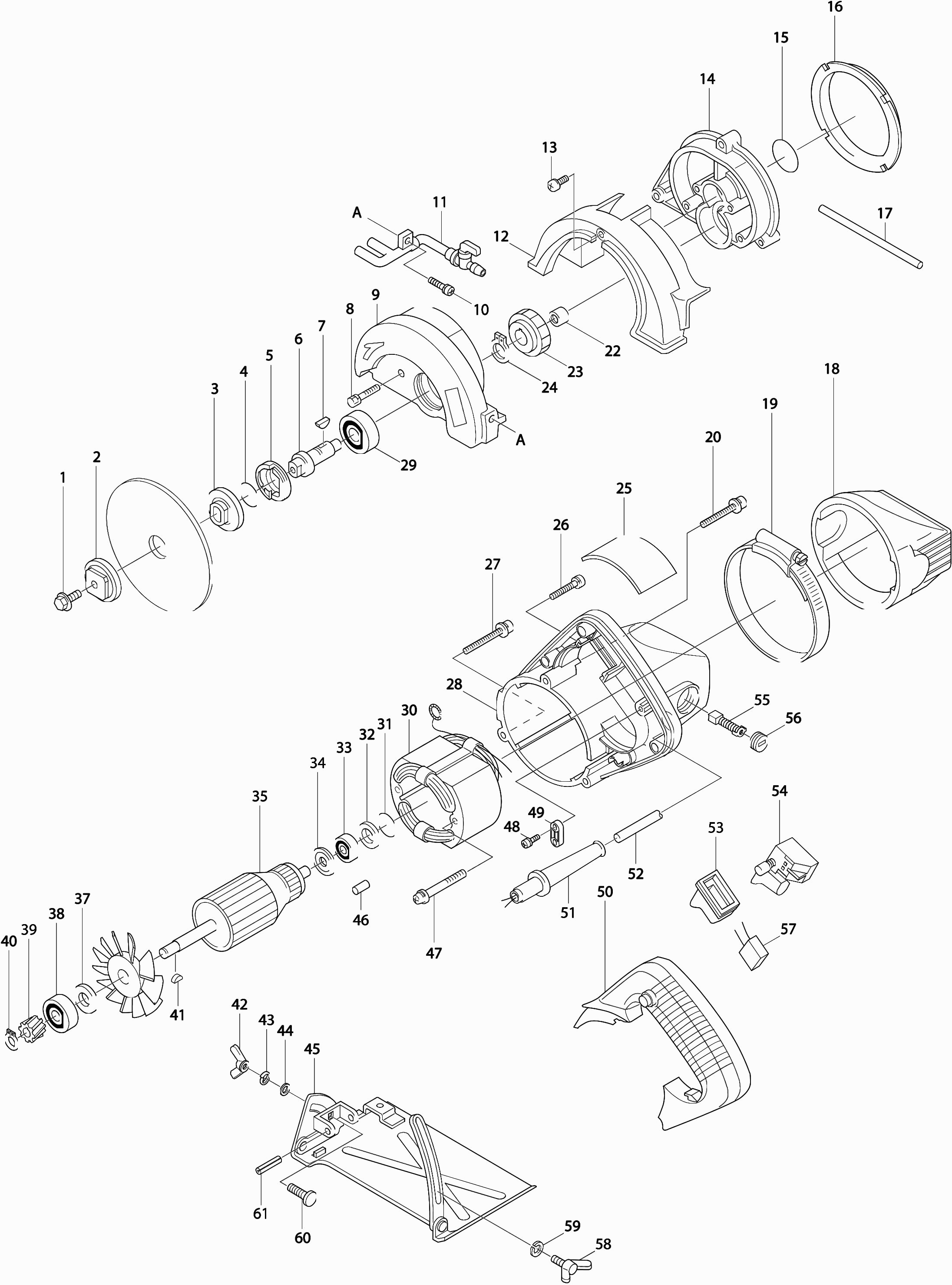

Technical drawing of model Makita 4101R
Spare parts list of model Makita 4101R
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex bolt 6x17 | ||||
| 001 | 265226-3 | 1.00 | 1.21 | |
| Outer flange 36 | ||||
| 002 | 224081-2 | 7.20 | 8.71 | |
| Inner flange 36 | ||||
| 003 | 224080-4 | 10.80 | 13.07 | |
| O-ring 18 | ||||
| 004 | 213255-0 | 1.20 | 1.45 | |
| Bearing Lock 19-33 | ||||
| 005 | 285815-8 | 2.40 | 2.90 | |
| Plunger | ||||
| 006 | 321197-5 | 30.80 | 37.27 | |
| Feather Key 4 | ||||
| 007 | 254001-2 | 1.00 | 1.21 | |
| Hex bolt 4x25 | ||||
| 008 | 925146-0 | 1.00 | 1.21 | |
| FIXED PROTECTIVE COVER | ||||
| 009 | 151509-6 | 40.70 | 49.25 | |
| Tap screw 4x18 | ||||
| 010 | 265A48-7 | 1.00 | 1.21 | |
| Water Supply | ||||
| 011 | 153409-6 | 19.80 | 23.96 | |
| Cover cap 4100R-4101R * | ||||
| 012 | 410910-7 | 9.60 | 11.62 | |
| Screw 5x8 | ||||
| 013 | 911203-0 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 014 | 150926-7 | 48.40 | 58.56 | |
| No information available, not orderable | ||||
| 015 | 213421-9 | |||
| No information available, not orderable | ||||
| 016 | 343289-0 | |||
| Rubber seal | ||||
| 017 | 423155-8 | 1.20 | 1.45 | |
| Rubber Cover Cap 4100R-4101R * | ||||
| 018 | 414074-9 | 8.40 | 10.16 | |
| Tension clamp 100 | ||||
| 019 | 163282-6 | 6.00 | 7.26 | |
| Screw 5x36 | ||||
| 020 | 911258-5 | 1.00 | 1.21 | |
| Needle Bearing 810 | ||||
| 022 | 212004-2 | 4.80 | 5.81 | |
| Gear 41 | ||||
| 023 | 221777-6 | 13.20 | 15.97 | |
| Lock washer S-12 | ||||
| 024 | 961052-5 | 1.00 | 1.21 | |
| Screw 4x25 | ||||
| 026 | 911148-2 | 1.00 | 1.21 | |
| Screw 5x40 | ||||
| 027 | 911263-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 028 | 159183-4 | |||
| Ball Bearing 6201dw1 | ||||
| 029 | 211129-9 | 8.40 | 10.16 | |
| Field 4101R * | ||||
| 030 | 520039-2 | 46.20 | 55.90 | |
| O-ring 18 | ||||
| 031 | 213262-3 | 1.20 | 1.45 | |
| Washer 14 | ||||
| 032 | 253192-6 | 1.00 | 1.21 | |
| Ball bearing 608llb | ||||
| 033 | 210043-6 | 2.40 | 2.90 | |
| Insulation ring | ||||
| 034 | 681613-2 | 1.00 | 1.21 | |
| Armature 4100R-4101R * | ||||
| 035 | 516088-5 | 63.80 | 77.20 | |
| Washer 9 | ||||
| 037 | 253741-9 | 1.00 | 1.21 | |
| Ball bearing 629llb | ||||
| 038 | 210042-8 | 2.40 | 2.90 | |
| Gear 20 | ||||
| 039 | 221776-8 | 9.60 | 11.62 | |
| Lock ring S-8 | ||||
| 040 | 961004-6 | 1.00 | 1.21 | |
| Inlegspie 3 | ||||
| 041 | 254002-0 | 1.00 | 1.21 | |
| Wing nut M6 | ||||
| 042 | 934301-3 | 1.20 | 1.45 | |
| Spring Washer 6 A | ||||
| 043 | 253903-9 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 044 | 941151-9 | 1.00 | 1.21 | |
| Base plate 4101R | ||||
| 045 | 168216-4 | 39.60 | 47.92 | |
| Rubber Pin 4 | ||||
| 046 | 263002-9 | 1.00 | 1.21 | |
| Screw 5X60 * | ||||
| 047 | 911681-4 | 1.20 | 1.45 | |
| Screw 4X18 | ||||
| 048 | 911133-5 | 1.00 | 1.21 | |
| Strain reliever | ||||
| 049 | 687054-0 | 1.00 | 1.21 | |
| Handle Cover 4100R-4101R * | ||||
| 050 | 414741-6 | 8.40 | 10.16 | |
| Cable grommet 10-85 | ||||
| 051 | 682504-0 | 2.40 | 2.90 | |
| Power cord 2x1.00 2.2mtr | ||||
| 052 | 665383-1 | 10.80 | 13.07 | |
| Dust cover for switch | ||||
| 053 | 421329-5 | 2.40 | 2.90 | |
| Switch | ||||
| 054 | 651225-5 | 10.80 | 13.07 | |
| Screw 3.5X7 | ||||
| 054A | 652008-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 055 | 191937-3 | |||
| Carbon brush cap | ||||
| 056 | 643515-0 | 1.00 | 1.21 | |
| Wing Bolt 6x10 | ||||
| 058 | 251886-7 | 1.20 | 1.45 | |
| Spring Washer 6 A | ||||
| 059 | 253903-9 | 1.00 | 1.21 | |
| Slotted bolt M6x20 | ||||
| 060 | 251919-8 | 1.00 | 1.21 | |
| Tension pin 6-32 | ||||
| 061 | 951219-3 | 1.00 | 1.21 | |
