Here you will find all available parts and drawings of the 'Makita 3712'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

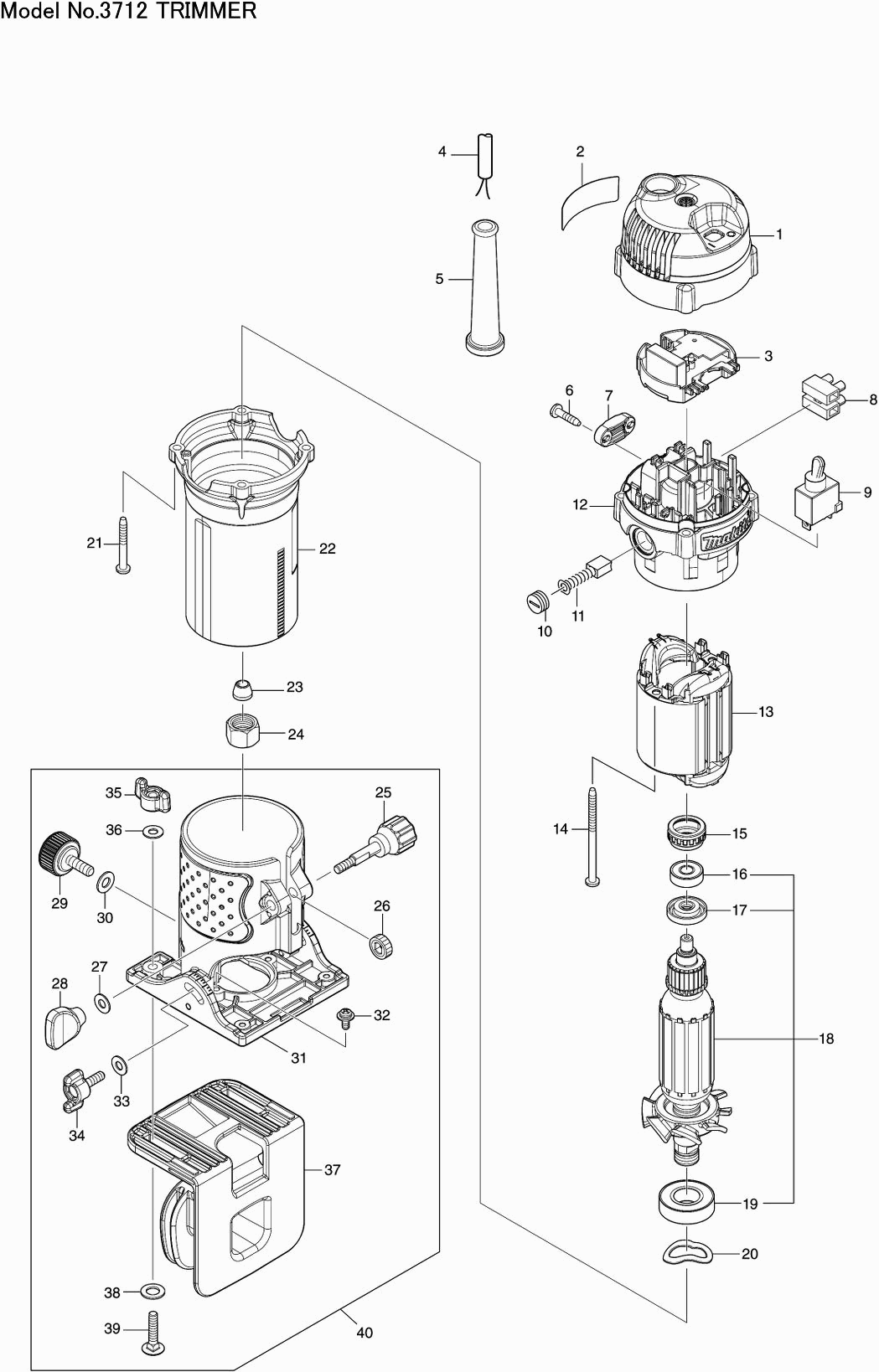

Technical drawing of model Makita 3712
Spare parts list of model Makita 3712
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cover cap 3711 | ||||
| 001 | 413774-8 | 2.71 | 3.28 | |
| Nameplate 3712 | ||||
| 002 | 811T73-6 | 0.83 | 1.00 | |
| Controller 3711/3712/M3702 | ||||
| 003 | 620F47-0 | 33.36 | 40.37 | |
| Interference filter | ||||
| 003C10 | 646358-9 | 2.38 | 2.88 | |
| No information available, not orderable | ||||
| 004 | 665394-6 | |||
| No information available, not orderable | ||||
| 005 | 682569-2 | |||
| No information available, not orderable | ||||
| 006 | 266326-2 | |||
| Clamp Bracket | ||||
| 007 | 687124-5 | 0.83 | 1.00 | |
| Terminal block | ||||
| 008 | 654531-7 | 2.10 | 2.54 | |
| Switch ST115A-TB-S1 M3600 | ||||
| 009 | 651066-9 | 2.36 | 2.86 | |
| Brush holder cap | ||||
| 010 | 643550-8 | 0.83 | 1.00 | |
| Brush Set CB411 RT0702C | ||||
| 011 | 195010-1 | 4.45 | 5.38 | |
| Support cpl 3711/12 | ||||
| 012 | 141D19-5 | 8.21 | 9.93 | |
| No information available, not orderable | ||||
| 013 | 594774-8 | |||
| Stator spring | ||||
| 013C10 | 654100-4 | 1.24 | 1.50 | |
| Threaded bushing M1902 | ||||
| 013C20 | 654485-8 | 0.83 | 1.00 | |
| Tapping screw 4x65mm | ||||
| 014 | 266340-8 | 0.83 | 1.00 | |
| Rubber Ring 19 | ||||
| 015 | 421494-0 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 016 | 210034-7 | |||
| Keerring | ||||
| 017 | 681668-7 | 0.83 | 1.00 | |
| Armature Assembly 240v 3709 | ||||
| 018 | 515634-1 | 30.69 | 37.13 | |
| Fan 52 | ||||
| 018C10 | 241667-7 | 5.09 | 6.16 | |
| No information available, not orderable | ||||
| 019 | 211489-9 | |||
| Spring Washer 23 | ||||
| 020 | 267785-3 | 0.83 | 1.00 | |
| Screw 4x35 | ||||
| 021 | 266351-3 | 0.83 | 1.00 | |
| Motor Housing 3711/12 | ||||
| 022 | 141D78-9 | 4.30 | 5.20 | |
| Scale M3702 | ||||
| 022C10 | 8034K8-2 | 0.83 | 1.00 | |
| Spantang 6mm kantenfrees | ||||
| 023 | 763662-2 | 4.00 | 4.84 | |
| Spanmoer kantenfrees | ||||
| 024 | 763661-4 | 5.00 | 6.05 | |
| Wing Bolt M5x33mm 3901 | ||||
| 025 | 265771-8 | 0.98 | 1.19 | |
| Gear assistant guide | ||||
| 026 | 226217-9 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 027 | 941101-4 | |||
| Star knob M5 3901 | ||||
| 028 | 252652-5 | 0.98 | 1.19 | |
| Knob screw 6x18 | ||||
| 029 | 251814-2 | 1.02 | 1.23 | |
| Washer 6x12mm | ||||
| 030 | 941151-9 | 0.83 | 1.00 | |
| Foot Sole 3710 | ||||
| 031 | 154670-8 | 25.36 | 30.69 | |
| Screw 4X10 | ||||
| 032 | 911114-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 033 | 941101-4 | |||
| Thumb screw M5x16 | ||||
| 034 | 265761-1 | 0.83 | 1.00 | |
| Star knob M5 | ||||
| 035 | 252653-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 036 | 941101-4 | |||
| Trim shoe 3704 * | ||||
| 037 | 414304-8 | 12.80 | 15.49 | |
| Washer 8 | ||||
| 038 | 267240-5 | 0.83 | 1.00 | |
| Bolt 5x25 | ||||
| 039 | 923241-0 | 0.83 | 1.00 | |
| Kantenfreesvoet | ||||
| 040 | 194269-7 | 35.00 | 42.35 | |
