Here you will find all available parts and drawings of the 'Makita 3709'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

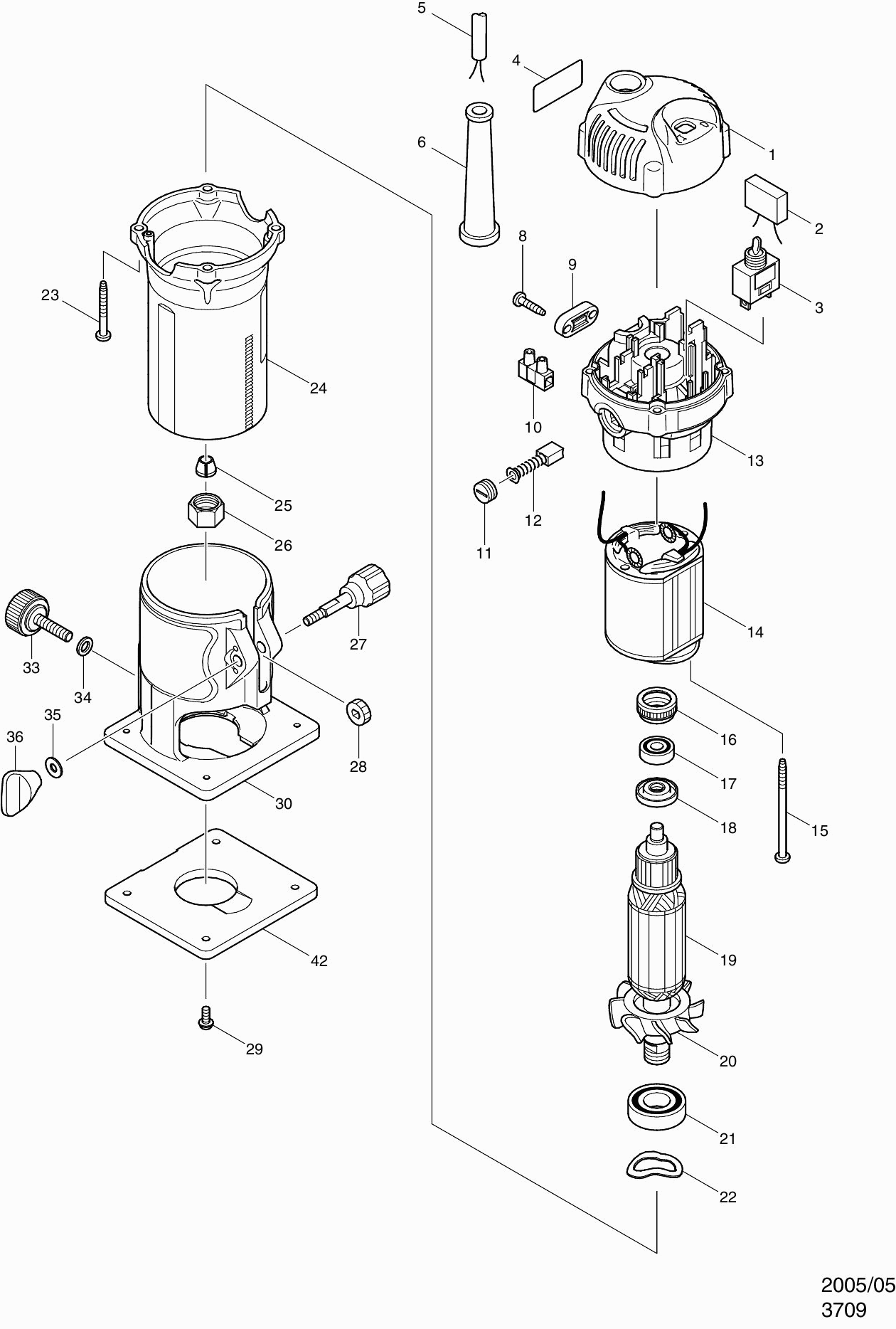

Technical drawing of model Makita 3709
Spare parts list of model Makita 3709
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cover 3709 | ||||
| 001 | 419137-6 | 2.40 | 2.90 | |
| Capacitor 0.22uF | ||||
| 002 | 645190-8 | 2.40 | 2.90 | |
| Switch ST115A-TB-S1 M3600 | ||||
| 003 | 651066-9 | 2.40 | 2.90 | |
| Nameplate 3709 | ||||
| 004 | 861695-2 | 3.60 | 4.36 | |
| Power cord 2x1.00 2.2mtr | ||||
| 005 | 665383-1 | 10.80 | 13.07 | |
| Cable grommet 8-85 | ||||
| 006 | 682502-4 | 2.40 | 2.90 | |
| SELF-TAPPING SCREW 4X18MM DGA520 A | ||||
| 008 | 265B67-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 009 | 687124-5 | 1.00 | 1.21 | |
| Terminal block Bo4553-Bo4554 A | ||||
| 010 | 654475-1 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 011 | 643550-8 | 1.20 | 1.45 | |
| Brush Set CB411 RT0702C | ||||
| 012 | 195010-1 | 4.80 | 5.81 | |
| Support 3709 A | ||||
| 013 | 140L18-2 | 8.40 | 10.16 | |
| Brush Holder | ||||
| 013AC10 | 643455-2 | 2.40 | 2.90 | |
| Carbon brush holder Mt191 A | ||||
| 013BC10 | 643509-5 | 1.02 | 1.23 | |
| Brush Holder | ||||
| 013C10 | 643455-2 | 2.40 | 2.90 | |
| Field Assy 240V 3709 A | ||||
| 014 | 590087-5 | 17.60 | 21.30 | |
| Stator spring | ||||
| 014C10 | 654100-4 | 2.40 | 2.90 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 014C20 | 654501-6 | 0.83 | 1.00 | |
| Tapping screw 4x65mm | ||||
| 015 | 266340-8 | 1.00 | 1.21 | |
| Rubber Ring 19 | ||||
| 016 | 421494-0 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 017 | 210034-7 | |||
| Keerring | ||||
| 018 | 681668-7 | 1.00 | 1.21 | |
| Armature Assembly 240v 3709 | ||||
| 019 | 515634-1 | 30.80 | 37.27 | |
| Fan 52 | ||||
| 020 | 241667-7 | 6.00 | 7.26 | |
| Ball bearing 6002llu | ||||
| 021 | 211223-7 | 10.80 | 13.07 | |
| Spring Washer 23 | ||||
| 022 | 267785-3 | 1.00 | 1.21 | |
| Screw 4x35 | ||||
| 023 | 266351-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 024 | 154668-5 | |||
| Degree label 3709 | ||||
| 024C10 | 816817-9 | 2.40 | 2.90 | |
| SPANTANG 6MM KANTENFREES | ||||
| 025 | 763662-2 | 3.00 | 3.63 | |
| SPANMOER KANTENFREES | ||||
| 026 | 763661-4 | 4.00 | 4.84 | |
| Wing Bolt M5x33mm 3901 | ||||
| 027 | 265771-8 | 1.20 | 1.45 | |
| Gear assistant guide | ||||
| 028 | 226217-9 | 1.20 | 1.45 | |
| Screw 4X10 | ||||
| 029 | 265142-9 | 1.00 | 1.21 | |
| Foot 3709 | ||||
| 030 | 419138-4 | 14.30 | 17.30 | |
| Set screw M6x25 | ||||
| 033 | 265763-7 | 1.20 | 1.45 | |
| Washer 6x12mm | ||||
| 034 | 941151-9 | 1.00 | 1.21 | |
| Washer 5mm DSP601 A | ||||
| 035 | 253414-4 | 1.00 | 1.21 | |
| Star knob M5 3901 | ||||
| 036 | 252652-5 | 1.20 | 1.45 | |
| Transparent Sole Plate | ||||
| 042 | 410585-2 | 3.60 | 4.36 | |
