Here you will find all available parts and drawings of the 'Makita 3703'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

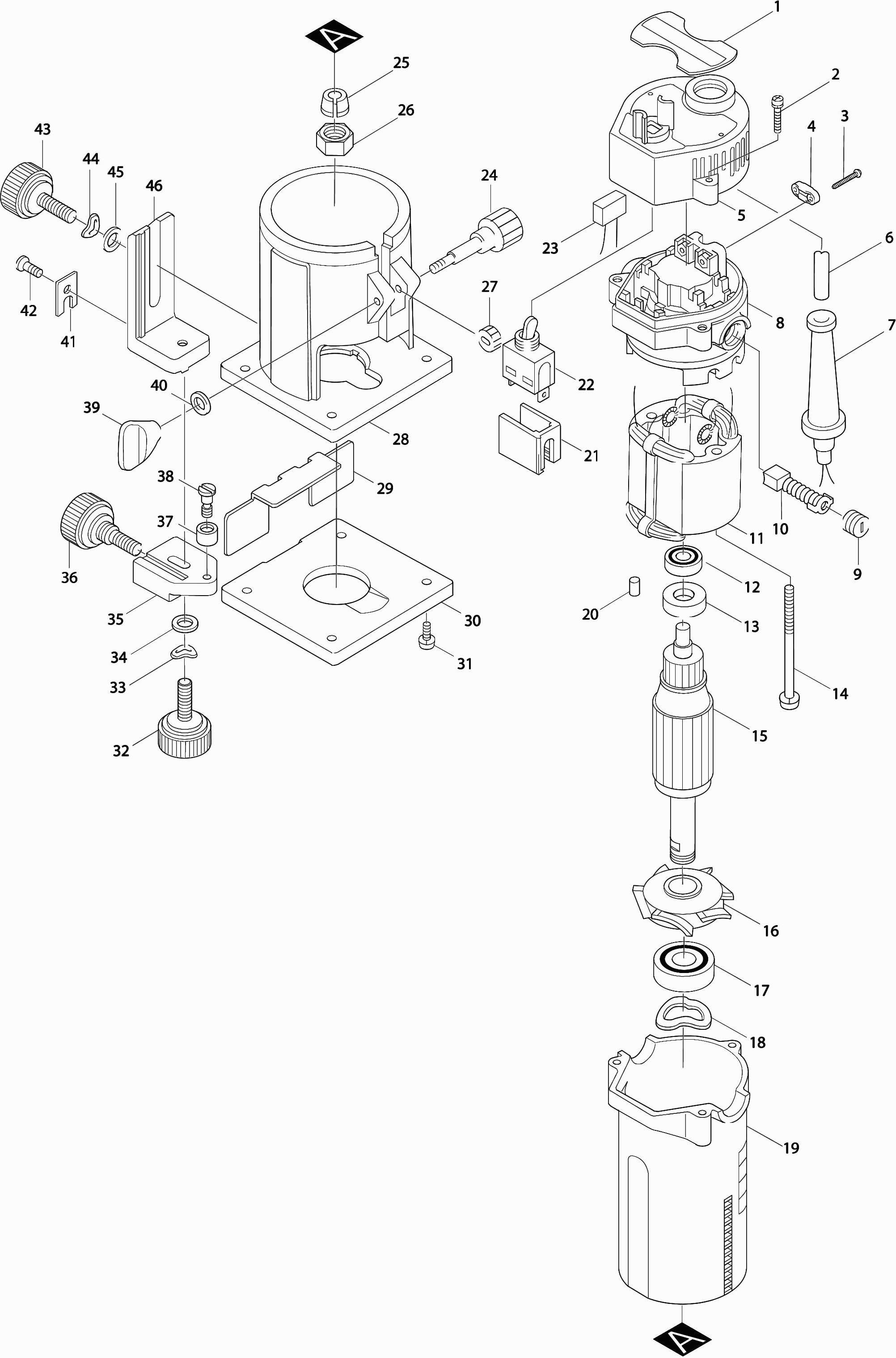

Technical drawing of model Makita 3703
Spare parts list of model Makita 3703
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW M4X40 | ||||
| 002 | 911168-6 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 003 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 004 | 687124-5 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 005 | 410062-4 | 7.20 | 8.71 | |
| Power cord 2x1.00 2.2mtr | ||||
| 006 | 665383-1 | 10.80 | 13.07 | |
| Cable grommet 8-85 | ||||
| 007 | 682502-4 | 2.40 | 2.90 | |
| Motor End Housing | ||||
| 008 | 153707-8 | 13.20 | 15.97 | |
| Brush holder * | ||||
| 008A | 643917-0 | 3.60 | 4.36 | |
| Brush holder cap | ||||
| 009 | 643550-8 | 1.20 | 1.45 | |
| Brush Set CB411 RT0702C | ||||
| 010 | 195010-1 | 4.80 | 5.81 | |
| Field | ||||
| 011 | 593148-0 | 30.80 | 37.27 | |
| Stator spring | ||||
| 011A | 654100-4 | 2.40 | 2.90 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 011B | 654501-6 | 0.83 | 1.00 | |
| Ball bearing 627llb | ||||
| 012 | 210025-8 | 3.60 | 4.36 | |
| Insulation ring | ||||
| 013 | 681614-0 | 1.00 | 1.21 | |
| Screw M4X70 * | ||||
| 014 | 911596-5 | 1.20 | 1.45 | |
| Armature | ||||
| 015 | 511918-5 | 72.60 | 87.85 | |
| Fan 52 | ||||
| 016 | 241615-6 | 8.40 | 10.16 | |
| Ball bearing 6002ddw | ||||
| 017 | 211236-8 | 9.60 | 11.62 | |
| Spring Washer 23 | ||||
| 018 | 253905-5 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 019 | 414567-6 | 17.60 | 21.30 | |
| Rubber Pin 4 | ||||
| 020 | 263014-2 | 1.00 | 1.21 | |
| Switch holder 3705 * | ||||
| 021 | 410069-0 | 2.40 | 2.90 | |
| Switch Sw-90 | ||||
| 022 | 651467-1 | 18.70 | 22.63 | |
| Capacitor 0,1uf | ||||
| 023 | 645105-5 | 3.60 | 4.36 | |
| Screw 5x33 | ||||
| 024 | 251890-6 | 8.40 | 10.16 | |
| SPANTANG 6MM KANTENFREES | ||||
| 025 | 763607-0 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 026 | 763606-2 | |||
| Gear assistant guide | ||||
| 027 | 226217-9 | 1.20 | 1.45 | |
| Housing | ||||
| 028 | 411930-4 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 029 | 411115-2 | |||
| Transparent Sole Plate | ||||
| 030 | 410585-2 | 3.60 | 4.36 | |
| Phillips Screw 4x10 | ||||
| 031 | 251308-7 | 1.00 | 1.21 | |
| Set screw M6x25 | ||||
| 032 | 265763-7 | 1.20 | 1.45 | |
| Spring Washer 6 A | ||||
| 033 | 253903-9 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 034 | 941151-9 | 1.00 | 1.21 | |
| Trim Guide | ||||
| 035 | 317789-6 | 4.80 | 5.81 | |
| Set screw M6 | ||||
| 036 | 265764-5 | 1.20 | 1.45 | |
| Roll 11 | ||||
| 037 | 324378-0 | 1.20 | 1.45 | |
| Screw M5 | ||||
| 038 | 251471-6 | 1.00 | 1.21 | |
| Wing Nut M5 | ||||
| 039 | 252632-1 | 4.80 | 5.81 | |
| Washer 5mm DSP601 A | ||||
| 040 | 253414-4 | 1.00 | 1.21 | |
| Hook | ||||
| 041 | 341136-9 | 1.00 | 1.21 | |
| Countersunk screw 4x12 | ||||
| 042 | 912116-8 | 1.00 | 1.21 | |
| Set screw M6x25 | ||||
| 043 | 265763-7 | 1.20 | 1.45 | |
| Spring Washer 6 A | ||||
| 044 | 253903-9 | 1.00 | 1.21 | |
| Washer 6x12mm | ||||
| 045 | 941151-9 | 1.00 | 1.21 | |
| Trim Guide | ||||
| 046 | 122703-7 | 10.00 | 12.10 | |
