Here you will find all available parts and drawings of the 'Makita 3612C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

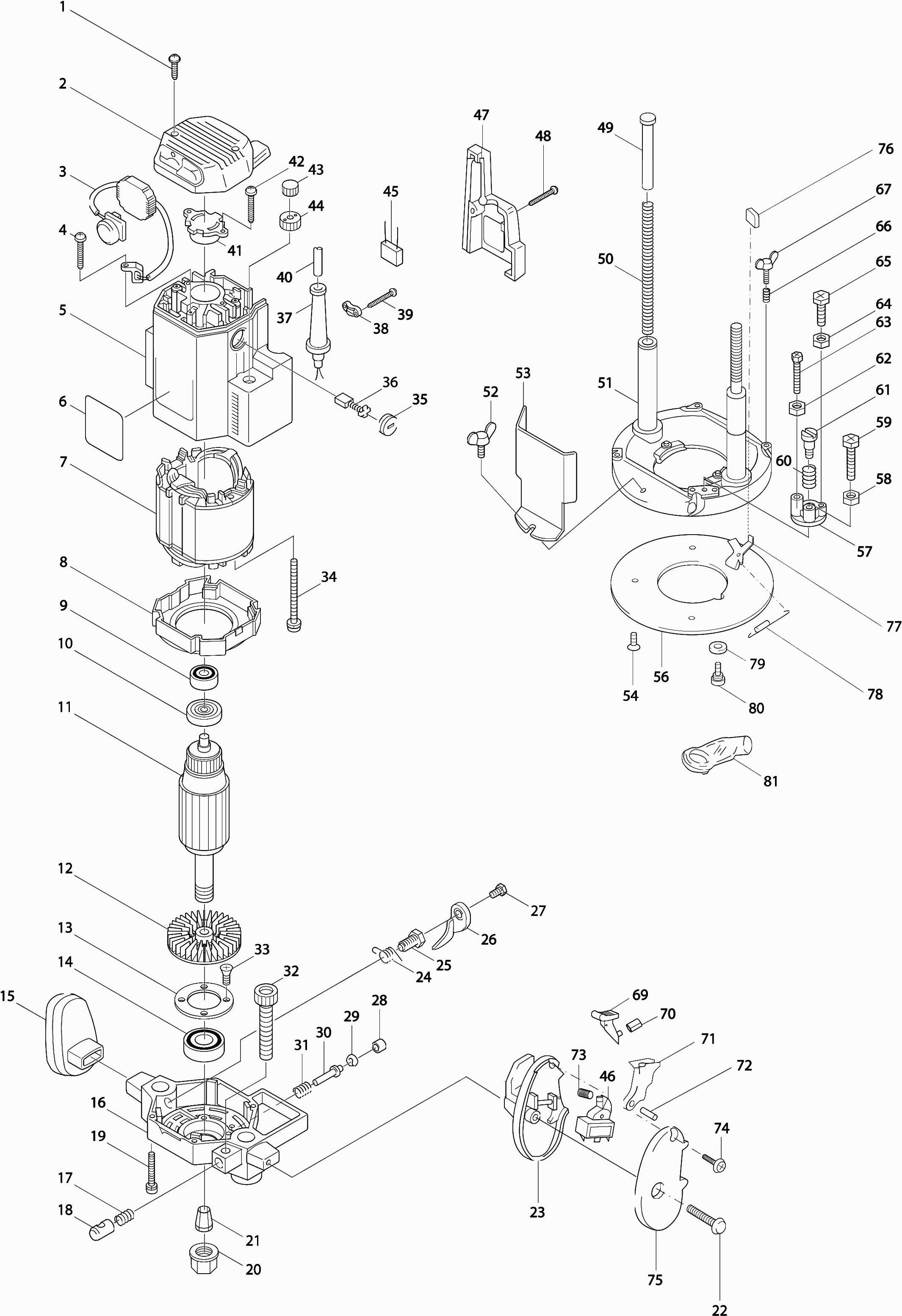

Technical drawing of model Makita 3612C
Spare parts list of model Makita 3612C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapschroef 5x20 | ||||
| 001 | 266021-4 | 1.20 | 1.45 | |
| Covering hood | ||||
| 002 | 415067-9 | 12.10 | 14.64 | |
| Control Unit Electr | ||||
| 003 | 631151-4 | 97.90 | 118.46 | |
| Tap screw 4x18 | ||||
| 004 | 265A48-7 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 005 | 159650-9 | 56.10 | 67.88 | |
| Brush Holder | ||||
| 005A | 643707-1 | 4.80 | 5.81 | |
| Brush Holder | ||||
| 005B | 643707-1 | 4.80 | 5.81 | |
| Label | ||||
| 006 | 851513-2 | 3.60 | 4.36 | |
| Field | ||||
| 007 | 636013-1 | 55.00 | 66.55 | |
| Intermediate Plate | ||||
| 008 | 415069-5 | 4.80 | 5.81 | |
| Ball bearing 629ddw | ||||
| 009 | 211092-6 | 4.80 | 5.81 | |
| Insulating ring 3612C | ||||
| 010 | 681631-0 | 13.20 | 15.97 | |
| No longer available, no replacement | ||||
| 011 | 516508-9 | |||
| Impeller 74 | ||||
| 012 | 241861-1 | 13.20 | 15.97 | |
| Bearing Lock 50 | ||||
| 013 | 285657-0 | 2.40 | 2.90 | |
| Ball bearing 6004ddw DLM463 | ||||
| 014 | 210237-3 | 2.40 | 2.90 | |
| Handle button L | ||||
| 015 | 415070-0 | 9.60 | 11.62 | |
| No longer available, no replacement | ||||
| 016 | 152567-5 | |||
| Compression spring 10 | ||||
| 017 | 231142-1 | 1.00 | 1.21 | |
| Half Nut | ||||
| 018 | 323559-3 | 6.00 | 7.26 | |
| Screw 5x40 | ||||
| 019 | 911263-2 | 1.00 | 1.21 | |
| SPANMOER BOVENFREES | ||||
| 020 | 763629-0 | 4.00 | 4.84 | |
| SPANTANG 12MM BOVENFREES | ||||
| 021 | 763628-2 | 18.00 | 21.78 | |
| Cross-head screw 6x45 | ||||
| 022 | 911368-8 | 1.20 | 1.45 | |
| Handle button R | ||||
| 023 | 415407-1 | 9.60 | 11.62 | |
| Torsion Spring 15 | ||||
| 024 | 231618-8 | 3.60 | 4.36 | |
| Lock Bolt M10 | ||||
| 025 | 266015-9 | 4.80 | 5.81 | |
| Lock Lever | ||||
| 026 | 344097-2 | 3.60 | 4.36 | |
| Hex bolt 5x12 | ||||
| 027 | 265269-5 | 1.00 | 1.21 | |
| Cover 11 | ||||
| 028 | 286235-9 | 1.20 | 1.45 | |
| Retaining ring R-12 | ||||
| 029 | 962062-5 | 1.00 | 1.21 | |
| Pin 6 | ||||
| 030 | 256606-4 | 2.40 | 2.90 | |
| Compression Spring 7 | ||||
| 031 | 231037-8 | 1.00 | 1.21 | |
| Depth set pin | ||||
| 032 | 251861-3 | 2.40 | 2.90 | |
| Countersunk screw M4x14 | ||||
| 033 | 251295-0 | 1.00 | 1.21 | |
| Screw 5x80 | ||||
| 034 | 911944-8 | 1.20 | 1.45 | |
| Brush holder cap | ||||
| 035 | 643700-5 | 1.20 | 1.45 | |
| KOOLBORSTEL SET CB-203 A | ||||
| 036 | 194991-6 | 7.20 | 8.71 | |
| Cable grommet 8-85 | ||||
| 037 | 682502-4 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 038 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 039 | 265A48-7 | 1.00 | 1.21 | |
| Power cord 2x1.50 4.0mtr | ||||
| 040 | 695123-3 | 22.00 | 26.62 | |
| Bearing box | ||||
| 041 | 316499-2 | 9.60 | 11.62 | |
| Tap screw 4x18 | ||||
| 042 | 265A48-7 | 1.00 | 1.21 | |
| NUT M10 | ||||
| 043 | 252625-8 | 2.40 | 2.90 | |
| Nylon nut M10 | ||||
| 044 | 410129-8 | 2.40 | 2.90 | |
| Capacitor | ||||
| 045 | 645173-8 | 8.40 | 10.16 | |
| Switch Sw-118 | ||||
| 046 | 651430-4 | 22.00 | 26.62 | |
| Cover | ||||
| 047 | 415409-7 | 9.60 | 11.62 | |
| Tap screw 4x18 | ||||
| 048 | 265A48-7 | 1.00 | 1.21 | |
| Spring Bar | ||||
| 049 | 314062-5 | 2.40 | 2.90 | |
| Pressure Spring 11 * | ||||
| 050 | 231329-5 | 2.40 | 2.90 | |
| Foot pad | ||||
| 051 | 151407-4 | 92.40 | 111.80 | |
| Wing nut M5x10mm - 164095-8 | ||||
| 052 | 265760-3 | 1.00 | 1.21 | |
| Transp. protective cap | ||||
| 053 | 410128-0 | 4.80 | 5.81 | |
| Countersunk screw 4x10 | ||||
| 054 | 912112-6 | 1.00 | 1.21 | |
| Bolt 5x10 | ||||
| 055 | 266016-7 | 3.60 | 4.36 | |
| Foot plate | ||||
| 056 | 413063-1 | 10.80 | 13.07 | |
| Depth stop 3612Br * | ||||
| 057 | 134205-1 | 22.00 | 26.62 | |
| Hex Nut M5 | ||||
| 058 | 931202-6 | 1.00 | 1.21 | |
| Hexagonal bolt 5x28 | ||||
| 059 | 265335-8 | 1.00 | 1.21 | |
| Compression spring 12 | ||||
| 060 | 231231-2 | 1.00 | 1.21 | |
| Screw M6 | ||||
| 061 | 251423-7 | 2.40 | 2.90 | |
| Hex Nut M5 | ||||
| 062 | 931202-6 | 1.00 | 1.21 | |
| Field bolt M5x40 | ||||
| 063 | 265336-6 | 1.00 | 1.21 | |
| Hex Nut M5 | ||||
| 064 | 931202-6 | 1.00 | 1.21 | |
| Hex Bolt 5x16 | ||||
| 065 | 265333-2 | 1.00 | 1.21 | |
| Compression Spring 7 | ||||
| 066 | 231240-1 | 1.00 | 1.21 | |
| Wing bolt 5x15 | ||||
| 067 | 924216-2 | 1.00 | 1.21 | |
| Release button | ||||
| 069 | 415411-0 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 070 | 233024-3 | 1.00 | 1.21 | |
| Switch Button | ||||
| 071 | 415158-6 | 3.60 | 4.36 | |
| Pen 3 | ||||
| 072 | 256221-4 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 073 | 231372-4 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 074 | 265A48-7 | 1.00 | 1.21 | |
| Button cover | ||||
| 075 | 415408-9 | 6.00 | 7.26 | |
| Cap 14 3612 * | ||||
| 076 | 286239-1 | 1.20 | 1.45 | |
| Blocking Plate | ||||
| 077 | 344098-0 | 8.40 | 10.16 | |
| Compression Spring 5 * | ||||
| 078 | 231794-8 | 2.40 | 2.90 | |
| Lock washer 5 | ||||
| 079 | 253811-4 | 1.00 | 1.21 | |
| Bolt 5x10 | ||||
| 080 | 266016-7 | 3.60 | 4.36 | |
| STOFAFZUIGADAPTER BOVENFREES | ||||
| 081 | 415412-8 | 5.00 | 6.05 | |
