Here you will find all available parts and drawings of the 'Makita 3600B'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

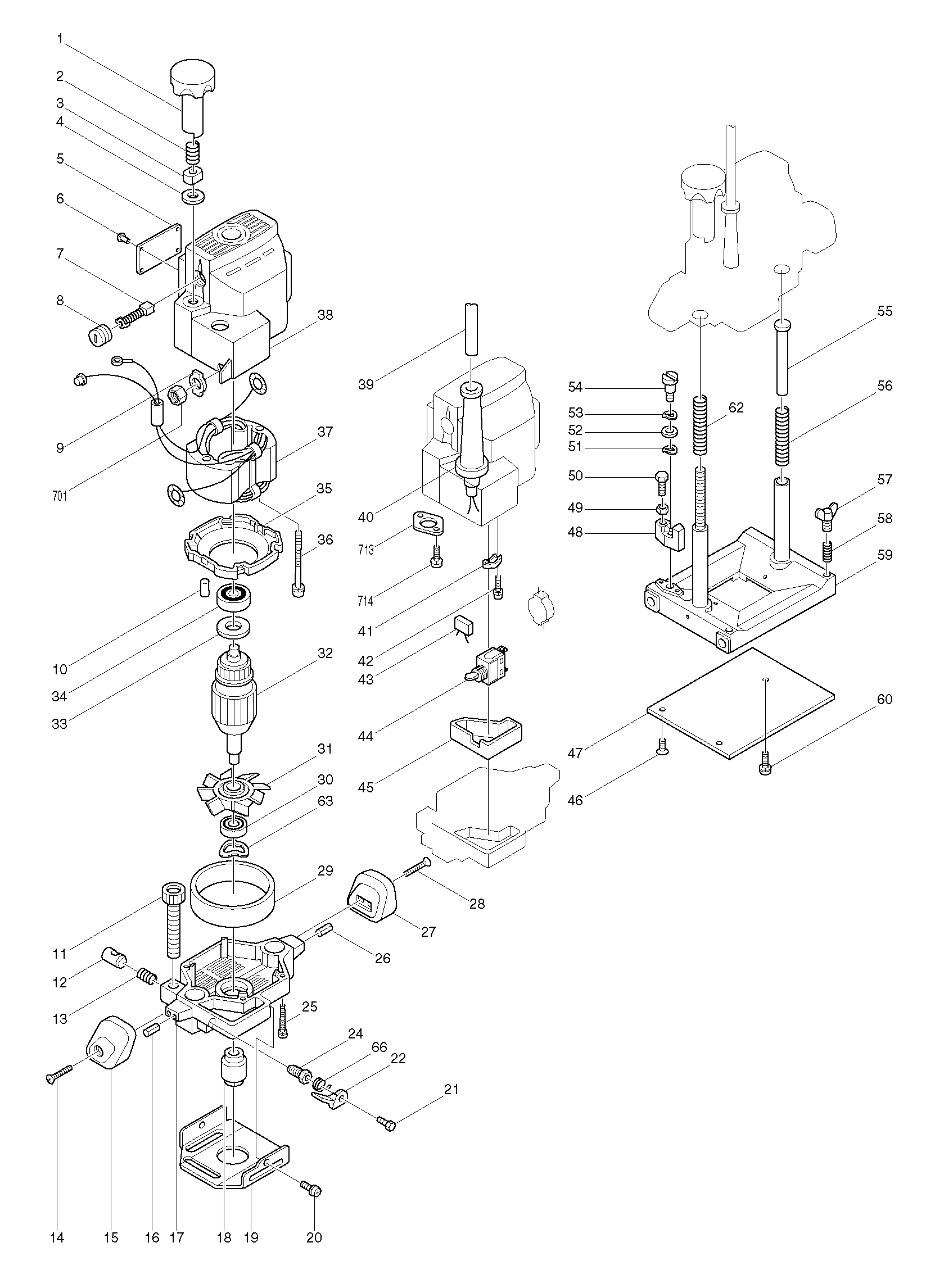

Technical drawing of model Makita 3600B
Spare parts list of model Makita 3600B
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 271215-8 | |||
| Compression spring 12 | ||||
| 002 | 231231-2 | 1.00 | 1.21 | |
| Nut M10-15 | ||||
| 003 | 252203-4 | 9.60 | 11.62 | |
| Washer 10x1.6mm 1901/02 | ||||
| 004 | 941251-5 | 1.00 | 1.21 | |
| Carbon Brush Set Cb-153 | ||||
| 007 | 194985-1 | 4.80 | 5.81 | |
| Brush holder cap | ||||
| 008 | 643650-4 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 009 | 652155-3 | |||
| Rubber Pin 4 | ||||
| 010 | 263002-9 | 1.00 | 1.21 | |
| Depth set pin | ||||
| 011 | 251861-3 | 2.40 | 2.90 | |
| Half Nut | ||||
| 012 | 323559-3 | 6.00 | 7.26 | |
| Compression spring 10 | ||||
| 013 | 231142-1 | 1.00 | 1.21 | |
| Countersunk screw 6x35 | ||||
| 014 | 912357-6 | 1.00 | 1.21 | |
| Knob 59R 3600B * | ||||
| 015 | 272404-8 | 7.20 | 8.71 | |
| Scoring pin 5-18 * | ||||
| 016 | 951160-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 017 | 157706-2 | |||
| SPANTANGSET 12MM BOVENFREES | ||||
| 018 | 763601-2 | 20.00 | 24.20 | |
| No information available, not orderable | ||||
| 019 | 345114-1 | |||
| Screw 5x8 | ||||
| 020 | 911203-0 | 1.00 | 1.21 | |
| Hex bolt 5x12 | ||||
| 021 | 265269-5 | 1.00 | 1.21 | |
| Lock Lever | ||||
| 022 | 341933-3 | 2.40 | 2.90 | |
| Locking Bolt | ||||
| 024 | 265813-8 | 4.80 | 5.81 | |
| Screw 5x40 | ||||
| 025 | 911263-2 | 1.00 | 1.21 | |
| Scoring pin 5-18 * | ||||
| 026 | 951160-0 | 1.00 | 1.21 | |
| Knob 59l | ||||
| 027 | 272403-0 | 7.20 | 8.71 | |
| Countersunk screw 6x35 | ||||
| 028 | 912357-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 029 | 343267-0 | |||
| Ball Bearing 6201dw1 | ||||
| 030 | 211129-9 | 8.40 | 10.16 | |
| Fan 86 | ||||
| 031 | 241612-2 | 11.84 | 14.33 | |
| No information available, not orderable | ||||
| 032 | 514898-4 | |||
| Insulation ring | ||||
| 033 | 681635-2 | 1.20 | 1.45 | |
| Ball bearing 6200llb | ||||
| 034 | 211066-7 | 4.80 | 5.81 | |
| Intermediate plate 3612Br * | ||||
| 035 | 410258-7 | 2.40 | 2.90 | |
| Screw 5x65 | ||||
| 036 | 911290-9 | 1.20 | 1.45 | |
| New Field 3600B * | ||||
| 037 | 524425-9 | 63.80 | 77.20 | |
| No information available, not orderable | ||||
| 038 | 159470-1 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 039 | 695123-3 | 22.00 | 26.62 | |
| Cable grommet 10-85 | ||||
| 040 | 682504-0 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 041 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 041 | 687124-5 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 042 | 911133-5 | 1.00 | 1.21 | |
| Capacitor 0.22uF | ||||
| 043 | 645190-8 | 2.40 | 2.90 | |
| Switch Sw-08 | ||||
| 044 | 651472-8 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 045 | 411232-8 | |||
| Foot plate | ||||
| 046 | 413017-8 | 17.60 | 21.30 | |
| Countersunk screw 4x10 | ||||
| 047 | 912112-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048 | 316829-7 | |||
| No longer available, no replacement | ||||
| 049 | 931303-0 | |||
| Hex bolt 6x25 | ||||
| 050 | 921342-8 | 1.00 | 1.21 | |
| Spring Washer 10 | ||||
| 051 | 253932-2 | 1.00 | 1.21 | |
| Washer 10 | ||||
| 052 | 253173-0 | 1.00 | 1.21 | |
| Spring Washer 10 | ||||
| 053 | 253932-2 | 1.00 | 1.21 | |
| Screw M6 | ||||
| 054 | 251423-7 | 2.40 | 2.90 | |
| Spring Bar | ||||
| 055 | 314062-5 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 056 | 233053-6 | |||
| Wing Bolt 6x15 | ||||
| 057 | 265726-3 | 1.20 | 1.45 | |
| Compression Spring 9 | ||||
| 058 | 231071-8 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 059 | 154307-7 | |||
| Countersunk screw 5x10 | ||||
| 060 | 912207-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 062 | 233053-6 | |||
| Spring Washer 23 | ||||
| 063 | 253905-5 | 1.00 | 1.21 | |
| Torsion Spring 15 | ||||
| 066 | 231574-2 | 1.20 | 1.45 | |
| Nylon nut M12 for switch | ||||
| 701 | 652102-4 | 1.20 | 1.45 | |
