Here you will find all available parts and drawings of the 'Makita 2712'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

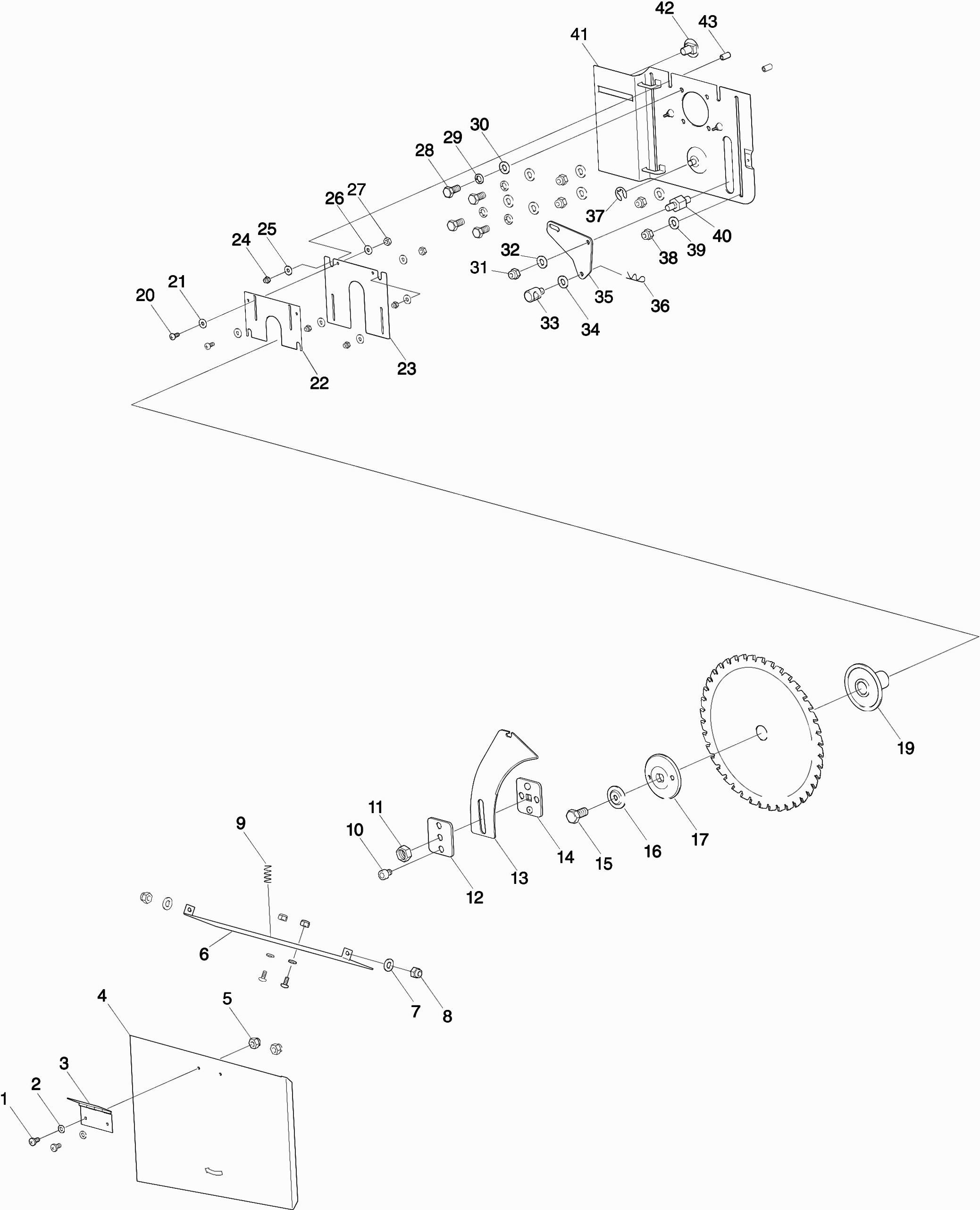

Technical drawing of model Makita 2712
Spare parts list of model Makita 2712
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Met.screw M5 | ||||
| 001 | JM27100031 | 1.20 | 1.45 | |
| Lock washer 5 | ||||
| 002 | JM27100032 | 2.40 | 2.90 | |
| Hinge | ||||
| 003 | JM27100033 | 1.20 | 1.45 | |
| Cover cap a complete | ||||
| 004 | JM27110001 | 10.80 | 13.07 | |
| Makita logo label | ||||
| 004A | JM27180024 | 3.60 | 4.36 | |
| Locknut M5 | ||||
| 005 | JM27100111 | 10.80 | 13.07 | |
| Cover cap B | ||||
| 006 | JM27100035 | 6.00 | 7.26 | |
| Washer 6mm A | ||||
| 007 | 267214-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 008 | JM27100016 | |||
| Compression Spring | ||||
| 009 | JM27100036 | 1.00 | 1.21 | |
| Hex socket head screw M6 | ||||
| 010 | JM27100104 | 1.20 | 1.45 | |
| Borgmoer M12 | ||||
| 011 | JM27100037 | 1.20 | 1.45 | |
| Cavity holder plate | ||||
| 012 | JM27100038 | 2.40 | 2.90 | |
| Riving Knife | ||||
| 013 | JM27100039 | 6.00 | 7.26 | |
| Spac. wedge pla CS 70 EB | ||||
| 014 | JM27100040 | 2.40 | 2.90 | |
| Saw blade bolt M10 | ||||
| 015 | JM27100041 | 13.20 | 15.97 | |
| Flange rivet 10 | ||||
| 016 | JM27100042 | 3.60 | 4.36 | |
| Outer Flange | ||||
| 017 | JM27100043 | 3.60 | 4.36 | |
| Inner Flange | ||||
| 019 | JM27100044 | 6.00 | 7.26 | |
| Met.screw M4 | ||||
| 020 | JM27100047 | 6.00 | 7.26 | |
| Washer 4mm | ||||
| 021 | JM27100046 | 1.20 | 1.45 | |
| Covering hood | ||||
| 022 | JM27100048 | 3.60 | 4.36 | |
| Protective Shield | ||||
| 023 | JM27100049 | 3.60 | 4.36 | |
| Lock nut M4 | ||||
| 024 | JM27100045 | 2.40 | 2.90 | |
| Washer 4mm | ||||
| 025 | JM27100046 | 1.20 | 1.45 | |
| Washer 4mm | ||||
| 026 | JM27100046 | 1.20 | 1.45 | |
| Lock nut M4 | ||||
| 027 | JM27100045 | 2.40 | 2.90 | |
| Hexagon bolt M8 | ||||
| 028 | JM27100050 | 1.20 | 1.45 | |
| Spring spring 8 | ||||
| 029 | JM27100051 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 030 | JM27100052 | 1.20 | 1.45 | |
| Lock nut M8 | ||||
| 031 | JM27100053 | 6.00 | 7.26 | |
| Washer 8mm | ||||
| 032 | JM27100054 | 1.00 | 1.21 | |
| Adjustment pin | ||||
| 033 | JM27100055 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 034 | JM27100106 | 1.00 | 1.21 | |
| Adjustment plate | ||||
| 035 | JM27100057 | 1.00 | 1.21 | |
| Split pin 2 | ||||
| 036 | JM27100056 | 1.20 | 1.45 | |
| Lock washer 10 | ||||
| 037 | JM27100025 | 1.00 | 1.21 | |
| Lock nut M8 | ||||
| 038 | JM27100053 | 6.00 | 7.26 | |
| Washer 8 | ||||
| 039 | JM27100052 | 1.20 | 1.45 | |
| Rod Bolt | ||||
| 040 | JM27100058 | 2.40 | 2.90 | |
| Frame | ||||
| 041 | JM27100072 | 39.60 | 47.92 | |
| Flat Slot Bolt M12 | ||||
| 042 | JM27100073 | 2.40 | 2.90 | |
| Thread insert M4 | ||||
| 043 | JM27100059 | 1.00 | 1.21 | |
| Tap bolt M6 | ||||
| 044 | JM27100011 | 1.20 | 1.45 | |
| Washer 6mm A | ||||
| 045 | 267214-6 | 1.00 | 1.21 | |
| Washer 6mm A | ||||
| 046 | 267214-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 047 | JM27100016 | |||
| Setting Guide Plate | ||||
| 048 | JM27100080 | 14.30 | 17.30 | |
| Cord Clamp | ||||
| 049 | JM27100078 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 050 | JM27100032 | 2.40 | 2.90 | |
| Met.screw M5 | ||||
| 051 | JM27100031 | 1.20 | 1.45 | |
| Retaining Ring E-5 | ||||
| 052 | JM27100079 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 053 | JM27100052 | 1.20 | 1.45 | |
| Lock nut M8 | ||||
| 054 | JM27100053 | 6.00 | 7.26 | |
| Washer 6mm A | ||||
| 055 | 267214-6 | 1.00 | 1.21 | |
| Adjusting Knob | ||||
| 056 | JM27100077 | 4.80 | 5.81 | |
| STELMOER M6 2712 A | ||||
| 057 | JM27100108 | 1.00 | 1.21 | |
| Setting Button Cap | ||||
| 058 | JM27100076 | 4.80 | 5.81 | |
| Allen bolt M8 | ||||
| 059 | JM27100066 | 1.20 | 1.45 | |
| Spacer | ||||
| 060 | JM27100067 | 1.20 | 1.45 | |
| Washer 8mm | ||||
| 061 | JM27100054 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 062 | JM27100016 | |||
| Coupling plate | ||||
| 063 | JM27100068 | 2.40 | 2.90 | |
| Spacer | ||||
| 064 | JM27100069 | 1.20 | 1.45 | |
| NUT M10 | ||||
| 065 | JM27100070 | 2.40 | 2.90 | |
| Lock nut M8 | ||||
| 066 | JM27100053 | 6.00 | 7.26 | |
| Lift rod | ||||
| 067 | JM27100071 | 6.00 | 7.26 | |
| Hex socket bolt M5 | ||||
| 068 | JM27100109 | 1.20 | 1.45 | |
| Washer 5 | ||||
| 069 | JM27100065 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 070 | JM27100032 | 2.40 | 2.90 | |
| Hex socket bolt M5 | ||||
| 071 | JM27100109 | 1.20 | 1.45 | |
| Washer 5 | ||||
| 072 | JM27100065 | 1.00 | 1.21 | |
| Marker Plate | ||||
| 073 | JM27100082 | 1.00 | 1.21 | |
| Washer 8mm | ||||
| 074 | JM27100054 | 1.00 | 1.21 | |
| NUT M8 | ||||
| 075 | JM27100020 | 1.20 | 1.45 | |
| Centering plate B | ||||
| 076 | JM27100083 | 1.00 | 1.21 | |
| Hexagon bolt M8 | ||||
| 077 | JM27100050 | 1.20 | 1.45 | |
| Met.screw M4 | ||||
| 078 | JM27100107 | 1.20 | 1.45 | |
| Met.screw M5 | ||||
| 079 | JM27100031 | 1.20 | 1.45 | |
| Lock washer 5 | ||||
| 080 | JM27100032 | 2.40 | 2.90 | |
| Dust Guide | ||||
| 081 | JM27100063 | 3.60 | 4.36 | |
| Frame | ||||
| 082 | JM27110002 | 39.60 | 47.92 | |
| Makita logo label | ||||
| 082A | JM27180025 | 2.40 | 2.90 | |
| Makita logo label | ||||
| 082C10 | JM27180025 | 2.40 | 2.90 | |
| Scale label 2712 | ||||
| 082C20 | JM00000361 | 2.40 | 2.90 | |
| Holder | ||||
| 083 | JM27100062 | 3.60 | 4.36 | |
| Adjusting Nut | ||||
| 084 | JM27100061 | 2.40 | 2.90 | |
| Lock washer 15 | ||||
| 085 | JM27100060 | 1.00 | 1.21 | |
| Washer 5 | ||||
| 086 | JM27100065 | 1.00 | 1.21 | |
| Hex socket bolt M5 | ||||
| 087 | JM27100109 | 1.20 | 1.45 | |
| Hexagonal bolt M4 | ||||
| 088 | JM27100110 | 1.20 | 1.45 | |
| Inner Hexagon Bolt M8x20mm | ||||
| 089 | JM27100074 | 2.40 | 2.90 | |
| Bolt (square) M6x22 | ||||
| 090 | JM27100075 | 1.20 | 1.45 | |
| Guide Block | ||||
| 091 | JM27100081 | 3.60 | 4.36 | |
| Angle Bracket | ||||
| 092 | JM27100084 | 14.30 | 17.30 | |
| Tap bolt M6 | ||||
| 093 | JM27100011 | 1.20 | 1.45 | |
| Washer 6mm A | ||||
| 094 | 267214-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 095 | JM27100016 | |||
| Washer 6mm A | ||||
| 096 | 267214-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 097 | JM27100001 | |||
| Motor assembly | ||||
| 097-2 | JM27100157 | 287.10 | 347.39 | |
| Capacitor Motor 2712 | ||||
| 097C10 | JM27100159 | 11.00 | 13.31 | |
| Circuit motor 2712 | ||||
| 097C10 | JM27100153 | 4.80 | 5.81 | |
| Capacitor Motor 2712 | ||||
| 097C20 | JM27100159 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 098 | JM27100016 | |||
| Flange bolt M6 | ||||
| 099 | JM27100131 | 1.20 | 1.45 | |
| Support Plate | ||||
| 100 | JM27100089 | 4.80 | 5.81 | |
| Complete longitudinal guide | ||||
| 101 | JM27100101 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 102 | JM27100016 | |||
| Scale | ||||
| 103 | JM27100100 | 3.60 | 4.36 | |
| Slide Rail | ||||
| 104 | JM27100085 | 10.80 | 13.07 | |
| Flange bolt M6 | ||||
| 105 | JM27100131 | 1.20 | 1.45 | |
| Met.screw M6x12mm | ||||
| 106 | JM27100086 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 107 | JM27100016 | |||
| WORK TABLE | ||||
| 108 | JM27110003 | 81.40 | 98.49 | |
| Met.screw M6 X 10mm | ||||
| 109 | JM27100087 | 1.20 | 1.45 | |
| Saw insert plate | ||||
| 110 | JM27100148 | 7.20 | 8.71 | |
| Saw insert plate | ||||
| 110-1 | JM27100148 | 7.20 | 8.71 | |
| Metal screw M5 | ||||
| 111 | JM27100091 | 1.20 | 1.45 | |
| Flange bolt M6 | ||||
| 112 | JM27100131 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 113 | JM27100016 | |||
| Side table | ||||
| 114 | JM27100092 | 56.10 | 67.88 | |
| Flange bolt M6 | ||||
| 115 | JM27100131 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 116 | JM27100016 | |||
| Flat Washer 6 | ||||
| 117 | JM27100093 | 1.00 | 1.21 | |
| Pressure Plate | ||||
| 118 | JM27100094 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 119 | JM27100095 | |||
| No information available, not orderable | ||||
| 120 | JM27100096 | |||
| Connection bolt | ||||
| 121 | JM27100097 | 1.20 | 1.45 | |
| FLAT WASHER 8 | ||||
| 122 | JM27100103 | 1.00 | 1.21 | |
| Locking pin 4mm | ||||
| 123 | JM27100099 | 1.20 | 1.45 | |
| Lock Lever | ||||
| 124 | JM27100098 | 3.60 | 4.36 | |
| Parker 3,5X12 2712 | ||||
| 125 | JM27100105 | 1.00 | 1.21 | |
| Wheel guard compl. | ||||
| 126 | JM27110004 | 19.80 | 23.96 | |
| Lock ring 10mm 2712 | ||||
| 127 | JM27100009 | 1.00 | 1.21 | |
| Flange bolt M6 | ||||
| 128 | JM27100131 | 1.20 | 1.45 | |
| Wheel mounting plate Re | ||||
| 129 | JM27100010 | 3.60 | 4.36 | |
| Wheel | ||||
| 130 | JM27100012 | 15.40 | 18.63 | |
| Locking ring 12mm | ||||
| 131 | JM27100102 | 1.00 | 1.21 | |
| Wheel rod | ||||
| 132 | JM27100013 | 9.60 | 11.62 | |
| Wheel mounting plate Li | ||||
| 133 | JM27100014 | 3.60 | 4.36 | |
| Met.screw M8 | ||||
| 134 | JM27100022 | 1.20 | 1.45 | |
| Foot cap | ||||
| 135 | JM27100021 | 4.80 | 5.81 | |
| NUT M8 | ||||
| 136 | JM27100020 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 137 | JM27100016 | |||
| Washer 6mm A | ||||
| 138 | 267214-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 139 | JM27100016 | |||
| Flange bolt M6 | ||||
| 140 | JM27100131 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 141 | JM27100016 | |||
| Leg | ||||
| 142 | JM27100015 | 15.40 | 18.63 | |
| Stability rod A | ||||
| 143 | JM27100019 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 144 | JM27100016 | |||
| Flange bolt M6 | ||||
| 145 | JM27100131 | 1.20 | 1.45 | |
| Leg A | ||||
| 147 | JM27100024 | 15.40 | 18.63 | |
| Parker St4 | ||||
| 148 | JM27100023 | 1.20 | 1.45 | |
| Stability rod B | ||||
| 149 | JM27100017 | 8.40 | 10.16 | |
| Tap bolt M8 | ||||
| 150 | JM27100029 | 2.40 | 2.90 | |
| Washer 8mm | ||||
| 151 | JM27100054 | 1.00 | 1.21 | |
| Flange bolt M6 | ||||
| 152 | JM27100131 | 1.20 | 1.45 | |
| Mounting plate 1 | ||||
| 153 | JM27100028 | 3.60 | 4.36 | |
| Lock nut M8 | ||||
| 154 | JM27100053 | 6.00 | 7.26 | |
| Rod | ||||
| 155 | JM27100027 | 4.80 | 5.81 | |
| Mounting plate 2 | ||||
| 156 | JM27100026 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 157 | JM27100016 | |||
| Washer 6mm A | ||||
| 158 | 267214-6 | 1.00 | 1.21 | |
| STELMOER M6 2712 A | ||||
| 159 | JM27100108 | 1.00 | 1.21 | |
| Hook | ||||
| 160 | JM27100030 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 161 | JM27100133 | |||
| Parker 3x12mm | ||||
| 162 | JM27100134 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 163 | JM27100135 | |||
| No information available, not orderable | ||||
| 164 | JM27100136 | |||
| No information available, not orderable | ||||
| 165 | JM27100138 | |||
| No information available, not orderable | ||||
| 166 | JM27100140 | |||
| No information available, not orderable | ||||
| 167 | JM27100141 | |||
| Parker 4.2x18mm | ||||
| 168 | JM27100143 | 1.20 | 1.45 | |
| Switch assy | ||||
| 169 | JM27100112 | 52.80 | 63.89 | |
| Mains cable | ||||
| 170 | JM27100003 | 22.00 | 26.62 | |
