Here you will find all available parts and drawings of the 'Makita 2414EN'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

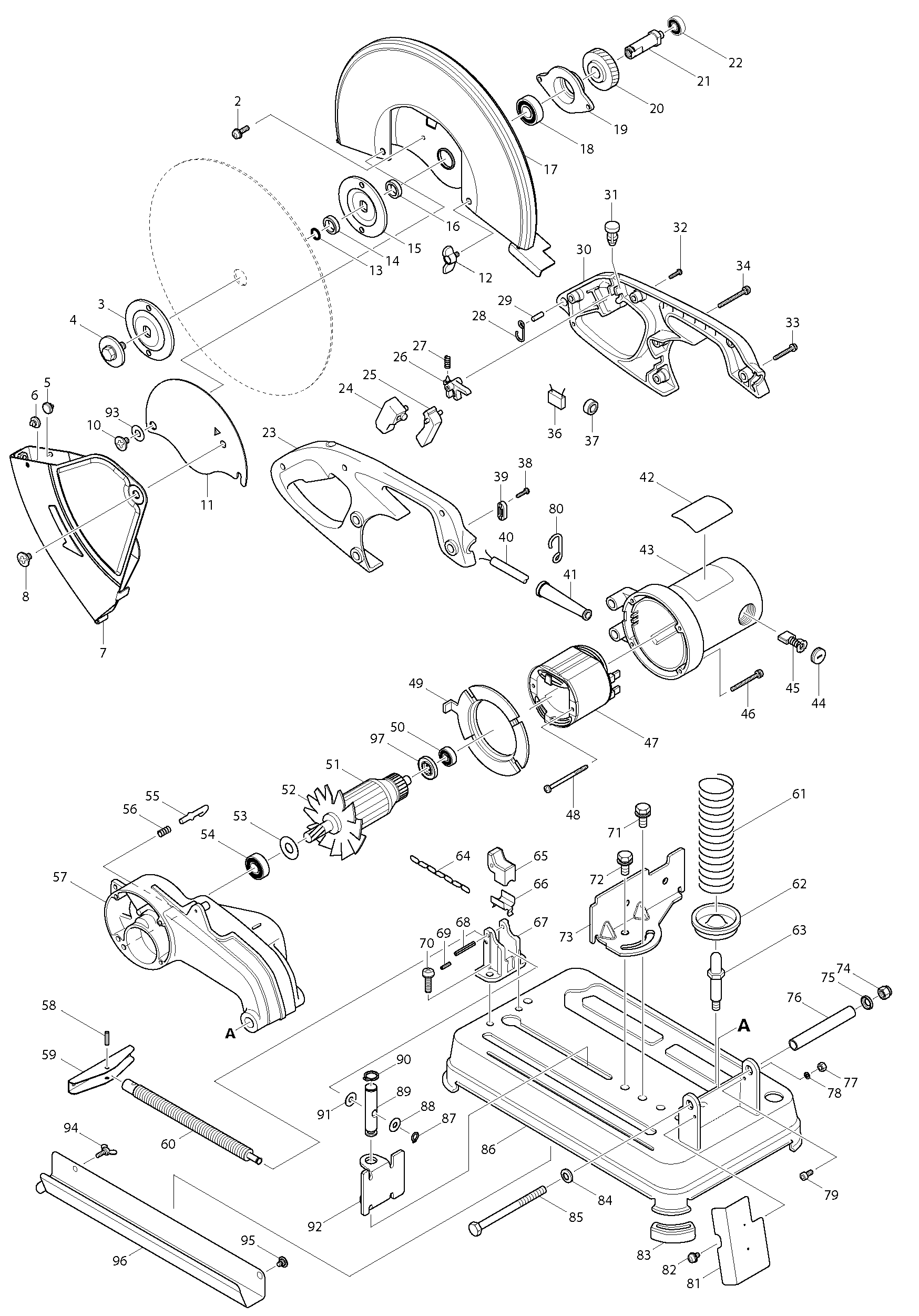

Technical drawing of model Makita 2414EN
Spare parts list of model Makita 2414EN
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 6x20 | ||||
| 002 | 911333-7 | 0.83 | 1.00 | |
| Outer/Inner flange 2414En A | ||||
| 003 | 224456-5 | 3.96 | 4.79 | |
| Hex bolt+Rivet M10X25 | ||||
| 004 | 251680-7 | 3.12 | 3.78 | |
| Cover Bush | ||||
| 005 | 418142-0 | 0.83 | 1.00 | |
| Cover Bush | ||||
| 006 | 418142-0 | 0.83 | 1.00 | |
| Spring protection cap | ||||
| 007 | 165710-7 | 16.35 | 19.78 | |
| Screw M6 | ||||
| 008 | 265121-7 | 0.83 | 1.00 | |
| Screw M6 | ||||
| 010 | 265121-7 | 0.83 | 1.00 | |
| Centering cap | ||||
| 011 | 346639-8 | 4.14 | 5.01 | |
| No information available, not orderable | ||||
| 012 | 265725-5 | |||
| O-ring 14 | ||||
| 013 | 213162-7 | 0.83 | 1.00 | |
| Washer 17mm | ||||
| 014 | 257255-0 | 0.83 | 1.00 | |
| Outer/Inner flange 2414En A | ||||
| 015 | 224456-5 | 3.96 | 4.79 | |
| Washer 17mm | ||||
| 016 | 257255-0 | 0.83 | 1.00 | |
| FIXED PROTECTIVE COVER | ||||
| 017 | 165709-2 | 23.06 | 27.90 | |
| Ball Bearing 6203zz | ||||
| 018 | 211290-2 | 6.38 | 7.72 | |
| Bearing Housing | ||||
| 019 | 316527-3 | 11.34 | 13.72 | |
| Gear 41 | ||||
| 020 | 226415-5 | 21.08 | 25.51 | |
| As 2414B | ||||
| 021 | 322633-4 | 2.48 | 3.00 | |
| Ball bearing 6000 | ||||
| 022 | 211064-1 | 5.71 | 6.91 | |
| Ball Bearing 6000zz | ||||
| 022 | 210067-2 | 1.18 | 1.43 | |
| Handle set | ||||
| 023 | 182628-7 | 20.15 | 24.38 | |
| Switch Sw-131 | ||||
| 024 | 651922-3 | 11.82 | 14.30 | |
| Switch Button | ||||
| 025 | 152463-7 | 3.12 | 3.78 | |
| Locking Button 2414B | ||||
| 026 | 415366-9 | 1.18 | 1.43 | |
| Compression Spring 4 | ||||
| 027 | 231397-8 | 0.83 | 1.00 | |
| Hanger | ||||
| 028 | 281216-8 | 0.83 | 1.00 | |
| Pin 6 | ||||
| 029 | 256012-3 | 0.83 | 1.00 | |
| Handle set | ||||
| 030 | 182628-7 | 20.15 | 24.38 | |
| Unlock button | ||||
| 031 | 417113-4 | 0.98 | 1.19 | |
| Tap screw 4x18 | ||||
| 032 | 265A48-7 | 0.83 | 1.00 | |
| Screw 5x36 | ||||
| 033 | 911258-5 | 0.83 | 1.00 | |
| SCREW 5X50 | ||||
| 034 | 911273-9 | 0.83 | 1.00 | |
| Capacitor 0.22uF | ||||
| 036 | 645190-8 | 2.36 | 2.86 | |
| Line filter | ||||
| 037 | 688131-1 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 038 | 265A48-7 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 039 | 687124-5 | 0.83 | 1.00 | |
| Power cord 2x1.50 4.0mtr | ||||
| 040 | 695123-3 | 21.08 | 25.51 | |
| Cable grommet 10-90 | ||||
| 041 | 682505-8 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 042 | 897914-0 | |||
| Motor Housing | ||||
| 043 | 141788-4 | 24.05 | 29.10 | |
| Field | ||||
| 043A | 632A56-7 | 12.22 | 14.79 | |
| Brush Holder | ||||
| 043B | 643707-1 | 3.96 | 4.79 | |
| Brush holder cap | ||||
| 044 | 643700-5 | 0.98 | 1.19 | |
| Koolborstel Set Cb-203 A | ||||
| 045 | 194991-6 | 6.38 | 7.72 | |
| SCREW 5X50 | ||||
| 046 | 911273-9 | 0.83 | 1.00 | |
| Field | ||||
| 047 | 636008-4 | 41.84 | 50.63 | |
| Zelftapper Pt 5x75 | ||||
| 048 | 266059-9 | 1.24 | 1.50 | |
| Intermediate Plate | ||||
| 049 | 415369-3 | 2.48 | 3.00 | |
| Ball bearing 629llb | ||||
| 050 | 210042-8 | 2.36 | 2.86 | |
| Armature | ||||
| 051 | 510242-3 | 82.76 | 100.14 | |
| Impeller 92 | ||||
| 052 | 241515-0 | 3.11 | 3.76 | |
| Washer 15 | ||||
| 053 | 267714-6 | 1.18 | 1.43 | |
| Ball bearing 6202llb | ||||
| 054 | 211228-7 | 7.22 | 8.74 | |
| Locking Button | ||||
| 055 | 322665-1 | 2.02 | 2.44 | |
| Compression Spring 7 | ||||
| 056 | 231240-1 | 0.83 | 1.00 | |
| Gear Cover | ||||
| 057 | 150916-0 | 99.33 | 120.19 | |
| Rubber pen 6 | ||||
| 057A | 263005-3 | 0.83 | 1.00 | |
| Spring pin 5-20 | ||||
| 058 | 951163-4 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 059 | 272027-2 | |||
| No information available, not orderable | ||||
| 060 | 324323-5 | |||
| Compression Spring 45 | ||||
| 061 | 233113-4 | 12.80 | 15.49 | |
| Spring Holder | ||||
| 062 | 165066-8 | 6.70 | 8.11 | |
| Spring support bolt M10 | ||||
| 063 | 265407-9 | 7.57 | 9.16 | |
| Chain | ||||
| 064 | 282015-1 | 1.39 | 1.68 | |
| Screw spindle | ||||
| 065 | 313114-9 | 3.54 | 4.28 | |
| Spindle Nut Plate | ||||
| 066 | 345311-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 067 | 317662-0 | |||
| Scoring Pin 5-36 | ||||
| 068 | 951175-7 | 0.83 | 1.00 | |
| Spring Pin 4-16 | ||||
| 069 | 951110-5 | 0.83 | 1.00 | |
| Met.screw M8x30mm | ||||
| 070 | 265125-9 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 071 | 265201-9 | |||
| No information available, not orderable | ||||
| 072 | 265201-9 | |||
| No information available, not orderable | ||||
| 073 | 346637-2 | |||
| Nut M10-17 | ||||
| 074 | 264005-6 | 1.39 | 1.68 | |
| Washer 10 | ||||
| 075 | 267713-8 | 0.98 | 1.19 | |
| Bus 16-113 | ||||
| 076 | 331428-4 | 5.71 | 6.91 | |
| Hex Nut M6 | ||||
| 077 | 931302-2 | 0.83 | 1.00 | |
| Spring Washer 6 A | ||||
| 078 | 253903-9 | 0.83 | 1.00 | |
| Hex socket head screw M6x12 | ||||
| 079 | 922312-0 | 0.83 | 1.00 | |
| Hook | ||||
| 080 | 322049-3 | 0.83 | 1.00 | |
| Spark arrestor | ||||
| 081 | 165705-0 | 1.67 | 2.02 | |
| Metal screw M6x10mm | ||||
| 082 | 911308-6 | 0.83 | 1.00 | |
| Protection Corner 2414N/Nb | ||||
| 083 | 421487-7 | 1.18 | 1.43 | |
| Washer 10 | ||||
| 084 | 267713-8 | 0.98 | 1.19 | |
| Hex bolt 10x130 | ||||
| 085 | 265406-1 | 4.45 | 5.38 | |
| Washer 6mm A | ||||
| 093 | 267214-6 | 0.83 | 1.00 | |
| Wing Bolt 6x10 | ||||
| 094 | 924306-1 | 0.83 | 1.00 | |
| Hexagonal Bolt M6 | ||||
| 095 | 265985-9 | 1.39 | 1.68 | |
| Lower Plate | ||||
| 096 | 345292-7 | 9.24 | 11.18 | |
| Insulating Washer Uc35/40/4530A A | ||||
| 097 | 681666-1 | 1.02 | 1.23 | |
