Here you will find all available parts and drawings of the 'Makita 2414'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

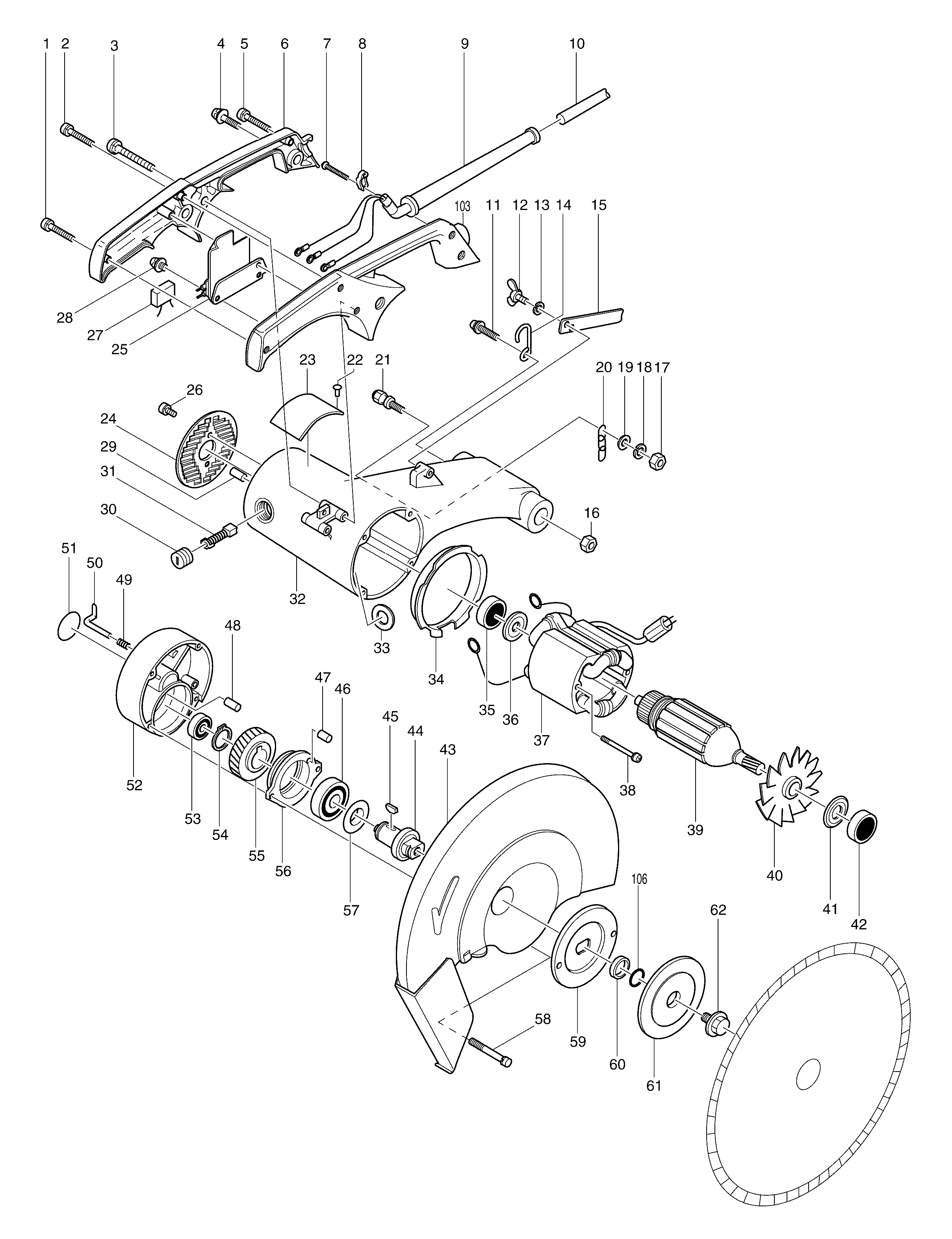

Technical drawing of model Makita 2414
Spare parts list of model Makita 2414
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 4x30 | ||||
| 001 | 911156-3 | 1.00 | 1.21 | |
| Screw 4x30 | ||||
| 002 | 911156-3 | 1.00 | 1.21 | |
| Screw 5x55 | ||||
| 003 | 911276-3 | 1.00 | 1.21 | |
| Screw 5x30 | ||||
| 004 | 911251-9 | 1.00 | 1.21 | |
| Screw 4x25 | ||||
| 005 | 911146-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 006 | 181656-9 | -1.00 | -1.21 | |
| No information available, not orderable | ||||
| 007 | 182752-6 | -1.00 | -1.21 | |
| Clamp Bracket | ||||
| 008 | 687001-1 | 1.00 | 1.21 | |
| Cable grommet 12-200 | ||||
| 009 | 682507-4 | 3.60 | 4.36 | |
| Power cord 3x1.00 5.0mtr | ||||
| 010 | 666333-9 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 011 | 911311-7 | 0.00 | 0.00 | |
| Hook | ||||
| 012 | 322049-3 | 1.20 | 1.45 | |
| Wing nut M5x10mm - 164095-8 | ||||
| 013 | 265760-3 | 1.00 | 1.21 | |
| Spring washer 5MM DLS211 | ||||
| 014 | 253427-5 | 1.00 | 1.21 | |
| Spacer 2414-241K * | ||||
| 015 | 341395-5 | 1.20 | 1.45 | |
| Hex Nut M6 | ||||
| 016 | 931302-2 | 1.00 | 1.21 | |
| Hex Nut M6 | ||||
| 017 | 931302-2 | 1.00 | 1.21 | |
| Spring Washer 6 A | ||||
| 018 | 253903-9 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 019 | 253011-6 | 1.00 | 1.21 | |
| Chain 2414 * | ||||
| 020 | 282013-5 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 021 | 265380-3 | -1.00 | -1.21 | |
| Stator spring Cb5 | ||||
| 022 | 654020-2 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 2mm | ||||
| 023 | 654502-4 | 1.00 | 1.21 | |
| Rear Cover * | ||||
| 024 | 284010-7 | 3.60 | 4.36 | |
| Switch Sw-02 | ||||
| 025 | 651017-2 | 16.50 | 19.96 | |
| Screw 5x12 | ||||
| 026 | 911215-3 | 1.00 | 1.21 | |
| Screw M4x5 | ||||
| 028 | 265132-2 | 1.00 | 1.21 | |
| Met.Screw Ck M4x6mm | ||||
| 028 | 911104-2 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 029 | 263002-9 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 030 | 643650-4 | 1.20 | 1.45 | |
| Carbon Brush Set Cb-153 | ||||
| 031 | 194985-1 | 4.80 | 5.81 | |
| Complete Motor Housing 2414 * | ||||
| 032 | 156446-9 | 176.00 | 212.96 | |
| Insulation ring | ||||
| 033 | 681002-1 | 1.00 | 1.21 | |
| Fan Guide | ||||
| 034 | 343299-7 | 2.40 | 2.90 | |
| Ball bearing 6200llb | ||||
| 035 | 211066-7 | 4.80 | 5.81 | |
| Dust seal 10 | ||||
| 036 | 213051-6 | 1.20 | 1.45 | |
| Field | ||||
| 037 | 524493-2 | 77.00 | 93.17 | |
| Screw 5x85 | ||||
| 038 | 911938-3 | 1.20 | 1.45 | |
| Armature | ||||
| 039 | 514543-1 | 104.50 | 126.44 | |
| Dust Seal 15 | ||||
| 041 | 213202-1 | 1.20 | 1.45 | |
| Ball bearing 6202llb | ||||
| 042 | 211228-7 | 8.40 | 10.16 | |
| Guard | ||||
| 043 | 168128-1 | 100.10 | 121.12 | |
| No longer available, no replacement | ||||
| 044 | 325517-5 | 0.00 | 0.00 | |
| Inlegspie 5 | ||||
| 045 | 254032-1 | 2.40 | 2.90 | |
| Ball Bearing 6204 | ||||
| 046 | 211306-3 | 10.80 | 13.07 | |
| Rubber pen 6 | ||||
| 047 | 263005-3 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 048 | 263002-9 | 1.00 | 1.21 | |
| Compression Spring 7 | ||||
| 049 | 231240-1 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 050 | 325518-3 | 0.00 | 0.00 | |
| O-ring 35 | ||||
| 051 | 213460-9 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 052 | 157331-9 | -1.00 | -1.21 | |
| Ball bearing 6000llb | ||||
| 053 | 211061-7 | 8.40 | 10.16 | |
| Lock Ring S-20 | ||||
| 054 | 961060-6 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 055 | 221628-3 | 0.00 | 0.00 | |
| Bearing Housing | ||||
| 056 | 157026-4 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 057 | 253755-8 | -1.00 | -1.21 | |
| Screw 5x55 | ||||
| 058 | 911276-3 | 1.00 | 1.21 | |
| Inner Flange 120 2414 * | ||||
| 059 | 224141-0 | 17.60 | 21.30 | |
| Washer 20 | ||||
| 060 | 257054-0 | 2.40 | 2.90 | |
| Outer Flange 120 | ||||
| 061 | 224142-8 | 17.60 | 21.30 | |
| Hex bolt+Rivet M10X25 | ||||
| 062 | 251680-7 | 3.60 | 4.36 | |
| Washer 24 | ||||
| 063 | 253751-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 064 | 251683-1 | -1.00 | -1.21 | |
| Lock Washer M8 | ||||
| 065 | 942201-3 | 1.00 | 1.21 | |
| Cover cap (L) 2414 * | ||||
| 066 | 345141-8 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 067 | 251683-1 | -1.00 | -1.21 | |
| Lock Washer M8 | ||||
| 068 | 942201-3 | 1.00 | 1.21 | |
| Cover cap (R) 2414 * | ||||
| 069 | 345142-6 | 16.50 | 19.96 | |
| Washer 24 | ||||
| 070 | 253751-6 | 1.00 | 1.21 | |
| Pipe 24 2414 * | ||||
| 071 | 331087-4 | 16.50 | 19.96 | |
| Torsion spring 26 * | ||||
| 072 | 231526-3 | 8.40 | 10.16 | |
| Lock Washer M10 | ||||
| 073 | 942251-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 074 | 265201-9 | -1.00 | -1.21 | |
| Washer 10x1.6mm 1901/02 | ||||
| 075 | 941251-5 | 1.00 | 1.21 | |
| Guide plate 2414 * | ||||
| 076 | 345145-0 | 17.60 | 21.30 | |
| Screw 6x20 | ||||
| 077 | 911333-7 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 078 | 253111-2 | 1.00 | 1.21 | |
| Rubber Support 6 | ||||
| 079 | 421277-8 | 2.40 | 2.90 | |
| Cap 2414 * | ||||
| 080 | 342498-8 | 2.40 | 2.90 | |
| Lever 130 2414 * | ||||
| 081 | 272014-1 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 082 | 951169-2 | -1.00 | -1.21 | |
| Pedal | ||||
| 083 | 132385-7 | 147.40 | 178.35 | |
| No information available, not orderable | ||||
| 084 | 931401-0 | -1.00 | -1.21 | |
| Lock Washer M8 | ||||
| 085 | 942201-3 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 086 | 253752-4 | 1.00 | 1.21 | |
| Leaf Spring * | ||||
| 087 | 232047-8 | 1.20 | 1.45 | |
| Washer 6 | ||||
| 088 | 253011-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 089 | 911317-5 | -1.00 | -1.21 | |
| Clamping Plate 2414 * | ||||
| 090 | 342495-4 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 091 | 251679-2 | -1.00 | -1.21 | |
| Cover Cap 2414 * | ||||
| 092 | 342497-0 | 6.00 | 7.26 | |
| Washer 12 | ||||
| 093 | 253052-2 | 1.00 | 1.21 | |
| Connection Terminal 2414 * | ||||
| 094 | 342496-2 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 095 | 911452-9 | -1.00 | -1.21 | |
| Washer 12 | ||||
| 096 | 253744-3 | 1.00 | 1.21 | |
| Clamping nut 2414 * | ||||
| 097 | 311402-8 | 9.60 | 11.62 | |
| Spring Pin 4-20 | ||||
| 098 | 951116-3 | 1.00 | 1.21 | |
| Clamping Screw 2414 * | ||||
| 099 | 323689-0 | 9.60 | 11.62 | |
| STOPRING E-6 A | ||||
| 100 | 961012-7 | 1.00 | 1.21 | |
| Knob 20mm | ||||
| 101 | 271607-1 | 1.20 | 1.45 | |
| Pen 8mm | ||||
| 102 | 256614-5 | 1.20 | 1.45 | |
