Here you will find all available parts and drawings of the 'Makita 1805B'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

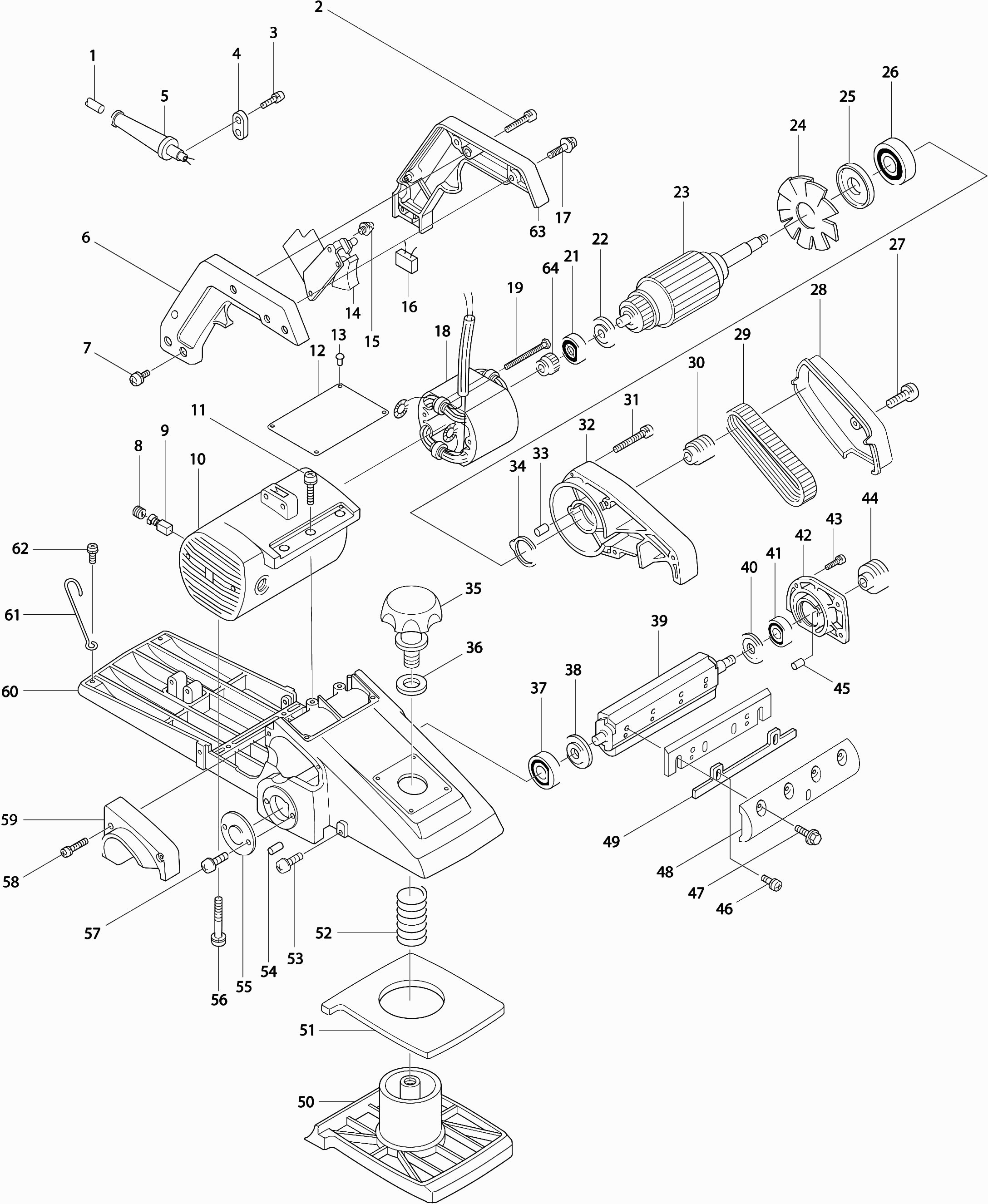

Technical drawing of model Makita 1805B
Spare parts list of model Makita 1805B
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Power cord 2x1.50 4.0mtr | ||||
| 001 | 695123-3 | 22.00 | 26.62 | |
| Screw 4x30 | ||||
| 002 | 911156-3 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 003 | 911131-9 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 004 | 687001-1 | 1.00 | 1.21 | |
| Cable grommet 12-200 | ||||
| 005 | 682507-4 | 3.60 | 4.36 | |
| Handle set 1805B * | ||||
| 006 | 181151-9 | 16.50 | 19.96 | |
| Screw 5x12 | ||||
| 007 | 911215-3 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 008 | 643650-4 | 1.20 | 1.45 | |
| Carbon Brush Set Cb-153 | ||||
| 009 | 194985-1 | 4.80 | 5.81 | |
| Motor Housing | ||||
| 010 | 156414-2 | 35.20 | 42.59 | |
| Screw 5x18 | ||||
| 011 | 911230-7 | 1.20 | 1.45 | |
| Switch Sw-02 | ||||
| 014 | 651017-2 | 16.50 | 19.96 | |
| Screw M4x5 | ||||
| 015 | 265132-2 | 1.00 | 1.21 | |
| Met.Screw Ck M4x6mm | ||||
| 015 | 911104-2 | 0.83 | 1.00 | |
| Screw 5x30 | ||||
| 017 | 911251-9 | 1.00 | 1.21 | |
| Field | ||||
| 018 | 523025-2 | 52.80 | 63.89 | |
| No information available, not orderable | ||||
| 019 | 925297-9 | |||
| Rubber Pin 4 | ||||
| 020 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 6200dw | ||||
| 021 | 211087-9 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 022 | 681603-5 | |||
| Armature | ||||
| 023 | 513388-4 | 88.00 | 106.48 | |
| Nut M16 | ||||
| 025 | 252605-4 | 3.60 | 4.36 | |
| Ball Bearing 6201dw1 | ||||
| 026 | 211129-9 | 8.40 | 10.16 | |
| Screw 5x10 | ||||
| 027 | 911209-8 | 1.00 | 1.21 | |
| Guard | ||||
| 028 | 343301-6 | 14.30 | 17.30 | |
| No information available, not orderable | ||||
| 028-1 | 347B54-1 | |||
| V-belt 6-304 | ||||
| 029 | 225042-5 | 14.30 | 17.30 | |
| Drive belt | ||||
| 030 | 222007-8 | 6.00 | 7.26 | |
| Screw 5x40 | ||||
| 031 | 911263-2 | 1.00 | 1.21 | |
| End Shield | ||||
| 032 | 152214-8 | 13.20 | 15.97 | |
| Rubber pen 6 | ||||
| 033 | 263005-3 | 1.00 | 1.21 | |
| Washer 26 1805B * | ||||
| 034 | 341384-0 | 1.20 | 1.45 | |
| Knob 62 1805B * | ||||
| 035 | 271249-1 | 9.60 | 11.62 | |
| Washer 13 * | ||||
| 036 | 253004-3 | 1.20 | 1.45 | |
| Ball bearing 6200llb | ||||
| 037 | 211066-7 | 4.80 | 5.81 | |
| Washer 10 1805B | ||||
| 038 | 341376-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 039 | 161056-9 | |||
| Washer 12 1805B | ||||
| 040 | 341377-7 | 2.40 | 2.90 | |
| Ball Bearing 6201dw1 | ||||
| 041 | 211129-9 | 8.40 | 10.16 | |
| End Shield | ||||
| 042 | 157024-8 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 042-1 | 159942-6 | |||
| Screw 4x14 | ||||
| 043 | 911123-8 | 1.00 | 1.21 | |
| V-belt pulley 6-30 | ||||
| 044 | 222006-0 | 7.20 | 8.71 | |
| Rubber pen 6 | ||||
| 045 | 263005-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 046 | 251246-3 | |||
| Flange bolt M6x17 | ||||
| 047 | 251609-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048 | 345027-6 | |||
| Adjustment plate | ||||
| 049 | 342165-5 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 050 | 312927-5 | |||
| Rubber Gasket 1805B * | ||||
| 051 | 421143-9 | 6.00 | 7.26 | |
| Compression Spring 24 * | ||||
| 052 | 231233-8 | 2.40 | 2.90 | |
| Screw 5x10 | ||||
| 053 | 911209-8 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 054 | 263002-9 | 1.00 | 1.21 | |
| Bearing Cover | ||||
| 055 | 285004-5 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 055-1 | 285022-3 | |||
| Screw 5x35 | ||||
| 056 | 911256-9 | 1.00 | 1.21 | |
| Screw 5x10 | ||||
| 057 | 911209-8 | 1.00 | 1.21 | |
| Screw 4x30 | ||||
| 058 | 911156-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 059 | 315371-5 | |||
| Motor Frame 1805B * | ||||
| 060 | 156400-3 | 176.00 | 212.96 | |
| Cable Spring 1805B * | ||||
| 061 | 281007-7 | 1.20 | 1.45 | |
| Screw 6X16 | ||||
| 062 | 911324-8 | 1.00 | 1.21 | |
| Stator spring Cb5 | ||||
| 064 | 654020-2 | 1.20 | 1.45 | |
| Clamping bushing for statorv. 2mm | ||||
| 065 | 654502-4 | 1.00 | 1.21 | |
