Here you will find all available parts and drawings of the 'Makita 1051D'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

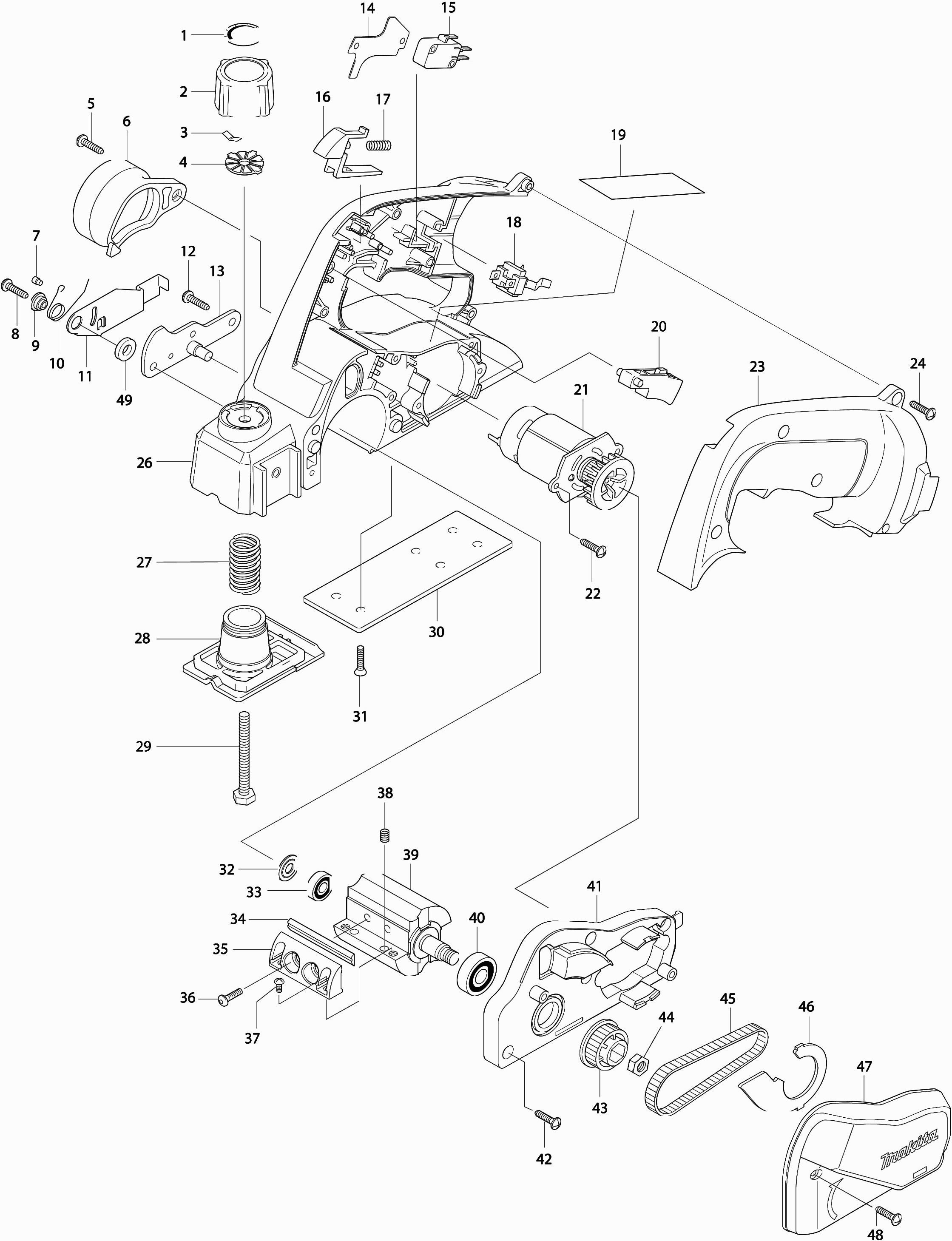

Technical drawing of model Makita 1051D
Spare parts list of model Makita 1051D
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 816346-2 | |||
| Knob 35 1050Dw * | ||||
| 002 | 271312-0 | 6.38 | 7.72 | |
| Leaf Spring | ||||
| 003 | 232185-6 | 2.02 | 2.44 | |
| Crown plate 1050Dw * | ||||
| 004 | 344710-2 | 2.71 | 3.28 | |
| Tap screw 4x18 | ||||
| 005 | 265A48-7 | 0.83 | 1.00 | |
| Stofafzuigadapter schaaf | ||||
| 006 | 416787-8 | 2.00 | 2.42 | |
| Spring pin 3-8 | ||||
| 007 | 951051-5 | 0.83 | 1.00 | |
| Tapping screw Pt4x20 | ||||
| 008 | 266045-0 | 0.83 | 1.00 | |
| Washer with Collar 4 1050Dw * | ||||
| 009 | 257215-2 | 1.39 | 1.68 | |
| Torsion spring 10 | ||||
| 010 | 231504-3 | 0.83 | 1.00 | |
| Protective cap 1050Dw * | ||||
| 011 | 344708-9 | 5.06 | 6.12 | |
| Tap screw 4x18 | ||||
| 012 | 265A48-7 | 0.83 | 1.00 | |
| Chisel holder 1050Dw * | ||||
| 013 | 165242-4 | 9.24 | 11.18 | |
| Wire Holder 1050DW * | ||||
| 014 | 413074-6 | 0.83 | 1.00 | |
| Switch | ||||
| 015 | 651942-7 | 5.30 | 6.41 | |
| Lock Handle 1050Dw * | ||||
| 016 | 416789-4 | 3.12 | 3.78 | |
| No information available, not orderable | ||||
| 017 | 233194-8 | |||
| Battery connector piece | ||||
| 018 | 643909-9 | 3.12 | 3.78 | |
| No information available, not orderable | ||||
| 019 | 852332-9 | |||
| Switch Handle 1050Dw * | ||||
| 020 | 416788-6 | 3.12 | 3.78 | |
| DC Motor 14.4V | ||||
| 021 | 629759-6 | 33.35 | 40.35 | |
| Pulley 7.5-13.5 1050Dw * | ||||
| 021A | 222151-1 | 17.40 | 21.05 | |
| Motor mount 1050Dw * | ||||
| 021B | 344709-7 | 4.44 | 5.37 | |
| Screw 3x8 | ||||
| 021C | 911008-8 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 022 | 265A48-7 | 0.83 | 1.00 | |
| Handle cover 1051Dw * | ||||
| 023 | 417222-9 | 11.82 | 14.30 | |
| Tap screw 4x18 | ||||
| 024 | 265A48-7 | 0.83 | 1.00 | |
| Motor Frame * | ||||
| 026 | 417221-1 | 30.70 | 37.15 | |
| Compression spring 15 1050Dw * | ||||
| 027 | 231356-2 | 1.20 | 1.45 | |
| Sole Plate 1050Dw * | ||||
| 028 | 317119-1 | 23.04 | 27.88 | |
| Hex head bolt M6x60mm | ||||
| 029 | 921382-6 | 0.83 | 1.00 | |
| Rear sole 1050Dw * | ||||
| 030 | 344707-1 | 5.06 | 6.12 | |
| No information available, not orderable | ||||
| 031 | 912127-3 | |||
| Bearing Lock 6-18 1050Dw * | ||||
| 032 | 285691-0 | 2.02 | 2.44 | |
| Ball bearing 626llb | ||||
| 033 | 211016-2 | 5.71 | 6.91 | |
| HM wisselbeitels 50mm | ||||
| 034 | A-85400 | 7.00 | 8.47 | |
| Chisel clamping plate 1050Dw * | ||||
| 035 | 310073-8 | 23.04 | 27.88 | |
| Allen bolt M6x17 | ||||
| 036 | 265484-1 | 0.83 | 1.00 | |
| Screw 4X10 1050Dw * | ||||
| 037 | 265069-3 | 0.83 | 1.00 | |
| Compression Spring 3 | ||||
| 038 | 231317-2 | 0.83 | 1.00 | |
| Chisel Roller 1050Dw * | ||||
| 039 | 161134-5 | 105.51 | 127.67 | |
| Ball bearing 6000ddw | ||||
| 040 | 211088-7 | 5.06 | 6.12 | |
| Bearing Plate 1050Dw * | ||||
| 041 | 416785-2 | 9.26 | 11.20 | |
| Tap screw 4x18 | ||||
| 042 | 265A48-7 | 0.83 | 1.00 | |
| Pulley 8-30 1050Dw * | ||||
| 043 | 222152-9 | 12.22 | 14.79 | |
| NUT M8 | ||||
| 044 | 931402-8 | 0.83 | 1.00 | |
| Belt 6x210 | ||||
| 045 | 225082-3 | 5.30 | 6.41 | |
| Intermediate plate 1050Dw * | ||||
| 046 | 344711-0 | 2.02 | 2.44 | |
| Belt Cover 1050Dw * | ||||
| 047 | 416786-0 | 9.24 | 11.18 | |
| Tap screw 4x18 | ||||
| 048 | 265A48-7 | 0.83 | 1.00 | |
| 4 Washer | ||||
| 049 | 941051-3 | 0.83 | 1.00 | |
