Here you will find all available parts and drawings of the 'Hikoki WR9DM2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

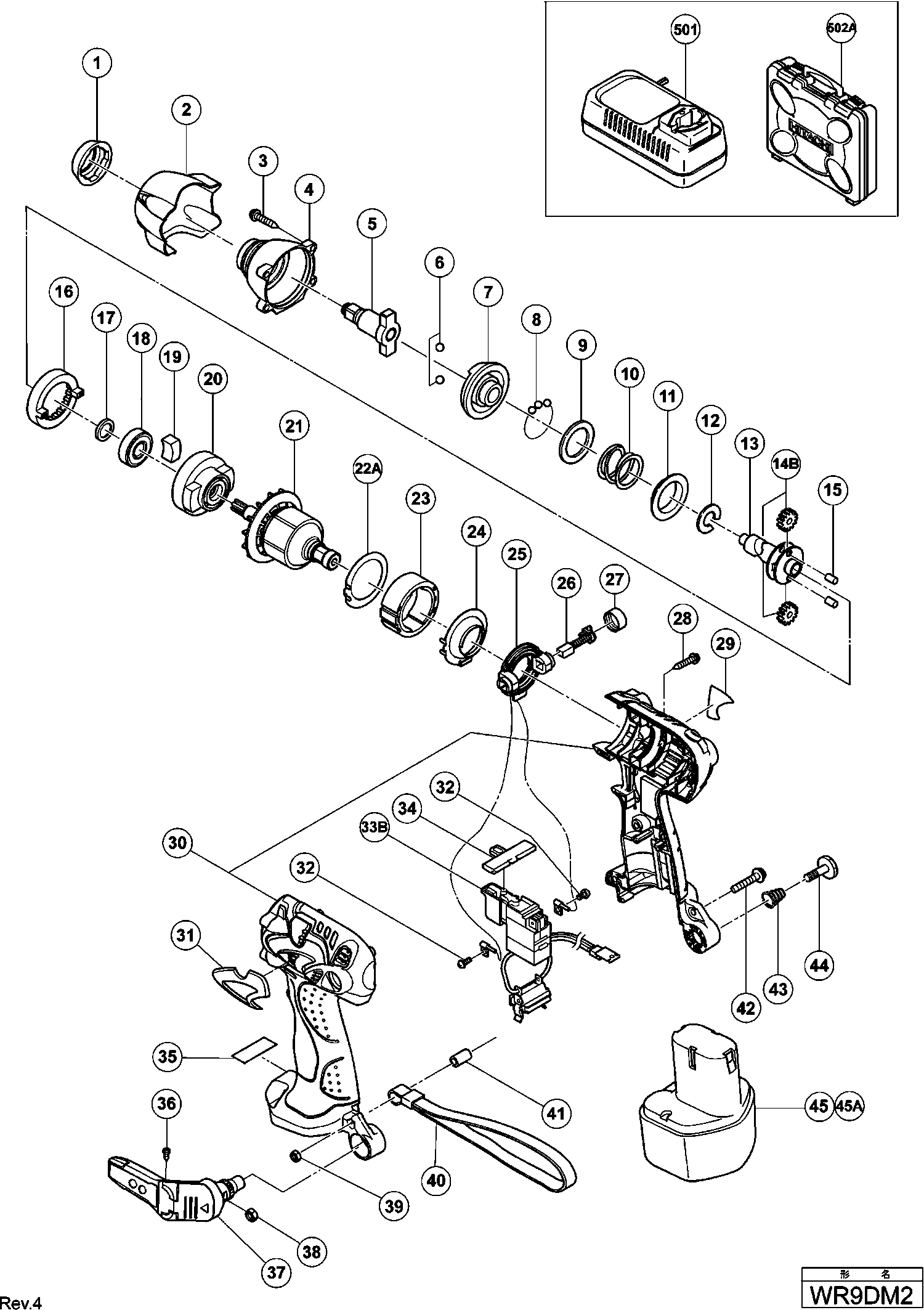

Technical drawing of model Hikoki WR9DM2
Spare parts list of model Hikoki WR9DM2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 322243 | |||
| Insulating Sleeve | ||||
| 2 | 322731 | 6.45 | 7.80 | |
| Tapping Screw (w/sp. Washer) D4x25(black | ||||
| 3 | 319917 | 1.65 | 2.00 | |
| Front Case | ||||
| 4 | 322172 | 40.84 | 49.41 | |
| No information available, not orderable | ||||
| 5 | 322732 | |||
| Steel Ball D5.556 (10 Pcs.) | ||||
| 6 | 959154 | 1.35 | 1.63 | |
| No longer available, no replacement | ||||
| 7 | 322730 | |||
| Steel Ball D3.175 (10 Pcs.) | ||||
| 8 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 9 | 315978 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 10 | 320407 | |||
| Washer | ||||
| 11 | 316172 | 1.65 | 2.00 | |
| Stopper | ||||
| 12 | 316171 | 4.35 | 5.26 | |
| Spindle Ass'y | ||||
| 13 | 321666 | 32.18 | 38.93 | |
| Idle Gear Set (2 Pcs.) | ||||
| 14B | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 15 | 319914 | 1.65 | 2.00 | |
| Gear | ||||
| 16 | 320877 | 18.15 | 21.96 | |
| Ring | ||||
| 17 | 319911 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 18 | 6901VV | |||
| Damper | ||||
| 19 | 319909 | 4.80 | 5.81 | |
| Inner Cover (a) | ||||
| 20 | 321664 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 21 | 360642 | |||
| Side Yoke (old 321659) | ||||
| 22A | 323327 | 1.65 | 2.00 | |
| Magnet (d) Wh12dm2 | ||||
| 23 | 321668 | 41.53 | 50.25 | |
| No information available, not orderable | ||||
| 24 | 321663 | |||
| Brush Block | ||||
| 25 | 321662 | 10.95 | 13.25 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 26 | 999054 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 27 | 319918 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 28 | 302086 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 30 | 322751 | |||
| No information available, not orderable | ||||
| 31 | 322753 | |||
| Machine Screw (w/sp. Washer) M3x5 | ||||
| 32 | 994532 | 1.04 | 1.26 | |
| Switch (Old 319906) | ||||
| 33B | 324829 | 32.18 | 38.93 | |
| Pushing Button (a) | ||||
| 34 | 321661 | 1.65 | 2.00 | |
| Tapping Screw D2x6 | ||||
| 36 | 321672 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 37 | 321918 | |||
| Nut M5 | ||||
| 38 | 320288 | 1.65 | 2.00 | |
| Lock Nut M4 (10 Pcs.) | ||||
| 39 | 949565 | 1.05 | 1.27 | |
| Strap (black) | ||||
| 40 | 306952 | 4.05 | 4.90 | |
| Sleeve (a) | ||||
| 41 | 322718 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 42 | 676386 | |||
| Hook Spring | ||||
| 43 | 319926 | 1.65 | 2.00 | |
| Screw M5 | ||||
| 44 | 319927 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 45 | 310451 | |||
| No information available, not orderable | ||||
| 45A | 318368 | |||
| No information available, not orderable | ||||
| 502A | 322070 | |||
| No information available, not orderable | ||||
| 601 | 996125 | |||
| No information available, not orderable | ||||
| 602 | 996124 | |||
| O-ring (p-16) | ||||
| 603 | 873095 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 604 | 996126 | |||
| No information available, not orderable | ||||
| 605 | 996127 | |||
| No information available, not orderable | ||||
| 606 | 996128 | |||
| No information available, not orderable | ||||
| 607 | 996123 | |||
| O-ring (P-18) | ||||
| 608 | 873570 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 609 | 996129 | |||
| No information available, not orderable | ||||
| 610 | 996130 | |||
| No information available, not orderable | ||||
| 611 | 996131 | |||
| No information available, not orderable | ||||
| 612 | 996132 | |||
| No information available, not orderable | ||||
| 613 | 996133 | |||
| No information available, not orderable | ||||
| 614 | 996134 | |||
| No information available, not orderable | ||||
| 615 | 996135 | |||
| No information available, not orderable | ||||
| 616 | 996136 | |||
| No information available, not orderable | ||||
| 617 | 996137 | |||
| No information available, not orderable | ||||
| 618 | 996138 | |||
| No information available, not orderable | ||||
| 619 | 996139 | |||
| No information available, not orderable | ||||
| 620 | 996140 | |||
| No information available, not orderable | ||||
| 621 | 996141 | |||
| No information available, not orderable | ||||
| 622 | 996142 | |||
| No information available, not orderable | ||||
| 623 | 996143 | |||
| No information available, not orderable | ||||
| 624 | 996144 | |||
| No information available, not orderable | ||||
| 625 | 996145 | |||
| No information available, not orderable | ||||
| 626 | 996147 | |||
| No information available, not orderable | ||||
| 627 | 996163 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 628 | 309922 | 73.01 | 88.35 | |
