Here you will find all available parts and drawings of the 'Hikoki WR36DA'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

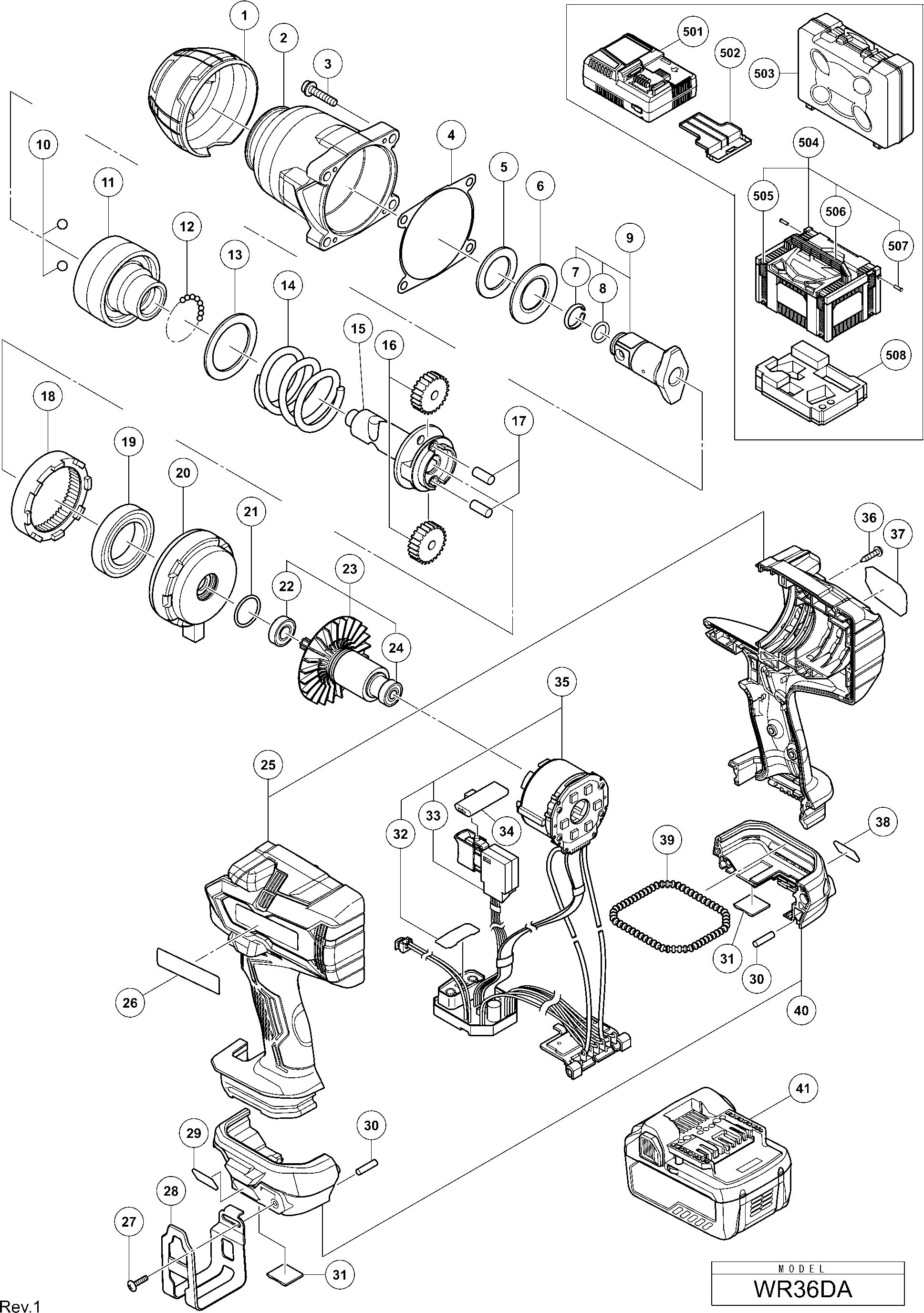

Technical drawing of model Hikoki WR36DA
Spare parts list of model Hikoki WR36DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Front cap | ||||
| 1 | 373036 | 4.20 | 5.08 | |
| Hammer Case | ||||
| 2 | 373037 | 27.50 | 33.28 | |
| HEX. SOCKET HD. BOLT M6X30 (W/FLANGE) | ||||
| 3 | 373377 | 1.05 | 1.27 | |
| Packing | ||||
| 4 | 373302 | 1.05 | 1.27 | |
| Thrust Damper | ||||
| 5 | 373045 | 1.80 | 2.18 | |
| Washer (f) | ||||
| 6 | 373044 | 2.10 | 2.54 | |
| Friction ring (C) | ||||
| 7 | 373034 | 9.15 | 11.07 | |
| O-ring (1ap-12) | ||||
| 8 | 996407 | 1.05 | 1.27 | |
| Anvil (A) | ||||
| 9 | 373033 | 76.59 | 92.67 | |
| Steel Ball D7.14 (10 pieces) | ||||
| 10 | 959151 | 1.35 | 1.63 | |
| HAMMER | ||||
| 11 | 373043 | 18.15 | 21.96 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 12 | 959155 | 1.04 | 1.26 | |
| WASHER (J) | ||||
| 13 | 373038 | 2.10 | 2.54 | |
| Hammer Spring (k) | ||||
| 14 | 373042 | 17.46 | 21.13 | |
| SPINDLE | ||||
| 15 | 373048 | 14.58 | 17.64 | |
| Idle Gear Set (2 Pcs.) | ||||
| 16 | 373300 | 14.58 | 17.64 | |
| NEEDLE ROLLER | ||||
| 17 | 373049 | 1.04 | 1.26 | |
| RING GEAR NEW | ||||
| 18 | 373047 | 5.10 | 6.17 | |
| Ball Bearing 61907 (gb) | ||||
| 19 | 334310 | 14.25 | 17.24 | |
| INNER COVER NEW | ||||
| 20 | 373046 | 7.65 | 9.26 | |
| O-ring (i.d 21.5) | ||||
| 21 | 887302 | 1.80 | 2.18 | |
| Ball Bearing (1) | ||||
| 22 | 371033 | 3.15 | 3.81 | |
| Rotor Ass'y Includ.23 | ||||
| 23 | 361077 | 42.90 | 51.91 | |
| Ball Bearing 607vv | ||||
| 24 | 607VVC | 5.70 | 6.90 | |
| Housing Set (a+b) | ||||
| 25 | 373031 | 22.83 | 27.62 | |
| TRUSS HD. SCREW M4 (BLACK) | ||||
| 27 | 373378 | 1.04 | 1.26 | |
| Hook (1) | ||||
| 28 | 373035 | 6.60 | 7.99 | |
| REAR BUMPER | ||||
| 30 | 373041 | 1.04 | 1.26 | |
| SIDE BUMPER | ||||
| 31 | 373040 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 33 | 339217 | |||
| Pushing Button | ||||
| 34 | 373301 | 1.04 | 1.26 | |
| Wiring Ass'y Includ.34 | ||||
| 35 | 373029 | 170.64 | 206.47 | |
| Tapping Screw (w/flange) D4x20 | ||||
| 36 | 339250 | 1.04 | 1.26 | |
| JOINT RUBBER | ||||
| 39 | 373039 | 2.10 | 2.54 | |
| Housing Set (c+d) | ||||
| 40 | 373032 | 8.55 | 10.35 | |
| No information available, not orderable | ||||
| 41 | 373320 | |||
| Battery Cover | ||||
| 502 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 503 | 373222 | |||
| No information available, not orderable | ||||
| 504 | 337108 | |||
| No information available, not orderable | ||||
| 505 | 336472 | |||
| No information available, not orderable | ||||
| 506 | 336473 | |||
| No information available, not orderable | ||||
| 507 | 336474 | |||
| No information available, not orderable | ||||
| 508 | 373223 | |||
| No information available, not orderable | ||||
| 601 | 306927 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 602 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 325149 | |||
