Here you will find all available parts and drawings of the 'Hikoki WR25SE'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

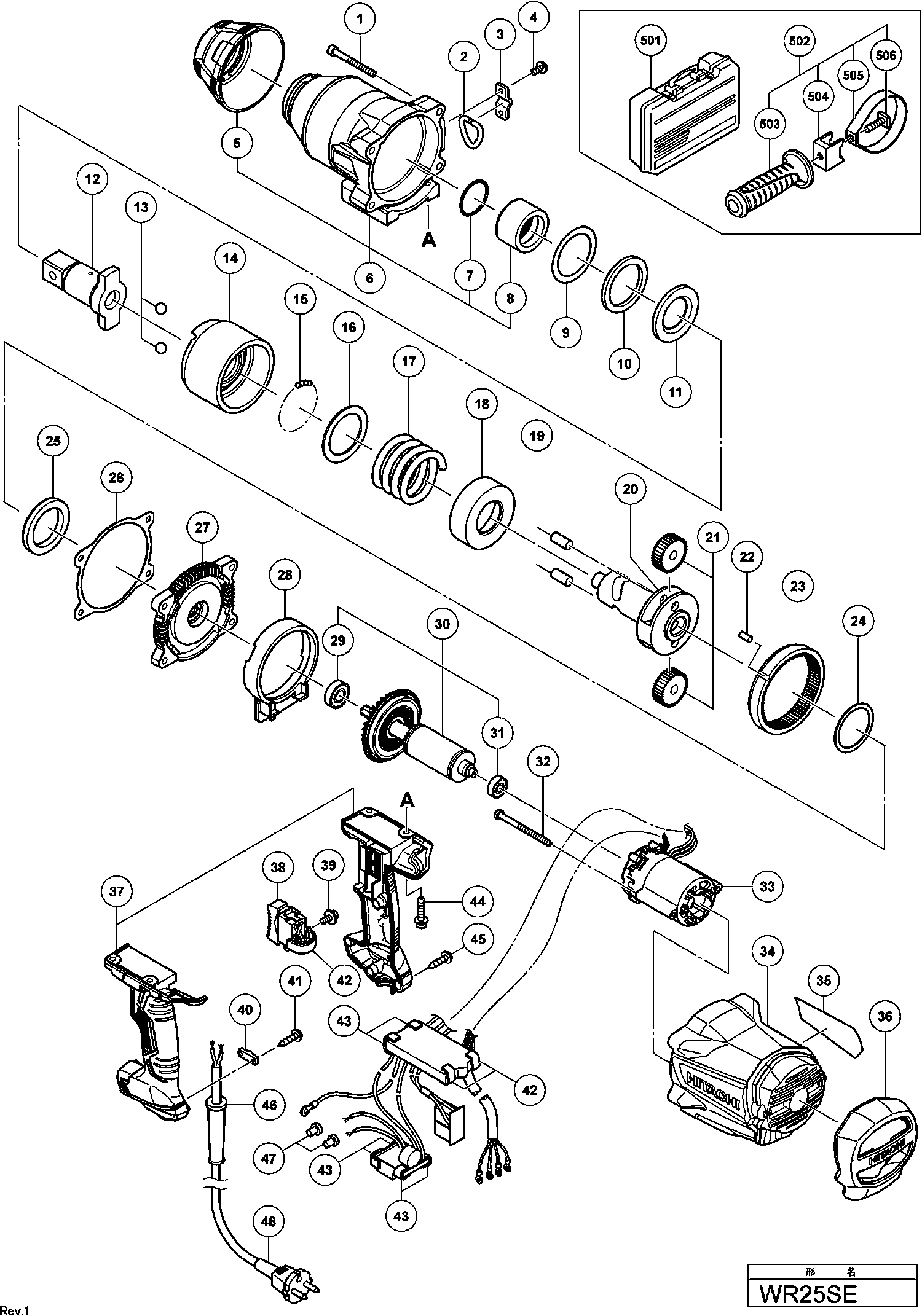

Technical drawing of model Hikoki WR25SE
Spare parts list of model Hikoki WR25SE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator Controller (c) Set 220v-230v | ||||
| *33 | 340895E | 160.05 | 193.66 | |
| STATOR CONTROLLER (C) SET 110 VOLT | ||||
| *33 | 340895C | 137.00 | 165.77 | |
| Cord Armor D10.1 | ||||
| *46 | 938051 | 1.04 | 1.26 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *48 | 500247Z | 6.18 | 7.48 | |
| Seal Lock Hex. Socket Hd. Bolt M6x50 | ||||
| 1 | 986491 | 1.04 | 1.26 | |
| Hanger (b) | ||||
| 2 | 932916 | 1.04 | 1.26 | |
| HANGER (A) | ||||
| 3 | 932915 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 4 | 993126 | |||
| Bumper (c) Till 6.2016 | ||||
| 5 | 337836 | 8.55 | 10.35 | |
| BUMPER (F) (OLD 337836) | ||||
| 5A | 371207 | 1.08 | 1.31 | |
| No information available, not orderable | ||||
| 6 | 337835 | |||
| Hammer Case (c) Ass'y Includ.5a,7,8 | ||||
| 6A | 371206 | 84.84 | 102.65 | |
| O-ring (p-35) | ||||
| 7 | 319732 | 1.80 | 2.18 | |
| Metal (b) | ||||
| 8 | 337837 | 11.70 | 14.16 | |
| Washer (c) | ||||
| 9 | 338351 | 1.50 | 1.82 | |
| Damper (c) | ||||
| 10 | 338350 | 4.50 | 5.44 | |
| Washer (b) | ||||
| 11 | 337834 | 5.40 | 6.53 | |
| Anvil (c) | ||||
| 12 | 337820 | 65.31 | 79.03 | |
| Steel Ball D10.3 | ||||
| 13 | 337838 | 1.04 | 1.26 | |
| Hammer (c) | ||||
| 14 | 337832 | 64.08 | 77.53 | |
| Steel Ball D4.76 (10 pieces) | ||||
| 15 | 959149 | 1.04 | 1.26 | |
| Hammer Washer (c) | ||||
| 16 | 337831 | 3.00 | 3.63 | |
| Hammer Spring (c) | ||||
| 17 | 337829 | 14.30 | 17.30 | |
| Spring Sheet (c) | ||||
| 18 | 337828 | 14.58 | 17.64 | |
| Needle Roller | ||||
| 19 | 337827 | 1.80 | 2.18 | |
| Spindle (c) | ||||
| 20 | 337830 | 64.08 | 77.53 | |
| Idle Gear Set (2 Pcs.) | ||||
| 21 | 338352 | 9.00 | 10.89 | |
| Needle Roller | ||||
| 22 | 991449 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 23 | 337839 | 13.35 | 16.15 | |
| Washer (a) | ||||
| 24 | 337833 | 1.80 | 2.18 | |
| Metal (a) | ||||
| 25 | 337825 | 8.55 | 10.35 | |
| Packing (c) | ||||
| 26 | 337821 | 1.05 | 1.27 | |
| Inner Cover (c) | ||||
| 27 | 337824 | 25.03 | 30.28 | |
| Fan Guide (c) | ||||
| 28 | 337823 | 2.10 | 2.54 | |
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 29 | 6001DD | 6.45 | 7.80 | |
| Rotor Ass'y (c) Includ.29,31 | ||||
| 30 | 360989 | 150.29 | 181.85 | |
| Ball Bearing 608vv | ||||
| 31 | 333945 | 1.80 | 2.18 | |
| Hex. Hd. Tapping Screw D5x70 | ||||
| 32 | 961400 | 1.04 | 1.26 | |
| Stator Controller (c) Set 220v-230v | ||||
| 33 | 340895E | 160.05 | 193.66 | |
| STATOR CONTROLLER (C) SET 110 VOLT | ||||
| 33 | 340895C | 137.00 | 165.77 | |
| Housing (c) | ||||
| 34 | 338349 | 51.15 | 61.89 | |
| Housing (c) | ||||
| 34A | 338349 | 51.15 | 61.89 | |
| Tail Bumper (c) | ||||
| 36 | 337822 | 12.45 | 15.06 | |
| Tail Bumper (c) | ||||
| 36A | 337822 | 12.45 | 15.06 | |
| Handle (a).(b) Set | ||||
| 37 | 338505 | 21.45 | 25.95 | |
| Switch | ||||
| 38 | 337202 | 23.93 | 28.95 | |
| Machine Screw (w/washer) M3.5x5 | ||||
| 39 | 980060 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 40 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 41 | 984750 | |||
| Cushion Rubber 30x10x3 | ||||
| 42 | 338353 | 1.04 | 1.26 | |
| Cushion Rubber 45x10x3 | ||||
| 42 | 338354 | 1.04 | 1.26 | |
| Cushion Rubber 45x10x3 | ||||
| 43 | 338354 | 1.04 | 1.26 | |
| Cushion Rubber 30x10x3 | ||||
| 43 | 338353 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 44 | 316107 | 1.80 | 2.18 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 45 | 301653 | 1.04 | 1.26 | |
| P-tite Screw D4x20 Since 7.2016 | ||||
| 45A | 994806 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 46 | 938051 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 47 | 959140 | 3.30 | 3.99 | |
| Cord (cord Armor D8.8) | ||||
| 48 | 500450Z | 31.63 | 38.27 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 48 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 48 | 500240Z | 13.18 | 15.94 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 48 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 501 | 338503 | |||
| No information available, not orderable | ||||
| 502 | 338347 | |||
| No information available, not orderable | ||||
| 503 | 330209 | |||
| Handle Holder | ||||
| 504 | 323775 | 8.25 | 9.98 | |
| Handle Ring | ||||
| 505 | 338502 | 13.35 | 16.15 | |
| Square Bolt M8 | ||||
| 506 | 980903 | 1.35 | 1.63 | |
