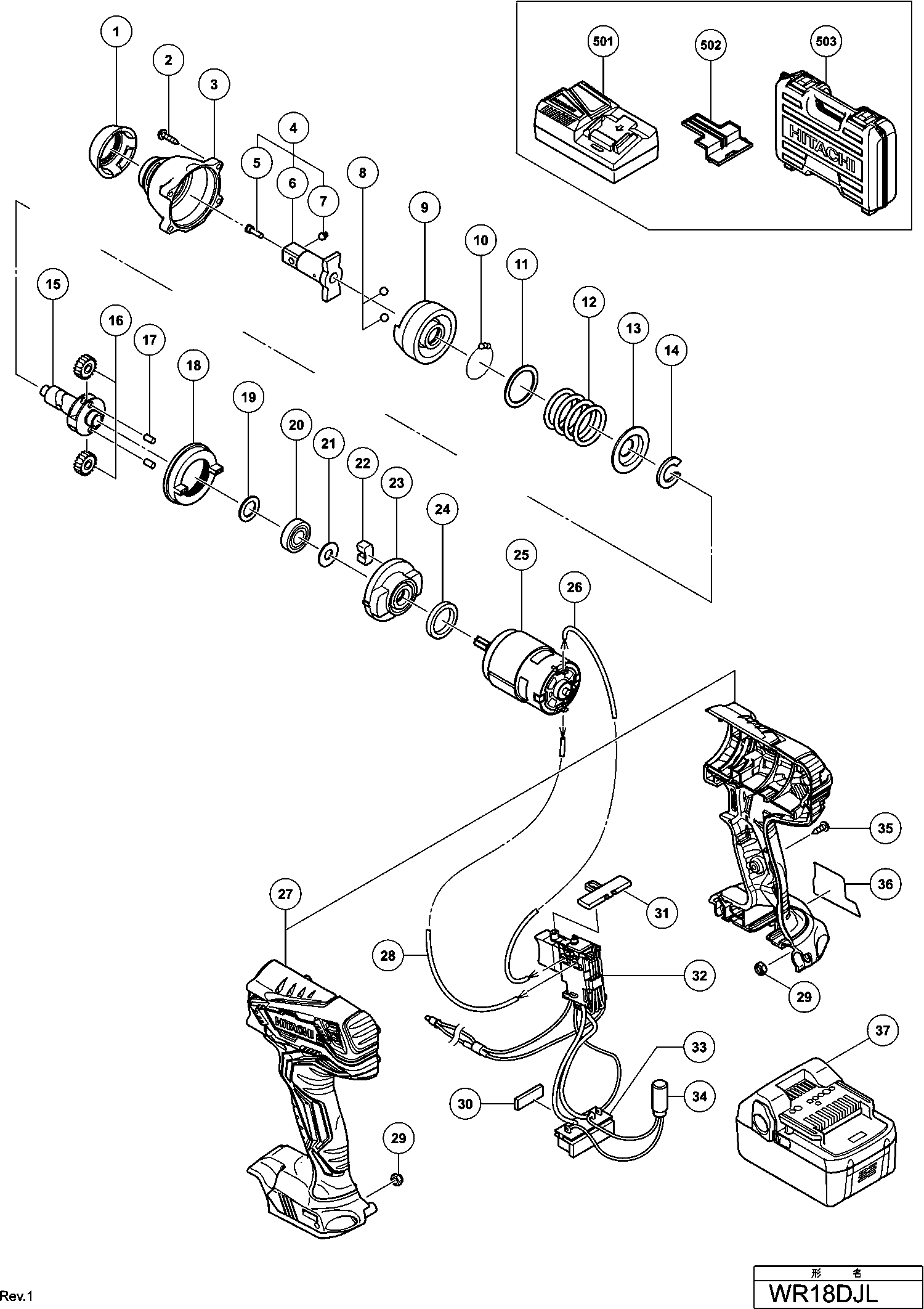

Technical drawing of model Hikoki WR18DJL

Spare parts list of model Hikoki WR18DJL

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Front Cap
1 336636 1.04 1.26
Tapping Screw (w/sp. Washer) D4x25(black
2 319917 1.65 2.00
Hammer Case
3 338440 15.26 18.47
Anvil (d) Ass'y Includ.5-7
4 338441 17.19 20.80
Pin Retainer (b)
5 324257 1.05 1.27
Anvil (d)
6 338442 14.99 18.13
Plunger (b)
7 324256 1.05 1.27
Steel Ball D5.556 (10 Pcs.)
8 959154 1.35 1.63
Hammer (c)
9 336641 12.00 14.52
Steel Ball D3.175 (10 Pcs.)
10 959148 1.05 1.27
WASHER
11 315978 1.65 2.00
Hammer Spring (k)
12 336640 1.20 1.45
Washer
13 316172 1.65 2.00
Stopper
14 316171 4.35 5.26
Spindle (e)
15 335912 13.95 16.88
Idle Gear Set (2 Pcs.)
16 326295 21.31 25.79
Needle Roller
17 319914 1.65 2.00
Ring Gear
18 330657 3.75 4.54
Ring
19 319911 1.65 2.00
Ball Bearing 6901vvm
20 6901VV 9.60 11.62
Felt
21 331288 1.05 1.27
Damper
22 324230 1.05 1.27
Covering hood
23 331286 2.10 2.54
Damper
24 321894 1.65 2.00
Motor Dc 18v
25 336628 31.08 37.60
Internal Wire (red) 140l
26 329529 1.80 2.18
Housing (a).(b) Set
27 336627 9.60 11.62
Internal Wire (black) 75l
28 323165 1.35 1.63
Lock Nut M4 (black)
29 327002 1.80 2.18
Cushion
30 331101 1.80 2.18
Pushing Button (a)
31 336638 1.04 1.26
Switch
32 338444 22.69 27.45
No information available, not orderable
33 338877
No information available, not orderable
34 329677
Tapping Screw (w/flange) D3x16 (black)
35 313687 1.04 1.26
No information available, not orderable
37 336265
Battery Cover
502 329897 1.80 2.18
No information available, not orderable
503 336642
No information available, not orderable
601 873537
No information available, not orderable
602 873187
No information available, not orderable
603 991481
No information available, not orderable
604 992610
No information available, not orderable
605 955153
No information available, not orderable
606 991476
No information available, not orderable
607 944291
No information available, not orderable
608 873632
No information available, not orderable
609 873539
No information available, not orderable
610 873540
No information available, not orderable
611 873536
No information available, not orderable
612 873624
No information available, not orderable
613 873626
No information available, not orderable
614 873627
No information available, not orderable
615 986058
No information available, not orderable
616 873633
No information available, not orderable
617 955138
No information available, not orderable
618 955139
No information available, not orderable
619 955140
No information available, not orderable
620 955141
No information available, not orderable
621 955149
No information available, not orderable
622 955142
No information available, not orderable
623 955150
No information available, not orderable
624 955143
No information available, not orderable
625 955151
No information available, not orderable
626 991480
No information available, not orderable
627 955144
No information available, not orderable
628 993658
No information available, not orderable
629 993659
No information available, not orderable
630 992613
No information available, not orderable
631 992614
No information available, not orderable
632 992615
No information available, not orderable
633 992616
Grease (attolub Ms No.2) 500g
634 309922 73.01 88.35
No information available, not orderable
635 306927
