Here you will find all available parts and drawings of the 'Hikoki WR14VB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

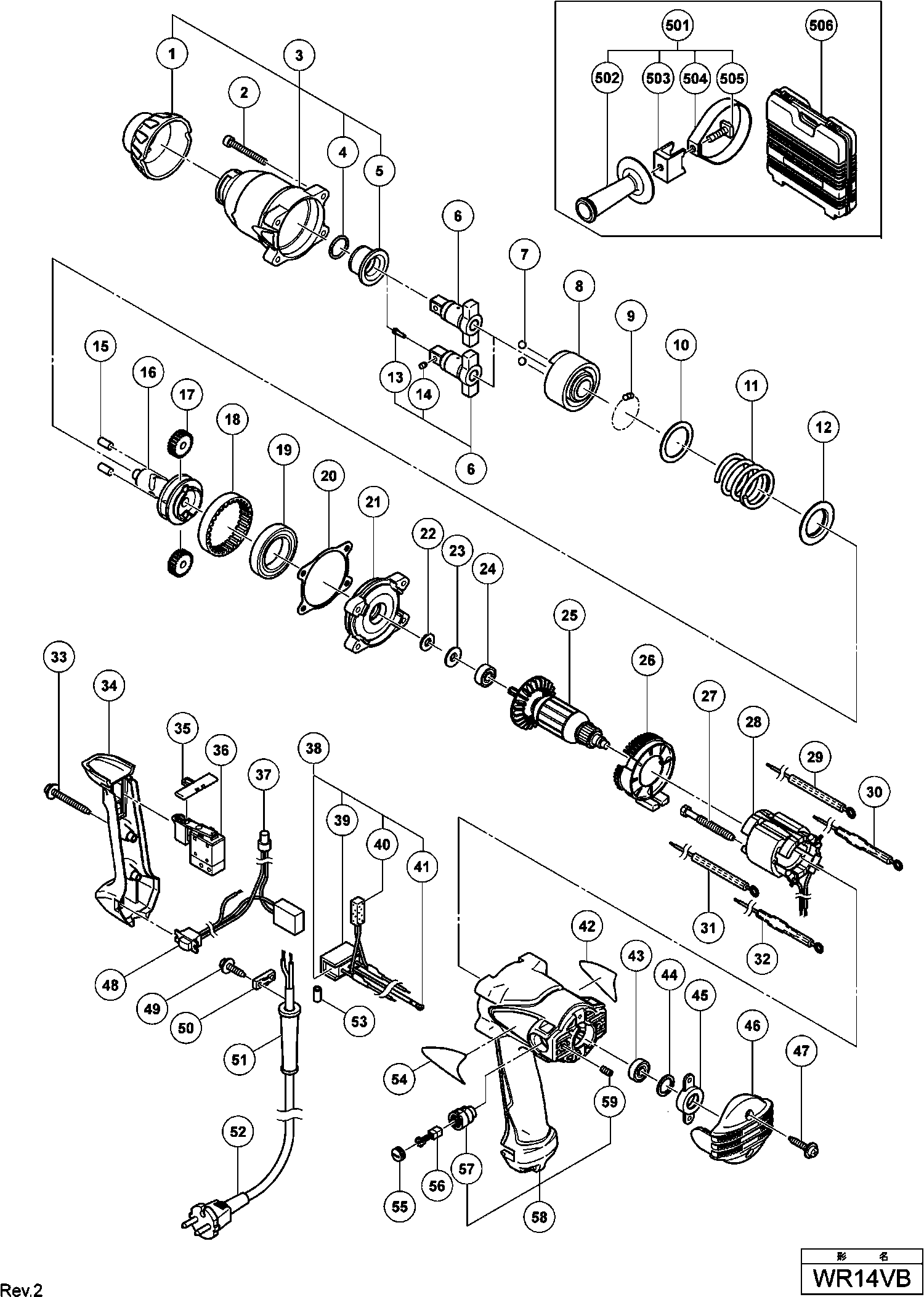

Technical drawing of model Hikoki WR14VB
Spare parts list of model Hikoki WR14VB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Front Cap | ||||
| 1 | 323804 | 6.75 | 8.17 | |
| Seal Lock Hex. Socket Hd. Bolt M5x40 | ||||
| 2 | 324060 | 1.65 | 2.00 | |
| Hammer Case Ass'y Includ.1,4,5 | ||||
| 3 | 323803 | 49.64 | 60.06 | |
| O-ring (m) | ||||
| 4 | 318704 | 3.30 | 3.99 | |
| Metal Bushing | ||||
| 5 | 323766 | 8.40 | 10.16 | |
| Anvil (g) Type For W/o Plunger (a),pin Retainer(a | ||||
| 6 | 323773 | 75.90 | 91.84 | |
| Steel Ball D6.35 (10 pieces) | ||||
| 7 | 959150 | 1.35 | 1.63 | |
| Striker | ||||
| 8 | 323789 | 43.86 | 53.07 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 9 | 959155 | 1.04 | 1.26 | |
| Washer (b) | ||||
| 10 | 317525 | 3.00 | 3.63 | |
| Spring | ||||
| 11 | 323787 | 7.65 | 9.26 | |
| Ring | ||||
| 12 | 317521 | 4.35 | 5.26 | |
| Pin Retainer (a) | ||||
| 13 | 323542 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 14 | 323541 | |||
| Socket | ||||
| 15 | 985169 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 16 | 323788 | 55.41 | 67.05 | |
| Idle Gear Set (2 Pcs.) | ||||
| 17 | 323785 | 20.76 | 25.12 | |
| Ring Gear | ||||
| 18 | 323786 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 19 | 6907ZN | |||
| Gasket (a) | ||||
| 20 | 324076 | 1.65 | 2.00 | |
| Inner Cover | ||||
| 21 | 323784 | 13.75 | 16.64 | |
| Felt Packing | ||||
| 22 | 323781 | 1.65 | 2.00 | |
| Packing Washer | ||||
| 23 | 317523 | 1.50 | 1.82 | |
| Ball Bearing 608dd | ||||
| 24 | 608DDM | 5.55 | 6.72 | |
| Armature 230v | ||||
| 25 | 360689E | 73.01 | 88.35 | |
| Fan Guide | ||||
| 26 | 323783 | 4.35 | 5.26 | |
| Hex. Hd. Tapping Screw D4x45 | ||||
| 27 | 981824 | 1.05 | 1.27 | |
| Stator 220v-230v | ||||
| 28 | 340607E | 46.75 | 56.57 | |
| No information available, not orderable | ||||
| 29 | 323799 | |||
| Interf. suppr. | ||||
| 30 | 323791 | 13.65 | 16.52 | |
| No information available, not orderable | ||||
| 31 | 323800 | |||
| Choke Coil (black) For Nzl,hol,bel,fra,frg,ita,es | ||||
| 32 | 323792 | 13.65 | 16.52 | |
| Tapping Screw (w/flange) D4x35 (black) | ||||
| 33 | 303694 | 1.04 | 1.26 | |
| Handle Cover | ||||
| 34 | 323802 | 7.35 | 8.89 | |
| Pushing Button (a) | ||||
| 35 | 321661 | 1.65 | 2.00 | |
| Switch Cl10sa | ||||
| 36 | 319412 | 43.86 | 53.07 | |
| Connector 50092 (10 Pcs.) | ||||
| 37 | 959141 | 3.75 | 4.54 | |
| Capacitor | ||||
| 38 | 323790 | 28.88 | 34.94 | |
| Rubber | ||||
| 39 | 930153 | 1.04 | 1.26 | |
| Support (b) For Noise Suppressor Ass'y (w/resisto | ||||
| 40 | 316186 | 1.65 | 2.00 | |
| Terminal 50051 (10 Pcs.) For Noise Suppressor Ass | ||||
| 41 | 959144 | 3.00 | 3.63 | |
| Ball Bearing 608vvc2ps2l | ||||
| 43 | 608VVM | 5.70 | 6.90 | |
| Rubber Ring | ||||
| 44 | 985198 | 1.95 | 2.36 | |
| Bearing Bushing (b) | ||||
| 45 | 323754 | 9.30 | 11.25 | |
| Tail Cover | ||||
| 46 | 323782 | 6.45 | 7.80 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 47 | 301653 | 1.04 | 1.26 | |
| Diode Switch | ||||
| 48 | 317533 | 21.31 | 25.79 | |
| No information available, not orderable | ||||
| 49 | 984750 | |||
| Cord Clip | ||||
| 50 | 937631 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 51 | 938051 | 1.04 | 1.26 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 52 | 500247Z | 6.18 | 7.48 | |
| Threaded cable sleeve | ||||
| 53 | 981373 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 55 | 931266 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 56 | 999021 | |||
| Brush Holder | ||||
| 57 | 957571 | 2.40 | 2.90 | |
| Housing | ||||
| 58 | 323801 | 52.53 | 63.56 | |
| Hex Adjustment Screw M5x8 | ||||
| 59 | 938477 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 323797 | |||
| No information available, not orderable | ||||
| 502 | 980901 | |||
| Handle Holder | ||||
| 503 | 323775 | 8.25 | 9.98 | |
| No information available, not orderable | ||||
| 504 | 323798 | |||
| Square Bolt M8 | ||||
| 505 | 980903 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 506 | 323777 | |||
| No information available, not orderable | ||||
| 619 | 323797 | |||
| No information available, not orderable | ||||
| 620 | 980901 | |||
| Square Bolt M8 | ||||
| 621 | 980903 | 1.35 | 1.63 | |
| Handle Holder | ||||
| 622 | 323775 | 8.25 | 9.98 | |
| No information available, not orderable | ||||
| 623 | 323798 | |||
| No information available, not orderable | ||||
| 624 | 307824 | |||
| Grease For Impact Wrench (100g) | ||||
| 625 | 971042 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 626 | 873633 | |||
| No information available, not orderable | ||||
| 627 | 986062 | |||
| No information available, not orderable | ||||
| 628 | 873537 | |||
| No information available, not orderable | ||||
| 629 | 873187 | |||
| No information available, not orderable | ||||
| 630 | 873540 | |||
| No information available, not orderable | ||||
| 631 | 873536 | |||
| No information available, not orderable | ||||
| 632 | 873626 | |||
| No information available, not orderable | ||||
| 633 | 873627 | |||
| No information available, not orderable | ||||
| 634 | 873628 | |||
| No information available, not orderable | ||||
| 635 | 873629 | |||
| No information available, not orderable | ||||
| 636 | 873630 | |||
| No information available, not orderable | ||||
| 637 | 985195 | |||
| No information available, not orderable | ||||
| 638 | 985196 | |||
| No information available, not orderable | ||||
| 639 | 955138 | |||
| No information available, not orderable | ||||
| 640 | 955139 | |||
| No information available, not orderable | ||||
| 641 | 955140 | |||
| No information available, not orderable | ||||
| 642 | 955141 | |||
| No information available, not orderable | ||||
| 643 | 955149 | |||
| No information available, not orderable | ||||
| 644 | 955142 | |||
| No information available, not orderable | ||||
| 645 | 955150 | |||
| No information available, not orderable | ||||
| 646 | 955143 | |||
| No information available, not orderable | ||||
| 647 | 955151 | |||
| No information available, not orderable | ||||
| 648 | 991480 | |||
| No information available, not orderable | ||||
| 649 | 955144 | |||
| No information available, not orderable | ||||
| 650 | 955146 | |||
| No information available, not orderable | ||||
| 651 | 955147 | |||
| No information available, not orderable | ||||
| 652 | 985197 | |||
| No information available, not orderable | ||||
| 653 | 986058 | |||
| No information available, not orderable | ||||
| 654 | 991481 | |||
| No information available, not orderable | ||||
| 655 | 993658 | |||
| No information available, not orderable | ||||
| 656 | 993659 | |||
| SOCKET ASS'Y FOR DUCT 13MMX95L | ||||
| 657 | 992613 | 75.96 | 91.91 | |
| No information available, not orderable | ||||
| 658 | 992614 | |||
| No information available, not orderable | ||||
| 659 | 992615 | |||
| No information available, not orderable | ||||
| 660 | 992616 | |||
| No information available, not orderable | ||||
| 661 | 955153 | |||
