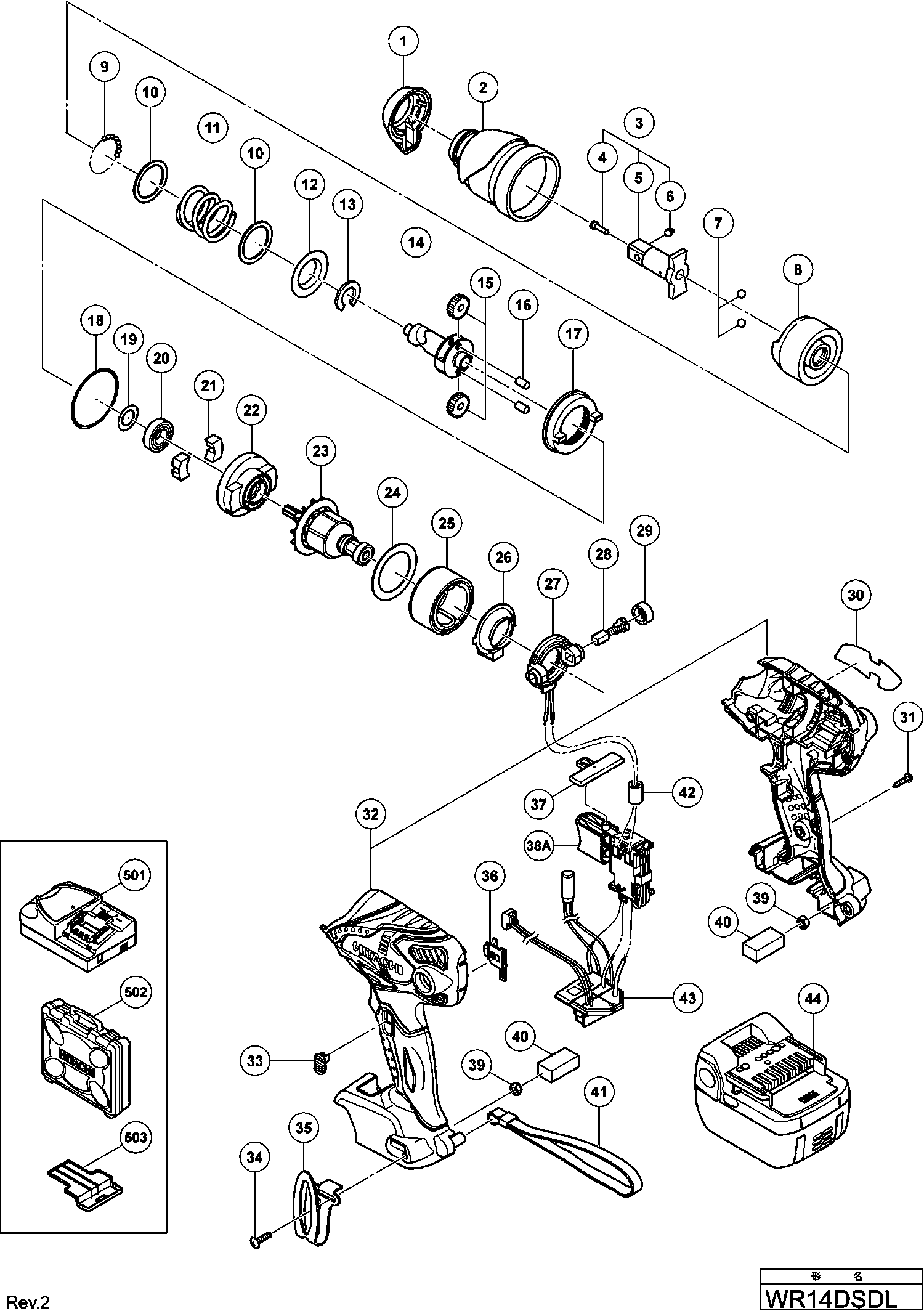

Technical drawing of model Hikoki WR14DSDL
Spare parts list of model Hikoki WR14DSDL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *44 | 334727 | |||
| Front Cap | ||||
| 1 | 332198 | 3.38 | 4.08 | |
| Hammer Case | ||||
| 2 | 332200 | 19.05 | 23.05 | |
| Anvil (d) Ass'y Includ.3,5 | ||||
| 3 | 332196 | 17.13 | 20.72 | |
| Pin Retainer (b) | ||||
| 4 | 324257 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 5 | 332197 | |||
| Plunger (b) | ||||
| 6 | 324256 | 1.05 | 1.27 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 7 | 959154 | 1.35 | 1.63 | |
| Striker | ||||
| 8 | 333749 | 20.90 | 25.29 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 9 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 10 | 315978 | 1.65 | 2.00 | |
| Hammer Spring (f) | ||||
| 11 | 324224 | 3.30 | 3.99 | |
| Washer | ||||
| 12 | 316172 | 1.65 | 2.00 | |
| Stopper (b) | ||||
| 13 | 324222 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 14 | 332186 | 33.55 | 40.60 | |
| Idle Gear Set (2 Pcs.) | ||||
| 15 | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 16 | 319914 | 1.65 | 2.00 | |
| Ring Gear | ||||
| 17 | 326787 | 13.89 | 16.80 | |
| O-Ring (s-42) | ||||
| 18 | 983852 | 1.95 | 2.36 | |
| Ring | ||||
| 19 | 319911 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 20 | 6901VV | |||
| Damper | ||||
| 21 | 324230 | 1.05 | 1.27 | |
| Covering hood | ||||
| 22 | 332185 | 3.45 | 4.17 | |
| Armature And Pinion Set | ||||
| 23 | 360949 | 44.41 | 53.74 | |
| Washer (a) | ||||
| 24 | 324607 | 1.05 | 1.27 | |
| Magnet (j) Ass'y Includ.24 | ||||
| 25 | 334901 | 79.89 | 96.66 | |
| Dust Guard Fin (b) | ||||
| 26 | 324228 | 1.05 | 1.27 | |
| Brush Block | ||||
| 27 | 334955 | 6.15 | 7.44 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 28 | 999054 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 29 | 319918 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 31 | 301653 | 1.04 | 1.26 | |
| Housing (a).(b) Set | ||||
| 32 | 334954 | 19.11 | 23.13 | |
| Housing (a).(b) Set | ||||
| 32A | 334954 | 19.11 | 23.13 | |
| Lever (a) | ||||
| 33 | 329519 | 1.80 | 2.18 | |
| Truss Hd. Screw M4 (black) | ||||
| 34 | 327001 | 1.80 | 2.18 | |
| Hook | ||||
| 35 | 332824 | 4.58 | 5.54 | |
| Lever (b) | ||||
| 36 | 329520 | 1.80 | 2.18 | |
| Pushing Button (a) | ||||
| 37 | 329454 | 1.05 | 1.27 | |
| Switch | ||||
| 38A | 337392 | 14.99 | 18.13 | |
| Lock Nut M4 (black) | ||||
| 39 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 40 | 328644 | 1.80 | 2.18 | |
| Strap (black) | ||||
| 41 | 306952 | 4.05 | 4.90 | |
| Ferrite Core For Europe,rus,aut,isr | ||||
| 42 | 318247 | 1.05 | 1.27 | |
| Controller Terminal Set | ||||
| 43 | 334957 | 45.65 | 55.24 | |
| No information available, not orderable | ||||
| 44 | 334727 | |||
| No information available, not orderable | ||||
| 502 | 337140 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 873537 | |||
| No information available, not orderable | ||||
| 602 | 873187 | |||
| No information available, not orderable | ||||
| 603 | 991481 | |||
| No information available, not orderable | ||||
| 604 | 992610 | |||
| No information available, not orderable | ||||
| 605 | 955153 | |||
| No information available, not orderable | ||||
| 606 | 991476 | |||
| No information available, not orderable | ||||
| 607 | 944291 | |||
| No information available, not orderable | ||||
| 608 | 873632 | |||
| No information available, not orderable | ||||
| 609 | 873539 | |||
| No information available, not orderable | ||||
| 610 | 873540 | |||
| No information available, not orderable | ||||
| 611 | 873536 | |||
| No information available, not orderable | ||||
| 612 | 873624 | |||
| No information available, not orderable | ||||
| 613 | 873626 | |||
| No information available, not orderable | ||||
| 614 | 873627 | |||
| No information available, not orderable | ||||
| 615 | 986058 | |||
| No information available, not orderable | ||||
| 616 | 873633 | |||
| No information available, not orderable | ||||
| 617 | 955138 | |||
| No information available, not orderable | ||||
| 618 | 955139 | |||
| No information available, not orderable | ||||
| 619 | 955140 | |||
| No information available, not orderable | ||||
| 620 | 955141 | |||
| No information available, not orderable | ||||
| 621 | 955149 | |||
| No information available, not orderable | ||||
| 622 | 955142 | |||
| No information available, not orderable | ||||
| 623 | 955150 | |||
| No information available, not orderable | ||||
| 624 | 955143 | |||
| No information available, not orderable | ||||
| 625 | 955151 | |||
| No information available, not orderable | ||||
| 626 | 991480 | |||
| No information available, not orderable | ||||
| 627 | 955144 | |||
| No information available, not orderable | ||||
| 628 | 993658 | |||
| No information available, not orderable | ||||
| 629 | 993659 | |||
| SOCKET ASS'Y FOR DUCT 13MMX95L | ||||
| 630 | 992613 | 75.96 | 91.91 | |
| No information available, not orderable | ||||
| 631 | 992614 | |||
| No information available, not orderable | ||||
| 632 | 992615 | |||
| No information available, not orderable | ||||
| 633 | 992616 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 634 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 635 | 306927 | |||
