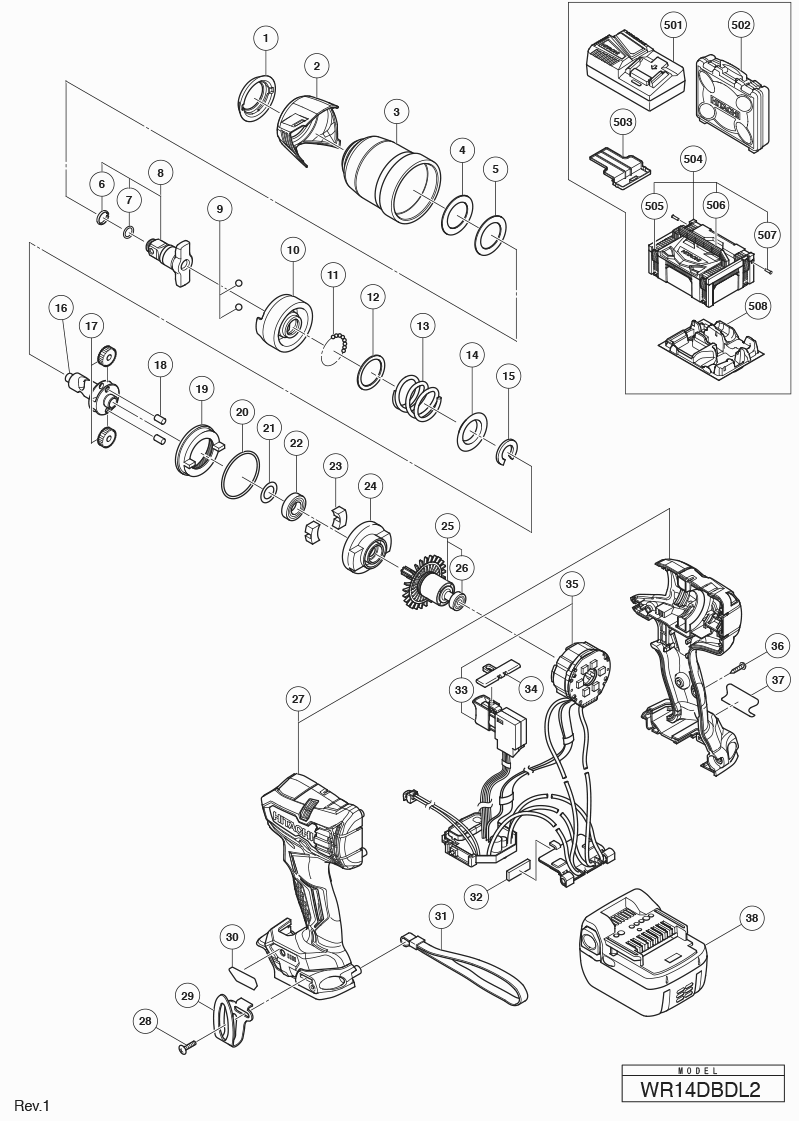

Technical drawing of model Hikoki WR14DBDL2
Spare parts list of model Hikoki WR14DBDL2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *38A | 338887 | |||
| Front Cap | ||||
| 1 | 370950 | 2.25 | 2.72 | |
| Protector | ||||
| 2 | 370938 | 2.25 | 2.72 | |
| Hammer Case | ||||
| 3 | 370943 | 22.14 | 26.79 | |
| Thrust Damper | ||||
| 4 | 370945 | 1.95 | 2.36 | |
| Washer (f) | ||||
| 5 | 370944 | 1.50 | 1.82 | |
| Friction Ring (b) | ||||
| 6 | 370951 | 8.10 | 9.80 | |
| O-ring (p-8) | ||||
| 7 | 315382 | 1.80 | 2.18 | |
| Anvil Ass'y Includ.6,7 | ||||
| 8 | 370933 | 52.25 | 63.22 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 9 | 959154 | 1.35 | 1.63 | |
| Hammer (1) | ||||
| 10 | 370947 | 23.38 | 28.28 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 11 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 12 | 315978 | 1.65 | 2.00 | |
| Hammer Spring (l) | ||||
| 13 | 370946 | 1.95 | 2.36 | |
| Washer | ||||
| 14 | 316172 | 1.65 | 2.00 | |
| Stopper | ||||
| 15 | 316171 | 4.35 | 5.26 | |
| Spindle (1) | ||||
| 16 | 370949 | 14.16 | 17.14 | |
| Idle Gear Set (2 Pcs.) | ||||
| 17 | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 18 | 319914 | 1.65 | 2.00 | |
| Ring Gear (e) | ||||
| 19 | 370948 | 13.95 | 16.88 | |
| O-Ring (s-42) | ||||
| 20 | 983852 | 1.95 | 2.36 | |
| Ring | ||||
| 21 | 319911 | 1.65 | 2.00 | |
| Ball Bearing 6901vv-n | ||||
| 22 | 323118 | 6.75 | 8.17 | |
| Damper | ||||
| 23 | 333952 | 1.80 | 2.18 | |
| Covering hood | ||||
| 24 | 332185 | 3.45 | 4.17 | |
| Rotor Pinion Ass'y Includ.26 | ||||
| 25 | 361055 | 54.04 | 65.39 | |
| Ball Bearing 625dd | ||||
| 26 | 333826 | 5.10 | 6.17 | |
| Housing (a).(b) Set | ||||
| 27 | 370935 | 19.53 | 23.63 | |
| Housing (a).(b) Set | ||||
| 27B | 370935 | 19.53 | 23.63 | |
| Truss Hd. Screw M4 (black) | ||||
| 28 | 327001 | 1.80 | 2.18 | |
| Hook (1) | ||||
| 29 | 336372 | 7.35 | 8.89 | |
| Panel Sheet (d) | ||||
| 30 | 370937 | 3.75 | 4.54 | |
| Strap (black) | ||||
| 31 | 306952 | 4.05 | 4.90 | |
| Cushion | ||||
| 32 | 331101 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 33 | 339217 | |||
| SWITCH (OLD 339217) | ||||
| 33A | 376527 | 15.56 | 18.83 | |
| Pushing Button (b) | ||||
| 34 | 324225 | 1.05 | 1.27 | |
| Wiring Ass'y Includ.33 | ||||
| 35 | 370941 | 160.19 | 193.83 | |
| No information available, not orderable | ||||
| 36 | 307811 | |||
| No information available, not orderable | ||||
| 38 | 335786 | |||
| No information available, not orderable | ||||
| 502 | 337852 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 505 | 336472 | |||
| No information available, not orderable | ||||
| 506 | 336473 | |||
| No information available, not orderable | ||||
| 507 | 336474 | |||
| No information available, not orderable | ||||
| 508 | 336475 | |||
| No information available, not orderable | ||||
| 601 | 873537 | |||
| No information available, not orderable | ||||
| 602 | 873187 | |||
| No information available, not orderable | ||||
| 603 | 991481 | |||
| No information available, not orderable | ||||
| 604 | 992610 | |||
| No information available, not orderable | ||||
| 605 | 955153 | |||
| No information available, not orderable | ||||
| 606 | 991476 | |||
| No information available, not orderable | ||||
| 607 | 944291 | |||
| No information available, not orderable | ||||
| 608 | 873632 | |||
| No information available, not orderable | ||||
| 609 | 873539 | |||
| No information available, not orderable | ||||
| 610 | 873540 | |||
| No information available, not orderable | ||||
| 611 | 873536 | |||
| No information available, not orderable | ||||
| 612 | 873624 | |||
| No information available, not orderable | ||||
| 613 | 873626 | |||
| No information available, not orderable | ||||
| 614 | 873627 | |||
| No information available, not orderable | ||||
| 615 | 986058 | |||
| No information available, not orderable | ||||
| 616 | 873633 | |||
| No information available, not orderable | ||||
| 617 | 955138 | |||
| No information available, not orderable | ||||
| 618 | 955139 | |||
| No information available, not orderable | ||||
| 619 | 955140 | |||
| No information available, not orderable | ||||
| 620 | 955141 | |||
| No information available, not orderable | ||||
| 621 | 955149 | |||
| No information available, not orderable | ||||
| 622 | 955142 | |||
| No information available, not orderable | ||||
| 623 | 955150 | |||
| No information available, not orderable | ||||
| 624 | 955143 | |||
| No information available, not orderable | ||||
| 625 | 955151 | |||
| No information available, not orderable | ||||
| 626 | 991480 | |||
| No information available, not orderable | ||||
| 627 | 955144 | |||
| No information available, not orderable | ||||
| 628 | 993658 | |||
| No information available, not orderable | ||||
| 629 | 993659 | |||
| SOCKET ASS'Y FOR DUCT 13MMX95L | ||||
| 630 | 992613 | 75.96 | 91.91 | |
| No information available, not orderable | ||||
| 631 | 992614 | |||
| No information available, not orderable | ||||
| 632 | 992615 | |||
| No information available, not orderable | ||||
| 633 | 992616 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 634 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 636 | 306927 | |||
