Here you will find all available parts and drawings of the 'Hikoki WR12DM2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

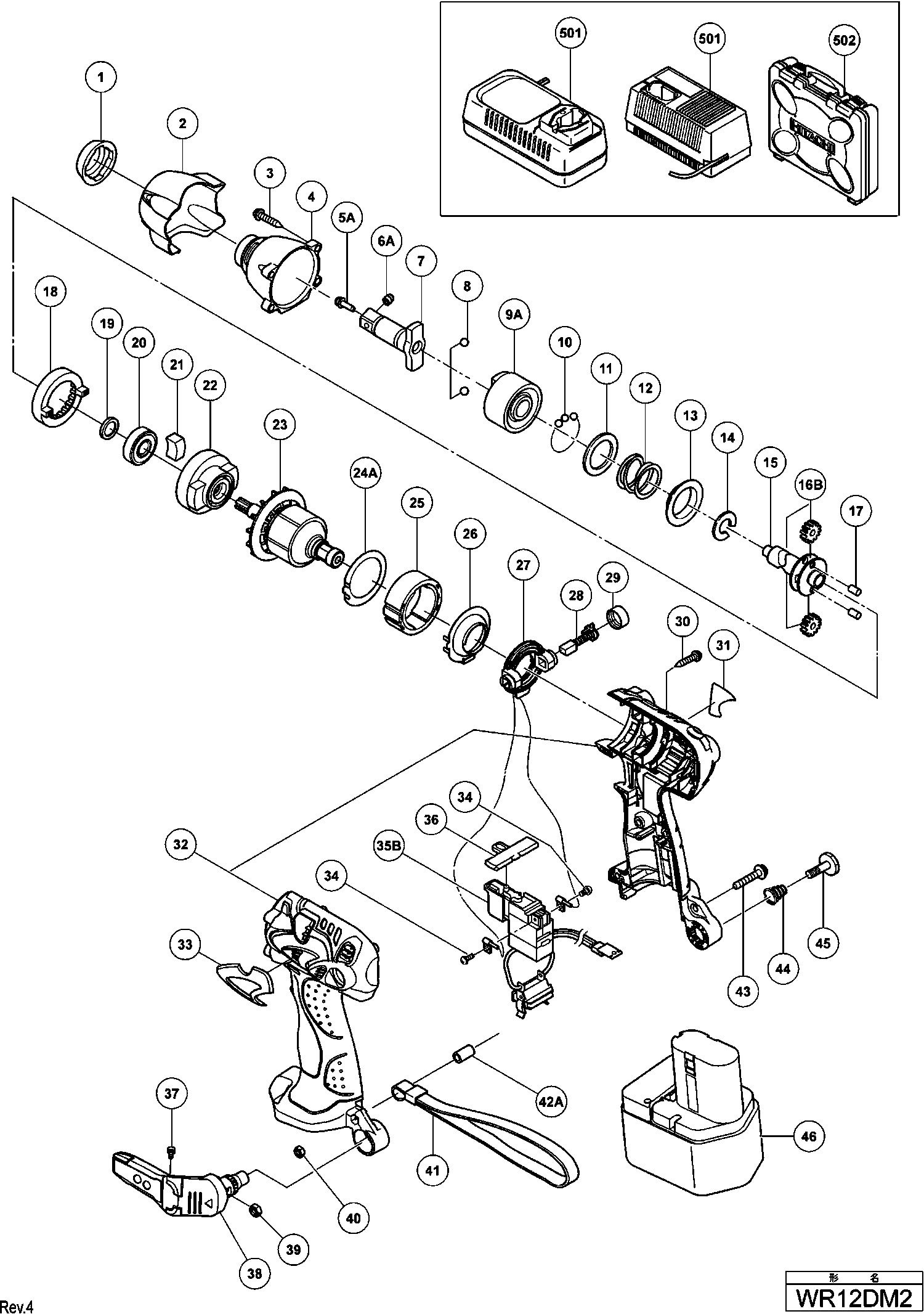

Technical drawing of model Hikoki WR12DM2
Spare parts list of model Hikoki WR12DM2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Front Cap (a) (black) | ||||
| 1 | 322243 | 6.45 | 7.80 | |
| Protector (a) Black | ||||
| 2 | 321676 | 3.30 | 3.99 | |
| Tapping Screw (w/sp. Washer) D4x25(black | ||||
| 3 | 319917 | 1.65 | 2.00 | |
| Front Case | ||||
| 4 | 322172 | 40.84 | 49.41 | |
| Pin Retainer (a) | ||||
| 5A | 323542 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 6A | 323541 | |||
| Anvil (r) Ass'y Includ.5,6 | ||||
| 7 | 322173 | 46.75 | 56.57 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 8 | 959154 | 1.35 | 1.63 | |
| Hammer | ||||
| 9A | 326789 | 21.73 | 26.29 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 10 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 11 | 315978 | 1.65 | 2.00 | |
| Hammer Spring | ||||
| 12 | 321660 | 3.30 | 3.99 | |
| Washer | ||||
| 13 | 316172 | 1.65 | 2.00 | |
| Stopper | ||||
| 14 | 316171 | 4.35 | 5.26 | |
| Spindle Ass'y | ||||
| 15 | 321666 | 32.18 | 38.93 | |
| Idle Gear Set (2 Pcs.) | ||||
| 16B | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 17 | 319914 | 1.65 | 2.00 | |
| Gear | ||||
| 18 | 320877 | 18.15 | 21.96 | |
| Ring | ||||
| 19 | 319911 | 1.65 | 2.00 | |
| Ball Bearing 6901vvm | ||||
| 20 | 6901VV | 9.60 | 11.62 | |
| Damper | ||||
| 21 | 319909 | 4.80 | 5.81 | |
| Inner Cover (a) | ||||
| 22 | 321664 | 3.30 | 3.99 | |
| Armature Ass'y Dc 12v | ||||
| 23 | 360599 | 67.10 | 81.19 | |
| Side Yoke (old 321659) | ||||
| 24A | 323327 | 1.65 | 2.00 | |
| Magnet (d) Wh12dm2 | ||||
| 25 | 321668 | 41.53 | 50.25 | |
| Dust Guard Fin (a) | ||||
| 26 | 321663 | 1.65 | 2.00 | |
| Brush Block | ||||
| 27 | 321662 | 10.95 | 13.25 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 28 | 999054 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 29 | 319918 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 30 | 302086 | 1.05 | 1.27 | |
| Housing (a) (b) Set (green) | ||||
| 32 | 322174 | 28.60 | 34.61 | |
| Brand Label | ||||
| 33 | 322242 | 4.65 | 5.63 | |
| Machine Screw (w/sp. Washer) M3x5 | ||||
| 34 | 994532 | 1.04 | 1.26 | |
| Switch (Old 319906) | ||||
| 35B | 324829 | 32.18 | 38.93 | |
| Pushing Button (a) | ||||
| 36 | 321661 | 1.65 | 2.00 | |
| Tapping Screw D2x6 | ||||
| 37 | 321672 | 1.65 | 2.00 | |
| Hook | ||||
| 38 | 321918 | 17.60 | 21.30 | |
| Nut M5 | ||||
| 39 | 320288 | 1.65 | 2.00 | |
| Lock Nut M4 (10 Pcs.) | ||||
| 40 | 949565 | 1.05 | 1.27 | |
| Strap (black) | ||||
| 41 | 306952 | 4.05 | 4.90 | |
| Sleeve (a) | ||||
| 42A | 322718 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 43 | 676386 | |||
| Hook Spring | ||||
| 44 | 319926 | 1.65 | 2.00 | |
| Screw M5 | ||||
| 45 | 319927 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 46 | 320387 | |||
| No information available, not orderable | ||||
| 502 | 322070 | |||
| No information available, not orderable | ||||
| 601 | 330709 | |||
| No information available, not orderable | ||||
| 618 | 873537 | |||
| No information available, not orderable | ||||
| 619 | 873187 | |||
| No information available, not orderable | ||||
| 620 | 991481 | |||
| No information available, not orderable | ||||
| 621 | 992610 | |||
| No information available, not orderable | ||||
| 622 | 955153 | |||
| No information available, not orderable | ||||
| 623 | 991476 | |||
| No information available, not orderable | ||||
| 624 | 944291 | |||
| No information available, not orderable | ||||
| 625 | 873632 | |||
| No information available, not orderable | ||||
| 626 | 873539 | |||
| No information available, not orderable | ||||
| 627 | 873540 | |||
| No information available, not orderable | ||||
| 628 | 873536 | |||
| No information available, not orderable | ||||
| 629 | 873624 | |||
| No information available, not orderable | ||||
| 630 | 873626 | |||
| No information available, not orderable | ||||
| 631 | 873627 | |||
| No information available, not orderable | ||||
| 632 | 955138 | |||
| No information available, not orderable | ||||
| 633 | 955139 | |||
| No information available, not orderable | ||||
| 634 | 955140 | |||
| No information available, not orderable | ||||
| 635 | 955141 | |||
| No information available, not orderable | ||||
| 636 | 955149 | |||
| No information available, not orderable | ||||
| 637 | 955142 | |||
| No information available, not orderable | ||||
| 638 | 955150 | |||
| No information available, not orderable | ||||
| 639 | 955143 | |||
| No information available, not orderable | ||||
| 640 | 955151 | |||
| No information available, not orderable | ||||
| 641 | 991480 | |||
| No information available, not orderable | ||||
| 642 | 955144 | |||
| No information available, not orderable | ||||
| 643 | 986058 | |||
| No information available, not orderable | ||||
| 644 | 873633 | |||
| No information available, not orderable | ||||
| 645 | 993658 | |||
| No information available, not orderable | ||||
| 646 | 993659 | |||
| No information available, not orderable | ||||
| 647 | 992613 | |||
| No information available, not orderable | ||||
| 648 | 992614 | |||
| No information available, not orderable | ||||
| 649 | 992615 | |||
| No information available, not orderable | ||||
| 650 | 992616 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 651 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 653 | 306927 | |||
