Here you will find all available parts and drawings of the 'Hikoki WR12DAF2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

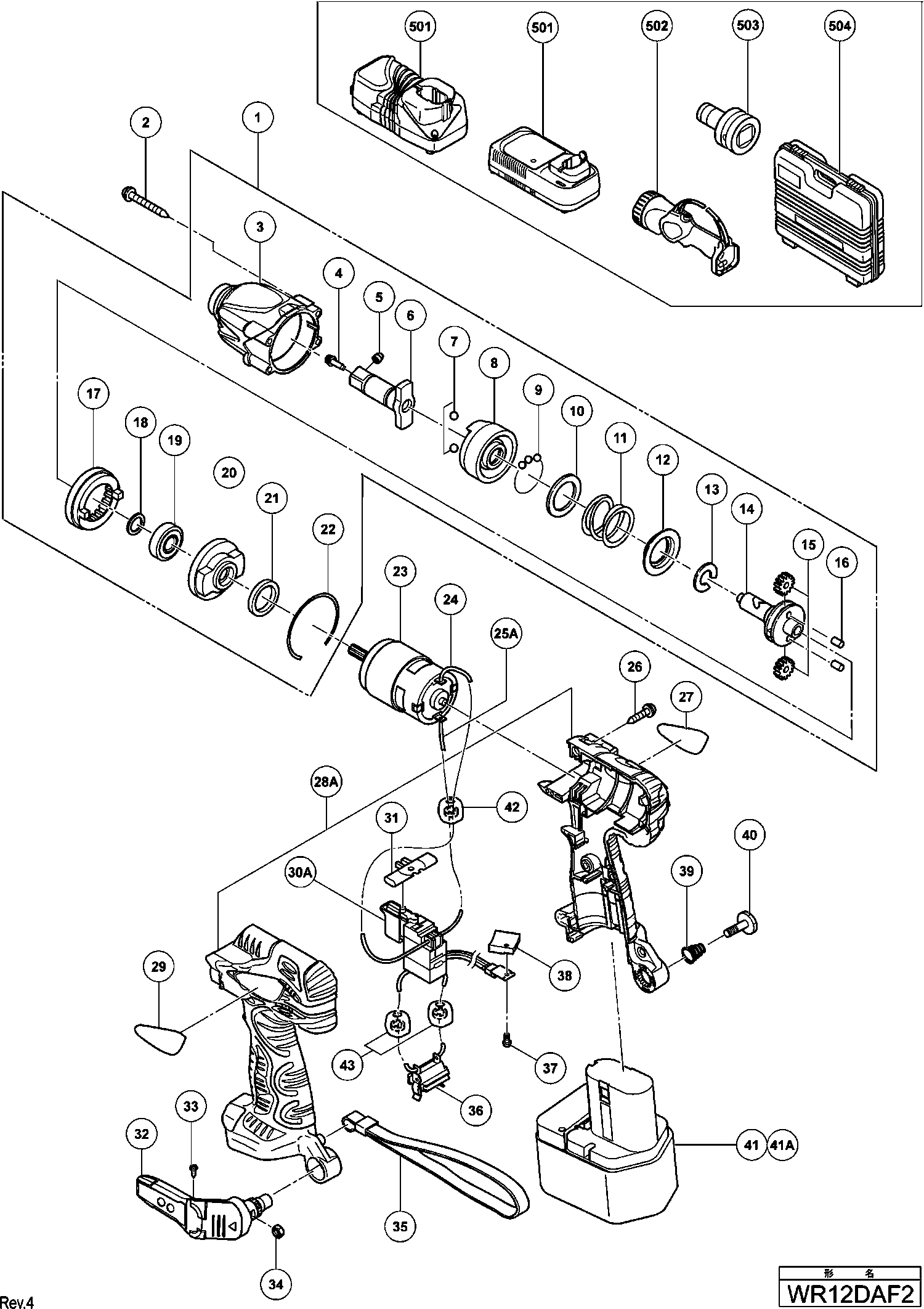

Technical drawing of model Hikoki WR12DAF2
Spare parts list of model Hikoki WR12DAF2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 324856 | |||
| TAPSCHROEF D4X40 | ||||
| 2 | 992630 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 3 | 324857 | |||
| No information available, not orderable | ||||
| 4 | 323194 | |||
| Plunger | ||||
| 5 | 323193 | 4.80 | 5.81 | |
| Anvil (c) Ass'y Includ.4,5 | ||||
| 6 | 323192 | 28.60 | 34.61 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 7 | 959154 | 1.35 | 1.63 | |
| Hammer | ||||
| 8 | 323949 | 26.54 | 32.11 | |
| Steel Ball D3 (10 Pcs.) | ||||
| 9 | 321934 | 4.95 | 5.99 | |
| WASHER | ||||
| 10 | 315978 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 11 | 323944 | |||
| Washer | ||||
| 12 | 316172 | 1.65 | 2.00 | |
| Stopper | ||||
| 13 | 316171 | 4.35 | 5.26 | |
| Spindle (b) | ||||
| 14 | 323945 | 29.15 | 35.27 | |
| Idle Gear Set (2 Pcs.) | ||||
| 15 | 323941 | 14.30 | 17.30 | |
| Needle Roller | ||||
| 16 | 323942 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 17 | 323946 | |||
| Ring | ||||
| 18 | 319911 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 19 | 6901VV | |||
| Inner Cover | ||||
| 20 | 323947 | 3.00 | 3.63 | |
| Damper | ||||
| 21 | 321894 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 22 | 321893 | |||
| Motor | ||||
| 23 | 323948 | 34.51 | 41.76 | |
| No information available, not orderable | ||||
| 24 | 321876 | |||
| No information available, not orderable | ||||
| 25A | 326184 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 26 | 302086 | 1.05 | 1.27 | |
| Housing (a).(b) Set | ||||
| 28A | 324855 | 25.03 | 30.28 | |
| Switch | ||||
| 30A | 325549 | 40.84 | 49.41 | |
| Pushing Button | ||||
| 31 | 321871 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 32 | 321918 | |||
| Tapping Screw D2x6 | ||||
| 33 | 321672 | 1.65 | 2.00 | |
| Nut M5 | ||||
| 34 | 320288 | 1.65 | 2.00 | |
| Strap (black) | ||||
| 35 | 306952 | 4.05 | 4.90 | |
| Terminal Support | ||||
| 36 | 323710 | 16.64 | 20.13 | |
| No information available, not orderable | ||||
| 37 | 320777 | |||
| No information available, not orderable | ||||
| 38 | 320776 | |||
| Hook Spring | ||||
| 39 | 319926 | 1.65 | 2.00 | |
| Screw M5 | ||||
| 40 | 319927 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 41 | 320387 | |||
| No information available, not orderable | ||||
| 41A | 324361 | |||
| No information available, not orderable | ||||
| 42 | 334871 | |||
| No information available, not orderable | ||||
| 43 | 334872 | |||
| No information available, not orderable | ||||
| 503 | 322752 | |||
| No information available, not orderable | ||||
| 504 | 324359 | |||
| No information available, not orderable | ||||
| 617 | 873537 | |||
| No information available, not orderable | ||||
| 618 | 873187 | |||
| No information available, not orderable | ||||
| 619 | 991481 | |||
| No information available, not orderable | ||||
| 620 | 992610 | |||
| No information available, not orderable | ||||
| 621 | 955153 | |||
| No information available, not orderable | ||||
| 622 | 991476 | |||
| No information available, not orderable | ||||
| 623 | 944291 | |||
| No information available, not orderable | ||||
| 624 | 873632 | |||
| No information available, not orderable | ||||
| 625 | 873539 | |||
| No information available, not orderable | ||||
| 626 | 873540 | |||
| No information available, not orderable | ||||
| 627 | 873536 | |||
| No information available, not orderable | ||||
| 628 | 873624 | |||
| No information available, not orderable | ||||
| 629 | 873626 | |||
| No information available, not orderable | ||||
| 630 | 873627 | |||
| No information available, not orderable | ||||
| 631 | 955138 | |||
| No information available, not orderable | ||||
| 632 | 955139 | |||
| No information available, not orderable | ||||
| 633 | 955140 | |||
| No information available, not orderable | ||||
| 634 | 955141 | |||
| No information available, not orderable | ||||
| 635 | 955149 | |||
| No information available, not orderable | ||||
| 636 | 955142 | |||
| No information available, not orderable | ||||
| 637 | 955150 | |||
| No information available, not orderable | ||||
| 638 | 955143 | |||
| No information available, not orderable | ||||
| 639 | 955151 | |||
| No information available, not orderable | ||||
| 640 | 991480 | |||
| No information available, not orderable | ||||
| 641 | 955144 | |||
| No information available, not orderable | ||||
| 642 | 986058 | |||
| No information available, not orderable | ||||
| 643 | 873633 | |||
| No information available, not orderable | ||||
| 644 | 993658 | |||
| No information available, not orderable | ||||
| 645 | 993659 | |||
| SOCKET ASS'Y FOR DUCT 13MMX95L | ||||
| 646 | 992613 | 75.96 | 91.91 | |
| No information available, not orderable | ||||
| 647 | 992614 | |||
| No information available, not orderable | ||||
| 648 | 992615 | |||
| No information available, not orderable | ||||
| 649 | 992616 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 650 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 651 | 306927 | |||
