Here you will find all available parts and drawings of the 'Hikoki WH36DB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

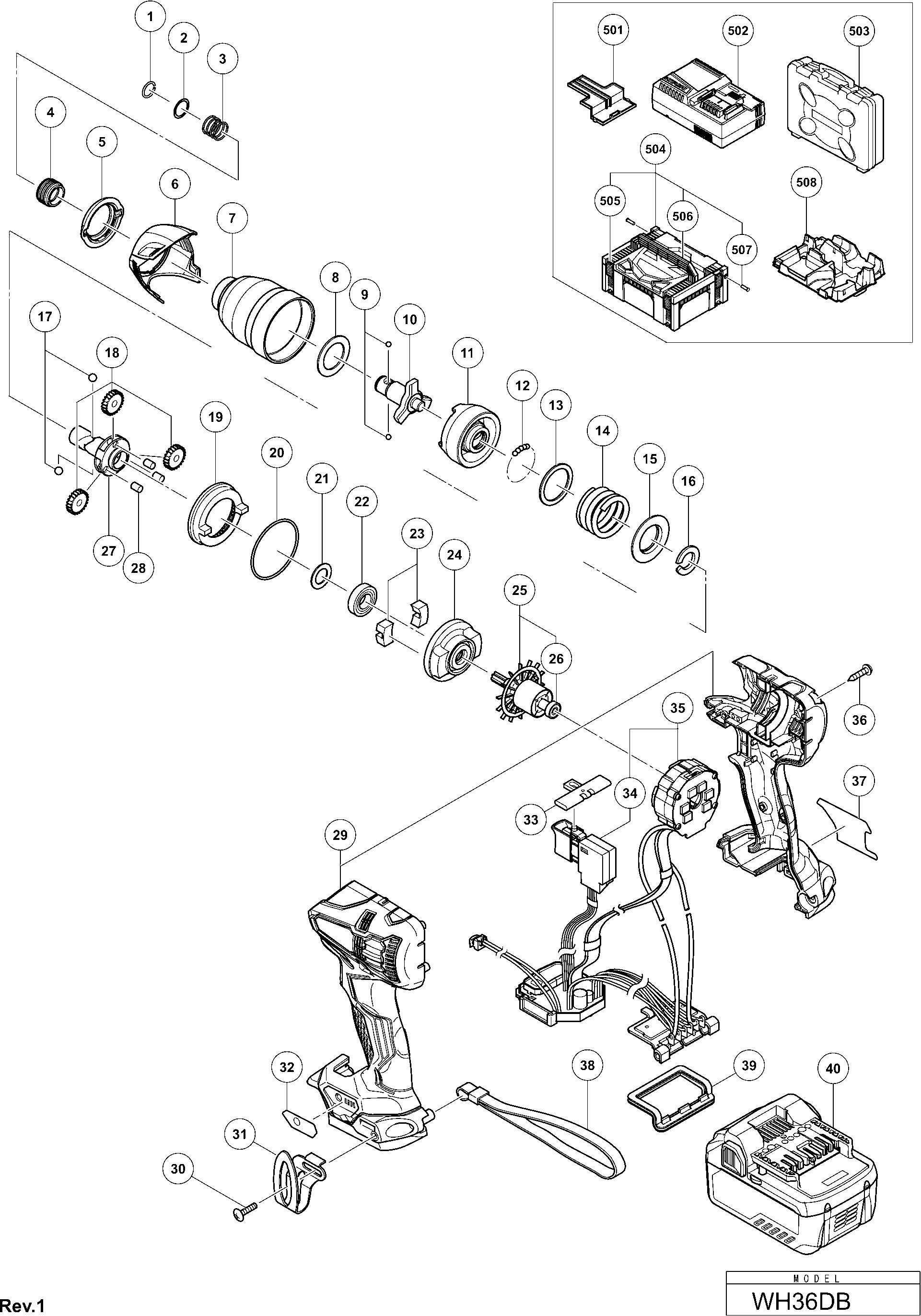

Technical drawing of model Hikoki WH36DB
Spare parts list of model Hikoki WH36DB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anvil (s) | ||||
| *10 | 370570 | 19.94 | 24.12 | |
| Housing (a).(b) Set | ||||
| *29B | 373025 | 18.29 | 22.13 | |
| No information available, not orderable | ||||
| *40 | 372121M | |||
| Washer Spring | ||||
| 1 | 330619 | 1.05 | 1.27 | |
| Washer (d) | ||||
| 2 | 330856 | 1.88 | 2.27 | |
| Guide Spring | ||||
| 3 | 370581 | 1.20 | 1.45 | |
| Guide Bush | ||||
| 4 | 339350 | 3.90 | 4.72 | |
| Front Cap | ||||
| 5 | 339198 | 1.05 | 1.27 | |
| Protector | ||||
| 6 | 370575 | 2.10 | 2.54 | |
| Hammer Case | ||||
| 7 | 370578 | 18.70 | 22.63 | |
| Washer (f) | ||||
| 8 | 370579 | 1.50 | 1.82 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 9 | 319535 | 1.65 | 2.00 | |
| Anvil (s) | ||||
| 10 | 370570 | 19.94 | 24.12 | |
| Hammer (1) | ||||
| 11 | 339192 | 10.20 | 12.34 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 12 | 959148 | 1.05 | 1.27 | |
| Washer (j) | ||||
| 13 | 370580 | 1.20 | 1.45 | |
| Hammer Spring | ||||
| 14 | 339194 | 3.00 | 3.63 | |
| Washer | ||||
| 15 | 316172 | 1.65 | 2.00 | |
| Stopper | ||||
| 16 | 370582 | 2.25 | 2.72 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 17 | 959154 | 1.35 | 1.63 | |
| Idle Gear Set (3 Pcs.) | ||||
| 18 | 370584 | 12.45 | 15.06 | |
| No information available, not orderable | ||||
| 19 | 370160 | |||
| RING TANDWIEL (OUD 370160) | ||||
| 19A | 376535 | 3.78 | 4.57 | |
| O-Ring (s-42) | ||||
| 20 | 983852 | 1.95 | 2.36 | |
| Washer (e) | ||||
| 21 | 370583 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 22 | 6901VV | |||
| Damper | ||||
| 23 | 333952 | 1.80 | 2.18 | |
| Inner Cover | ||||
| 24 | 335317 | 1.05 | 1.27 | |
| Rotor Pinion Ass'y Includ.25 | ||||
| 25 | 361046 | 42.21 | 51.08 | |
| Ball Bearing 604dd | ||||
| 26 | 335723 | 5.40 | 6.53 | |
| Spindle (1) | ||||
| 27 | 339193 | 10.20 | 12.34 | |
| Needle Roller | ||||
| 28 | 370585 | 21.59 | 26.12 | |
| Housing (a).(b) Set | ||||
| 29 | 373025 | 18.29 | 22.13 | |
| Truss Hd. Screw M4 (black) | ||||
| 30 | 327001 | 1.80 | 2.18 | |
| HOOK | ||||
| 31 | 372229 | 2.85 | 3.45 | |
| Panel Sheet (ex) | ||||
| 32 | 370573 | 1.95 | 2.36 | |
| Pushing Button (b) | ||||
| 33 | 324225 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 34 | 339217 | |||
| SWITCH (OLD 339217) | ||||
| 34A | 376527 | 15.56 | 18.83 | |
| Wiring Ass'y Includ.34 | ||||
| 35 | 373024 | 164.73 | 199.32 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 36 | 313687 | 1.04 | 1.26 | |
| Strap (black) | ||||
| 38 | 306952 | 4.05 | 4.90 | |
| Terminal Rubber (a) | ||||
| 39 | 370728 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 40 | 372121 | |||
| Battery Cover | ||||
| 501 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 503 | 339778 | |||
| No information available, not orderable | ||||
| 504 | 336471 | |||
| No information available, not orderable | ||||
| 505 | 336472 | |||
| No information available, not orderable | ||||
| 506 | 336473 | |||
| No information available, not orderable | ||||
| 507 | 336474 | |||
| No information available, not orderable | ||||
| 508 | 336475 | |||
| No information available, not orderable | ||||
| 603 | 983006 | |||
| No information available, not orderable | ||||
| 604 | 983011 | |||
| No information available, not orderable | ||||
| 605 | 321823 | |||
| No information available, not orderable | ||||
| 607 | 987575 | |||
| No information available, not orderable | ||||
| 608 | 306927 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 609 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 610 | 325149 | |||
