Here you will find all available parts and drawings of the 'Hikoki WH18DSDL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

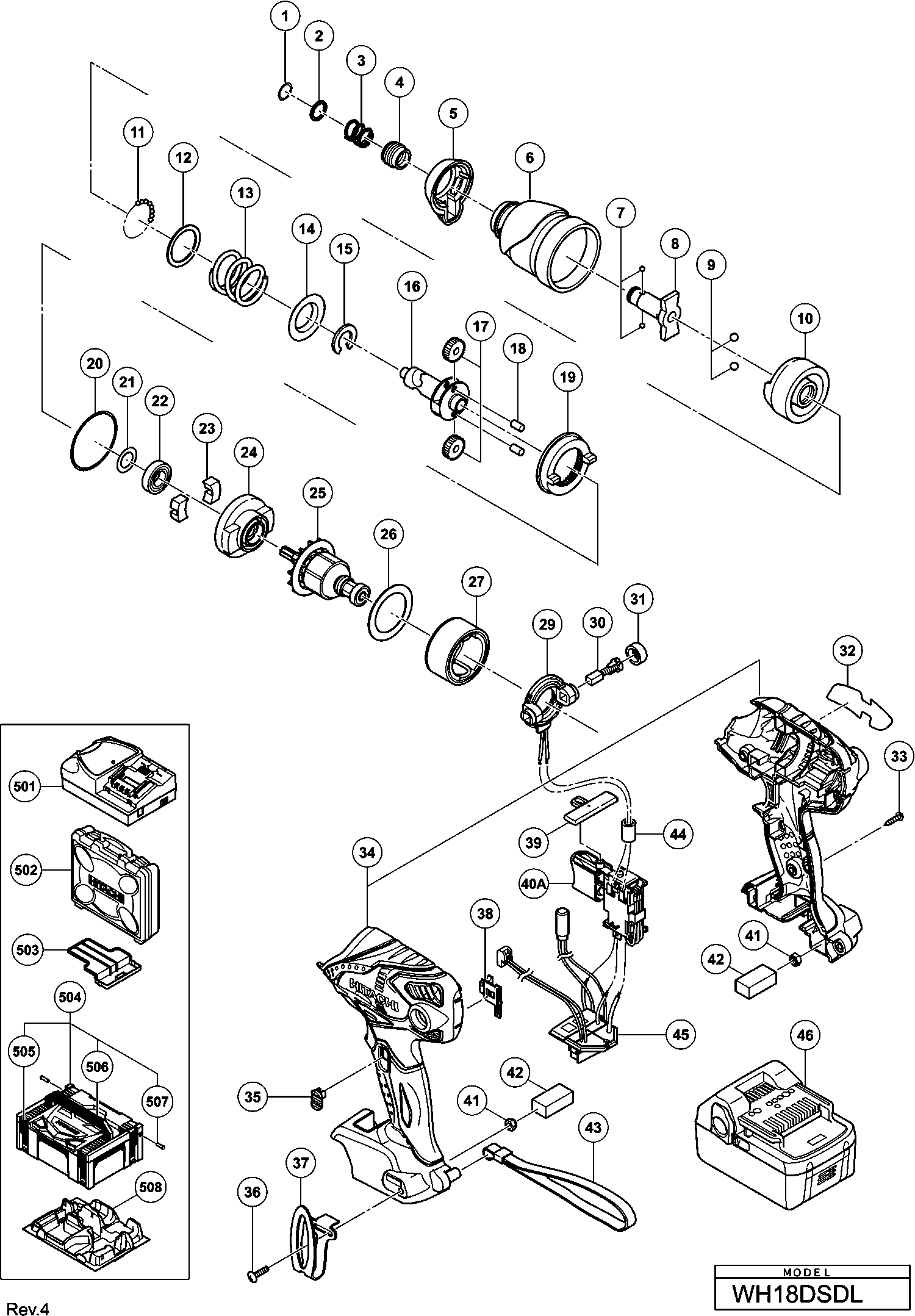

Technical drawing of model Hikoki WH18DSDL
Spare parts list of model Hikoki WH18DSDL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *46 | 334905 | |||
| Anvil (d) For Europe | ||||
| *8 | 333744 | 42.76 | 51.74 | |
| Washer Spring | ||||
| 1 | 330619 | 1.05 | 1.27 | |
| Washer (d) | ||||
| 2 | 330856 | 1.88 | 2.27 | |
| Guide Spring (d) | ||||
| 3 | 331284 | 1.05 | 1.27 | |
| Guide Bush | ||||
| 4 | 322717 | 3.30 | 3.99 | |
| Front Cap | ||||
| 5 | 332198 | 3.38 | 4.08 | |
| Hammer Case | ||||
| 6 | 333745 | 22.83 | 27.62 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 7 | 319535 | 1.65 | 2.00 | |
| Anvil (d) For Europe | ||||
| 8 | 333744 | 42.76 | 51.74 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 9 | 959154 | 1.35 | 1.63 | |
| Hammer | ||||
| 10 | 324218 | 12.45 | 15.06 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 11 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 12 | 315978 | 1.65 | 2.00 | |
| Hammer Spring (f) | ||||
| 13 | 324224 | 3.30 | 3.99 | |
| Washer | ||||
| 14 | 316172 | 1.65 | 2.00 | |
| Stopper (b) | ||||
| 15 | 324222 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 16 | 332186 | 33.55 | 40.60 | |
| Idle Gear Set (2 Pcs.) | ||||
| 17 | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 18 | 319914 | 1.65 | 2.00 | |
| Ring Gear(e) | ||||
| 19 | 333747 | 13.35 | 16.15 | |
| O-Ring (s-42) | ||||
| 20 | 983852 | 1.95 | 2.36 | |
| Ring | ||||
| 21 | 319911 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 22 | 6901VV | |||
| Damper | ||||
| 23 | 324230 | 1.05 | 1.27 | |
| Covering hood | ||||
| 24 | 332185 | 3.45 | 4.17 | |
| Armature And Pinion Set | ||||
| 25 | 360947 | 58.99 | 71.37 | |
| Washer (a) | ||||
| 26 | 324607 | 1.05 | 1.27 | |
| Magnet (j) Ass'y Includ.24 | ||||
| 27 | 334901 | 79.89 | 96.66 | |
| Brush Block | ||||
| 29 | 334955 | 6.15 | 7.44 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 30 | 999054 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 31 | 319918 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 33 | 301653 | 1.04 | 1.26 | |
| Housing (a).(b) Set | ||||
| 34 | 334953 | 19.11 | 23.13 | |
| Housing (a).(b) Set | ||||
| 34A | 334953 | 19.11 | 23.13 | |
| Lever (a) | ||||
| 35 | 329519 | 1.80 | 2.18 | |
| Truss Hd. Screw M4 (black) | ||||
| 36 | 327001 | 1.80 | 2.18 | |
| Hook | ||||
| 37 | 332824 | 4.58 | 5.54 | |
| Lever (b) | ||||
| 38 | 329520 | 1.80 | 2.18 | |
| Pushing Button (a) | ||||
| 39 | 329454 | 1.05 | 1.27 | |
| Switch | ||||
| 40A | 337392 | 14.99 | 18.13 | |
| Lock Nut M4 (black) | ||||
| 41 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 42 | 328644 | 1.80 | 2.18 | |
| Strap (black) | ||||
| 43 | 306952 | 4.05 | 4.90 | |
| Ferrite Core For Europe,rus,aut,isr | ||||
| 44 | 318247 | 1.05 | 1.27 | |
| Controller Terminal Set | ||||
| 45 | 334958 | 45.65 | 55.24 | |
| No information available, not orderable | ||||
| 46 | 334905 | |||
| No information available, not orderable | ||||
| 502 | 337140 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 504 | 336471 | |||
| No information available, not orderable | ||||
| 505 | 336472 | |||
| No information available, not orderable | ||||
| 506 | 336473 | |||
| No information available, not orderable | ||||
| 507 | 336474 | |||
| No information available, not orderable | ||||
| 508 | 336475 | |||
| No information available, not orderable | ||||
| 601 | 321823 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 602 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 992671 | |||
| No information available, not orderable | ||||
| 604 | 992672 | |||
| No information available, not orderable | ||||
| 605 | 996177 | |||
| No longer available, no replacement | ||||
| 606 | 985329 | |||
| No information available, not orderable | ||||
| 607 | 996178 | |||
| No information available, not orderable | ||||
| 608 | 996179 | |||
| No information available, not orderable | ||||
| 609 | 996180 | |||
| No information available, not orderable | ||||
| 610 | 996185 | |||
| No information available, not orderable | ||||
| 611 | 996181 | |||
| No information available, not orderable | ||||
| 612 | 996182 | |||
| No information available, not orderable | ||||
| 613 | 996186 | |||
| No information available, not orderable | ||||
| 614 | 996197 | |||
| No information available, not orderable | ||||
| 615 | 996184 | |||
| No information available, not orderable | ||||
| 616 | 987575 | |||
| No information available, not orderable | ||||
| 617 | 930119 | |||
| No information available, not orderable | ||||
| 618 | 307543 | |||
| No information available, not orderable | ||||
| 619 | 306927 | |||
