Here you will find all available parts and drawings of the 'Hikoki WH18DMR'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

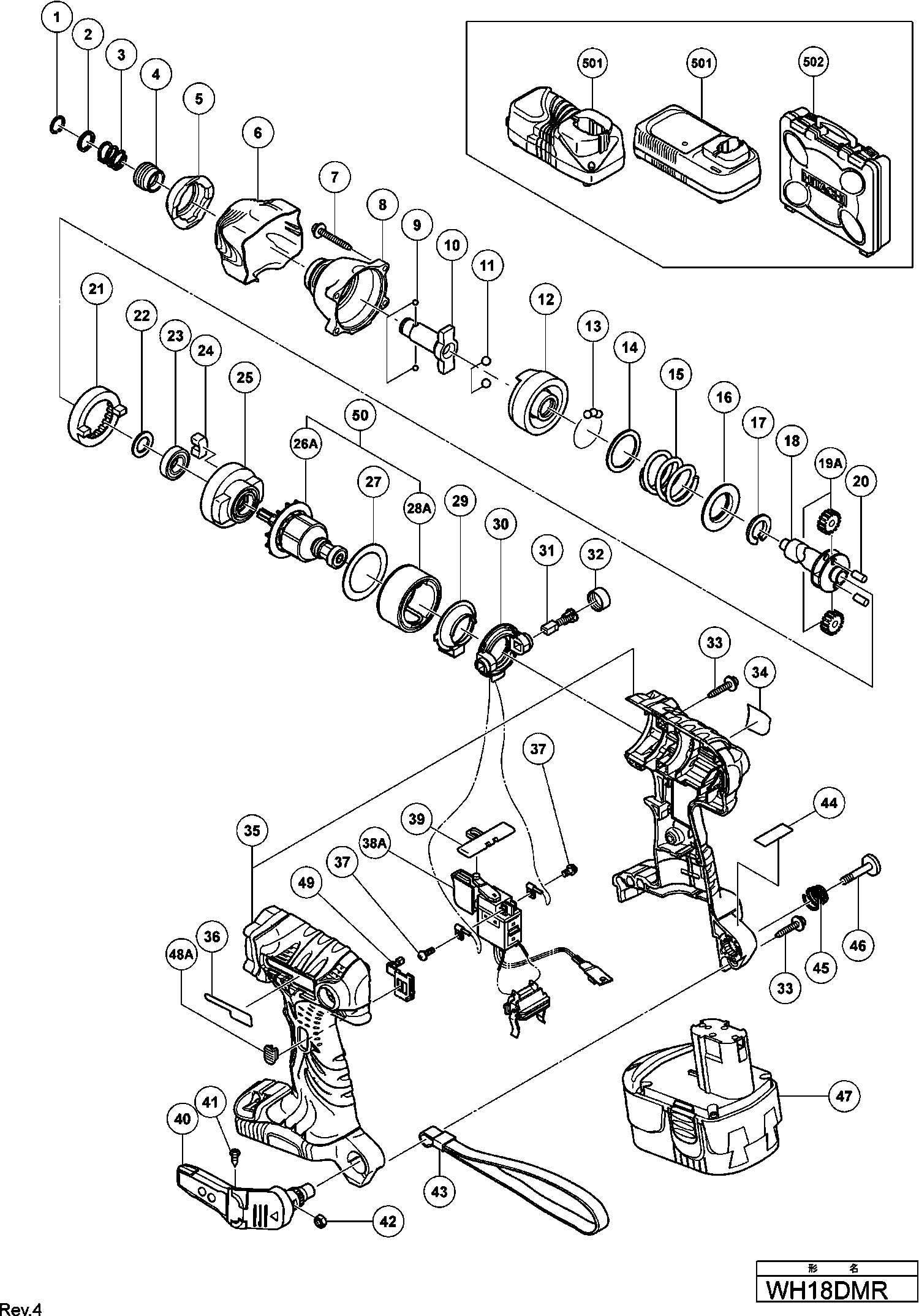

Technical drawing of model Hikoki WH18DMR
Spare parts list of model Hikoki WH18DMR
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spring washer | ||||
| 1 | 315984 | 1.65 | 2.00 | |
| WASHER | ||||
| 2 | 315983 | 1.65 | 2.00 | |
| Guide Spring (OLD 322716) | ||||
| 3 | 321657 | 1.65 | 2.00 | |
| Guide Bush | ||||
| 4 | 322717 | 3.30 | 3.99 | |
| Front Cap (c) | ||||
| 5 | 324238 | 1.05 | 1.27 | |
| Protection AF-DW | ||||
| 6 | 324239 | 1.05 | 1.27 | |
| Tapping Screw with Washer D4x30 | ||||
| 7 | 307851 | 1.05 | 1.27 | |
| Hammer Case | ||||
| 8 | 324216 | 14.55 | 17.61 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 9 | 319535 | 1.65 | 2.00 | |
| Anvil | ||||
| 10 | 324236 | 21.73 | 26.29 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 11 | 959154 | 1.35 | 1.63 | |
| Hammer | ||||
| 12 | 324218 | 12.45 | 15.06 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 13 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 14 | 315978 | 1.65 | 2.00 | |
| Hammer Spring (f) | ||||
| 15 | 324224 | 3.30 | 3.99 | |
| Washer | ||||
| 16 | 316172 | 1.65 | 2.00 | |
| Stopper (b) | ||||
| 17 | 324222 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 18 | 324232 | 16.36 | 19.80 | |
| Idle Gear Set (2 Pcs.) | ||||
| 19A | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 20 | 324234 | 1.05 | 1.27 | |
| Gear | ||||
| 21 | 320877 | 18.15 | 21.96 | |
| Ring | ||||
| 22 | 319911 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 23 | 6901VV | |||
| Damper | ||||
| 24 | 324230 | 1.05 | 1.27 | |
| Inner Protection | ||||
| 25 | 324229 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 26A | 333550 | |||
| Washer (a) | ||||
| 27 | 324607 | 1.05 | 1.27 | |
| Magnet (j) Ass'y Includ.24 | ||||
| 28A | 334901 | 79.89 | 96.66 | |
| Dust Guard Fin (b) | ||||
| 29 | 324228 | 1.05 | 1.27 | |
| Brush Block | ||||
| 30 | 324226 | 20.90 | 25.29 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 31 | 999054 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 32 | 319918 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 33 | 302086 | 1.05 | 1.27 | |
| Housing (a).(b) Set | ||||
| 35 | 327051 | 20.90 | 25.29 | |
| Housing (a) (b) Set | ||||
| 35 | 324240 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 36 | 324514 | |||
| Machine Screw (w/sp. Washer) M3x5 | ||||
| 37 | 994532 | 1.04 | 1.26 | |
| Switch | ||||
| 38A | 321533 | 37.95 | 45.92 | |
| Pushing Button (b) | ||||
| 39 | 324225 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 40 | 321918 | |||
| Tapping Screw D2x6 | ||||
| 41 | 321672 | 1.65 | 2.00 | |
| Nut M5 | ||||
| 42 | 320288 | 1.65 | 2.00 | |
| Strap (black) | ||||
| 43 | 306952 | 4.05 | 4.90 | |
| Hook Spring | ||||
| 45 | 319926 | 1.65 | 2.00 | |
| Special Screw (a) M5 | ||||
| 46 | 320881 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 47 | 323564 | |||
| Tappet | ||||
| 48A | 327053 | 1.05 | 1.27 | |
| Slide * | ||||
| 49 | 327052 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 601 | 321823 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 602 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 992671 | |||
| No information available, not orderable | ||||
| 604 | 992672 | |||
| No information available, not orderable | ||||
| 605 | 996177 | |||
| No longer available, no replacement | ||||
| 606 | 985329 | |||
| No information available, not orderable | ||||
| 607 | 996178 | |||
| No information available, not orderable | ||||
| 608 | 996179 | |||
| No information available, not orderable | ||||
| 609 | 996180 | |||
| No information available, not orderable | ||||
| 610 | 996185 | |||
| No information available, not orderable | ||||
| 611 | 996181 | |||
| No information available, not orderable | ||||
| 612 | 996182 | |||
| No information available, not orderable | ||||
| 613 | 996186 | |||
| No information available, not orderable | ||||
| 614 | 996197 | |||
| No information available, not orderable | ||||
| 615 | 996184 | |||
| No information available, not orderable | ||||
| 616 | 987575 | |||
| No information available, not orderable | ||||
| 617 | 930119 | |||
| No information available, not orderable | ||||
| 618 | 307543 | |||
