Here you will find all available parts and drawings of the 'Hikoki WH18DGL'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

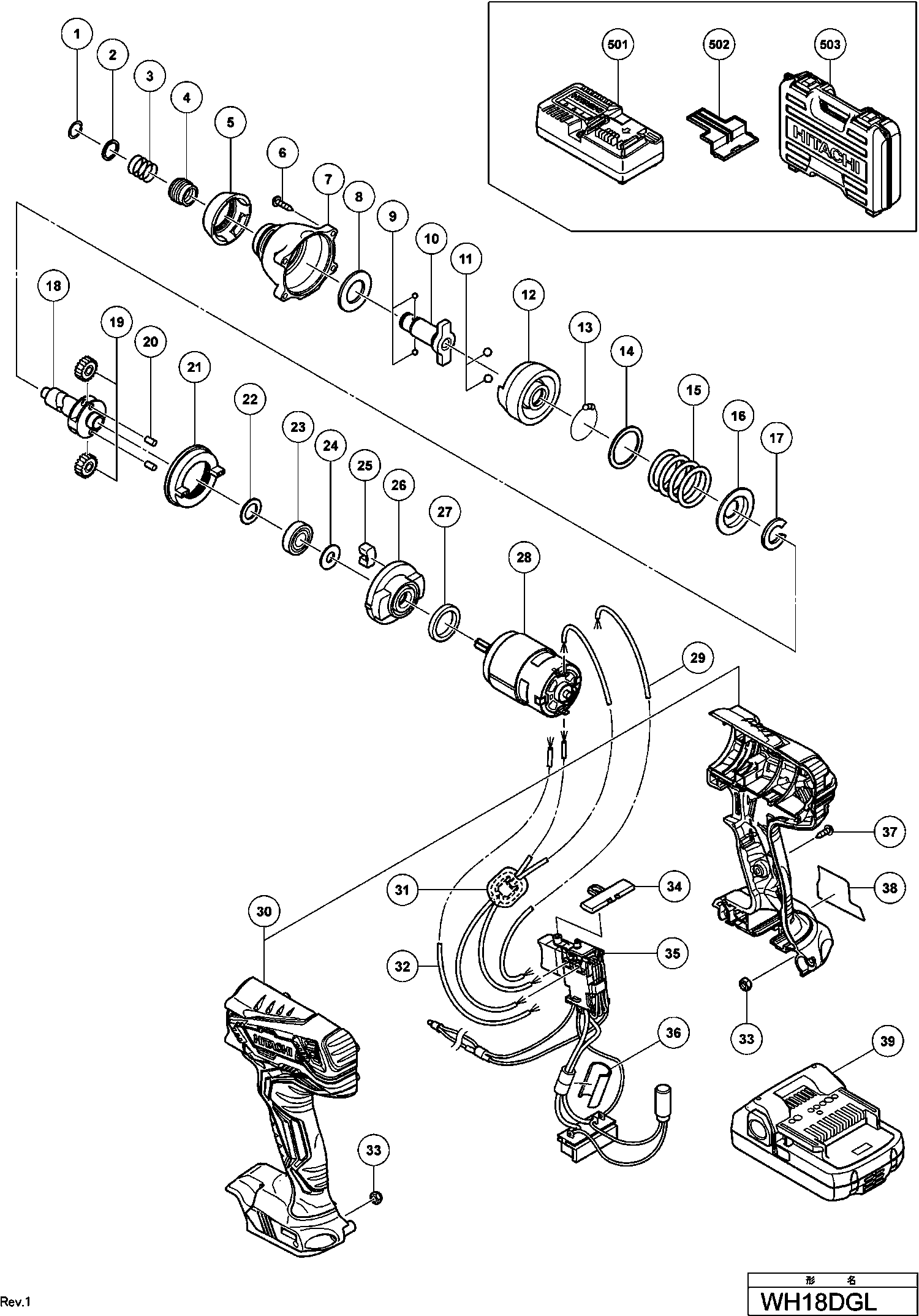

Technical drawing of model Hikoki WH18DGL
Spare parts list of model Hikoki WH18DGL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Washer Spring | ||||
| 1 | 330619 | 1.05 | 1.27 | |
| Washer (d) | ||||
| 2 | 330856 | 1.88 | 2.27 | |
| Guide Spring (d) | ||||
| 3 | 331284 | 1.05 | 1.27 | |
| Guide Bush | ||||
| 4 | 322717 | 3.30 | 3.99 | |
| Front Cap | ||||
| 5 | 336636 | 1.04 | 1.26 | |
| Tapping Screw (w/sp. Washer) D4x25(black | ||||
| 6 | 319917 | 1.65 | 2.00 | |
| Hammer Case | ||||
| 7 | 336637 | 10.05 | 12.16 | |
| Washer (f) | ||||
| 8 | 336639 | 1.05 | 1.27 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 9 | 319535 | 1.65 | 2.00 | |
| Anvil (f) For Fra,ita,aus,nzl,isr | ||||
| 10A | 370818 | 13.65 | 16.52 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 11 | 959154 | 1.35 | 1.63 | |
| Hammer (c) | ||||
| 12 | 336641 | 12.00 | 14.52 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 13 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 14 | 315978 | 1.65 | 2.00 | |
| Hammer Spring (k) | ||||
| 15 | 336640 | 1.20 | 1.45 | |
| Washer | ||||
| 16 | 316172 | 1.65 | 2.00 | |
| Stopper | ||||
| 17 | 316171 | 4.35 | 5.26 | |
| Spindle (e) | ||||
| 18 | 335912 | 13.95 | 16.88 | |
| Idle Gear Set (2 Pcs.) | ||||
| 19 | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 20 | 319914 | 1.65 | 2.00 | |
| Ring Gear | ||||
| 21 | 330657 | 3.75 | 4.54 | |
| Ring | ||||
| 22 | 319911 | 1.65 | 2.00 | |
| Ball Bearing 6901vvm | ||||
| 23 | 6901VV | 9.60 | 11.62 | |
| Felt | ||||
| 24 | 331288 | 1.05 | 1.27 | |
| Damper | ||||
| 25 | 324230 | 1.05 | 1.27 | |
| Covering hood | ||||
| 26 | 331286 | 2.10 | 2.54 | |
| Damper | ||||
| 27 | 321894 | 1.65 | 2.00 | |
| Motor Dc 18v | ||||
| 28 | 336628 | 31.08 | 37.60 | |
| Housing (a).(b) Set | ||||
| 30 | 336627 | 9.60 | 11.62 | |
| Lock Nut M4 (black) | ||||
| 33 | 327002 | 1.80 | 2.18 | |
| Pushing Button (a) | ||||
| 34 | 336638 | 1.04 | 1.26 | |
| Switch Terminal Set For Fra,ita,isr,kor | ||||
| 35 | 336632 | 23.38 | 28.28 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 37 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 39 | 333353 | |||
| Battery Cover | ||||
| 502 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 503 | 336642 | |||
| No information available, not orderable | ||||
| 601 | 321823 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 602 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 992671 | |||
| No information available, not orderable | ||||
| 604 | 992672 | |||
| No information available, not orderable | ||||
| 605 | 996177 | |||
| No longer available, no replacement | ||||
| 606 | 985329 | |||
| No information available, not orderable | ||||
| 607 | 996178 | |||
| No information available, not orderable | ||||
| 608 | 996179 | |||
| No information available, not orderable | ||||
| 609 | 996180 | |||
| No information available, not orderable | ||||
| 610 | 996185 | |||
| No information available, not orderable | ||||
| 611 | 996181 | |||
| No information available, not orderable | ||||
| 612 | 996182 | |||
| No information available, not orderable | ||||
| 613 | 996186 | |||
| No information available, not orderable | ||||
| 614 | 996197 | |||
| No information available, not orderable | ||||
| 615 | 996184 | |||
| No information available, not orderable | ||||
| 616 | 987575 | |||
| No information available, not orderable | ||||
| 617 | 930119 | |||
| No information available, not orderable | ||||
| 618 | 307543 | |||
| No information available, not orderable | ||||
| 619 | 306927 | |||
| Hook Set | ||||
| 620 | 337131 | 3.75 | 4.54 | |
| Strap (black) | ||||
| 621 | 306952 | 4.05 | 4.90 | |
