Here you will find all available parts and drawings of the 'Hikoki WH18DBFL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

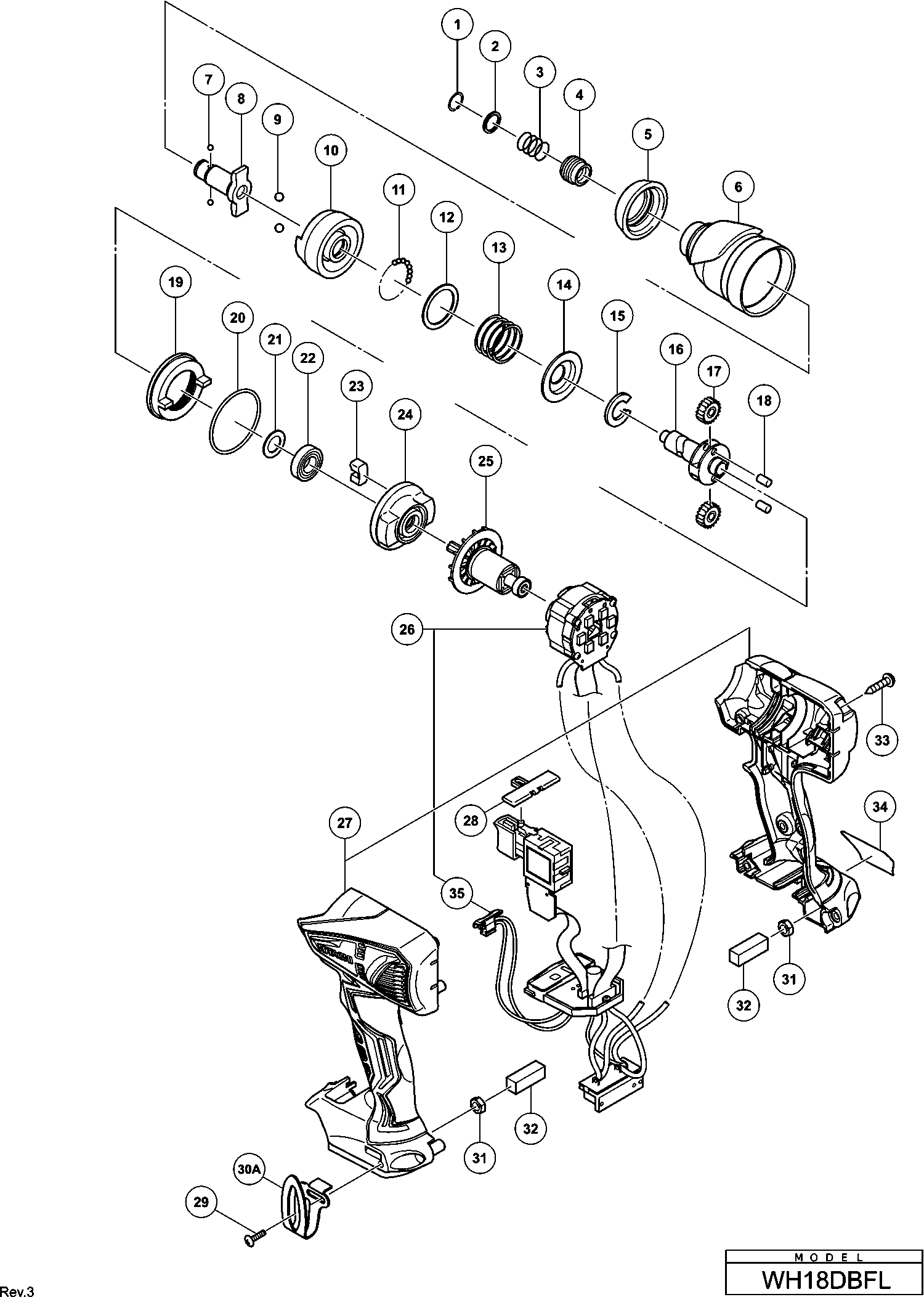

Technical drawing of model Hikoki WH18DBFL
Spare parts list of model Hikoki WH18DBFL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Washer Spring | ||||
| 1 | 330619 | 1.05 | 1.27 | |
| Washer (d) | ||||
| 2 | 330856 | 1.88 | 2.27 | |
| Guide Spring (d) | ||||
| 3 | 331284 | 1.05 | 1.27 | |
| Guide Bush | ||||
| 4 | 322717 | 3.30 | 3.99 | |
| Front Cap | ||||
| 5 | 335907 | 1.35 | 1.63 | |
| Hammer Case | ||||
| 6 | 335908 | 16.50 | 19.96 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 7 | 319535 | 1.65 | 2.00 | |
| Anvil (f) | ||||
| 8 | 335910 | 10.95 | 13.25 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 9 | 959154 | 1.35 | 1.63 | |
| Hammer (c) | ||||
| 10 | 335911 | 12.15 | 14.70 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 11 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 12 | 315978 | 1.65 | 2.00 | |
| Hammer Spring (d) | ||||
| 13 | 331285 | 2.10 | 2.54 | |
| Washer | ||||
| 14 | 316172 | 1.65 | 2.00 | |
| Stopper | ||||
| 15 | 316171 | 4.35 | 5.26 | |
| Spindle (e) | ||||
| 16 | 335912 | 13.95 | 16.88 | |
| Idle Gear Set (2 Pcs.) | ||||
| 17 | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 18 | 319914 | 1.65 | 2.00 | |
| Ring Gear | ||||
| 19 | 330657 | 3.75 | 4.54 | |
| O-Ring (s-42) | ||||
| 20 | 983852 | 1.95 | 2.36 | |
| Ring | ||||
| 21 | 319911 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 22 | 6901VV | |||
| Damper | ||||
| 23 | 324230 | 1.05 | 1.27 | |
| Covering hood | ||||
| 24 | 336240 | 1.35 | 1.63 | |
| Rotor Pinion | ||||
| 25 | 335913 | 37.13 | 44.92 | |
| Wiring Includ.35 | ||||
| 26 | 335915 | 140.11 | 169.54 | |
| Housing (a).(b)set (green) | ||||
| 27 | 335929 | 21.86 | 26.45 | |
| Pushing Button (b) | ||||
| 28 | 324225 | 1.05 | 1.27 | |
| Truss Hd. Screw M4 (black) | ||||
| 29 | 327001 | 1.80 | 2.18 | |
| Hook | ||||
| 30A | 332824 | 4.58 | 5.54 | |
| Lock Nut M4 (black) | ||||
| 31 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 32 | 328644 | 1.80 | 2.18 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 33 | 301653 | 1.04 | 1.26 | |
| Led Holder | ||||
| 35 | 339280 | 4.65 | 5.63 | |
