Here you will find all available parts and drawings of the 'Hikoki WH14DSAL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

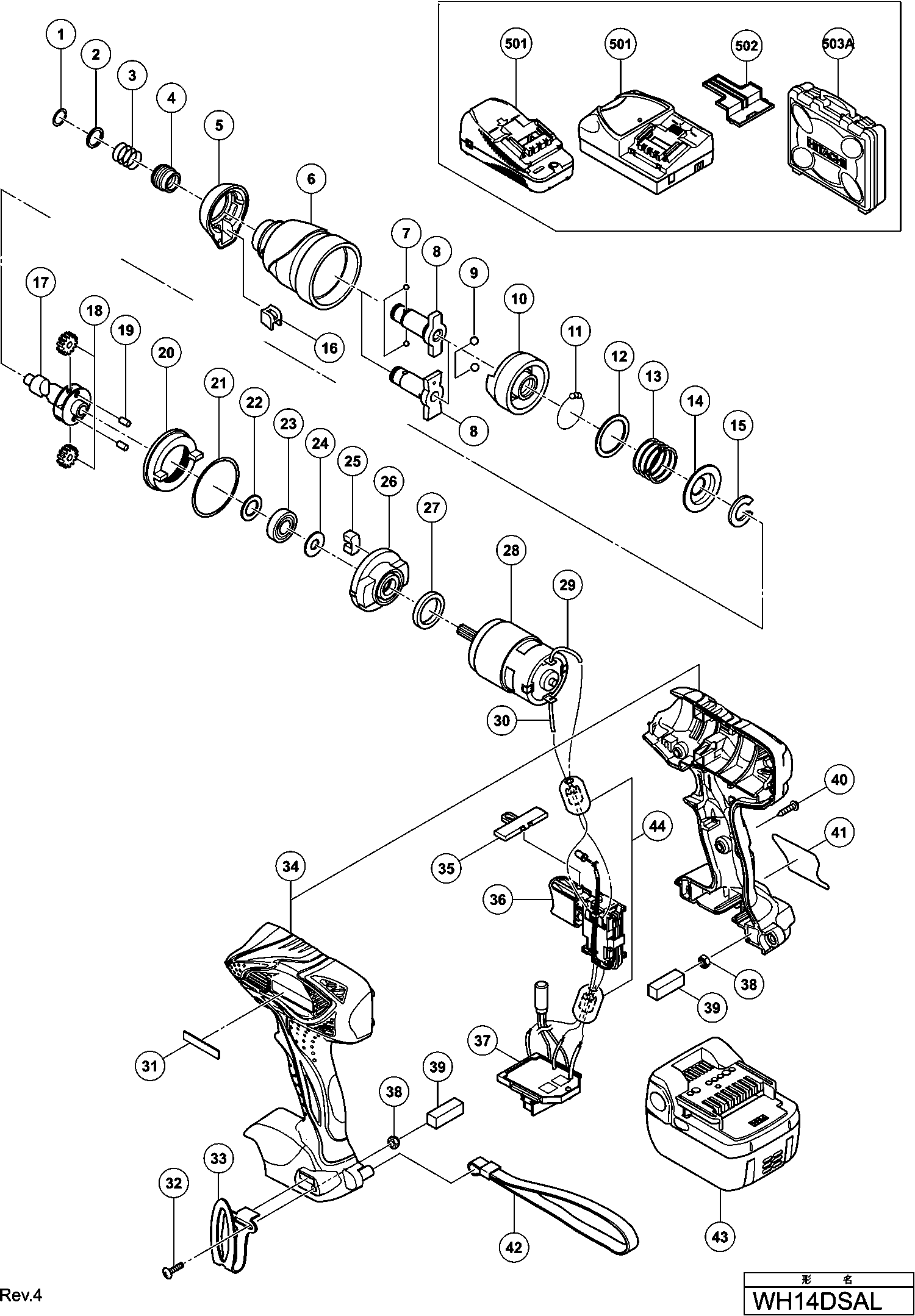

Technical drawing of model Hikoki WH14DSAL
Spare parts list of model Hikoki WH14DSAL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Washer Spring | ||||
| 1 | 330619 | 1.05 | 1.27 | |
| Washer (d) | ||||
| 2 | 330856 | 1.88 | 2.27 | |
| Guide Spring (d) | ||||
| 3 | 331284 | 1.05 | 1.27 | |
| Guide Bush | ||||
| 4 | 322717 | 3.30 | 3.99 | |
| Front Cap (g) | ||||
| 5 | 331280 | 3.15 | 3.81 | |
| Hammer Case | ||||
| 6 | 331281 | 20.90 | 25.29 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 7 | 319535 | 1.65 | 2.00 | |
| Anvil (d) For Europe | ||||
| 8 | 331275 | 17.13 | 20.72 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 9 | 959154 | 1.35 | 1.63 | |
| Striker | ||||
| 10 | 331276 | 20.90 | 25.29 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 11 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 12 | 315978 | 1.65 | 2.00 | |
| Hammer Spring (d) | ||||
| 13 | 331285 | 2.10 | 2.54 | |
| Washer | ||||
| 14 | 316172 | 1.65 | 2.00 | |
| Stopper | ||||
| 15 | 316171 | 4.35 | 5.26 | |
| Led Holder | ||||
| 16 | 329552 | 8.40 | 10.16 | |
| Spindle Ass'y | ||||
| 17 | 331287 | 24.68 | 29.86 | |
| Idle Gear Set (2 Pcs.) | ||||
| 18 | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 19 | 319914 | 1.65 | 2.00 | |
| Ring Gear | ||||
| 20 | 330657 | 3.75 | 4.54 | |
| O-Ring (s-42) | ||||
| 21 | 983852 | 1.95 | 2.36 | |
| Ring | ||||
| 22 | 319911 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 23 | 6901VV | |||
| Felt | ||||
| 24 | 331288 | 1.05 | 1.27 | |
| Damper | ||||
| 25 | 324230 | 1.05 | 1.27 | |
| Covering hood | ||||
| 26 | 331286 | 2.10 | 2.54 | |
| Damper | ||||
| 27 | 321894 | 1.65 | 2.00 | |
| Motor Dc 14.4v | ||||
| 28 | 331289 | 41.80 | 50.58 | |
| Hitachi Plate | ||||
| 31 | 329648 | 1.88 | 2.27 | |
| Truss Hd. Screw M4 (black) | ||||
| 32 | 327001 | 1.80 | 2.18 | |
| HOOK (OLD 329686) | ||||
| 33 | 331277 | 5.03 | 6.08 | |
| No information available, not orderable | ||||
| 34 | 333825 | |||
| Pushing Button (a) | ||||
| 35 | 329454 | 1.05 | 1.27 | |
| Switch | ||||
| 36 | 331290 | 17.88 | 21.63 | |
| Controller Terminal Set | ||||
| 37 | 331283 | 24.75 | 29.95 | |
| Lock Nut M4 (black) | ||||
| 38 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 39 | 327004 | 1.80 | 2.18 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 40 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 43 | 334306 | |||
| Ferrite Support Set Since 3.2012 For Europe | ||||
| 44 | 334873 | 4.20 | 5.08 | |
| Battery Cover | ||||
| 502 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 503A | 337852 | |||
| No information available, not orderable | ||||
| 601 | 321823 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 602 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 992671 | |||
| No information available, not orderable | ||||
| 604 | 992672 | |||
| No information available, not orderable | ||||
| 605 | 996177 | |||
| No longer available, no replacement | ||||
| 606 | 985329 | |||
| No information available, not orderable | ||||
| 607 | 996178 | |||
| No information available, not orderable | ||||
| 608 | 996179 | |||
| No information available, not orderable | ||||
| 609 | 996180 | |||
| No information available, not orderable | ||||
| 610 | 996185 | |||
| No information available, not orderable | ||||
| 611 | 996181 | |||
| No information available, not orderable | ||||
| 612 | 996182 | |||
| No information available, not orderable | ||||
| 613 | 996186 | |||
| No information available, not orderable | ||||
| 614 | 996197 | |||
| No information available, not orderable | ||||
| 615 | 996184 | |||
| No information available, not orderable | ||||
| 616 | 987575 | |||
| No information available, not orderable | ||||
| 617 | 930119 | |||
| No information available, not orderable | ||||
| 618 | 307543 | |||
| No information available, not orderable | ||||
| 619 | 306927 | |||
