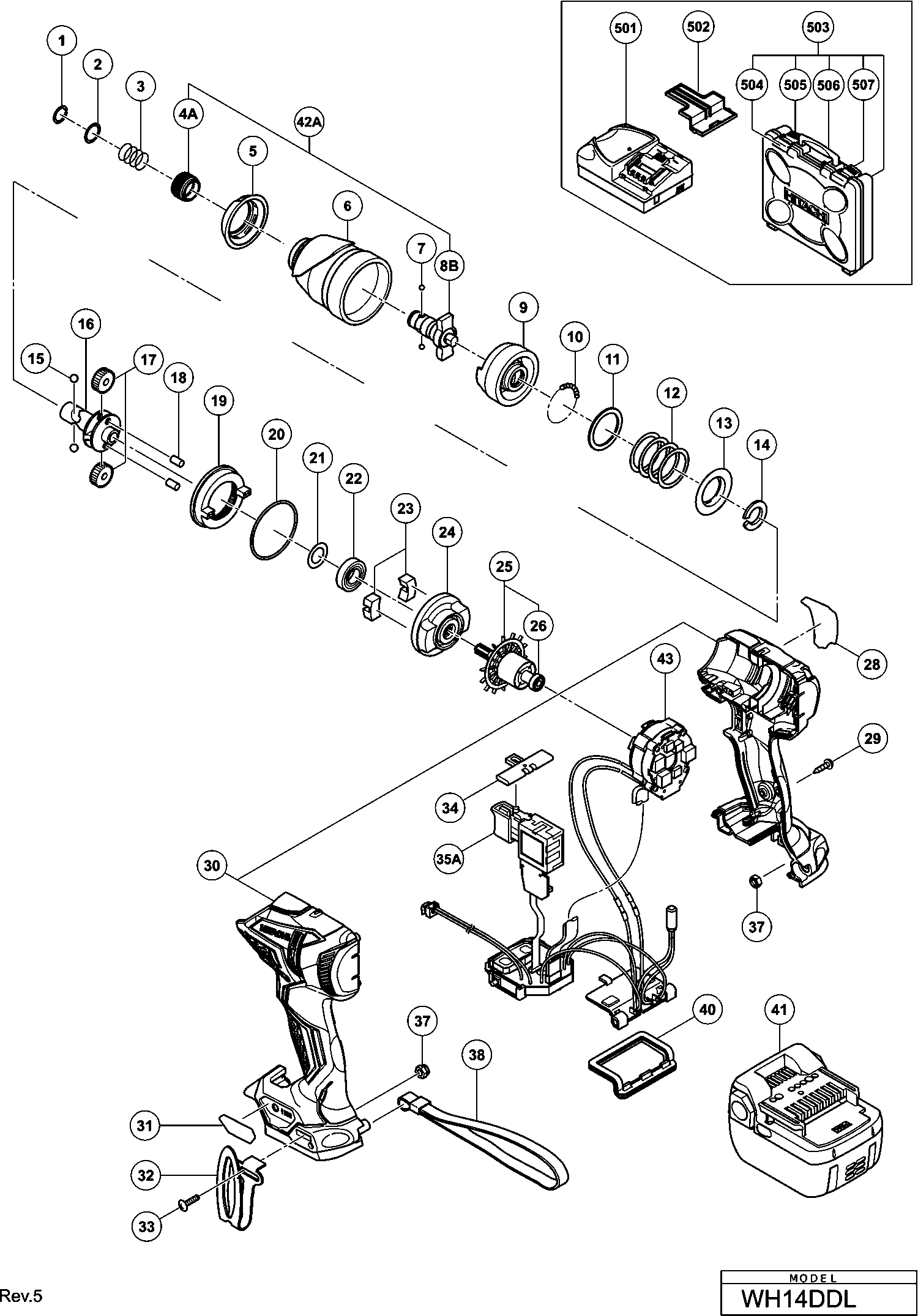

Technical drawing of model Hikoki WH14DDL
Spare parts list of model Hikoki WH14DDL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spring washer | ||||
| 1 | 315984 | 1.65 | 2.00 | |
| Washer (d) | ||||
| 2 | 330856 | 1.88 | 2.27 | |
| Guide Spring (OLD 322716) | ||||
| 3 | 321657 | 1.65 | 2.00 | |
| Guide Sleeve (g) | ||||
| 4A | 337105 | 2.85 | 3.45 | |
| Front Cap | ||||
| 5 | 335330 | 1.35 | 1.63 | |
| Front Case | ||||
| 6 | 335331 | 24.48 | 29.61 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 7 | 319535 | 1.65 | 2.00 | |
| Anvil | ||||
| 8A | 335737 | 13.05 | 15.79 | |
| Anvil | ||||
| 8B | 338882 | 12.75 | 15.43 | |
| Anvil For Europe | ||||
| 8B | 338883 | 12.30 | 14.88 | |
| Hammer | ||||
| 9 | 335329 | 10.95 | 13.25 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 10 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 11 | 315978 | 1.65 | 2.00 | |
| Hammer Spring (j) | ||||
| 12 | 335316 | 2.10 | 2.54 | |
| Washer | ||||
| 13 | 316172 | 1.65 | 2.00 | |
| Stopper (c) | ||||
| 14 | 328647 | 3.45 | 4.17 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 15 | 959154 | 1.35 | 1.63 | |
| Spindle Ass'y | ||||
| 16 | 335318 | 10.80 | 13.07 | |
| Idle Gear Set (2 Pcs.) | ||||
| 17 | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 18 | 319914 | 1.65 | 2.00 | |
| Ring Gear | ||||
| 19 | 330657 | 3.75 | 4.54 | |
| O-Ring (s-42) | ||||
| 20 | 983852 | 1.95 | 2.36 | |
| Washer (e) | ||||
| 21 | 330855 | 1.80 | 2.18 | |
| Ball Bearing 6901vv-n | ||||
| 22 | 323118 | 6.75 | 8.17 | |
| Damper | ||||
| 23 | 333952 | 1.80 | 2.18 | |
| Inner Cover | ||||
| 24 | 335317 | 1.05 | 1.27 | |
| Rotor Ass'y Includ.26 | ||||
| 25 | 335325 | 56.24 | 68.05 | |
| Ball Bearing 604dd | ||||
| 26 | 335723 | 5.40 | 6.53 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 29 | 313687 | 1.04 | 1.26 | |
| Housing (a).(b)set (green) | ||||
| 30 | 335735 | 27.09 | 32.78 | |
| Panel Sheet (d) | ||||
| 31 | 335722 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 32 | 335724 | |||
| Truss Hd. Screw M4 (black) | ||||
| 33 | 327001 | 1.80 | 2.18 | |
| Pushing Button (a) | ||||
| 34 | 321661 | 1.65 | 2.00 | |
| Switch | ||||
| 35 | 335323 | 12.38 | 14.97 | |
| No information available, not orderable | ||||
| 35A | 339720 | |||
| Lock Nut M4 (black) | ||||
| 37 | 327002 | 1.80 | 2.18 | |
| Strap (black) | ||||
| 38 | 306952 | 4.05 | 4.90 | |
| Terminal Rubber | ||||
| 40 | 335324 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 41 | 334904 | |||
| No information available, not orderable | ||||
| 42 | 337107 | |||
| Anvil. Sleeve Set Includ.4a,8b Till 1.2014 For Eu | ||||
| 42A | 338884 | 13.89 | 16.80 | |
| Wiring Ass'y Includ.35 | ||||
| 43 | 337891 | 94.80 | 114.71 | |
| Battery Cover | ||||
| 502 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 503 | 329440 | |||
| Latch (dark Gray) | ||||
| 504 | 334233 | 1.80 | 2.18 | |
| Knob (l) Dark Gray | ||||
| 505 | 334235 | 1.80 | 2.18 | |
| Lever | ||||
| 506 | 334232 | 3.45 | 4.17 | |
| Knob (r) Dark Gray | ||||
| 507 | 334234 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 321823 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 602 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 992671 | |||
| No information available, not orderable | ||||
| 604 | 992672 | |||
| No information available, not orderable | ||||
| 605 | 996177 | |||
| No longer available, no replacement | ||||
| 606 | 985329 | |||
| No information available, not orderable | ||||
| 607 | 996178 | |||
| No information available, not orderable | ||||
| 608 | 996179 | |||
| No information available, not orderable | ||||
| 609 | 996180 | |||
| No information available, not orderable | ||||
| 610 | 996185 | |||
| No information available, not orderable | ||||
| 611 | 996181 | |||
| No information available, not orderable | ||||
| 612 | 996182 | |||
| No information available, not orderable | ||||
| 613 | 996186 | |||
| No information available, not orderable | ||||
| 614 | 996197 | |||
| No information available, not orderable | ||||
| 615 | 996184 | |||
| No information available, not orderable | ||||
| 616 | 987575 | |||
| No information available, not orderable | ||||
| 617 | 930119 | |||
| No information available, not orderable | ||||
| 618 | 307543 | |||
| No information available, not orderable | ||||
| 619 | 306927 | |||
| No information available, not orderable | ||||
| 620 | 336373 | |||
| No information available, not orderable | ||||
| 621 | 325149 | |||
