Here you will find all available parts and drawings of the 'Hikoki WH14DCL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

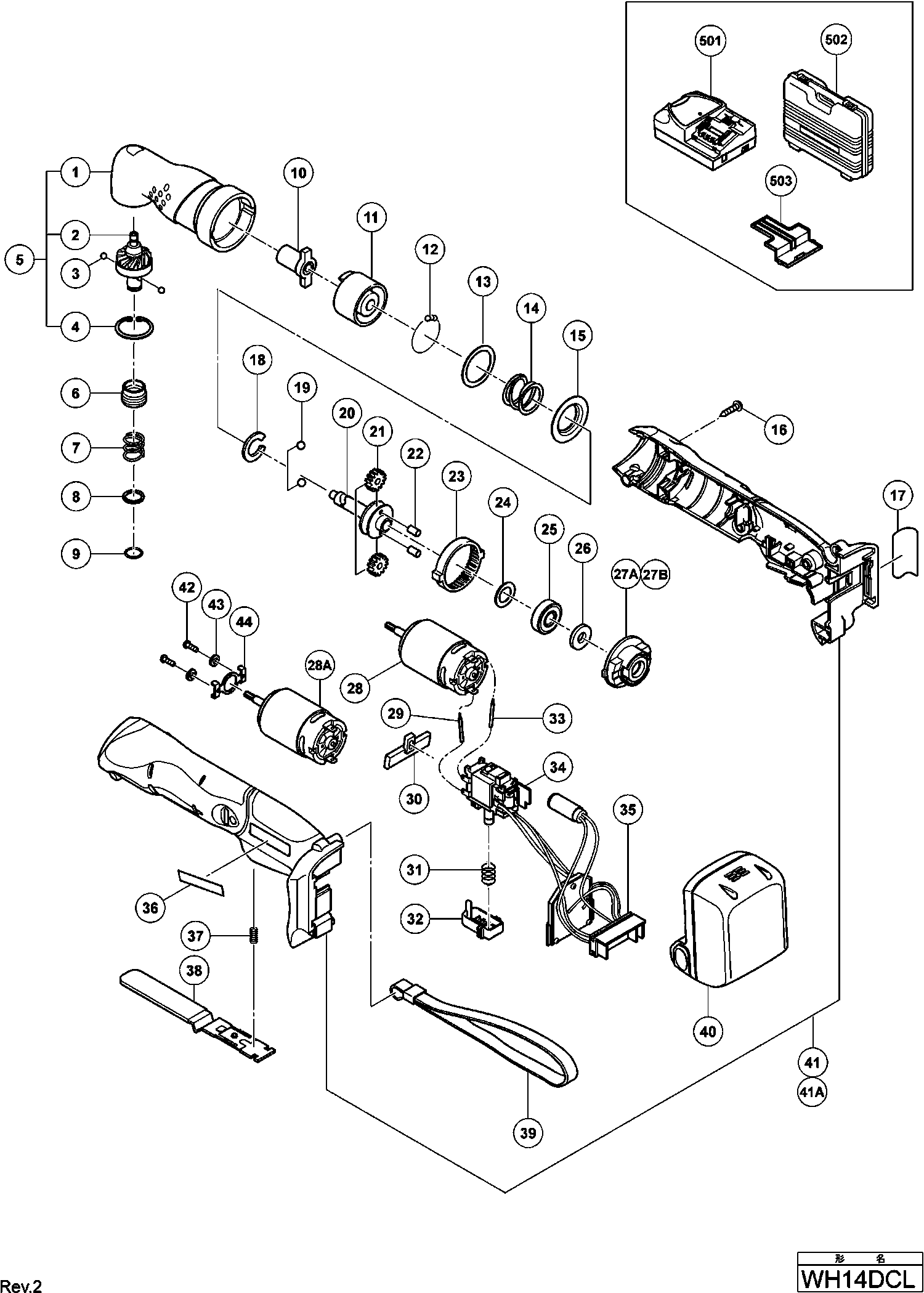

Technical drawing of model Hikoki WH14DCL
Spare parts list of model Hikoki WH14DCL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Final Gear | ||||
| *2 | 330624 | 15.40 | 18.63 | |
| No longer available, no replacement | ||||
| *28 | 329669 | |||
| Hammer Case Set Includ.1,2,4 | ||||
| *5 | 330623 | 36.16 | 43.76 | |
| Hammer Case | ||||
| 1 | 329672 | 20.90 | 25.29 | |
| Final Gear | ||||
| 2 | 330624 | 15.40 | 18.63 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 3 | 319535 | 1.65 | 2.00 | |
| Retaining Ring For D28 Hole (10 Pcs.) | ||||
| 4 | 939555 | 4.35 | 5.26 | |
| Hammer Case Set Includ.1,2,4 | ||||
| 5 | 330623 | 36.16 | 43.76 | |
| Guide Bush | ||||
| 6 | 322717 | 3.30 | 3.99 | |
| Guide Spring (c) | ||||
| 7 | 330617 | 1.05 | 1.27 | |
| Washer (d) | ||||
| 8 | 330618 | 1.05 | 1.27 | |
| Washer Spring | ||||
| 9 | 330619 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 10 | 329660 | |||
| No information available, not orderable | ||||
| 11 | 329665 | |||
| Steel Ball D3.175 (10 Pcs.) | ||||
| 12 | 959148 | 1.05 | 1.27 | |
| Washer (j) | ||||
| 13 | 329617 | 1.05 | 1.27 | |
| Hammer Spring | ||||
| 14 | 329658 | 2.10 | 2.54 | |
| Washer (s) | ||||
| 15 | 329614 | 2.10 | 2.54 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 16 | 301653 | 1.04 | 1.26 | |
| Stopper (b) | ||||
| 18 | 329613 | 1.05 | 1.27 | |
| Steel Ball D4.76 (10 pieces) | ||||
| 19 | 959149 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 20 | 329659 | |||
| Idle Gear Set (2 Pcs.) | ||||
| 21 | 329611 | 11.40 | 13.79 | |
| Needle Roller | ||||
| 22 | 329612 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 23 | 329610 | 3.15 | 3.81 | |
| Ring | ||||
| 24 | 319911 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 25 | 6901VV | |||
| VILTRING | ||||
| 26 | 329518 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 27A | 329657 | |||
| INNER COVER (D) (OLD 329657) | ||||
| 27B | 335004 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 28 | 329669 | |||
| No information available, not orderable | ||||
| 28A | 335003 | |||
| Connector Cable (black) 57l | ||||
| 29 | 329671 | 1.80 | 2.18 | |
| Pushing Button | ||||
| 30 | 329656 | 1.05 | 1.27 | |
| Spring (s) | ||||
| 31 | 330621 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 32 | 330622 | |||
| Connector Cable (red) 36l | ||||
| 33 | 329670 | 1.80 | 2.18 | |
| Switch | ||||
| 34 | 330853 | 22.83 | 27.62 | |
| Controller Terminal Set | ||||
| 35 | 331808 | 38.09 | 46.09 | |
| Spring | ||||
| 37 | 329655 | 1.05 | 1.27 | |
| Switch Lever Wh14dcal | ||||
| 38 | 329654 | 11.85 | 14.34 | |
| Strap (black) | ||||
| 39 | 306952 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 40 | 329083 | |||
| No longer available, no replacement | ||||
| 41 | 331807 | |||
| Complete Housing (Old 331807) | ||||
| 41A | 335005 | 9.30 | 11.25 | |
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 42 | 949203 | 1.05 | 1.27 | |
| Spring Washer M3 (10 pieces) | ||||
| 43 | 949451 | 1.05 | 1.27 | |
| MOTOR HOLDER | ||||
| 44 | 335002 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 502 | 329674 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 321823 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 602 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 992671 | |||
| No information available, not orderable | ||||
| 604 | 992672 | |||
| No information available, not orderable | ||||
| 605 | 996177 | |||
| No longer available, no replacement | ||||
| 606 | 985329 | |||
| No information available, not orderable | ||||
| 607 | 996178 | |||
| No information available, not orderable | ||||
| 608 | 996179 | |||
| No information available, not orderable | ||||
| 609 | 996180 | |||
| No information available, not orderable | ||||
| 610 | 996185 | |||
| No information available, not orderable | ||||
| 611 | 996181 | |||
| No information available, not orderable | ||||
| 612 | 996182 | |||
| No information available, not orderable | ||||
| 613 | 996186 | |||
| No information available, not orderable | ||||
| 614 | 996197 | |||
| No information available, not orderable | ||||
| 615 | 996184 | |||
| No information available, not orderable | ||||
| 616 | 987575 | |||
| No information available, not orderable | ||||
| 617 | 930119 | |||
| No information available, not orderable | ||||
| 618 | 307543 | |||
