Here you will find all available parts and drawings of the 'Hikoki WH14DBL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

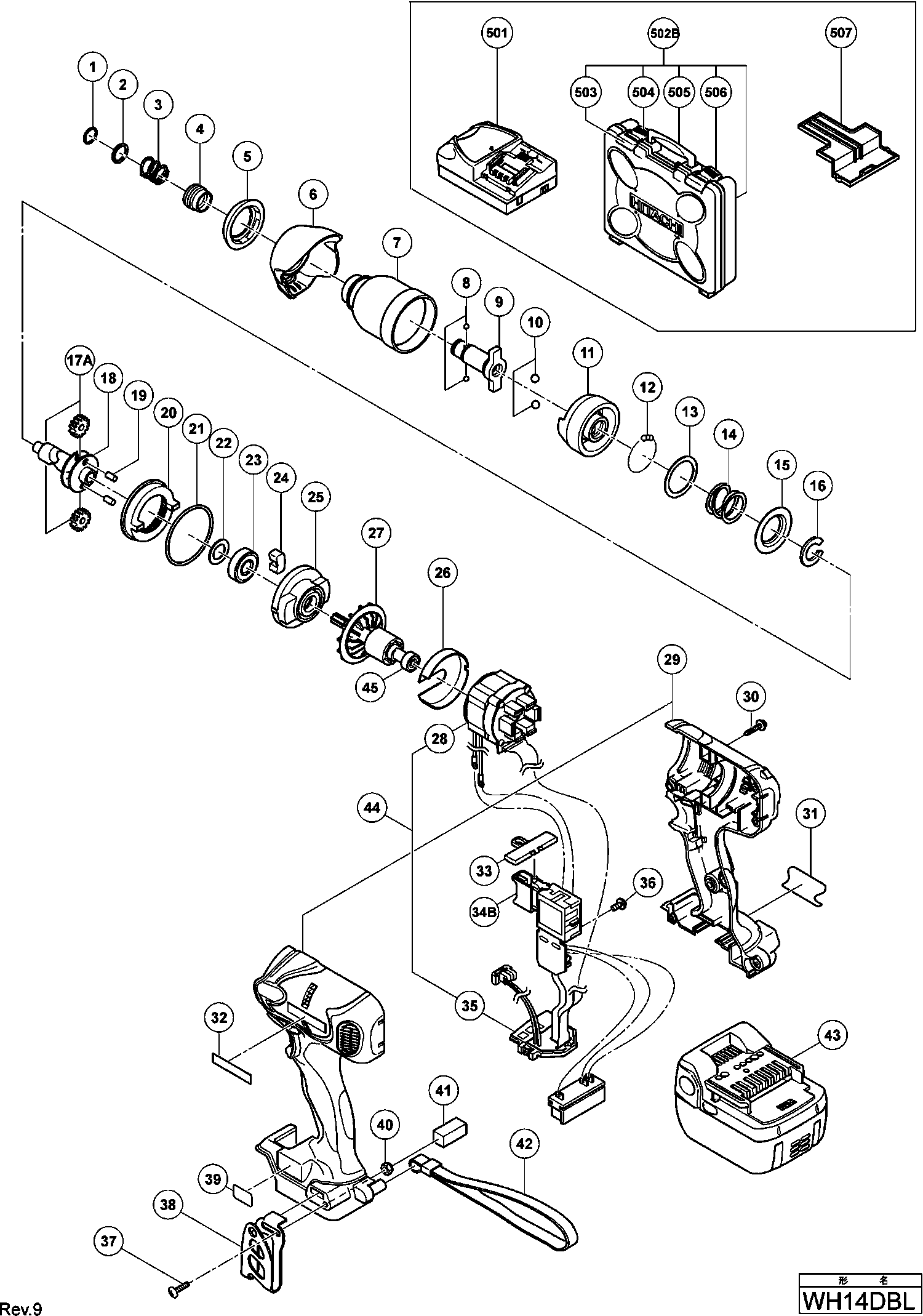

Technical drawing of model Hikoki WH14DBL
Spare parts list of model Hikoki WH14DBL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spring washer | ||||
| 1 | 315984 | 1.65 | 2.00 | |
| WASHER | ||||
| 2 | 315983 | 1.65 | 2.00 | |
| Guide Spring (OLD 322716) | ||||
| 3 | 321657 | 1.65 | 2.00 | |
| Guide Bush | ||||
| 4 | 322717 | 3.30 | 3.99 | |
| Front Cap | ||||
| 5 | 327766 | 1.80 | 2.18 | |
| Front Cover (black) | ||||
| 6 | 328650 | 3.45 | 4.17 | |
| Front Case | ||||
| 7 | 327003 | 23.79 | 28.78 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 8 | 319535 | 1.65 | 2.00 | |
| Anvil (d) For Europe | ||||
| 9 | 329709 | 36.99 | 44.75 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 10 | 959154 | 1.35 | 1.63 | |
| Hammer | ||||
| 11 | 326789 | 21.73 | 26.29 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 12 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 13 | 315978 | 1.65 | 2.00 | |
| Hammer Spring | ||||
| 14 | 321660 | 3.30 | 3.99 | |
| Washer | ||||
| 15 | 316172 | 1.65 | 2.00 | |
| Stopper (c) | ||||
| 16 | 328647 | 3.45 | 4.17 | |
| Idle Gear Set (2 Pcs.) | ||||
| 17A | 326295 | 21.31 | 25.79 | |
| Spindle Ass'y | ||||
| 18 | 321666 | 32.18 | 38.93 | |
| Needle Roller | ||||
| 19 | 319914 | 1.65 | 2.00 | |
| Ring Gear | ||||
| 20 | 326787 | 13.89 | 16.80 | |
| O-Ring (s-42) | ||||
| 21 | 983852 | 1.95 | 2.36 | |
| Ring | ||||
| 22 | 319911 | 1.65 | 2.00 | |
| Ball Bearing 6901vv-n | ||||
| 23 | 323118 | 6.75 | 8.17 | |
| Damper | ||||
| 24 | 322143 | 6.60 | 7.99 | |
| Inner Cover | ||||
| 25 | 326786 | 1.80 | 2.18 | |
| Dust Cover | ||||
| 26 | 328649 | 1.80 | 2.18 | |
| Rotor | ||||
| 27 | 328651 | 67.79 | 82.02 | |
| Field | ||||
| 28 | 340709 | 129.39 | 156.56 | |
| Housing (a).(b)set (green) | ||||
| 29 | 329721 | 70.40 | 85.18 | |
| Housing (a + b) set (white) | ||||
| 29 | 329824 | 36.99 | 44.75 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 30 | 301653 | 1.04 | 1.26 | |
| Pushing Button (a) | ||||
| 33 | 321661 | 1.65 | 2.00 | |
| Dc-speed Control Switch | ||||
| 34B | 334982 | 22.41 | 27.12 | |
| Controller Cable | ||||
| 35 | 329719 | 107.80 | 130.44 | |
| Machine Screw (w/sp. Washer) M3x5 | ||||
| 36 | 994532 | 1.04 | 1.26 | |
| Truss Hd. Screw M4 (black) | ||||
| 37 | 327001 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 38 | 326790 | |||
| Panel Sheet | ||||
| 39 | 329720 | 3.45 | 4.17 | |
| Lock Nut M4 (black) | ||||
| 40 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 41 | 328644 | 1.80 | 2.18 | |
| Strap (black) | ||||
| 42 | 306952 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 43 | 329083 | |||
| Controller Stator Assembly Includ.28,35 | ||||
| 44 | 329826 | 218.63 | 264.54 | |
| Ball Bearing 624dd | ||||
| 45 | 333784 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 502B | 329440 | |||
| No information available, not orderable | ||||
| 503 | 324093 | |||
| No information available, not orderable | ||||
| 504 | 324096 | |||
| Lever | ||||
| 505 | 324090 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 506 | 324099 | |||
| Battery Cover | ||||
| 507 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 321823 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 602 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 992671 | |||
| No information available, not orderable | ||||
| 604 | 992672 | |||
| No information available, not orderable | ||||
| 605 | 996177 | |||
| No longer available, no replacement | ||||
| 606 | 985329 | |||
| No information available, not orderable | ||||
| 607 | 996178 | |||
| No information available, not orderable | ||||
| 608 | 996179 | |||
| No information available, not orderable | ||||
| 609 | 996180 | |||
| No information available, not orderable | ||||
| 610 | 996185 | |||
| No information available, not orderable | ||||
| 611 | 996181 | |||
| No information available, not orderable | ||||
| 612 | 996182 | |||
| No information available, not orderable | ||||
| 613 | 996186 | |||
| No information available, not orderable | ||||
| 614 | 996197 | |||
| No information available, not orderable | ||||
| 615 | 996184 | |||
| No information available, not orderable | ||||
| 616 | 987575 | |||
| No information available, not orderable | ||||
| 617 | 930119 | |||
| No information available, not orderable | ||||
| 618 | 307543 | |||
| No information available, not orderable | ||||
| 619 | 306927 | |||
