Here you will find all available parts and drawings of the 'Hikoki WH14DBAL2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

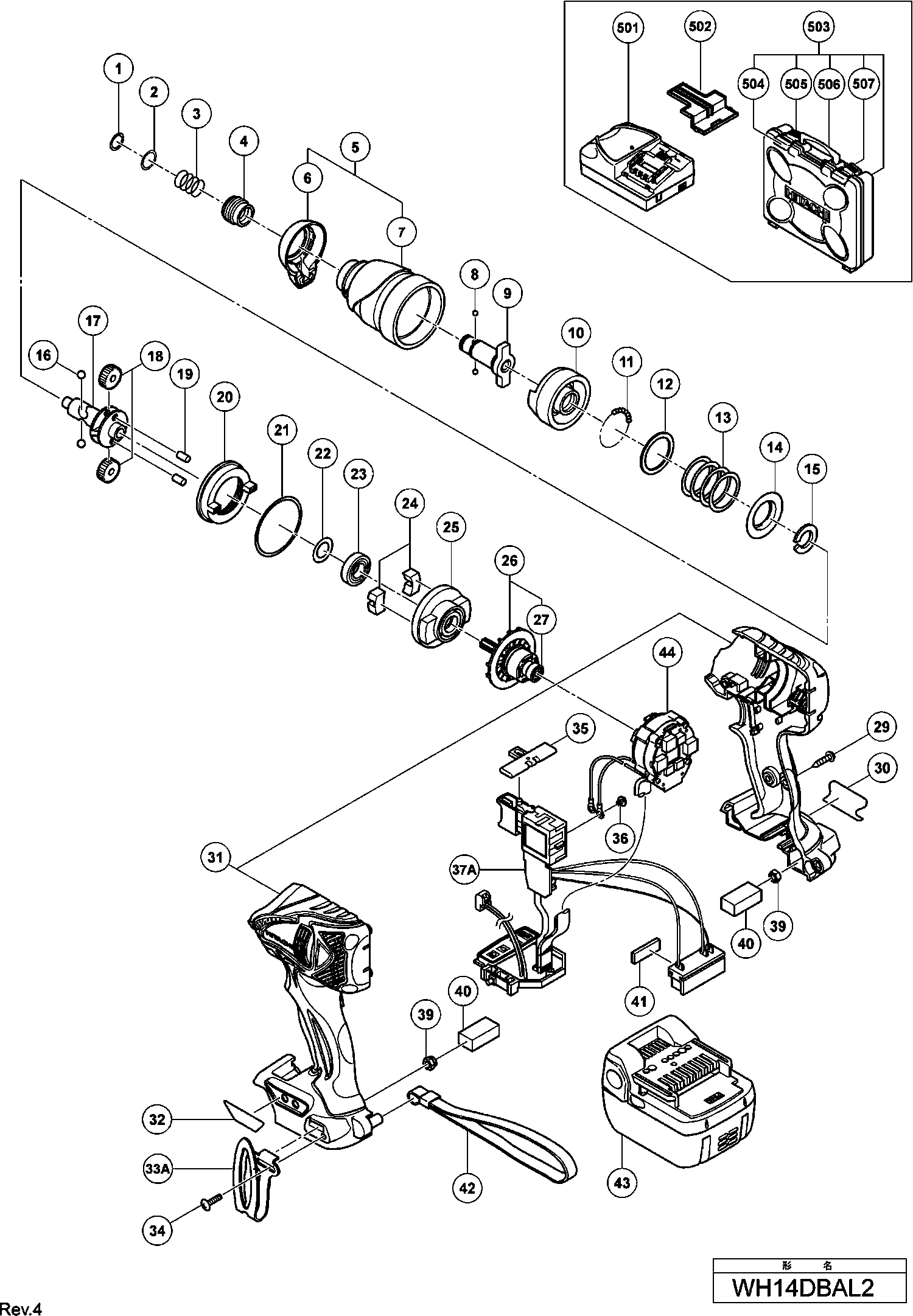

Technical drawing of model Hikoki WH14DBAL2
Spare parts list of model Hikoki WH14DBAL2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spring washer | ||||
| 1 | 315984 | 1.65 | 2.00 | |
| Washer (d) | ||||
| 2 | 330856 | 1.88 | 2.27 | |
| Guide Spring (OLD 322716) | ||||
| 3 | 321657 | 1.65 | 2.00 | |
| Guide Bush | ||||
| 4 | 322717 | 3.30 | 3.99 | |
| Hammer Case Set Includ.6,7 | ||||
| 5 | 334694 | 36.71 | 44.42 | |
| Front Cap | ||||
| 6 | 334515 | 3.45 | 4.17 | |
| Front Case | ||||
| 7 | 334635 | 33.55 | 40.60 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 8 | 319535 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 9 | 334833 | |||
| Hammer | ||||
| 10 | 326789 | 21.73 | 26.29 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 11 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 12 | 315978 | 1.65 | 2.00 | |
| Hammer Spring | ||||
| 13 | 321660 | 3.30 | 3.99 | |
| Washer | ||||
| 14 | 316172 | 1.65 | 2.00 | |
| Stopper (c) | ||||
| 15 | 328647 | 3.45 | 4.17 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 16 | 959154 | 1.35 | 1.63 | |
| Spindle Ass'y | ||||
| 17 | 330658 | 26.95 | 32.61 | |
| Idle Gear Set (2 Pcs.) | ||||
| 18 | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 19 | 319914 | 1.65 | 2.00 | |
| Ring Gear | ||||
| 20 | 330657 | 3.75 | 4.54 | |
| O-Ring (s-42) | ||||
| 21 | 983852 | 1.95 | 2.36 | |
| Washer (e) | ||||
| 22 | 330855 | 1.80 | 2.18 | |
| Ball Bearing 6901vv-n | ||||
| 23 | 323118 | 6.75 | 8.17 | |
| Damper | ||||
| 24 | 333952 | 1.80 | 2.18 | |
| Inner Cover | ||||
| 25 | 326786 | 1.80 | 2.18 | |
| Rotor Ass'y Includ.23 | ||||
| 26 | 334565 | 82.36 | 99.66 | |
| Ball Bearing 624dd | ||||
| 27 | 333784 | 3.45 | 4.17 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 29 | 301653 | 1.04 | 1.26 | |
| Housing(a).(b)set (green) | ||||
| 31 | 334151 | 28.46 | 34.44 | |
| Panel Sheet (b) | ||||
| 32 | 330662 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 33A | 335724 | |||
| Truss Hd. Screw M4 (black) | ||||
| 34 | 327001 | 1.80 | 2.18 | |
| Pushing Button (a) | ||||
| 35 | 321661 | 1.65 | 2.00 | |
| Machine Screw (w/sp. Washer) M3x5 | ||||
| 36 | 994532 | 1.04 | 1.26 | |
| Dc-speed Control Switch | ||||
| 37A | 334982 | 22.41 | 27.12 | |
| Lock Nut M4 (black) | ||||
| 39 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 40 | 328644 | 1.80 | 2.18 | |
| Cushion | ||||
| 41 | 331101 | 1.80 | 2.18 | |
| Strap (black) | ||||
| 42 | 306952 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 43 | 334904 | |||
| Wiring Ass'y | ||||
| 44 | 337688 | 154.55 | 187.01 | |
| Battery Cover | ||||
| 502 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 503 | 329440 | |||
| Latch (dark Gray) | ||||
| 504 | 334233 | 1.80 | 2.18 | |
| Knob (l) Dark Gray | ||||
| 505 | 334235 | 1.80 | 2.18 | |
| Lever | ||||
| 506 | 334232 | 3.45 | 4.17 | |
| Knob (r) Dark Gray | ||||
| 507 | 334234 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 321823 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 602 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 992671 | |||
| No information available, not orderable | ||||
| 604 | 992672 | |||
| No information available, not orderable | ||||
| 605 | 996177 | |||
| No longer available, no replacement | ||||
| 606 | 985329 | |||
| No information available, not orderable | ||||
| 607 | 996178 | |||
| No information available, not orderable | ||||
| 608 | 996179 | |||
| No information available, not orderable | ||||
| 609 | 996180 | |||
| No information available, not orderable | ||||
| 610 | 996185 | |||
| No information available, not orderable | ||||
| 611 | 996181 | |||
| No information available, not orderable | ||||
| 612 | 996182 | |||
| No information available, not orderable | ||||
| 613 | 996186 | |||
| No information available, not orderable | ||||
| 614 | 996197 | |||
| No information available, not orderable | ||||
| 615 | 996184 | |||
| No information available, not orderable | ||||
| 616 | 987575 | |||
| No information available, not orderable | ||||
| 617 | 930119 | |||
| No information available, not orderable | ||||
| 618 | 307543 | |||
| No information available, not orderable | ||||
| 619 | 306927 | |||
