Here you will find all available parts and drawings of the 'Hikoki WH12DMR'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

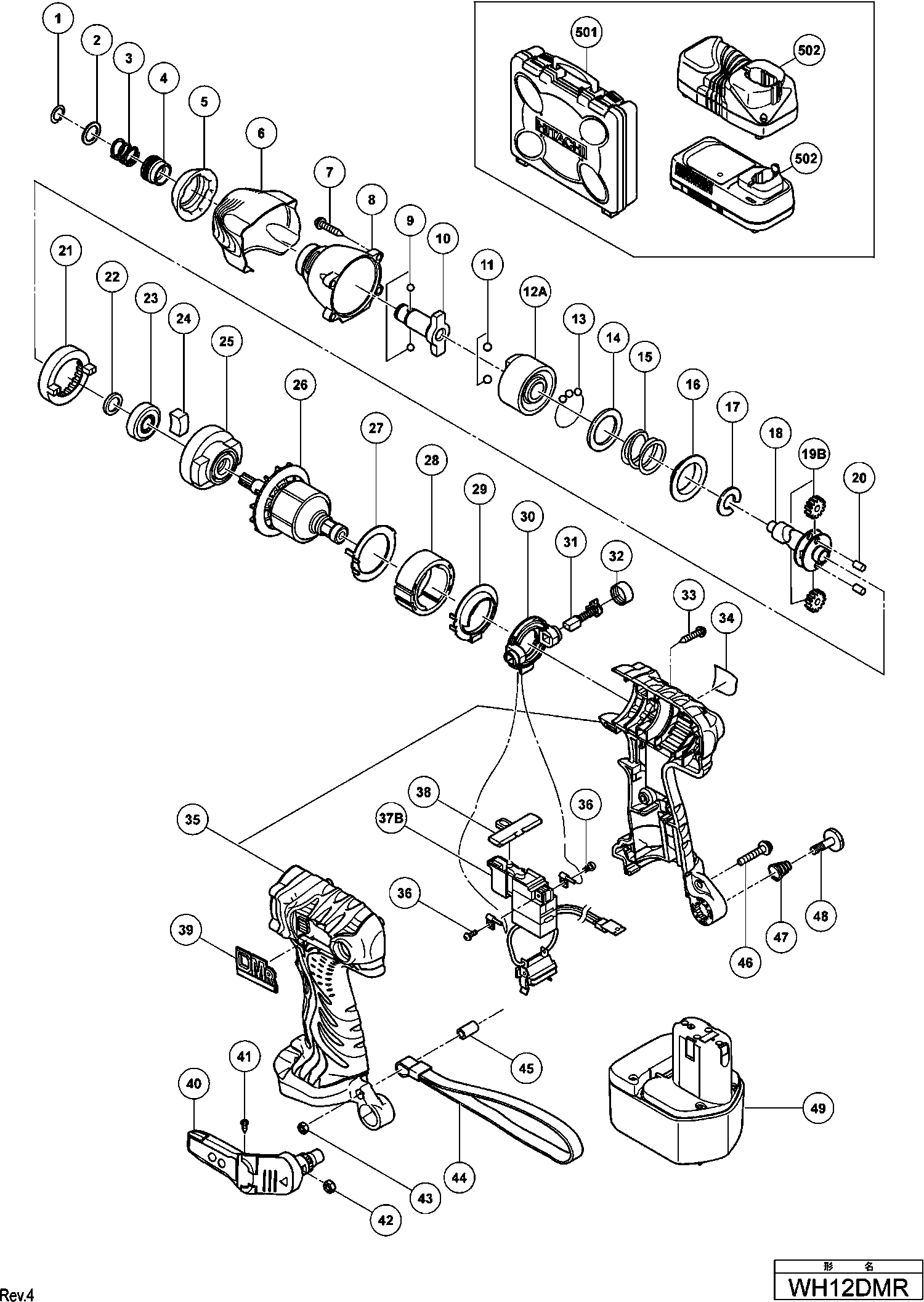

Technical drawing of model Hikoki WH12DMR
Spare parts list of model Hikoki WH12DMR
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spring washer | ||||
| 1 | 315984 | 1.65 | 2.00 | |
| WASHER | ||||
| 2 | 315983 | 1.65 | 2.00 | |
| Guide Spring (OLD 322716) | ||||
| 3 | 321657 | 1.65 | 2.00 | |
| Guide Bush | ||||
| 4 | 322717 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 5 | 322727 | |||
| No information available, not orderable | ||||
| 6 | 322728 | |||
| Tapping Screw (w/sp. Washer) D4x25(black | ||||
| 7 | 319917 | 1.65 | 2.00 | |
| Hammer Case Wh12dm2 | ||||
| 8 | 321674 | 37.95 | 45.92 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 9 | 319535 | 1.65 | 2.00 | |
| Anvil (f) | ||||
| 10 | 322248 | 35.06 | 42.43 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 11 | 959154 | 1.35 | 1.63 | |
| Hammer | ||||
| 12A | 326789 | 21.73 | 26.29 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 13 | 959148 | 1.05 | 1.27 | |
| WASHER | ||||
| 14 | 315978 | 1.65 | 2.00 | |
| Hammer Spring | ||||
| 15 | 321660 | 3.30 | 3.99 | |
| Washer | ||||
| 16 | 316172 | 1.65 | 2.00 | |
| Stopper | ||||
| 17 | 316171 | 4.35 | 5.26 | |
| Spindle Ass'y | ||||
| 18 | 321666 | 32.18 | 38.93 | |
| Idle Gear Set (2 Pcs.) | ||||
| 19B | 326295 | 21.31 | 25.79 | |
| Needle Roller | ||||
| 20 | 319914 | 1.65 | 2.00 | |
| Gear | ||||
| 21 | 320877 | 18.15 | 21.96 | |
| Ring | ||||
| 22 | 319911 | 1.65 | 2.00 | |
| Ball Bearing 6901vvm | ||||
| 23 | 6901VV | 9.60 | 11.62 | |
| Damper | ||||
| 24 | 319909 | 4.80 | 5.81 | |
| Inner Cover (a) | ||||
| 25 | 321664 | 3.30 | 3.99 | |
| Armature 12v | ||||
| 26 | 360641 | 61.33 | 74.20 | |
| Side Yoke | ||||
| 27 | 322719 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 28 | 322723 | |||
| Dust Ring | ||||
| 29 | 322720 | 1.65 | 2.00 | |
| Brush Block | ||||
| 30 | 321662 | 10.95 | 13.25 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 31 | 999054 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 32 | 319918 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 33 | 302086 | 1.05 | 1.27 | |
| Housing (a+b) Green | ||||
| 35 | 322725 | 23.38 | 28.28 | |
| Housing (a+b) Gold | ||||
| 35 | 323020 | 21.31 | 25.79 | |
| Machine Screw (w/sp. Washer) M3x5 | ||||
| 36 | 994532 | 1.04 | 1.26 | |
| Switch (Old 319906) | ||||
| 37B | 324829 | 32.18 | 38.93 | |
| Pushing Button (a) | ||||
| 38 | 321661 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 39 | 323021 | |||
| Hook | ||||
| 40 | 321918 | 17.60 | 21.30 | |
| Tapping Screw D2x6 | ||||
| 41 | 321672 | 1.65 | 2.00 | |
| Nut M5 | ||||
| 42 | 320288 | 1.65 | 2.00 | |
| Lock Nut M4 (10 Pcs.) | ||||
| 43 | 949565 | 1.05 | 1.27 | |
| Strap (black) | ||||
| 44 | 306952 | 4.05 | 4.90 | |
| Sleeve (a) | ||||
| 45 | 322718 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 46 | 676386 | |||
| Hook Spring | ||||
| 47 | 319926 | 1.65 | 2.00 | |
| Screw M5 | ||||
| 48 | 319927 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 49 | 320387 | |||
| No information available, not orderable | ||||
| 501 | 322070 | |||
| No information available, not orderable | ||||
| 601 | 992671 | |||
| No information available, not orderable | ||||
| 602 | 992672 | |||
| No information available, not orderable | ||||
| 603 | 996177 | |||
| No longer available, no replacement | ||||
| 604 | 985329 | |||
| No information available, not orderable | ||||
| 605 | 996178 | |||
| No information available, not orderable | ||||
| 606 | 996179 | |||
| No information available, not orderable | ||||
| 607 | 996180 | |||
| No information available, not orderable | ||||
| 608 | 996181 | |||
| No information available, not orderable | ||||
| 609 | 996182 | |||
| No information available, not orderable | ||||
| 610 | 996197 | |||
| No information available, not orderable | ||||
| 611 | 321823 | |||
| No information available, not orderable | ||||
| 612 | 307543 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 613 | 309922 | 73.01 | 88.35 | |
