Here you will find all available parts and drawings of the 'Hikoki WH10DFL2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

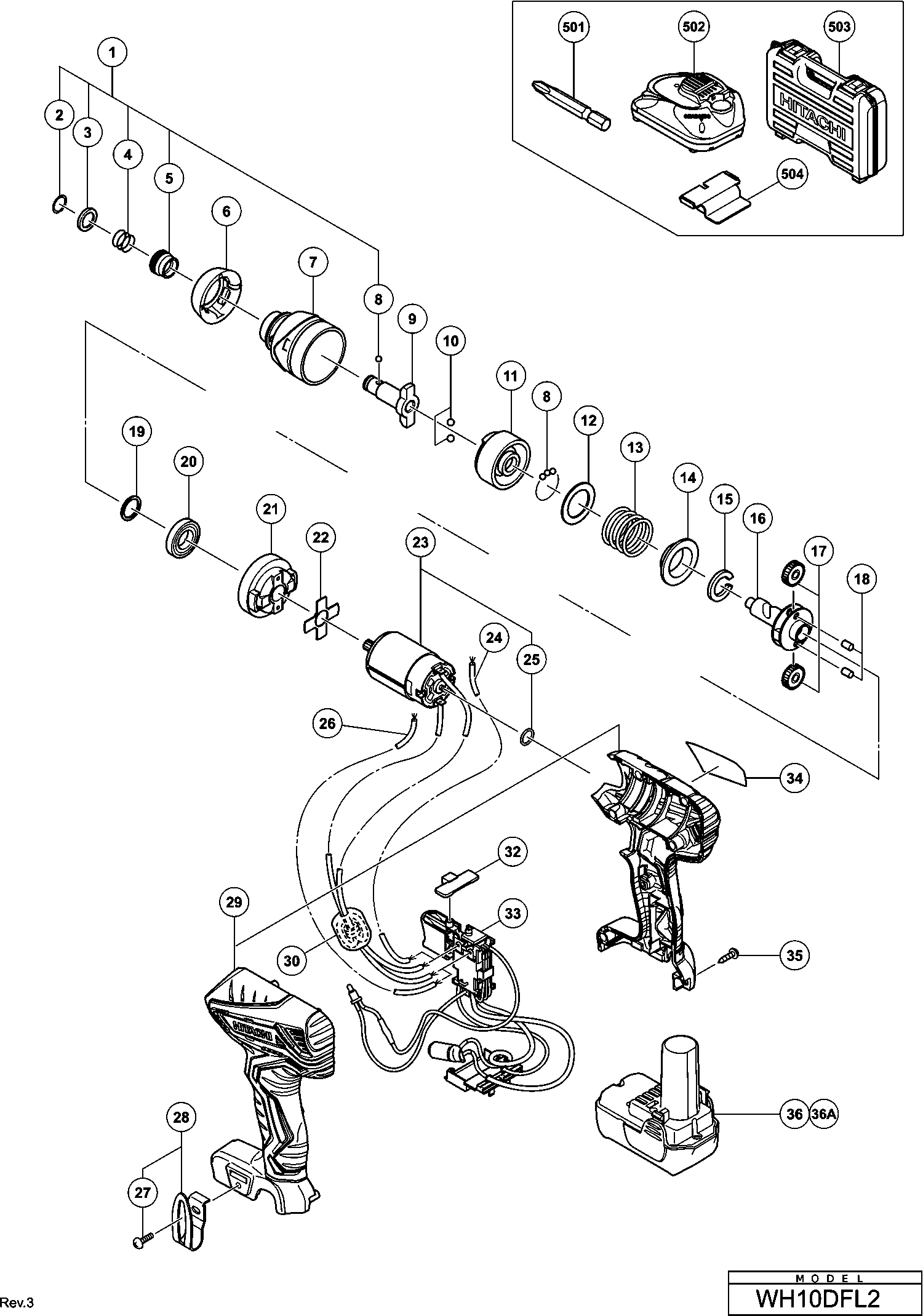

Technical drawing of model Hikoki WH10DFL2
Spare parts list of model Hikoki WH10DFL2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Guide Sleeve Ass'y Includ.2-5,8 | ||||
| 1 | 329538 | 5.10 | 6.17 | |
| Washer Spring | ||||
| 2 | 995933 | 1.05 | 1.27 | |
| Washer (f) | ||||
| 3 | 331959 | 1.80 | 2.18 | |
| Guide Spring (c) | ||||
| 4 | 322737 | 1.65 | 2.00 | |
| Front Case | ||||
| 5 | 329537 | 4.20 | 5.08 | |
| Front Cap | ||||
| 6 | 337360 | 2.10 | 2.54 | |
| Hammer Case | ||||
| 7 | 330955 | 14.30 | 17.30 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 8 | 959148 | 1.05 | 1.27 | |
| Anvil (s) | ||||
| 9 | 329555 | 19.11 | 23.13 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 10 | 959154 | 1.35 | 1.63 | |
| Striker | ||||
| 11 | 330965 | 20.90 | 25.29 | |
| WASHER | ||||
| 12 | 315978 | 1.65 | 2.00 | |
| Hammer Spring (e) | ||||
| 13 | 322741 | 4.80 | 5.81 | |
| Washer | ||||
| 14 | 316172 | 1.65 | 2.00 | |
| Stopper (a) | ||||
| 15 | 322740 | 1.50 | 1.82 | |
| Spindle Ass'y | ||||
| 16 | 330960 | 24.68 | 29.86 | |
| Gear | ||||
| 17 | 330958 | 4.58 | 5.54 | |
| Pin | ||||
| 18 | 980258 | 1.05 | 1.27 | |
| Washer (g) | ||||
| 19 | 330961 | 1.05 | 1.27 | |
| Ball Bearing 6803vv | ||||
| 20 | 330962 | 5.25 | 6.35 | |
| Ring Gear | ||||
| 21 | 331019 | 2.10 | 2.54 | |
| Gasket (a) | ||||
| 22 | 331448 | 2.10 | 2.54 | |
| Motor Dc 12v Includ.25 | ||||
| 23 | 337361 | 22.14 | 26.79 | |
| O-ring (s-10) | ||||
| 25 | 987105 | 1.05 | 1.27 | |
| Housing (a).(b) Set | ||||
| 29 | 337355 | 13.65 | 16.52 | |
| Housing (a).(b) Set | ||||
| 29A | 337355 | 13.65 | 16.52 | |
| Pushing Button (a) | ||||
| 32 | 329548 | 1.65 | 2.00 | |
| Switch Terminal Set | ||||
| 33 | 337359 | 30.66 | 37.10 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 35 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 36A | 329371 | |||
| No information available, not orderable | ||||
| 36B | 371205 | |||
| No information available, not orderable | ||||
| 501 | 992671 | |||
| No information available, not orderable | ||||
| 503 | 336642 | |||
| Battery Cover | ||||
| 504 | 331086 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 603 | 306927 | |||
| No information available, not orderable | ||||
| 604 | 996184 | |||
