Here you will find all available parts and drawings of the 'Hikoki WF4H2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

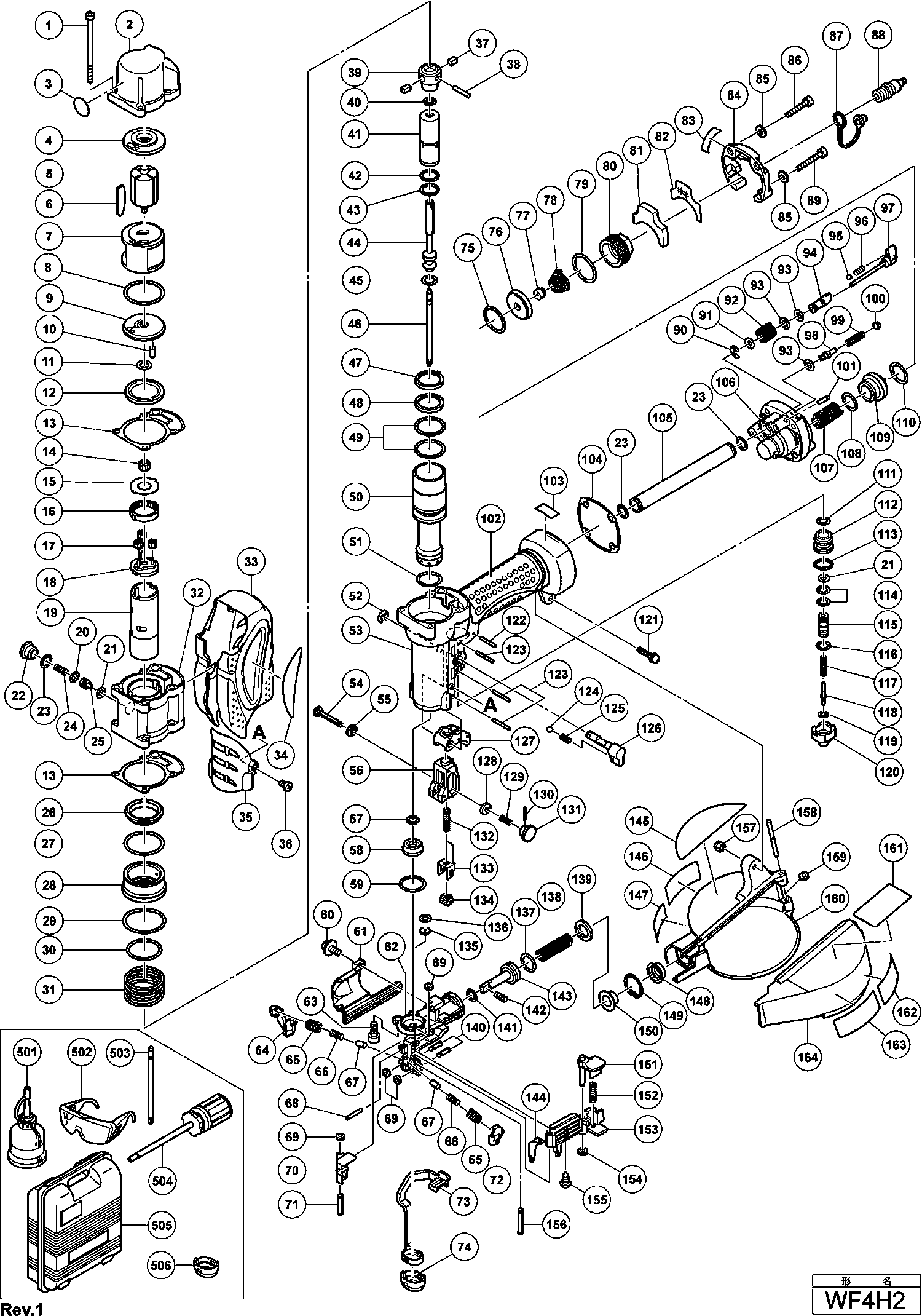

Technical drawing of model Hikoki WF4H2
Spare parts list of model Hikoki WF4H2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hexagonal Socket Head Bolt M5x80 | ||||
| 1 | 305481 | 1.80 | 2.18 | |
| Casing (a) Gold | ||||
| 2 | 886560 | 67.10 | 81.19 | |
| Warning Label (a) | ||||
| 3 | 883513 | 1.65 | 2.00 | |
| Side Cover (a) | ||||
| 4 | 886097 | 55.00 | 66.55 | |
| Rotor | ||||
| 5 | 886095 | 97.63 | 118.13 | |
| Vane | ||||
| 6 | 886096 | 6.75 | 8.17 | |
| Motor Cylinder | ||||
| 7 | 886094 | 118.94 | 143.91 | |
| O-ring (s-40) | ||||
| 8 | 996363 | 1.65 | 2.00 | |
| Side Cover (b) | ||||
| 9 | 886098 | 58.03 | 70.21 | |
| Pin (b) | ||||
| 10 | 886092 | 3.45 | 4.17 | |
| O-ring (p-8) | ||||
| 11 | 315382 | 1.80 | 2.18 | |
| Packing (c) | ||||
| 12 | 316390 | 7.05 | 8.53 | |
| Packing (a) | ||||
| 13 | 884504 | 1.80 | 2.18 | |
| Pinion (1) | ||||
| 14 | 886091 | 21.73 | 26.29 | |
| Washer (a) | ||||
| 15 | 884515 | 1.80 | 2.18 | |
| Ring Gear | ||||
| 16 | 886089 | 1.80 | 2.18 | |
| Idle Gear | ||||
| 17 | 886090 | 3.45 | 4.17 | |
| Spindle Head | ||||
| 18 | 886088 | 18.70 | 22.63 | |
| Spindle (1) | ||||
| 19 | 886087 | 5.10 | 6.17 | |
| O-ring (s-8) | ||||
| 20 | 992912 | 1.05 | 1.27 | |
| O-RING (S-4) | ||||
| 21 | 981317 | 1.05 | 1.27 | |
| Bushing (1) | ||||
| 22 | 884521 | 14.10 | 17.06 | |
| O-ring (s-12) | ||||
| 23 | 875638 | 1.65 | 2.00 | |
| Spring D4.2 | ||||
| 24 | 884520 | 1.80 | 2.18 | |
| Lock Pin | ||||
| 25 | 884519 | 3.45 | 4.17 | |
| Valve Rubber | ||||
| 26 | 884503 | 11.40 | 13.79 | |
| O-ring (s-40) | ||||
| 27 | 996363 | 1.65 | 2.00 | |
| Sleeve Valve | ||||
| 28 | 884502 | 33.55 | 40.60 | |
| O-Ring (s-42) | ||||
| 29 | 983852 | 1.95 | 2.36 | |
| O-ring (s-36) | ||||
| 30 | 984483 | 1.65 | 2.00 | |
| Valve Spring | ||||
| 31 | 882221 | 5.10 | 6.17 | |
| Casing (b) Gold | ||||
| 32 | 886561 | 85.39 | 103.32 | |
| No information available, not orderable | ||||
| 33 | 886117 | |||
| Protector (a) | ||||
| 35 | 886235 | 8.70 | 10.53 | |
| Flat Fillister Hd. Screw M4 | ||||
| 36 | 886234 | 1.80 | 2.18 | |
| Feather Key | ||||
| 37 | 884512 | 1.80 | 2.18 | |
| Pin | ||||
| 38 | 884511 | 1.80 | 2.18 | |
| Slider (1) | ||||
| 39 | 884510 | 14.10 | 17.06 | |
| O-ring (p-8) | ||||
| 40 | 315382 | 1.80 | 2.18 | |
| Piston (b) | ||||
| 41 | 886086 | 33.55 | 40.60 | |
| O-ring (i.d. 16.8) | ||||
| 42 | 884509 | 1.80 | 2.18 | |
| O-ring | ||||
| 43 | 886227 | 5.10 | 6.17 | |
| Piston (a) | ||||
| 44 | 886085 | 61.05 | 73.87 | |
| O-ring (i.d. 10.8) | ||||
| 45 | 884507 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 46 | 884480 | |||
| Metal | ||||
| 47 | 884501 | 3.45 | 4.17 | |
| Ring | ||||
| 48 | 884500 | 3.45 | 4.17 | |
| O-ring (i.d. 31.2) | ||||
| 49 | 884498 | 1.80 | 2.18 | |
| Cylinder | ||||
| 50 | 886083 | 82.36 | 99.66 | |
| O-ring (i.d. 24.7) | ||||
| 51 | 884499 | 1.80 | 2.18 | |
| Retaining Ring (e-type) For D6 Shaft | ||||
| 52 | 955479 | 1.05 | 1.27 | |
| Housing | ||||
| 53 | 886562 | 176.83 | 213.96 | |
| Adjuster Shaft | ||||
| 54 | 881846 | 7.65 | 9.26 | |
| Latch | ||||
| 55 | 886101 | 5.10 | 6.17 | |
| Pushing Lever Guide | ||||
| 56 | 316389 | 3.30 | 3.99 | |
| O-ring | ||||
| 57 | 886229 | 1.80 | 2.18 | |
| Piston Bumper | ||||
| 58 | 886230 | 13.75 | 16.64 | |
| O-ring (s-22) | ||||
| 59 | 306353 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 60 | 315500 | 1.35 | 1.63 | |
| Cover | ||||
| 61 | 887975 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 62 | 886104 | |||
| Hex. Socket Hd. Bolt M6x16 (10 Pcs.) | ||||
| 63 | 949755 | 3.00 | 3.63 | |
| Vertical guide | ||||
| 64 | 886111 | 18.70 | 22.63 | |
| Spring (a) | ||||
| 65 | 884533 | 1.80 | 2.18 | |
| Spring (b) | ||||
| 66 | 884534 | 1.80 | 2.18 | |
| Urethane Shaft | ||||
| 67 | 886233 | 3.45 | 4.17 | |
| Roll Pin D3x18 (10 Pcs.) | ||||
| 68 | 949518 | 2.40 | 2.90 | |
| Feeder Shaft Ring | ||||
| 69 | 877826 | 2.55 | 3.09 | |
| Feeder | ||||
| 70 | 884527 | 30.53 | 36.94 | |
| Feeder Shaft | ||||
| 71 | 882236 | 6.75 | 8.17 | |
| Vertical Guide (a) | ||||
| 72 | 886110 | 18.70 | 22.63 | |
| Pushing Lever (a) | ||||
| 73 | 886109 | 39.74 | 48.08 | |
| Nose Cap | ||||
| 74 | 886103 | 5.10 | 6.17 | |
| O-RING (S-26) | ||||
| 75 | 872470 | 1.65 | 2.00 | |
| Separation plate | ||||
| 76 | 886119 | 36.71 | 44.42 | |
| Valve (h) | ||||
| 77 | 884847 | 6.75 | 8.17 | |
| Spring (i.d. D13) | ||||
| 78 | 884848 | 1.80 | 2.18 | |
| O-ring (s-32) | ||||
| 79 | 872767 | 1.65 | 2.00 | |
| Cap (r) Gold | ||||
| 80 | 887983 | 25.71 | 31.11 | |
| Muffler | ||||
| 81 | 886079 | 3.45 | 4.17 | |
| Mesh | ||||
| 82 | 886080 | 5.10 | 6.17 | |
| Exhaust Cover | ||||
| 84 | 886081 | 3.45 | 4.17 | |
| Washer | ||||
| 85 | 940178 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x30 (10 Pcs.) | ||||
| 86 | 949664 | 3.75 | 4.54 | |
| Dust Cap | ||||
| 87 | 877914 | 1.95 | 2.36 | |
| Air Plug L-pt 1/4 | ||||
| 88 | 883135 | 14.99 | 18.13 | |
| Hex. Socket Hd. Bolt M5x40 | ||||
| 89 | 886082 | 1.80 | 2.18 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 90 | 874759 | 1.04 | 1.26 | |
| O-ring (i.d. 1.8) | ||||
| 91 | 886078 | 1.80 | 2.18 | |
| Spring D8.4 | ||||
| 92 | 886077 | 1.80 | 2.18 | |
| O-ring (i.d 4.8) | ||||
| 93 | 884861 | 1.80 | 2.18 | |
| Plunger (r) | ||||
| 94 | 886076 | 1.80 | 2.18 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 95 | 959148 | 1.05 | 1.27 | |
| Lock Spring | ||||
| 96 | 882923 | 1.80 | 2.18 | |
| Knob | ||||
| 97 | 886075 | 6.75 | 8.17 | |
| Relief Valve | ||||
| 98 | 886122 | 6.75 | 8.17 | |
| Spring D6.6 | ||||
| 99 | 884852 | 1.80 | 2.18 | |
| Spacer (1) | ||||
| 100 | 886121 | 1.80 | 2.18 | |
| Roll Pin D2x12 (10 Pcs.) | ||||
| 101 | 949861 | 1.65 | 2.00 | |
| Packing (d) | ||||
| 104 | 884484 | 1.80 | 2.18 | |
| Exhaust Pipe | ||||
| 105 | 886240 | 5.10 | 6.17 | |
| Cap (a) Gold | ||||
| 106 | 886563 | 109.86 | 132.93 | |
| Spring | ||||
| 107 | 886071 | 6.75 | 8.17 | |
| O-ring (P-18) | ||||
| 108 | 873570 | 1.35 | 1.63 | |
| Piston (r) | ||||
| 109 | 886072 | 3.45 | 4.17 | |
| O-ring (1ap-24) | ||||
| 110 | 997392 | 1.05 | 1.27 | |
| HEAD VALVE O-RING (I.D.16.8) | ||||
| 111 | 877699 | 1.05 | 1.27 | |
| Valve Bushing (b) | ||||
| 112 | 882925 | 18.01 | 21.80 | |
| O-ring (s-18) | ||||
| 113 | 878885 | 1.05 | 1.27 | |
| O-ring (I.D. 8.8) | ||||
| 114 | 878925 | 1.05 | 1.27 | |
| Valve Piston (b) | ||||
| 115 | 880672 | 32.18 | 38.93 | |
| O-Ring (I.D.11) | ||||
| 116 | 878887 | 1.65 | 2.00 | |
| Plunger Spring | ||||
| 117 | 878884 | 1.65 | 2.00 | |
| Plunger (a) | ||||
| 118 | 880673 | 14.71 | 17.80 | |
| O-RING (I.D.1.8) | ||||
| 119 | 878888 | 1.05 | 1.27 | |
| Valve Bushing (a) | ||||
| 120 | 882920 | 29.56 | 35.77 | |
| Machine Screw (w/washers) M5x25 (black) | ||||
| 121 | 880734 | 1.04 | 1.26 | |
| Roll Pin D3x22 (10 Pcs.) | ||||
| 122 | 949864 | 1.65 | 2.00 | |
| Roll Pin D3x25 (10 Pcs.) | ||||
| 123 | 949539 | 2.25 | 2.72 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 124 | 959155 | 1.04 | 1.26 | |
| Spring | ||||
| 125 | 982454 | 1.04 | 1.26 | |
| Change Knob | ||||
| 126 | 886102 | 5.10 | 6.17 | |
| Trigger (a) | ||||
| 127 | 880674 | 11.85 | 14.34 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 128 | 949429 | 1.05 | 1.27 | |
| Adjuster Spring | ||||
| 129 | 887949 | 1.80 | 2.18 | |
| Roll Pin D1.6x10 | ||||
| 130 | 886228 | 1.80 | 2.18 | |
| Adjuster Knob | ||||
| 131 | 887948 | 3.45 | 4.17 | |
| Spring | ||||
| 132 | 881882 | 2.25 | 2.72 | |
| Pushing Lever (b) | ||||
| 133 | 886099 | 12.00 | 14.52 | |
| Adjuster | ||||
| 134 | 886564 | 7.80 | 9.44 | |
| Ring | ||||
| 135 | 878279 | 1.05 | 1.27 | |
| O-ring (p-4) | ||||
| 136 | 874436 | 1.05 | 1.27 | |
| O-ring (P-18) | ||||
| 137 | 873570 | 1.35 | 1.63 | |
| Spring | ||||
| 138 | 880409 | 2.40 | 2.90 | |
| Damper | ||||
| 139 | 877476 | 2.40 | 2.90 | |
| Guide Shaft | ||||
| 140 | 886112 | 6.75 | 8.17 | |
| Y-packing | ||||
| 141 | 887196 | 1.80 | 2.18 | |
| Spring D4.7 | ||||
| 142 | 882235 | 1.80 | 2.18 | |
| Feed Piston | ||||
| 143 | 886231 | 29.70 | 35.94 | |
| Guard (1) | ||||
| 144 | 886106 | 7.80 | 9.44 | |
| Warning Label | ||||
| 146 | 887174 | 5.10 | 6.17 | |
| Warning Label | ||||
| 147 | 887175 | 5.10 | 6.17 | |
| Magazine Bushing | ||||
| 148 | 880177 | 1.65 | 2.00 | |
| Locking Ring for D24 | ||||
| 149 | 983748 | 1.05 | 1.27 | |
| Feed Piston Cover | ||||
| 150 | 880170 | 2.25 | 2.72 | |
| Guide Lock | ||||
| 151 | 886107 | 5.10 | 6.17 | |
| Spring D5.6 | ||||
| 152 | 883008 | 1.80 | 2.18 | |
| Screw Guide | ||||
| 153 | 886105 | 25.44 | 30.78 | |
| Shaft Ring | ||||
| 154 | 880319 | 1.65 | 2.00 | |
| Tapping Screw D3x10 | ||||
| 155 | 306945 | 1.04 | 1.26 | |
| Screw Guide Shaft | ||||
| 156 | 886108 | 7.80 | 9.44 | |
| Nylon Nut M5 | ||||
| 157 | 877371 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 158 | 882246 | |||
| Feeder Shaft Ring | ||||
| 159 | 877826 | 2.55 | 3.09 | |
| Magazine | ||||
| 160 | 886114 | 12.00 | 14.52 | |
| Magazine Cover | ||||
| 164 | 886115 | 7.80 | 9.44 | |
| No information available, not orderable | ||||
| 501 | 883136 | |||
| No information available, not orderable | ||||
| 502 | 875769 | |||
| No information available, not orderable | ||||
| 503 | 884480 | |||
| No information available, not orderable | ||||
| 504 | 884538 | |||
| No information available, not orderable | ||||
| 505 | 884857 | |||
| Nose Cap | ||||
| 506 | 886103 | 5.10 | 6.17 | |
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602 | 880407 | |||
| No information available, not orderable | ||||
| 603 | 328428 | |||
