Here you will find all available parts and drawings of the 'Hikoki WF14DSL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

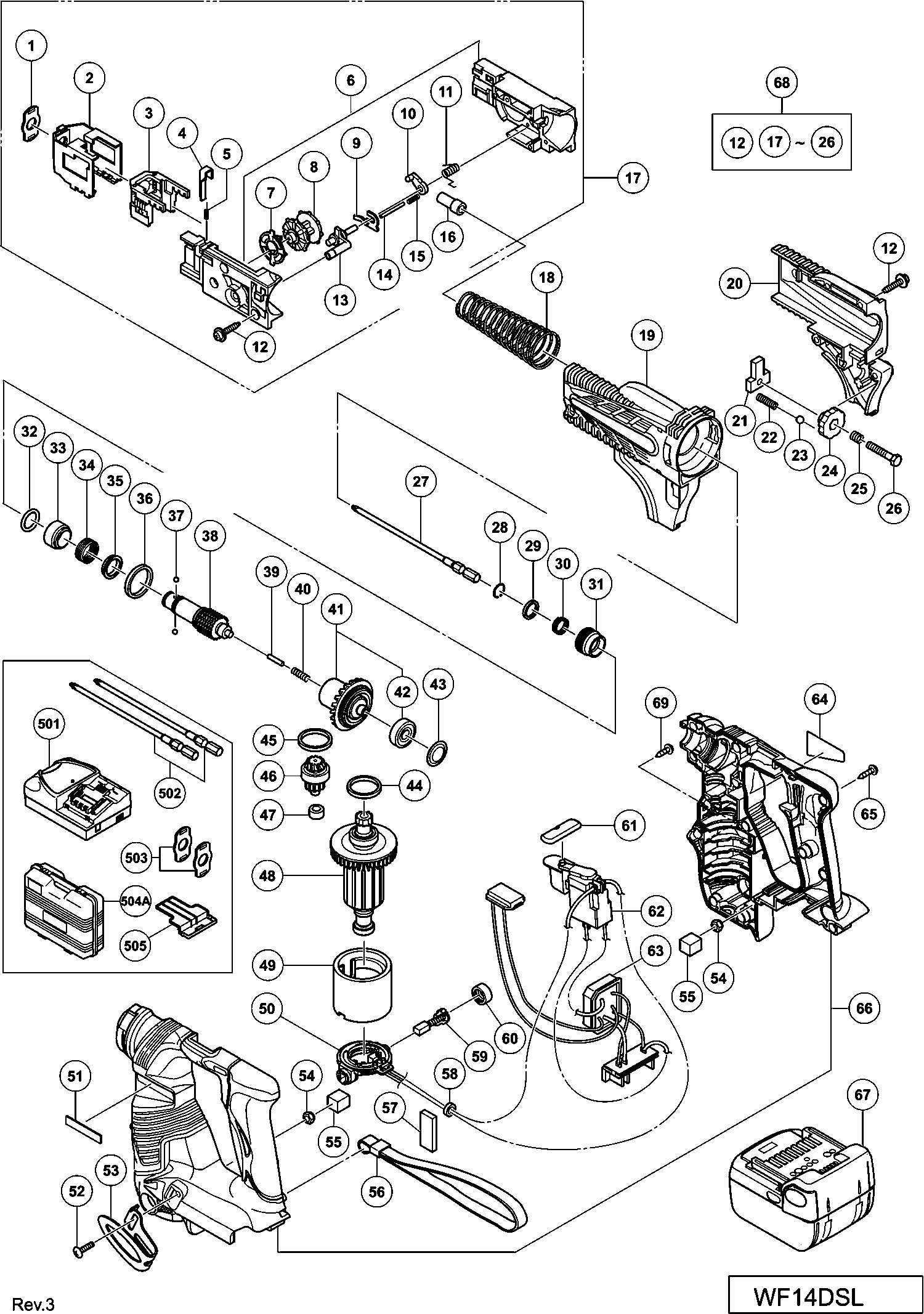

Technical drawing of model Hikoki WF14DSL
Spare parts list of model Hikoki WF14DSL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Battery Cover | ||||
| *505 | 329897 | 1.80 | 2.18 | |
| Sheet (2 Pcs.) | ||||
| 1 | 332455 | 2.10 | 2.54 | |
| Depth Stop | ||||
| 2 | 324863 | 51.84 | 62.72 | |
| Guide Block | ||||
| 3 | 324177 | 40.84 | 49.41 | |
| Plate (a) | ||||
| 4 | 324184 | 3.30 | 3.99 | |
| Spring | ||||
| 5 | 324185 | 1.65 | 2.00 | |
| Slider (a).(b) Set | ||||
| 6 | 324165 | 9.00 | 10.89 | |
| Clutch Plate | ||||
| 7 | 324175 | 4.80 | 5.81 | |
| Sprocket | ||||
| 8 | 324167 | 32.18 | 38.93 | |
| Stopper Plate | ||||
| 9 | 324176 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 10 | 324173 | |||
| Arm Spring | ||||
| 11 | 324174 | 1.65 | 2.00 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 12 | 301653 | 1.04 | 1.26 | |
| Arm | ||||
| 13 | 324169 | 37.95 | 45.92 | |
| Pin D2.5 | ||||
| 14 | 885349 | 1.65 | 2.00 | |
| Spring | ||||
| 15 | 324489 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 16 | 324186 | |||
| No information available, not orderable | ||||
| 17 | 324164 | |||
| Spring | ||||
| 18 | 324190 | 3.30 | 3.99 | |
| Slider Case (a) | ||||
| 19 | 324162 | 10.20 | 12.34 | |
| Slider Case (b) | ||||
| 20 | 324163 | 9.30 | 11.25 | |
| Stopper Pin | ||||
| 21 | 324189 | 7.80 | 9.44 | |
| Spring | ||||
| 22 | 324191 | 1.50 | 1.82 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 23 | 959148 | 1.05 | 1.27 | |
| Knob (1) | ||||
| 24 | 324187 | 3.30 | 3.99 | |
| Spring | ||||
| 25 | 312430 | 2.40 | 2.90 | |
| Bolt M5 | ||||
| 26 | 324188 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 27 | 324134 | |||
| Washer Spring | ||||
| 28 | 330619 | 1.05 | 1.27 | |
| Washer (d) | ||||
| 29 | 330618 | 1.05 | 1.27 | |
| Guide Spring (c) | ||||
| 30 | 330617 | 1.05 | 1.27 | |
| Guide Bush | ||||
| 31 | 322717 | 3.30 | 3.99 | |
| O-ring (f) | ||||
| 32 | 317662 | 1.65 | 2.00 | |
| Metal (f) | ||||
| 33 | 332465 | 1.20 | 1.45 | |
| Spring | ||||
| 34 | 330162 | 1.80 | 2.18 | |
| Locking Flange | ||||
| 35 | 330163 | 17.46 | 21.13 | |
| Drum Metal | ||||
| 36 | 334270 | 1.80 | 2.18 | |
| STEEL BALL D3,5 (10 pieces) | ||||
| 37 | 319535 | 1.65 | 2.00 | |
| Holder | ||||
| 38 | 332461 | 51.29 | 62.06 | |
| Rubber Shaft | ||||
| 39 | 330164 | 1.80 | 2.18 | |
| Spring (c) | ||||
| 40 | 329642 | 1.80 | 2.18 | |
| Clutch Drum Ass'y Includ.42 | ||||
| 41 | 332464 | 58.99 | 71.37 | |
| Ball Bearing 608vvc2ps2l | ||||
| 42 | 608VVM | 5.70 | 6.90 | |
| Thrust Plate | ||||
| 43 | 313153 | 1.05 | 1.27 | |
| Rubber Ring | ||||
| 44 | 323420 | 1.05 | 1.27 | |
| Rubber Ring | ||||
| 45 | 323420 | 1.05 | 1.27 | |
| Second Pinion Set | ||||
| 46 | 332463 | 18.84 | 22.79 | |
| No information available, not orderable | ||||
| 47 | 324150 | |||
| Armature | ||||
| 48 | 332466 | 45.65 | 55.24 | |
| No information available, not orderable | ||||
| 49 | 333735 | |||
| MAGNEET (OUD 333735) | ||||
| 49A | 336312 | 91.08 | 110.21 | |
| Brush Block | ||||
| 50 | 332460 | 7.95 | 9.62 | |
| Hitachi Plate | ||||
| 51 | 329648 | 1.88 | 2.27 | |
| Hitachi Plate | ||||
| 51A | 329648 | 1.88 | 2.27 | |
| Truss Hd. Screw M4 (black) | ||||
| 52 | 327001 | 1.80 | 2.18 | |
| Hook | ||||
| 53 | 332824 | 4.58 | 5.54 | |
| Lock Nut M4 (black) | ||||
| 54 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 55 | 332462 | 1.20 | 1.45 | |
| Strap (black) | ||||
| 56 | 306952 | 4.05 | 4.90 | |
| Holder | ||||
| 57 | 326493 | 1.05 | 1.27 | |
| Ferrite Core | ||||
| 58 | 323229 | 1.35 | 1.63 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 59 | 999054 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 60 | 319918 | 3.30 | 3.99 | |
| Pushing Button | ||||
| 61 | 322853 | 1.05 | 1.27 | |
| Switch | ||||
| 62 | 332459 | 13.20 | 15.97 | |
| Controller Terminal Set | ||||
| 63 | 332458 | 30.53 | 36.94 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 65 | 313687 | 1.04 | 1.26 | |
| Housing | ||||
| 66 | 332456 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 67 | 329083 | |||
| Slider Case Ass'y Including.12,17-26 | ||||
| 68 | 328497 | 102.44 | 123.95 | |
| Tapping Screw D3x12 (black) | ||||
| 69 | 334333 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 502 | 324134 | |||
| Sheet (2 Pcs.) | ||||
| 503 | 332455 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 504 | 332454 | |||
| No information available, not orderable | ||||
| 504A | 339045 | |||
| Battery Cover | ||||
| 505 | 329897 | 1.80 | 2.18 | |
