Here you will find all available parts and drawings of the 'Hikoki W8VB2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

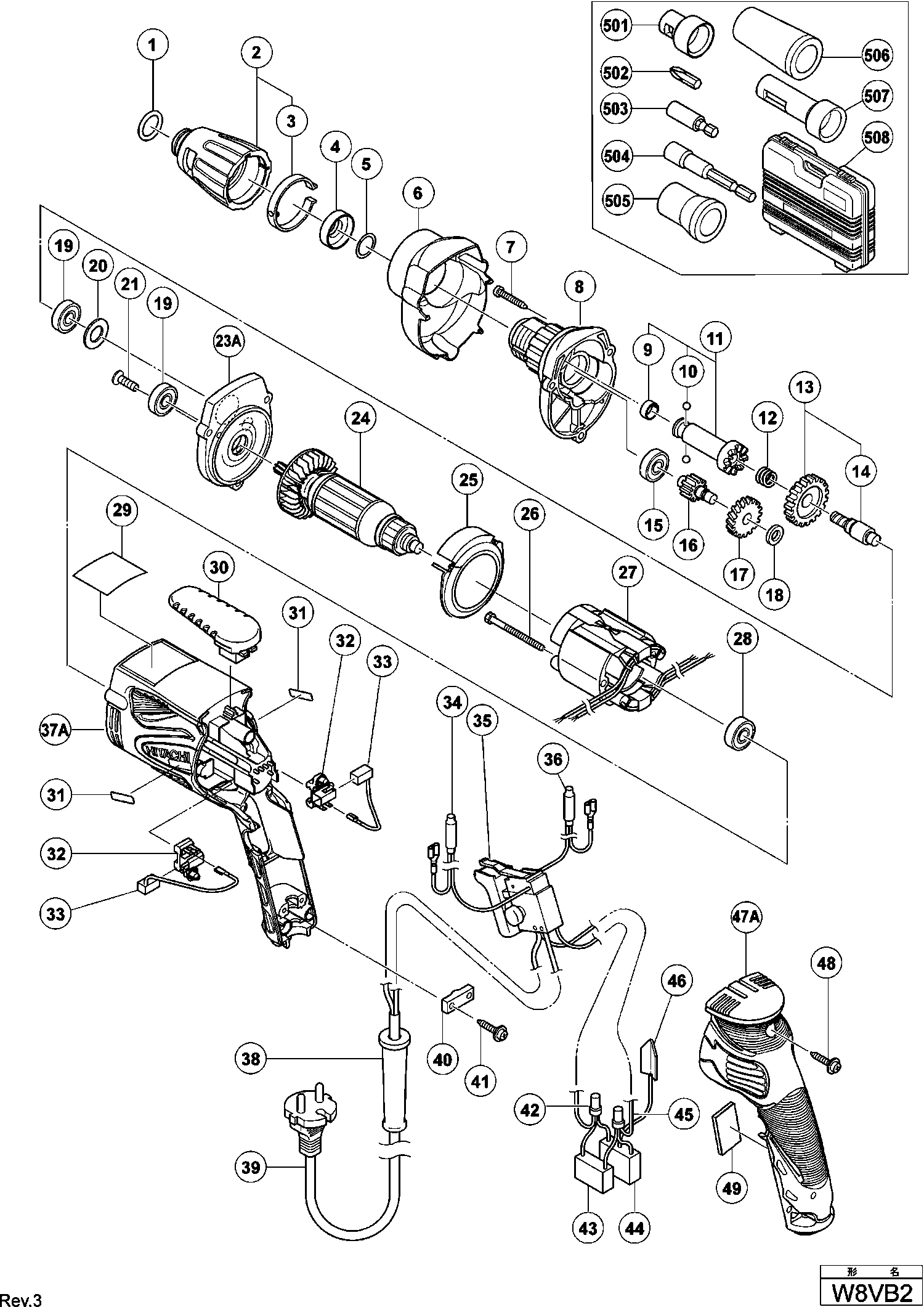

Technical drawing of model Hikoki W8VB2
Spare parts list of model Hikoki W8VB2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| O-ring (s-16) | ||||
| 1 | 876031 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 2 | 323487 | |||
| Spring Plate | ||||
| 3 | 323488 | 1.95 | 2.36 | |
| Fringer (a) | ||||
| 4 | 971468 | 1.05 | 1.27 | |
| O-ring (f) | ||||
| 5 | 317662 | 1.65 | 2.00 | |
| Protection Cover (b) | ||||
| 6 | 323494 | 4.35 | 5.26 | |
| Tapping Screw D4x25 (black) | ||||
| 7 | 321057 | 1.65 | 2.00 | |
| Gear Cover | ||||
| 8 | 323498 | 14.71 | 17.80 | |
| Ring | ||||
| 9 | 872573 | 1.35 | 1.63 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 10 | 959148 | 1.05 | 1.27 | |
| Connector | ||||
| 11 | 317664 | 55.41 | 67.05 | |
| Spring | ||||
| 12 | 306024 | 1.35 | 1.63 | |
| Gear Ass'y Includ.14 | ||||
| 13 | 307339 | 75.90 | 91.84 | |
| Gear Shaft | ||||
| 14 | 307340 | 14.30 | 17.30 | |
| Ball Bearing 608vvc2ps2l | ||||
| 15 | 608VVM | 5.70 | 6.90 | |
| Second Pinion Ass'y Includ.17 | ||||
| 16 | 307338 | 40.84 | 49.41 | |
| First Gear | ||||
| 17 | 307337 | 14.10 | 17.06 | |
| Ring | ||||
| 18 | 323497 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 19 | 608VVM | 5.70 | 6.90 | |
| Ring | ||||
| 20 | 933545 | 1.04 | 1.26 | |
| Slotted Hd. Screw (seal Lock) M4x8 | ||||
| 21 | 323556 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 22 | 323557 | |||
| Inner Cover Ass'y (a) Includ.19-21 | ||||
| 23 | 323493 | 12.00 | 14.52 | |
| Inner Cover Ass'y (a) Includ.19-21 | ||||
| 23A | 323493 | 12.00 | 14.52 | |
| Armature 230v | ||||
| 24 | 360675E | 35.06 | 42.43 | |
| Fan Guide | ||||
| 25 | 323472 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D4x50 | ||||
| 26 | 961672 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 27 | 340599E | 19.39 | 23.46 | |
| Ball Bearing 608vvc2ps2l | ||||
| 28 | 608VVM | 5.70 | 6.90 | |
| Hook | ||||
| 30 | 323471 | 1.95 | 2.36 | |
| Brush Holder (a) | ||||
| 32 | 323512 | 3.90 | 4.72 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 33 | 999091 | 14.40 | 17.42 | |
| Choke Coil (w/Internal Wire) Brown | ||||
| 34 | 323566 | 1.95 | 2.36 | |
| Switch | ||||
| 35 | 323479 | 14.99 | 18.13 | |
| Choke Coil (w/internal Wire) Blue | ||||
| 36 | 323568 | 1.95 | 2.36 | |
| Housing | ||||
| 37A | 326671 | 19.39 | 23.46 | |
| Cord Armor D8.8 | ||||
| 38 | 380090 | 1.04 | 1.26 | |
| Cord 7.5 Meter For Gbr 230 Volt | ||||
| 39 | 323560 | 15.26 | 18.47 | |
| Cord (length 7.5m) (cord Armor D8.8) | ||||
| 39 | 323559 | 5.55 | 6.72 | |
| Cord Clip | ||||
| 40 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 41 | 984750 | |||
| Connector 50091 (10 Pcs.) | ||||
| 42 | 959140 | 3.30 | 3.99 | |
| Noise Suppressor | ||||
| 43 | 930039 | 1.95 | 2.36 | |
| Noise Suppressor | ||||
| 44 | 994273 | 4.29 | 5.19 | |
| Internal wire | ||||
| 45 | 317667 | 1.65 | 2.00 | |
| Earth Terminal | ||||
| 46 | 992635 | 1.05 | 1.27 | |
| Handle Cover | ||||
| 47A | 326672 | 12.75 | 15.43 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 48 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 49 | 329770 | |||
| No information available, not orderable | ||||
| 501 | 323352 | |||
| No information available, not orderable | ||||
| 502 | 971511Z | |||
| No information available, not orderable | ||||
| 503 | 982554Z | |||
| No information available, not orderable | ||||
| 504 | 985322 | |||
| No information available, not orderable | ||||
| 505 | 317671 | |||
| No information available, not orderable | ||||
| 506 | 317899 | |||
| No information available, not orderable | ||||
| 507 | 323351 | |||
| No information available, not orderable | ||||
| 508 | 310904 | |||
| No information available, not orderable | ||||
| 601 | 317827 | |||
| No information available, not orderable | ||||
| 602 | 985326 | |||
| No information available, not orderable | ||||
| 603 | 985327 | |||
| No information available, not orderable | ||||
| 604 | 985328 | |||
| No longer available, no replacement | ||||
| 605 | 985329 | |||
| No information available, not orderable | ||||
| 606 | 985330 | |||
| No information available, not orderable | ||||
| 607 | 985332 | |||
| No information available, not orderable | ||||
| 608 | 982563Z | |||
| No information available, not orderable | ||||
| 609 | 982554Z | |||
| No information available, not orderable | ||||
| 610 | 985333 | |||
| No information available, not orderable | ||||
| 611 | 971511Z | |||
| No information available, not orderable | ||||
| 612 | 971512Z | |||
| No information available, not orderable | ||||
| 613 | 985334 | |||
| No information available, not orderable | ||||
| 614 | 985335 | |||
| No information available, not orderable | ||||
| 615 | 985336 | |||
| No information available, not orderable | ||||
| 616 | 985337 | |||
| No information available, not orderable | ||||
| 617 | 985338 | |||
| No information available, not orderable | ||||
| 618 | 985339 | |||
| No information available, not orderable | ||||
| 619 | 985340 | |||
| No information available, not orderable | ||||
| 620 | 985341 | |||
| No information available, not orderable | ||||
| 621 | 985342 | |||
| No information available, not orderable | ||||
| 622 | 985343 | |||
| No information available, not orderable | ||||
| 623 | 985344 | |||
| No information available, not orderable | ||||
| 624 | 310904 | |||
