Here you will find all available parts and drawings of the 'Hikoki W6VB3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

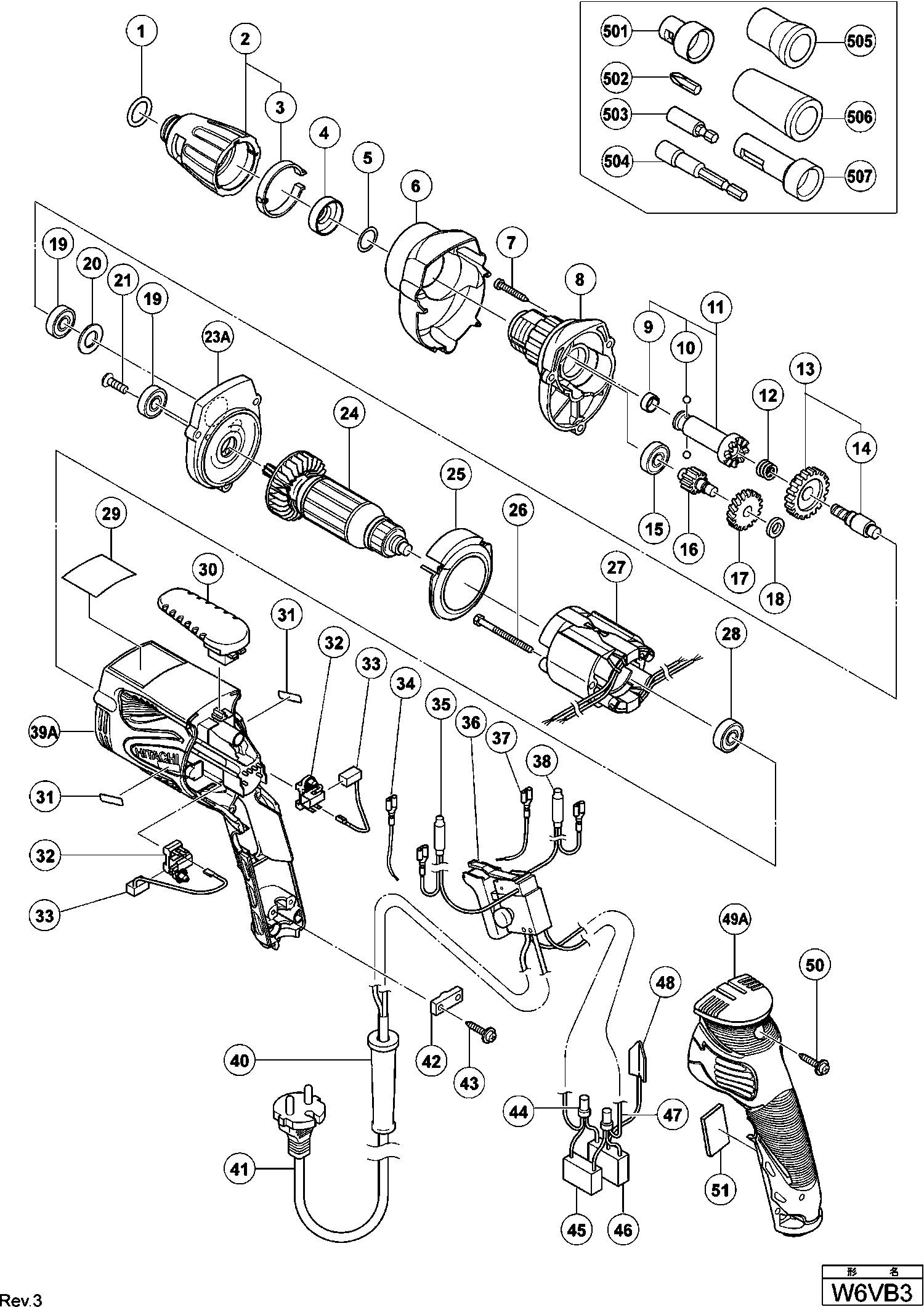

Technical drawing of model Hikoki W6VB3
Spare parts list of model Hikoki W6VB3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 230v | ||||
| *24 | 360675E | 35.06 | 42.43 | |
| ARMATURE 110 V | ||||
| *24 | 360674 | 32.72 | 39.59 | |
| Stator 220v-230v | ||||
| *27 | 340599E | 19.39 | 23.46 | |
| FIELD 110-120 VOLT | ||||
| *27 | 340599C | 18.10 | 21.90 | |
| Cord (length 7.5m) (cord Armor D8.8) | ||||
| *41 | 323559 | 5.55 | 6.72 | |
| No information available, not orderable | ||||
| *503 | 982554Z | |||
| No information available, not orderable | ||||
| *505 | 317670 | |||
| O-ring (s-16) | ||||
| 1 | 876031 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 2 | 323487 | |||
| Spring Plate | ||||
| 3 | 323488 | 1.95 | 2.36 | |
| Fringer (a) | ||||
| 4 | 971468 | 1.05 | 1.27 | |
| O-ring (f) | ||||
| 5 | 317662 | 1.65 | 2.00 | |
| Protection Cover (b) | ||||
| 6 | 323494 | 4.35 | 5.26 | |
| Protection Cover (b) | ||||
| 6A | 323494 | 4.35 | 5.26 | |
| Tapping Screw D4x25 (black) | ||||
| 7 | 321057 | 1.65 | 2.00 | |
| Gear Cover | ||||
| 8 | 323498 | 14.71 | 17.80 | |
| Ring | ||||
| 9 | 872573 | 1.35 | 1.63 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 10 | 959148 | 1.05 | 1.27 | |
| Connector | ||||
| 11 | 317664 | 55.41 | 67.05 | |
| Spring | ||||
| 12 | 306024 | 1.35 | 1.63 | |
| Gear Ass'y Includ.14 | ||||
| 13 | 317771 | 55.41 | 67.05 | |
| Gear Shaft | ||||
| 14 | 307340 | 14.30 | 17.30 | |
| Ball Bearing 608vvc2ps2l | ||||
| 15 | 608VVM | 5.70 | 6.90 | |
| Second Gear | ||||
| 16 | 317770 | 17.05 | 20.63 | |
| First Gear | ||||
| 17 | 307337 | 14.10 | 17.06 | |
| Ring | ||||
| 18 | 323497 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 19 | 608VVM | 5.70 | 6.90 | |
| Ring | ||||
| 20 | 933545 | 1.04 | 1.26 | |
| Slotted Hd. Screw (seal Lock) M4x8 | ||||
| 21 | 323556 | 1.05 | 1.27 | |
| Inner Cover Ass'y (a) Includ.19-21 | ||||
| 23A | 323493 | 12.00 | 14.52 | |
| Armature 230v | ||||
| 24 | 360675E | 35.06 | 42.43 | |
| ARMATURE 110 V | ||||
| 24 | 360674 | 32.72 | 39.59 | |
| Fan Guide | ||||
| 25 | 323472 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D4x50 | ||||
| 26 | 961672 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 27 | 340599E | 19.39 | 23.46 | |
| FIELD 110-120 VOLT | ||||
| 27 | 340599C | 18.10 | 21.90 | |
| Ball Bearing 608vvc2ps2l | ||||
| 28 | 608VVM | 5.70 | 6.90 | |
| Hook | ||||
| 30 | 323471 | 1.95 | 2.36 | |
| Brush Holder (a) | ||||
| 32 | 323512 | 3.90 | 4.72 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 33 | 999091 | 14.40 | 17.42 | |
| No information available, not orderable | ||||
| 34 | 323567 | |||
| Choke Coil (w/Internal Wire) Brown | ||||
| 35 | 323566 | 1.95 | 2.36 | |
| Switch | ||||
| 36 | 323479 | 14.99 | 18.13 | |
| No information available, not orderable | ||||
| 37 | 323569 | |||
| Choke Coil (w/internal Wire) Blue | ||||
| 38 | 323568 | 1.95 | 2.36 | |
| Housing | ||||
| 39A | 326671 | 19.39 | 23.46 | |
| Housing | ||||
| 39C | 326671 | 19.39 | 23.46 | |
| No information available, not orderable | ||||
| 40 | 953327 | |||
| Cord 7.5 Meter For Gbr 230 Volt | ||||
| 41 | 323560 | 15.26 | 18.47 | |
| 7.5 METRE POWER CORD FOR GBR 110 VOLT | ||||
| 41 | 323562 | 10.14 | 12.27 | |
| Cord (length 7.5m) (cord Armor D8.8) | ||||
| 41 | 323559 | 5.55 | 6.72 | |
| Cord Clip | ||||
| 42 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 43 | 984750 | |||
| Connector 50091 (10 Pcs.) | ||||
| 44 | 959140 | 3.30 | 3.99 | |
| Noise Suppressor | ||||
| 45 | 930039 | 1.95 | 2.36 | |
| Noise Suppressor | ||||
| 46 | 994273 | 4.29 | 5.19 | |
| Internal wire | ||||
| 47 | 317667 | 1.65 | 2.00 | |
| Earth Terminal | ||||
| 48 | 992635 | 1.05 | 1.27 | |
| Handle Cover | ||||
| 49A | 326672 | 12.75 | 15.43 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 50 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 51 | 329770 | |||
| No information available, not orderable | ||||
| 501 | 323352 | |||
| No information available, not orderable | ||||
| 502 | 971511Z | |||
| No information available, not orderable | ||||
| 503 | 982554Z | |||
| No information available, not orderable | ||||
| 504 | 985322 | |||
| No information available, not orderable | ||||
| 505 | 317671 | |||
| No information available, not orderable | ||||
| 506 | 317899 | |||
| No information available, not orderable | ||||
| 507 | 323351 | |||
| No information available, not orderable | ||||
| 601 | 317827 | |||
| No information available, not orderable | ||||
| 602 | 985326 | |||
| No information available, not orderable | ||||
| 603 | 985327 | |||
| No information available, not orderable | ||||
| 604 | 985328 | |||
| No longer available, no replacement | ||||
| 605 | 985329 | |||
| No information available, not orderable | ||||
| 606 | 982563Z | |||
| No information available, not orderable | ||||
| 607 | 982554Z | |||
| No information available, not orderable | ||||
| 608 | 985333 | |||
| No information available, not orderable | ||||
| 609 | 971512Z | |||
| No information available, not orderable | ||||
| 610 | 985334 | |||
| No information available, not orderable | ||||
| 611 | 985335 | |||
| No information available, not orderable | ||||
| 612 | 985336 | |||
| No information available, not orderable | ||||
| 613 | 985337 | |||
| No information available, not orderable | ||||
| 614 | 985338 | |||
| No information available, not orderable | ||||
| 615 | 985339 | |||
| No information available, not orderable | ||||
| 616 | 985340 | |||
| No information available, not orderable | ||||
| 617 | 985341 | |||
| No information available, not orderable | ||||
| 618 | 985342 | |||
| No information available, not orderable | ||||
| 619 | 985343 | |||
| No information available, not orderable | ||||
| 620 | 985344 | |||
| No information available, not orderable | ||||
| 621 | 985330 | |||
| No information available, not orderable | ||||
| 622 | 985332 | |||
| No information available, not orderable | ||||
| 623 | 310904 | |||
