Here you will find all available parts and drawings of the 'Hikoki W6V4'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

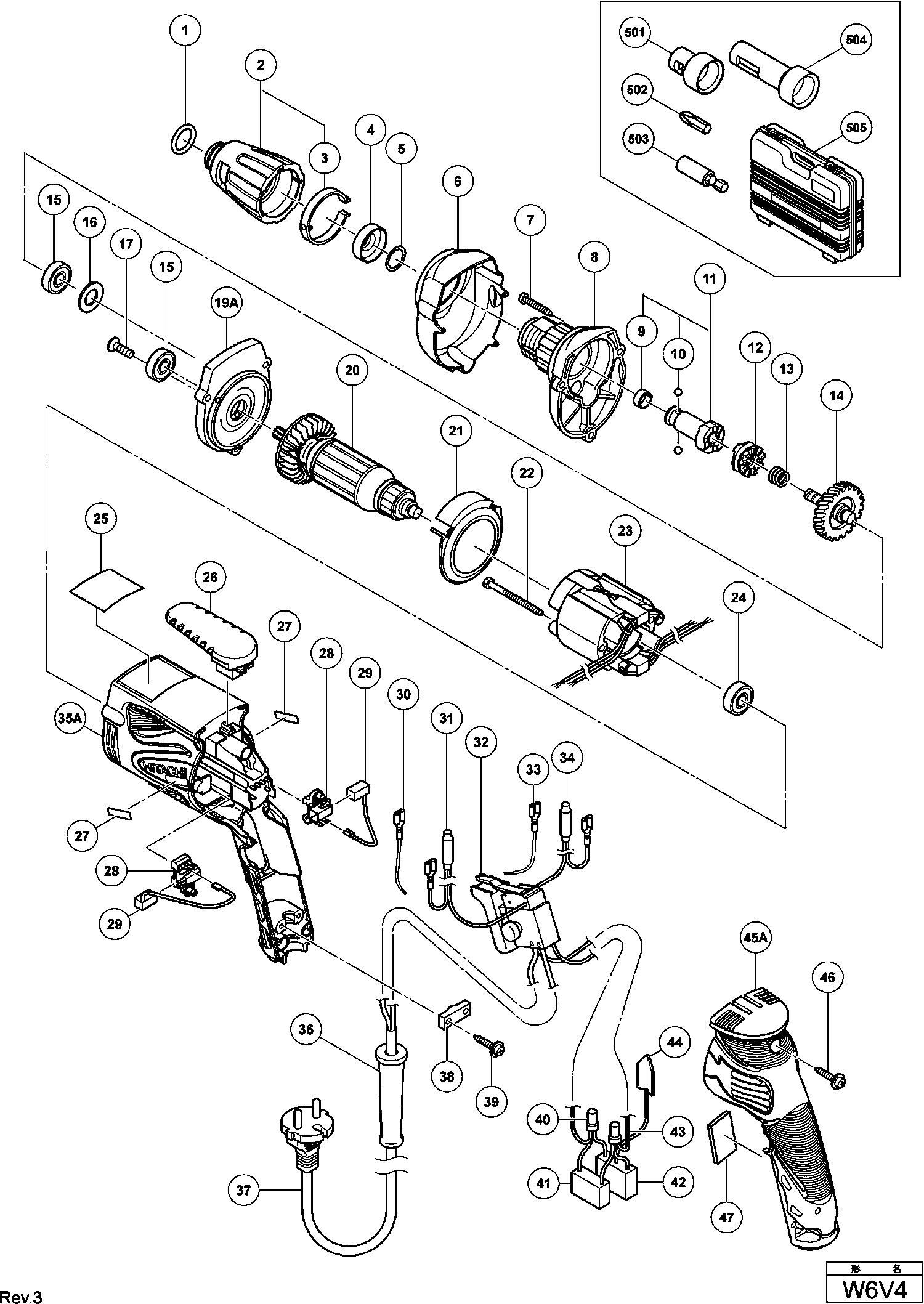

Technical drawing of model Hikoki W6V4
Spare parts list of model Hikoki W6V4
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| O-ring (s-16) | ||||
| 1 | 876031 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 2 | 323487 | |||
| Spring Plate | ||||
| 3 | 323488 | 1.95 | 2.36 | |
| Fringer (a) | ||||
| 4 | 971468 | 1.05 | 1.27 | |
| O-ring (f) | ||||
| 5 | 317662 | 1.65 | 2.00 | |
| Protect Cover (a) | ||||
| 6 | 323558 | 3.90 | 4.72 | |
| Tapping Screw D4x25 (black) | ||||
| 7 | 321057 | 1.65 | 2.00 | |
| Gear Cover | ||||
| 8 | 323486 | 12.75 | 15.43 | |
| Ring | ||||
| 9 | 872573 | 1.35 | 1.63 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 10 | 959148 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 11 | 323491 | |||
| Clutch Disc | ||||
| 12 | 323476 | 3.90 | 4.72 | |
| Spring | ||||
| 13 | 306024 | 1.35 | 1.63 | |
| Gear Set | ||||
| 14 | 323485 | 22.83 | 27.62 | |
| Ball Bearing 608vvc2ps2l | ||||
| 15 | 608VVM | 5.70 | 6.90 | |
| Ring | ||||
| 16 | 933545 | 1.04 | 1.26 | |
| Slotted Hd. Screw (seal Lock) M4x8 | ||||
| 17 | 323556 | 1.05 | 1.27 | |
| Inner Cover Ass'y (a) Includ.15-17 | ||||
| 19A | 323473 | 11.10 | 13.43 | |
| Armature 230v | ||||
| 20 | 360673E | 35.06 | 42.43 | |
| Fan Guide | ||||
| 21 | 323472 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D4x50 | ||||
| 22 | 961672 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 23 | 340599E | 19.39 | 23.46 | |
| Ball Bearing 608vvc2ps2l | ||||
| 24 | 608VVM | 5.70 | 6.90 | |
| Hook | ||||
| 26 | 323471 | 1.95 | 2.36 | |
| Brush Holder (a) | ||||
| 28 | 323512 | 3.90 | 4.72 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 29 | 999091 | 14.40 | 17.42 | |
| No information available, not orderable | ||||
| 30 | 323489 | |||
| Choke Coil (w/Internal Thread) Brown | ||||
| 31 | 323480 | 1.95 | 2.36 | |
| Switch | ||||
| 32 | 323479 | 14.99 | 18.13 | |
| No information available, not orderable | ||||
| 33 | 323490 | |||
| Choke Coil (m/internal Thread) Blue | ||||
| 34 | 323481 | 1.95 | 2.36 | |
| Housing | ||||
| 35A | 326671 | 19.39 | 23.46 | |
| Cord Armor D8.8 | ||||
| 36 | 380090 | 1.04 | 1.26 | |
| Cord 7.5 Meter For Gbr 230 Volt | ||||
| 37 | 323560 | 15.26 | 18.47 | |
| Cord (length 7.5m) (cord Armor D8.8) | ||||
| 37 | 323559 | 5.55 | 6.72 | |
| Cord Clip | ||||
| 38 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 39 | 984750 | |||
| Connector 50091 (10 Pcs.) | ||||
| 40 | 959140 | 3.30 | 3.99 | |
| Noise Suppressor | ||||
| 41 | 930039 | 1.95 | 2.36 | |
| Noise Suppressor | ||||
| 42 | 994273 | 4.29 | 5.19 | |
| Internal wire | ||||
| 43 | 317667 | 1.65 | 2.00 | |
| Earth Terminal | ||||
| 44 | 992635 | 1.05 | 1.27 | |
| Handle Cover | ||||
| 45A | 326672 | 12.75 | 15.43 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 46 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 47 | 329770 | |||
| No information available, not orderable | ||||
| 501 | 323352 | |||
| No information available, not orderable | ||||
| 502 | 971511Z | |||
| No information available, not orderable | ||||
| 503 | 982554Z | |||
| No information available, not orderable | ||||
| 504 | 323351 | |||
| No information available, not orderable | ||||
| 505 | 310904 | |||
| No information available, not orderable | ||||
| 601 | 317670 | |||
| No information available, not orderable | ||||
| 602 | 317671 | |||
| No information available, not orderable | ||||
| 603 | 317827 | |||
| No information available, not orderable | ||||
| 604 | 985330 | |||
| No information available, not orderable | ||||
| 605 | 985321 | |||
| No information available, not orderable | ||||
| 606 | 985322 | |||
| No information available, not orderable | ||||
| 607 | 985332 | |||
| No information available, not orderable | ||||
| 608 | 985326 | |||
| No longer available, no replacement | ||||
| 609 | 985329 | |||
| No information available, not orderable | ||||
| 610 | 985327 | |||
| No information available, not orderable | ||||
| 611 | 985328 | |||
| No information available, not orderable | ||||
| 612 | 982563Z | |||
| No information available, not orderable | ||||
| 613 | 323355 | |||
| No information available, not orderable | ||||
| 614 | 323356 | |||
| No information available, not orderable | ||||
| 615 | 985333 | |||
| No information available, not orderable | ||||
| 616 | 971512Z | |||
| No information available, not orderable | ||||
| 617 | 985334 | |||
| No information available, not orderable | ||||
| 618 | 985335 | |||
| No information available, not orderable | ||||
| 619 | 985336 | |||
| No information available, not orderable | ||||
| 620 | 985337 | |||
| No information available, not orderable | ||||
| 621 | 985338 | |||
| No information available, not orderable | ||||
| 622 | 985339 | |||
| No information available, not orderable | ||||
| 623 | 985340 | |||
| No information available, not orderable | ||||
| 624 | 985341 | |||
| No information available, not orderable | ||||
| 625 | 985342 | |||
| No information available, not orderable | ||||
| 626 | 985343 | |||
| No information available, not orderable | ||||
| 627 | 985344 | |||
| No information available, not orderable | ||||
| 628 | 310904 | |||
