Here you will find all available parts and drawings of the 'Hikoki W4YD'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

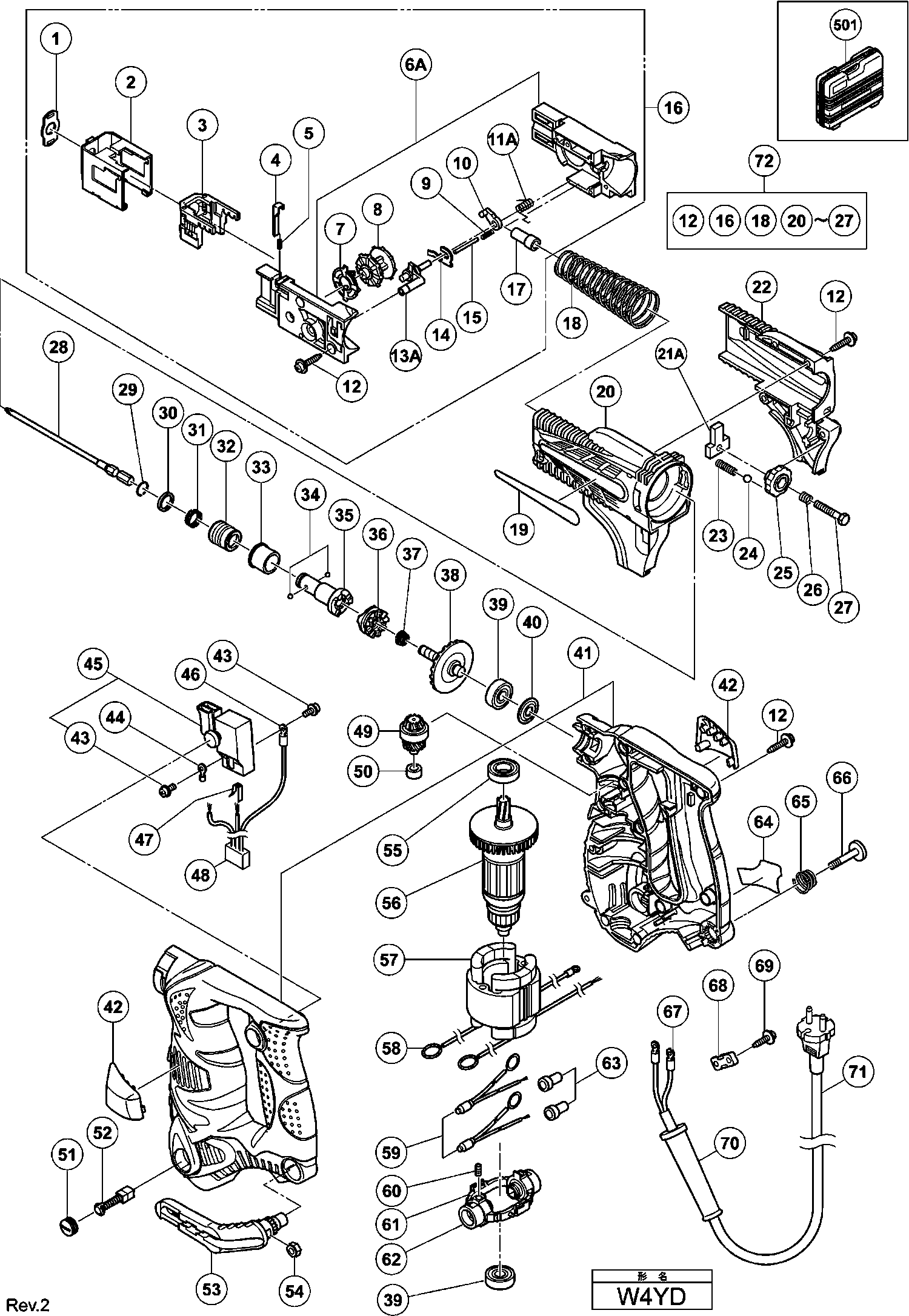

Technical drawing of model Hikoki W4YD
Spare parts list of model Hikoki W4YD
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator 230v | ||||
| *57 | 340623E | 46.75 | 56.57 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *71 | 500247Z | 6.18 | 7.48 | |
| Sheet (2 Pcs.) | ||||
| 1 | 324183 | 4.80 | 5.81 | |
| Depth Stop | ||||
| 2 | 324863 | 51.84 | 62.72 | |
| Guide Block | ||||
| 3 | 324177 | 40.84 | 49.41 | |
| Plate (a) | ||||
| 4 | 324184 | 3.30 | 3.99 | |
| Spring | ||||
| 5 | 324185 | 1.65 | 2.00 | |
| Slider (a).(b) Set | ||||
| 6A | 324165 | 9.00 | 10.89 | |
| Clutch Plate | ||||
| 7 | 324175 | 4.80 | 5.81 | |
| Sprocket | ||||
| 8 | 324167 | 32.18 | 38.93 | |
| Spring | ||||
| 9 | 324489 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 10 | 324173 | |||
| Arm Spring | ||||
| 11A | 324174 | 1.65 | 2.00 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 12 | 301653 | 1.04 | 1.26 | |
| Arm | ||||
| 13A | 324169 | 37.95 | 45.92 | |
| Stopper Plate | ||||
| 14 | 324176 | 3.30 | 3.99 | |
| Pin D2.5 | ||||
| 15 | 885349 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 16 | 324164 | |||
| No information available, not orderable | ||||
| 17 | 324186 | |||
| Spring | ||||
| 18 | 324190 | 3.30 | 3.99 | |
| Slider Case (a) | ||||
| 20 | 324162 | 10.20 | 12.34 | |
| Stopper Pin | ||||
| 21A | 324189 | 7.80 | 9.44 | |
| Slider Case (b) | ||||
| 22 | 324163 | 9.30 | 11.25 | |
| Spring | ||||
| 23 | 324191 | 1.50 | 1.82 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 24 | 959148 | 1.05 | 1.27 | |
| Knob (1) | ||||
| 25 | 324187 | 3.30 | 3.99 | |
| Spring | ||||
| 26 | 312430 | 2.40 | 2.90 | |
| Bolt M5 | ||||
| 27 | 324188 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 28 | 324134 | |||
| Washer Spring | ||||
| 29 | 995933 | 1.05 | 1.27 | |
| Spring retaining ring | ||||
| 30 | 307899 | 5.10 | 6.17 | |
| Guide Spring | ||||
| 31 | 995931 | 1.05 | 1.27 | |
| Guide Sleeve (a) | ||||
| 32 | 307782 | 14.99 | 18.13 | |
| Metal | ||||
| 33 | 324156 | 5.85 | 7.08 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 34 | 959148 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 35 | 324155 | |||
| Clutch Disc | ||||
| 36 | 323476 | 3.90 | 4.72 | |
| Spring | ||||
| 37 | 306024 | 1.35 | 1.63 | |
| Final Gear And Gear Shaft Set | ||||
| 38 | 324153 | 75.90 | 91.84 | |
| Ball Bearing 608vvc2ps2l | ||||
| 39 | 608VVM | 5.70 | 6.90 | |
| Washer | ||||
| 40 | 950513 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 41 | 324193 | |||
| Rubber Cover Set | ||||
| 42 | 324157 | 6.45 | 7.80 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 43 | 305499 | 1.05 | 1.27 | |
| Terminal (a) M3.5 (10 Pcs.) | ||||
| 44 | 960356 | 3.00 | 3.63 | |
| Switch | ||||
| 45 | 324864 | 14.99 | 18.13 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 46 | 930804 | 3.00 | 3.63 | |
| Earth Terminal | ||||
| 47 | 302488 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 48 | 994273 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 49 | 324151 | |||
| No information available, not orderable | ||||
| 50 | 324150 | |||
| Brush Cap | ||||
| 51 | 931266 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 52 | 999021 | |||
| Hook | ||||
| 53 | 320287 | 4.80 | 5.81 | |
| Nut M5 | ||||
| 54 | 320288 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 55 | 6901VV | |||
| Armature 230v | ||||
| 56 | 360707E | 90.48 | 109.47 | |
| Stator 230v | ||||
| 57 | 340623E | 46.75 | 56.57 | |
| Brush Terminal For Aus | ||||
| 58 | 930630 | 1.35 | 1.63 | |
| Interf. suppr. | ||||
| 59 | 324192 | 9.30 | 11.25 | |
| HEXAGON SOCKET SET SCREW M4X4 | ||||
| 60 | 981478 | 1.05 | 1.27 | |
| Brush Block | ||||
| 61 | 320514 | 20.21 | 24.46 | |
| Brush Holder | ||||
| 62 | 957571 | 2.40 | 2.90 | |
| Connector 50091 (10 Pcs.) | ||||
| 63 | 959140 | 3.30 | 3.99 | |
| Hook Spring | ||||
| 65 | 319926 | 1.65 | 2.00 | |
| Screw M5 | ||||
| 66 | 319927 | 1.65 | 2.00 | |
| connecting terminal | ||||
| 67 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 68 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 69 | 984750 | |||
| Cable gland D8.2 (old 958049z) | ||||
| 70 | 958049 | 1.04 | 1.26 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 71 | 500247Z | 6.18 | 7.48 | |
| Slider Case Ass'y Including.12,17-26 | ||||
| 72 | 328497 | 102.44 | 123.95 | |
| No information available, not orderable | ||||
| 501 | 310904 | |||
