Here you will find all available parts and drawings of the 'Hikoki VTP-16A'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

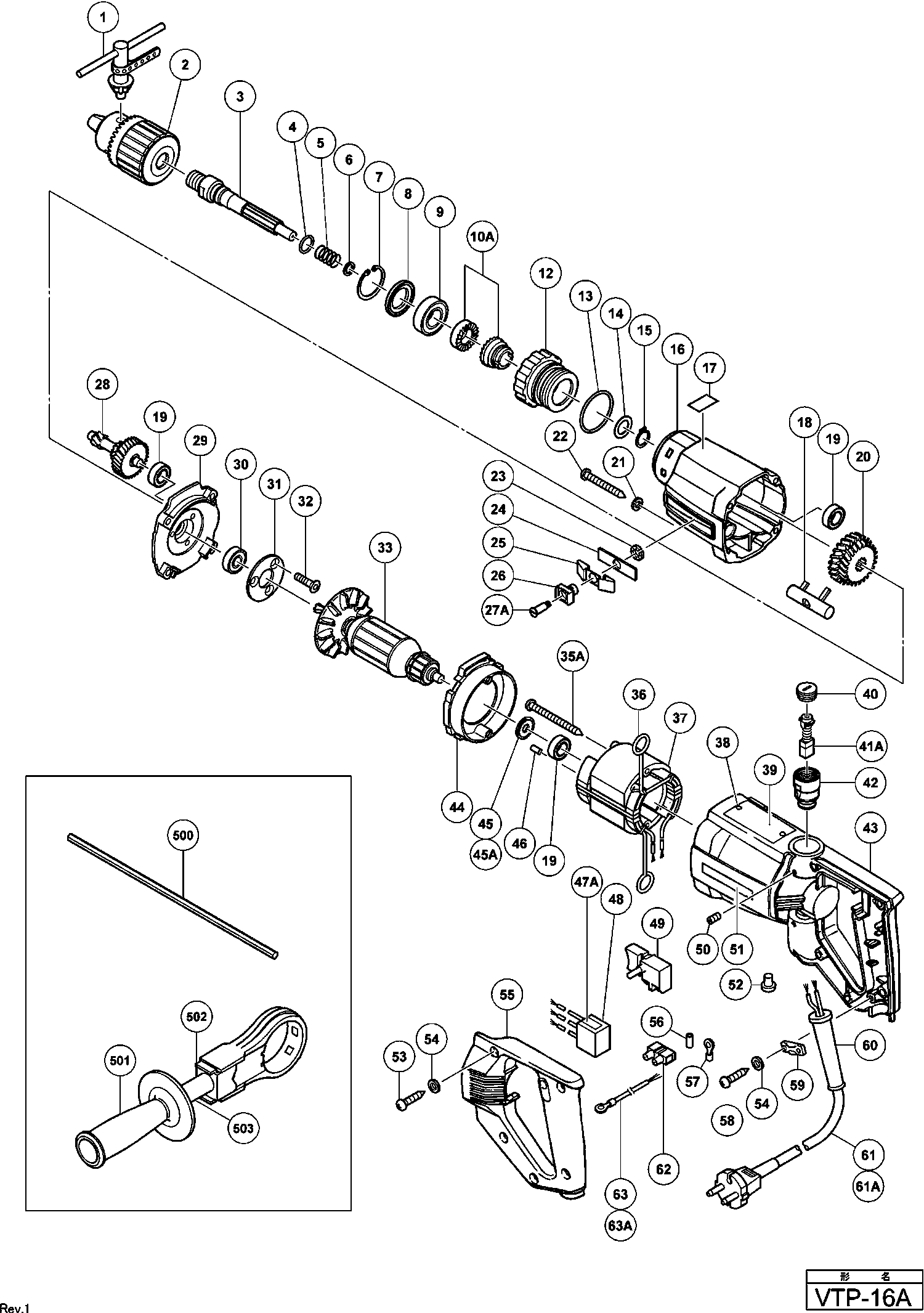

Technical drawing of model Hikoki VTP-16A
Spare parts list of model Hikoki VTP-16A
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *33 | 981611F | |||
| No information available, not orderable | ||||
| *37 | 981610H | |||
| Switch | ||||
| *49 | 957747 | 14.03 | 16.97 | |
| Cord Armor D10.1 | ||||
| *60 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *61 | 500439Z | |||
| No information available, not orderable | ||||
| *61A | 500505Z | |||
| No information available, not orderable | ||||
| 1 | 930733 | |||
| No information available, not orderable | ||||
| 2 | 950284 | |||
| Spindle Ass'y | ||||
| 3 | 981566 | 23.93 | 28.95 | |
| O-ring (s-14) | ||||
| 4 | 876319 | 1.65 | 2.00 | |
| Spring | ||||
| 5 | 981568 | 1.04 | 1.26 | |
| Washer | ||||
| 6 | 971657 | 1.05 | 1.27 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 7 | 939556 | 10.20 | 12.34 | |
| Gasket | ||||
| 8 | 981572 | 3.30 | 3.99 | |
| Ball Bearing 6003vvcmps2l | ||||
| 9 | 6003VV | 7.65 | 9.26 | |
| Ratchet (a).(b) Set | ||||
| 10A | 981592 | 25.99 | 31.44 | |
| Ring | ||||
| 12 | 981571 | 29.29 | 35.44 | |
| O-ring (s-38) | ||||
| 13 | 980717 | 1.35 | 1.63 | |
| Washer | ||||
| 14 | 971736 | 1.05 | 1.27 | |
| Spring Washer D14 (10 Pieces) | ||||
| 15 | 939543 | 2.55 | 3.09 | |
| Gear Cover | ||||
| 16 | 981564 | 29.15 | 35.27 | |
| LABEL | ||||
| 17 | 971661 | 1.00 | 1.21 | |
| Shift Rod | ||||
| 18 | 981573 | 9.60 | 11.62 | |
| Ball Bearing 608vvc2ps2l | ||||
| 19 | 608VVM | 5.70 | 6.90 | |
| Gear | ||||
| 20 | 981570 | 40.84 | 49.41 | |
| Spring Washer M5 (10 pieces) | ||||
| 21 | 949454 | 1.04 | 1.26 | |
| Tapping Screw D5x45 | ||||
| 22 | 955912 | 1.05 | 1.27 | |
| Washer | ||||
| 23 | 942864 | 1.05 | 1.27 | |
| Seal Plate | ||||
| 24 | 981574 | 1.05 | 1.27 | |
| Spring | ||||
| 25 | 981575 | 1.05 | 1.27 | |
| Shift Lever | ||||
| 26 | 981576 | 2.40 | 2.90 | |
| Screw | ||||
| 27A | 981577 | 5.25 | 6.35 | |
| Second Gear | ||||
| 28 | 981569 | 35.06 | 42.43 | |
| Inner Cover Ass'y Includ.19,30-32 | ||||
| 29 | 981581 | 32.18 | 38.93 | |
| Ball bearing 609vvmc2ps2s | ||||
| 30 | 609VVM | 6.00 | 7.26 | |
| Bearing Holder | ||||
| 31 | 981585 | 2.70 | 3.27 | |
| Seal Lock Hex.socket Flat Hd. Bolt M5x16 | ||||
| 32 | 981588 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 33 | 981611F | |||
| Tapping Screw D5x60 | ||||
| 35A | 991007 | 1.35 | 1.63 | |
| Brush Terminal | ||||
| 36 | 930703 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 37 | 981610H | |||
| Brush Cap | ||||
| 40 | 961781 | 2.55 | 3.09 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 41A | 999073 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 42 | 981586 | 6.45 | 7.80 | |
| Housing | ||||
| 43 | 981560 | 43.86 | 53.07 | |
| Fan Guide | ||||
| 44 | 981562 | 2.55 | 3.09 | |
| Dust Seal (a) Till 2.1995 | ||||
| 45 | 956387 | 2.10 | 2.54 | |
| Washer (c) | ||||
| 45A | 984367 | 1.05 | 1.27 | |
| RUBBER PIN (OLD 976441) | ||||
| 46 | 946362 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| 47A | 994273 | 4.29 | 5.19 | |
| Rubber | ||||
| 48 | 930153 | 1.04 | 1.26 | |
| Switch | ||||
| 49 | 957747 | 14.03 | 16.97 | |
| Slotted Hd. Set Screw M4x5 (10 Pcs.) | ||||
| 50 | 949365 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 51 | 957561 | |||
| Connector 50091 (10 Pcs.) | ||||
| 52 | 959140 | 3.30 | 3.99 | |
| Tapping Screw D4x20 | ||||
| 53 | 956384 | 1.05 | 1.27 | |
| Washer M4 (10 Pcs.) | ||||
| 54 | 949423 | 1.05 | 1.27 | |
| Handle Cover | ||||
| 55 | 981578 | 16.09 | 19.47 | |
| Threaded cable sleeve | ||||
| 56 | 981373 | 1.05 | 1.27 | |
| Terminal For Noise Suppressor | ||||
| 57 | 938108 | 1.20 | 1.45 | |
| Tapping Screw D4X16 | ||||
| 58 | 954004 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 59 | 960266 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 60 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 61 | 500439Z | |||
| No information available, not orderable | ||||
| 61A | 500505Z | |||
| Internal wire | ||||
| 63 | 981500 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 981579 | |||
| Handle Plate | ||||
| 502 | 981580 | 2.40 | 2.90 | |
| Handle Joint | ||||
| 503 | 983987 | 7.95 | 9.62 | |
| No information available, not orderable | ||||
| 608 | 971670 | |||
| No information available, not orderable | ||||
| 610B | 310905 | |||
