Here you will find all available parts and drawings of the 'Hikoki VB3616DA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

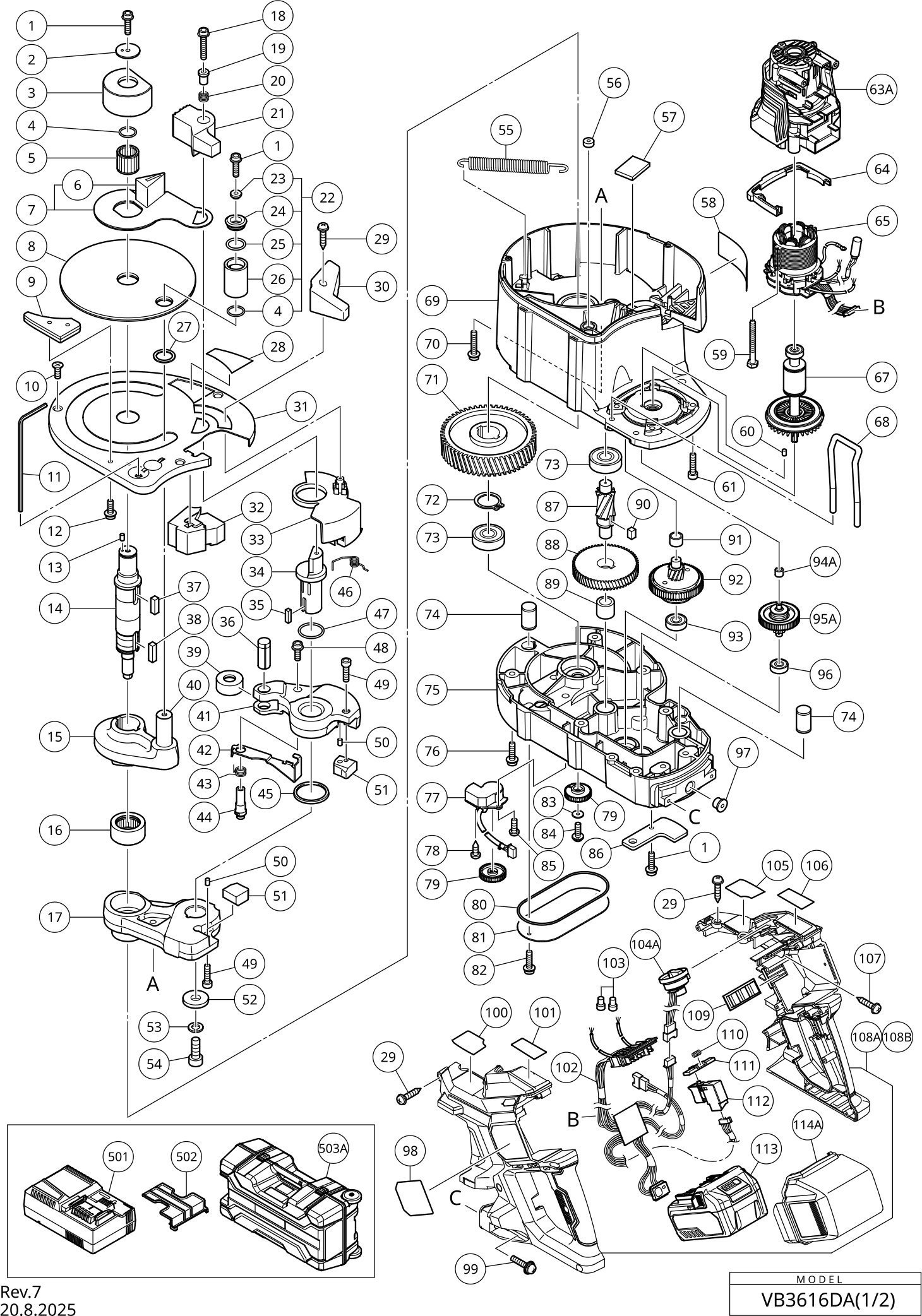

Technical drawing of model Hikoki VB3616DA
Spare parts list of model Hikoki VB3616DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *100 | 383546 | |||
| No information available, not orderable | ||||
| *105 | 383549 | |||
| HANDGREEP SET (A+B) (OUD 381591) | ||||
| *108A | 381590 | 28.49 | 34.47 | |
| No information available, not orderable | ||||
| *113 | 373320 | |||
| BATTERY COVER (OLD 375650) | ||||
| *114A | 381592 | 2.46 | 2.98 | |
| Roller (d62) Set | ||||
| *3 | 319714 | 99.14 | 119.96 | |
| Battery Cover | ||||
| *502 | 329897 | 1.80 | 2.18 | |
| Center Roller Set D38 | ||||
| *601 | 319712 | 67.10 | 81.19 | |
| Center Roller Set D50 | ||||
| *602 | 319713 | 107.94 | 130.60 | |
| INNER COVER ASSEMBLY | ||||
| *69 | 375657 | 88.96 | 107.64 | |
| Nylock Bolt (w/flange) M5x16 | ||||
| 1 | 313082 | 1.05 | 1.27 | |
| Ring | ||||
| 2 | 319694 | 12.30 | 14.88 | |
| O-ring (1ap-20) | ||||
| 4 | 944486 | 1.05 | 1.27 | |
| Needle Bearing (d22) | ||||
| 5 | 319693 | 18.01 | 21.80 | |
| Rubber Guide | ||||
| 6 | 323992 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 7 | 319692 | |||
| Rotary Table | ||||
| 8 | 319691 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 9 | 320427 | |||
| Nylock Flat Hd. Screw M4x12 | ||||
| 10 | 320264 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 11 | 319699 | |||
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 12 | 998471 | 1.05 | 1.27 | |
| Roll Pin D3x8 (10 Pcs.) | ||||
| 13 | 949749 | 1.95 | 2.36 | |
| Eccentric | ||||
| 14 | 319679 | 112.20 | 135.76 | |
| Eccentric | ||||
| 15 | 319678 | 201.99 | 244.40 | |
| Socket | ||||
| 16 | 320420 | 39.33 | 47.58 | |
| Bracket (b) | ||||
| 17 | 320904 | 264.83 | 320.44 | |
| Nylock Bolt (w/flange) M5x25 | ||||
| 18 | 313077 | 5.85 | 7.08 | |
| Socket | ||||
| 19 | 320425 | 8.70 | 10.53 | |
| Spring | ||||
| 20 | 320426 | 1.65 | 2.00 | |
| Roller (b) Set Includ.8a,9,140,141,142 Till 10.20 | ||||
| 22 | 322266 | 49.64 | 60.06 | |
| Sleeve (r) Since 11.2002 | ||||
| 23 | 322268 | 11.70 | 14.16 | |
| Baffle | ||||
| 24 | 322267 | 13.95 | 16.88 | |
| O-ring (s-20) Since 11.2002 | ||||
| 25 | 876078 | 1.65 | 2.00 | |
| Roller (b) Since 11.2002 | ||||
| 26 | 322269 | 16.23 | 19.63 | |
| Washer (b) | ||||
| 27 | 984118 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 28 | 383544 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 29 | 301653 | 1.04 | 1.26 | |
| Lever (b) | ||||
| 30 | 319697 | 6.45 | 7.80 | |
| Cover | ||||
| 31 | 319690 | 36.03 | 43.59 | |
| Grip Rubber | ||||
| 32 | 319689 | 12.15 | 14.70 | |
| Cover | ||||
| 33 | 319688 | 6.45 | 7.80 | |
| Shaft (a) (old 319668) | ||||
| 34 | 320901 | 110.96 | 134.26 | |
| Key 5x5x18 | ||||
| 35 | 320902 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 36 | 319664 | |||
| Insert key 7x7x22 | ||||
| 37 | 967124 | 1.65 | 2.00 | |
| Key 7x7x25 | ||||
| 38 | 948081 | 1.05 | 1.27 | |
| Roller (c) | ||||
| 39 | 319663 | 21.04 | 25.46 | |
| Shaft (b) | ||||
| 40 | 319680 | 23.24 | 28.12 | |
| Bracket (a) | ||||
| 41 | 320903 | 189.61 | 229.43 | |
| No information available, not orderable | ||||
| 42 | 319665 | |||
| Spring | ||||
| 43 | 319666 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 44 | 322655 | |||
| V-ring | ||||
| 45 | 319669 | 1.50 | 1.82 | |
| Spring | ||||
| 46 | 319687 | 3.30 | 3.99 | |
| O-RING (S-26) | ||||
| 47 | 872470 | 1.65 | 2.00 | |
| NYLOCK BOUT M6X12 | ||||
| 48 | 882974 | 1.38 | 1.67 | |
| Nylock Hex. Socket Hd. Bolt M5x16 | ||||
| 49 | 878181 | 1.05 | 1.27 | |
| Pin | ||||
| 50 | 980258 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 51 | 319706 | |||
| No longer available, no replacement | ||||
| 52 | 319673 | |||
| No information available, not orderable | ||||
| 53 | 320424 | |||
| No information available, not orderable | ||||
| 54 | 319674 | |||
| Spring | ||||
| 55 | 319677 | 14.44 | 17.47 | |
| Wrench Holder | ||||
| 56 | 307607 | 1.35 | 1.63 | |
| Support (b) For Noise Suppressor Ass'y (w/resisto | ||||
| 57 | 316186 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 58 | 383545 | |||
| Hex. Hd. Tapping Screw D4x45 | ||||
| 59 | 981824 | 1.05 | 1.27 | |
| RUBBER PEN | ||||
| 60 | 931701 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M6x20 (10 Pcs.) | ||||
| 61 | 949660 | 3.30 | 3.99 | |
| Housing Ass'y Includ.86,87 | ||||
| 63A | 375659 | 21.59 | 26.12 | |
| CARRIER | ||||
| 64 | 375652 | 2.40 | 2.90 | |
| STATOR PCB | ||||
| 65 | 341053 | 108.08 | 130.77 | |
| ROTOR | ||||
| 67 | 361120 | 77.00 | 93.17 | |
| Stand | ||||
| 68 | 375653 | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| 70 | 319676 | |||
| Final Gear | ||||
| 71 | 319681 | 78.79 | 95.33 | |
| Retaining Ring (1) | ||||
| 72 | 962553 | 1.05 | 1.27 | |
| Ball Bearing 6302vvcmps2l | ||||
| 73 | 6302VV | 9.30 | 11.25 | |
| Pin (b) | ||||
| 74 | 370145 | 2.40 | 2.90 | |
| Gear Cover Ass'y Includ.3,17 | ||||
| 75 | 375656 | 65.59 | 79.36 | |
| Nylock Bolt (w/flange) M6x16 | ||||
| 76 | 880474 | 1.05 | 1.27 | |
| Sensor Holder (A) Assembly | ||||
| 77 | 375993 | 43.04 | 52.08 | |
| Tapping Screw D3x12 | ||||
| 78 | 316214 | 1.65 | 2.00 | |
| Sensor Gear | ||||
| 79 | 316212 | 3.30 | 3.99 | |
| O-ring | ||||
| 80 | 319685 | 4.35 | 5.26 | |
| Sensor Cover | ||||
| 81 | 319686 | 3.30 | 3.99 | |
| Hex. Socket Hd. Bolt (w/flange) M4x10 | ||||
| 82 | 316228 | 1.65 | 2.00 | |
| Closing Washer (b) (old 976448) | ||||
| 83 | 962569 | 1.05 | 1.27 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 84 | 987203 | 1.05 | 1.27 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 85 | 949215 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 86 | 319661 | |||
| Third Pinion | ||||
| 87 | 319682 | 32.45 | 39.26 | |
| Third Gear | ||||
| 88 | 319683 | 40.01 | 48.42 | |
| Metal | ||||
| 89 | 930076 | 2.85 | 3.45 | |
| Feather Key 7x7x12 | ||||
| 90 | 998468 | 1.05 | 1.27 | |
| Metal (b) | ||||
| 91 | 954789 | 1.05 | 1.27 | |
| Second Pinion Set | ||||
| 92 | 320263 | 128.29 | 155.23 | |
| Ball Bearing 6000vvcmps2l | ||||
| 93 | 6000VV | 6.15 | 7.44 | |
| No longer available, no replacement | ||||
| 94A | 331005 | |||
| FIRST PINION SET (OLD 322048) | ||||
| 95A | 382192 | 37.73 | 45.65 | |
| Ball Bearing 608vv | ||||
| 96 | 333945 | 1.80 | 2.18 | |
| Rubber Bushing | ||||
| 97 | 375998 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 99 | 316229 | |||
| Relay PCB | ||||
| 102 | 375994 | 59.54 | 72.04 | |
| Connector 50092 (10 Pcs.) | ||||
| 103 | 959141 | 3.75 | 4.54 | |
| Volume Holder | ||||
| 104A | 375655 | 22.69 | 27.45 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 107 | 302089 | 1.05 | 1.27 | |
| Rubber Cushion | ||||
| 109 | 332668 | 2.10 | 2.54 | |
| Spring (f) | ||||
| 110 | 301631 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 111 | 375999 | 3.75 | 4.54 | |
| DC-SPEED CONTROL SWITCH | ||||
| 112 | 376000 | 14.71 | 17.80 | |
| No information available, not orderable | ||||
| 503A | 381593 | |||
| No information available, not orderable | ||||
| 603 | 336375 | |||
| Wheel Shaft Set | ||||
| 604 | 337337 | 14.70 | 17.79 | |
| Latch Set (2 Pcs.) | ||||
| 605 | 337338 | 3.45 | 4.17 | |
