Here you will find all available parts and drawings of the 'Hikoki VB13Y'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

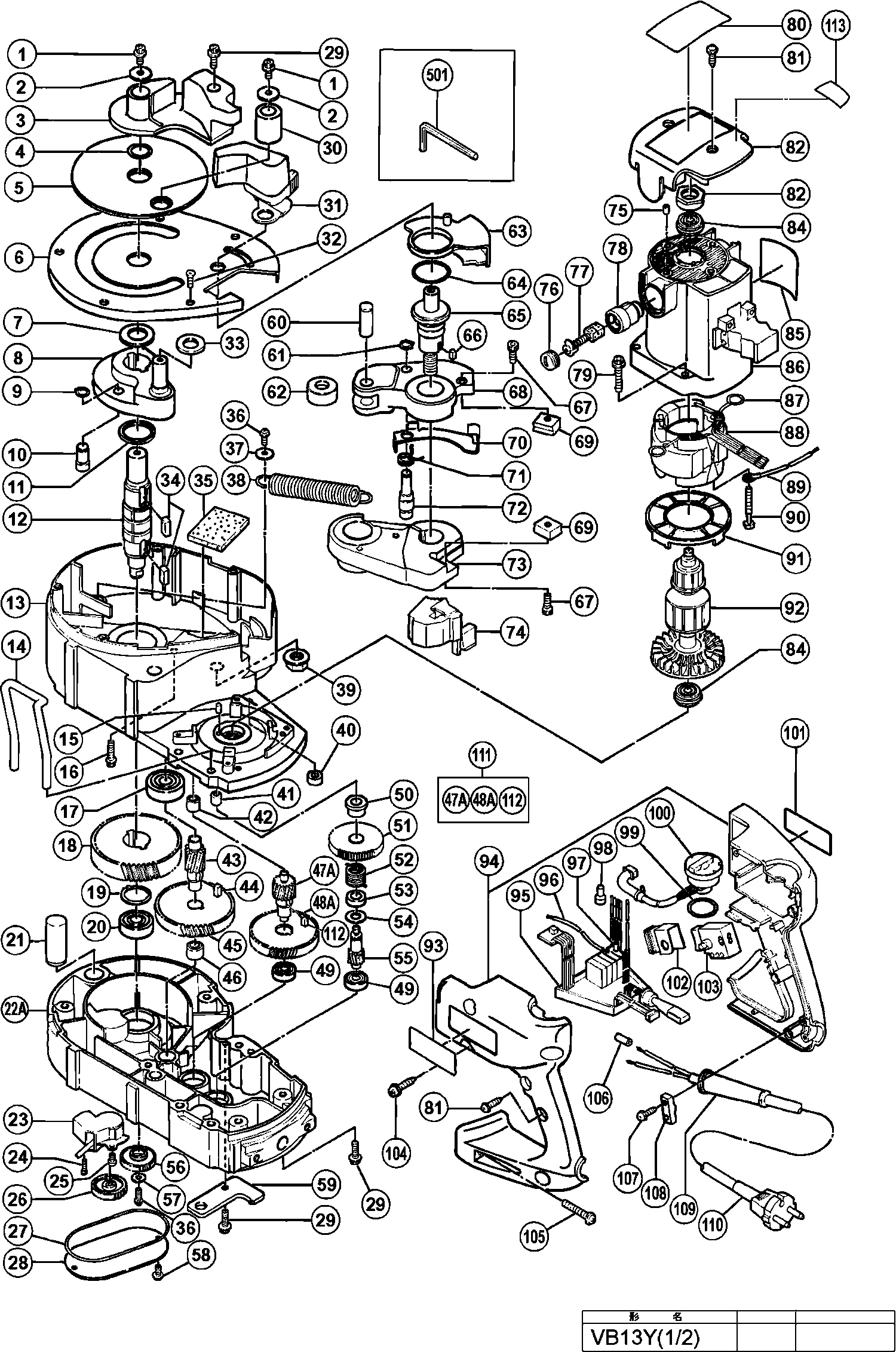

Technical drawing of model Hikoki VB13Y
Spare parts list of model Hikoki VB13Y
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| *110 | 500247Z | 6.18 | 7.48 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 1 | 998471 | 1.05 | 1.27 | |
| Ring | ||||
| 2 | 316224 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 3 | 318288 | |||
| O-ring (P-18) | ||||
| 4 | 873570 | 1.35 | 1.63 | |
| Rotary Table | ||||
| 5 | 316220 | 24.61 | 29.78 | |
| Cam Cover | ||||
| 6 | 316219 | 32.18 | 38.93 | |
| Felt Packing | ||||
| 7 | 316216 | 1.65 | 2.00 | |
| Eccentric | ||||
| 8 | 316199 | 245.03 | 296.48 | |
| Spring Washer D10 (10 pieces) | ||||
| 9 | 939540 | 1.95 | 2.36 | |
| SPINDLE LOCK PIN | ||||
| 10 | 316201 | 8.64 | 10.45 | |
| No information available, not orderable | ||||
| 11 | 316198 | |||
| Eccentric | ||||
| 12 | 316200 | 81.68 | 98.83 | |
| Inner Cover | ||||
| 13 | 316184 | 230.31 | 278.68 | |
| No information available, not orderable | ||||
| 14 | 316225 | |||
| RUBBER PEN | ||||
| 15 | 931701 | 1.05 | 1.27 | |
| HEX SOCKET SCREW M5X20 | ||||
| 16 | 316195 | 1.38 | 1.67 | |
| Ball Bearing 6301vvcmps2l | ||||
| 17 | 6301VV | 8.55 | 10.35 | |
| Final Gear | ||||
| 18 | 316202 | 58.44 | 70.71 | |
| Washer Spring | ||||
| 19 | 965469 | 1.05 | 1.27 | |
| Ball Bearing 6201vv | ||||
| 20 | 6201VV | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 21 | 316451 | |||
| No information available, not orderable | ||||
| 22 | 319355 | |||
| No information available, not orderable | ||||
| 23 | 318284 | |||
| Tapping Screw D3x12 | ||||
| 24 | 316214 | 1.65 | 2.00 | |
| Machine Screw M4x8 (10 Pcs.) | ||||
| 25 | 949215 | 1.05 | 1.27 | |
| Sensor Gear | ||||
| 26 | 316212 | 3.30 | 3.99 | |
| O-ring (s-85) | ||||
| 27 | 985227 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 28 | 316215 | |||
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 29 | 994192 | 1.04 | 1.26 | |
| Roller (b) | ||||
| 30 | 316223 | 11.85 | 14.34 | |
| Lever (a) Vb13y | ||||
| 31 | 318287 | 52.53 | 63.56 | |
| Flat Hd. Screw M4x10 (10 Pcs.) | ||||
| 32 | 949322 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 33 | 316217 | |||
| Feather Key 7x7x15 | ||||
| 34 | 306506 | 2.25 | 2.72 | |
| Support (b) For Noise Suppressor Ass'y (w/resisto | ||||
| 35 | 316186 | 1.65 | 2.00 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 36 | 987203 | 1.05 | 1.27 | |
| Thrust Washer | ||||
| 37 | 875249 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 38 | 316197 | |||
| No information available, not orderable | ||||
| 39 | 316196 | |||
| Wrench Holder | ||||
| 40 | 307607 | 1.35 | 1.63 | |
| Metal | ||||
| 41 | 316185 | 1.65 | 2.00 | |
| Metal | ||||
| 42 | 954940 | 1.35 | 1.63 | |
| Third Pinion | ||||
| 43 | 316203 | 27.78 | 33.61 | |
| Key 5x5x10 | ||||
| 44 | 948015 | 1.05 | 1.27 | |
| Third Gear | ||||
| 45 | 316204 | 37.95 | 45.92 | |
| Metal (b) | ||||
| 46 | 954789 | 1.05 | 1.27 | |
| Second Pinion Since 9.2000 | ||||
| 47A | 319538 | 25.44 | 30.78 | |
| Second Gear Since 9.2000 | ||||
| 48A | 319539 | 28.60 | 34.61 | |
| Ball Bearing 608vvc2ps2l | ||||
| 49 | 608VVM | 5.70 | 6.90 | |
| Sleeve (b) | ||||
| 50 | 318360 | 14.99 | 18.13 | |
| First Gear | ||||
| 51 | 318358 | 27.23 | 32.94 | |
| Clutch Spring | ||||
| 52 | 316209 | 9.90 | 11.98 | |
| Ring | ||||
| 53 | 316208 | 10.50 | 12.70 | |
| Ring | ||||
| 54 | 981077 | 1.04 | 1.26 | |
| First Pinion (b) | ||||
| 55 | 318359 | 22.28 | 26.95 | |
| Sensor Gear | ||||
| 56 | 316212 | 3.30 | 3.99 | |
| Closing Washer (b) (old 976448) | ||||
| 57 | 962569 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/flange) M4x10 | ||||
| 58 | 316228 | 1.65 | 2.00 | |
| Steel Bar Guide Vb13y | ||||
| 59 | 316226 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 60 | 316190 | |||
| Retaining Ring For D9 Shaft | ||||
| 61 | 992805 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 62 | 316189 | |||
| Cover | ||||
| 63 | 318285 | 6.45 | 7.80 | |
| O-ring (s-34) | ||||
| 64 | 980879 | 1.05 | 1.27 | |
| Screw Bolt | ||||
| 65 | 316194 | 64.21 | 77.70 | |
| Feather Key 4x4x8 Since 9.2000 | ||||
| 66 | 980809 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 67 | 949821 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 68 | 316188 | |||
| No information available, not orderable | ||||
| 69 | 316235 | |||
| No information available, not orderable | ||||
| 70 | 316191 | |||
| No information available, not orderable | ||||
| 71 | 316192 | |||
| No information available, not orderable | ||||
| 72 | 316193 | |||
| No information available, not orderable | ||||
| 73 | 316187 | |||
| No information available, not orderable | ||||
| 74 | 316222 | |||
| Hex Adjustment Screw M5x8 | ||||
| 75 | 938477 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 76 | 935829 | 1.05 | 1.27 | |
| Carbon Brush (1 Pair) | ||||
| 77 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 78 | 971001 | 6.45 | 7.80 | |
| Hex. Socket Hd. Bolt (w/flange) M5x30 | ||||
| 79 | 313585 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 80 | 318286 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 81 | 301653 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 82 | 316227 | 9.00 | 10.89 | |
| BEARING BUSH (B) | ||||
| 83 | 310111 | 8.40 | 10.16 | |
| Ball Bearing | ||||
| 84 | 318362 | 10.95 | 13.25 | |
| Housing | ||||
| 86 | 310146 | 40.84 | 49.41 | |
| Brush Terminal | ||||
| 87 | 930703 | 2.40 | 2.90 | |
| Stator 230v | ||||
| 88 | 340419E | 44.28 | 53.57 | |
| Internal wire | ||||
| 89 | 990861 | 1.05 | 1.27 | |
| HEX. HEAD TAPPING SCREW D5X40 | ||||
| 90 | 980864 | 1.00 | 1.21 | |
| Fan Guide | ||||
| 91 | 980931 | 4.20 | 5.08 | |
| Armature 230v | ||||
| 92 | 360470E | 131.31 | 158.89 | |
| No information available, not orderable | ||||
| 94 | 316234 | |||
| No information available, not orderable | ||||
| 95 | 318282 | |||
| No information available, not orderable | ||||
| 96 | 318283 | |||
| Threaded cable sleeve | ||||
| 97 | 981373 | 1.05 | 1.27 | |
| Connector 50091 (10 Pcs.) | ||||
| 98 | 959140 | 3.30 | 3.99 | |
| O-ring (s-24) | ||||
| 99 | 878609 | 1.05 | 1.27 | |
| Volume Holder Ass'y Includ.99 | ||||
| 100 | 318281 | 32.45 | 39.26 | |
| No information available, not orderable | ||||
| 101 | 318289 | |||
| No information available, not orderable | ||||
| 103 | 318280 | |||
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 104 | 302089 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 105 | 316229 | |||
| Threaded cable sleeve | ||||
| 106 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 107 | 984750 | |||
| Cord Clip | ||||
| 108 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 109 | 953327 | |||
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 110 | 500247Z | 6.18 | 7.48 | |
| Second Pinion Ass'y Includ.47a,48a,112 Till 8.200 | ||||
| 111 | 319537 | 51.15 | 61.89 | |
| Feather Key 4x4x8 Since 9.2000 | ||||
| 112 | 980809 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
