Here you will find all available parts and drawings of the 'Hikoki UT5V'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

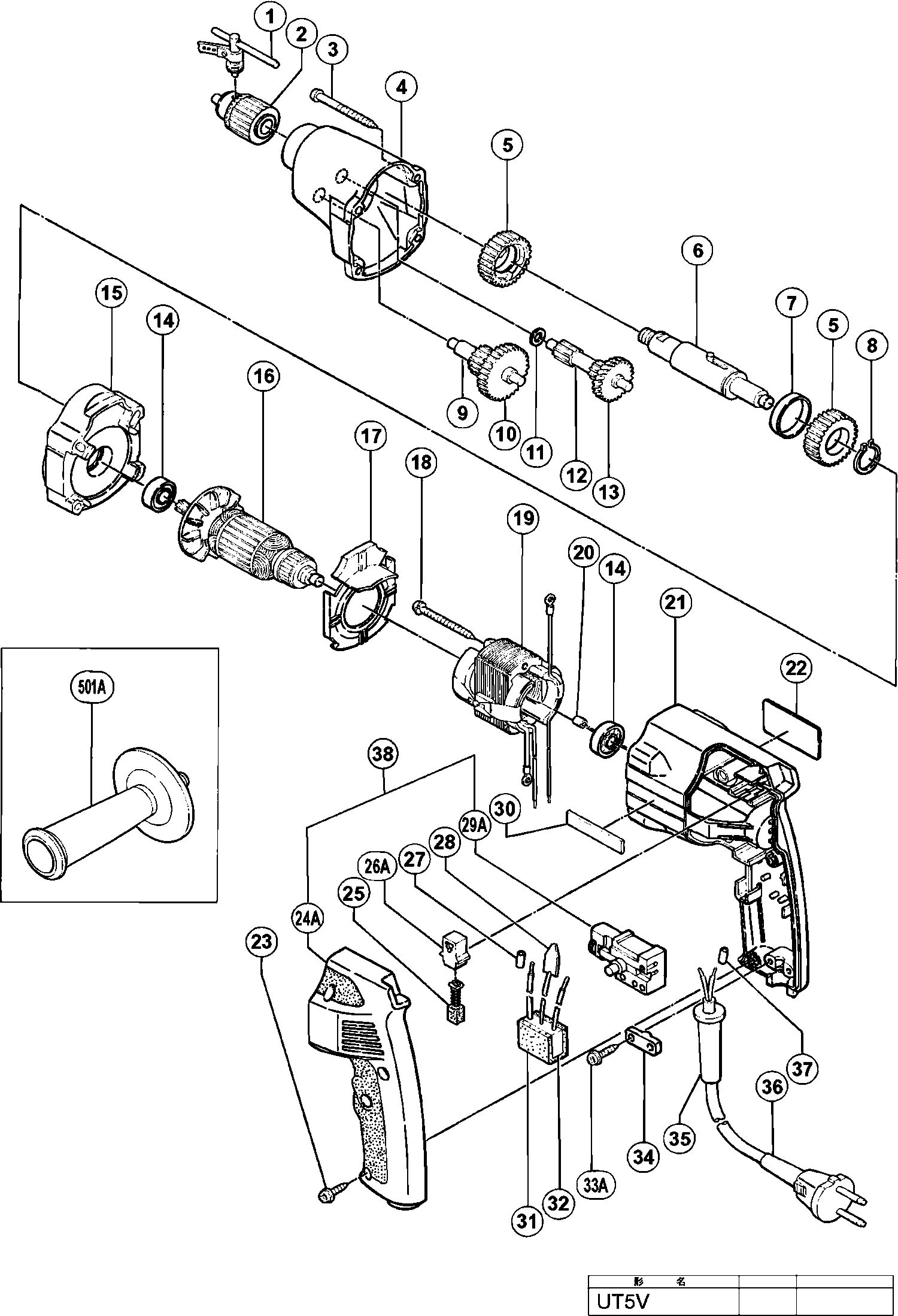

Technical drawing of model Hikoki UT5V
Spare parts list of model Hikoki UT5V
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch 220v-240v (2p Pillar Type) W/lock Since 8. | ||||
| *29A | 316257 | 32.18 | 38.93 | |
| Switch And Handle Cover Set 220v-240v Includ.24a, | ||||
| *38 | 318336 | 33.00 | 39.93 | |
| No information available, not orderable | ||||
| 1 | 930029 | |||
| No information available, not orderable | ||||
| 2 | 950283 | |||
| SCHROEF D4X45 | ||||
| 3 | 991031 | 1.00 | 1.21 | |
| TANDWIELHUIS | ||||
| 4 | 995640 | 19.69 | 23.82 | |
| TANDWIEL | ||||
| 5 | 995637 | 11.33 | 13.71 | |
| AS | ||||
| 6 | 995638 | 52.47 | 63.49 | |
| SPACER | ||||
| 7 | 995639 | 3.84 | 4.65 | |
| Retaining Ring D20 (10 Pcs.) | ||||
| 8 | 939547 | 3.90 | 4.72 | |
| TWEEDE AS | ||||
| 9 | 995635 | 22.50 | 27.22 | |
| TWEEDE TANDWIEL | ||||
| 10 | 995636 | 7.38 | 8.93 | |
| Washer | ||||
| 11 | 995634 | 1.05 | 1.27 | |
| EERSTE AS | ||||
| 12 | 995632 | 25.90 | 31.34 | |
| EERSTE TANDWIEL | ||||
| 13 | 995633 | 6.42 | 7.77 | |
| Ball Bearing 608vvc2ps2l | ||||
| 14 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 15 | 995631 | |||
| No information available, not orderable | ||||
| 16 | 360058F | |||
| Fan Guide | ||||
| 17 | 950504 | 1.65 | 2.00 | |
| TAPSCHROEF D4X40 | ||||
| 18 | 992630 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 19 | 340092K | |||
| RUBBER PEN | ||||
| 20 | 931701 | 1.05 | 1.27 | |
| HUIS | ||||
| 21 | 995630 | 7.62 | 9.22 | |
| Tapping Screw (w/washer) D4x20 | ||||
| 23 | 982095 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 24A | 318338 | |||
| Carbon Brush (1 Pair) | ||||
| 25 | 999041 | 4.50 | 5.44 | |
| Carbon Brush Holder | ||||
| 26A | 930483 | 1.65 | 2.00 | |
| Threaded cable sleeve | ||||
| 27 | 981373 | 1.05 | 1.27 | |
| Earth Terminal | ||||
| 28 | 992635 | 1.05 | 1.27 | |
| Switch 220v-240v (2p Pillar Type) W/lock Since 8. | ||||
| 29A | 316257 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 30 | 950565 | |||
| Rubber | ||||
| 31 | 930153 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 32 | 994273 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 33A | 984750 | |||
| Cord Clip | ||||
| 34 | 937631 | 1.04 | 1.26 | |
| Cord Armor D8.2 | ||||
| 35 | 930487 | 2.25 | 2.72 | |
| Cord Armor D10.2 | ||||
| 35 | 980193 | 1.65 | 2.00 | |
| Cord | ||||
| 36 | 930051 | 14.30 | 17.30 | |
| Threaded cable sleeve | ||||
| 37 | 981373 | 1.05 | 1.27 | |
| Switch And Handle Cover Set 220v-240v Includ.24a, | ||||
| 38 | 318336 | 33.00 | 39.93 | |
| No information available, not orderable | ||||
| 501A | 994322 | |||
