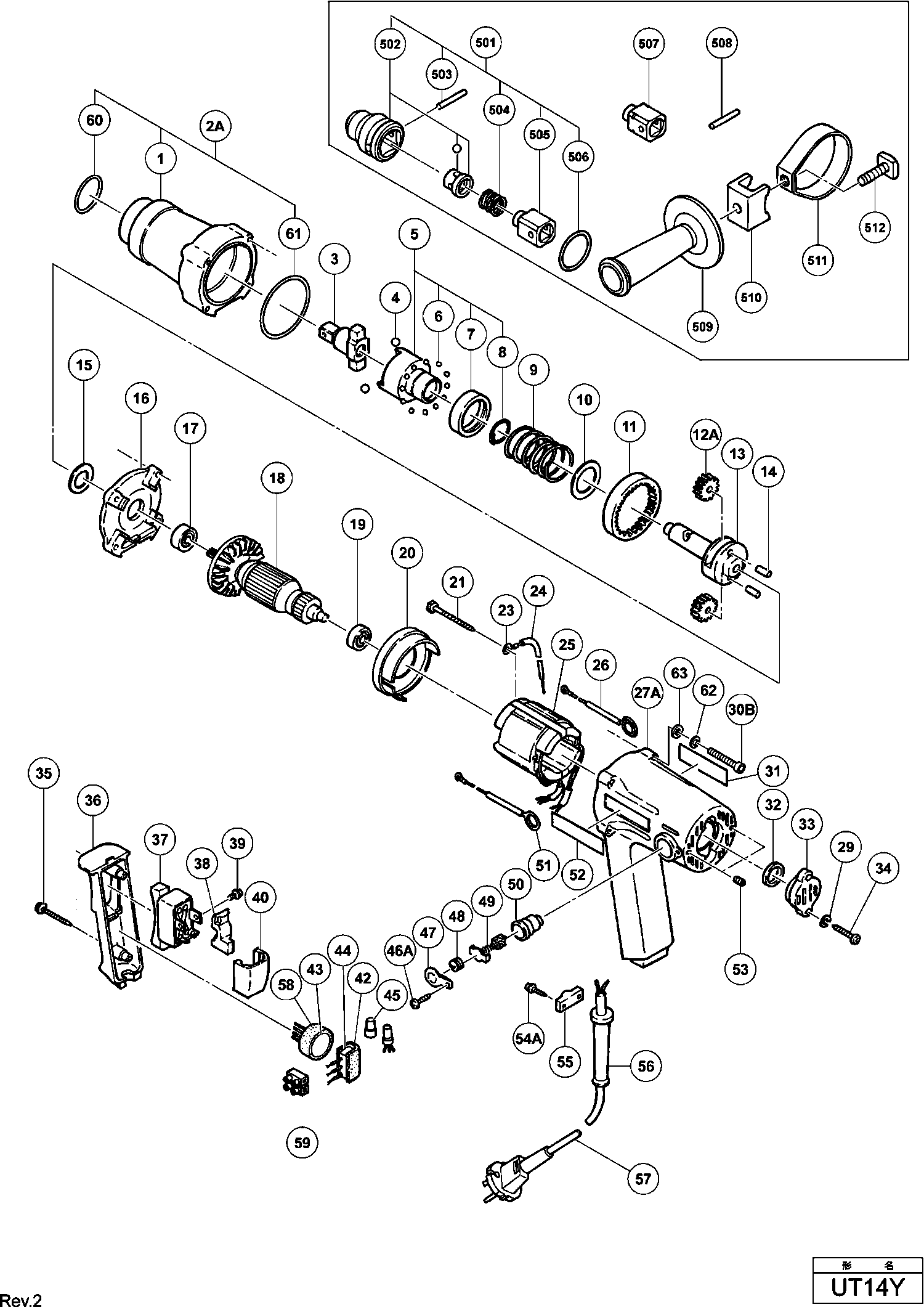

Technical drawing of model Hikoki UT14Y
Spare parts list of model Hikoki UT14Y
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator 220v-230v | ||||
| *25 | 340109G | 52.53 | 63.56 | |
| Stator 220v-230v | ||||
| *25 | 986049E | 40.84 | 49.41 | |
| Bumper | ||||
| 1 | 986044 | 3.60 | 4.36 | |
| Hammer Case Ass'y Includ.1,60,61 | ||||
| 2A | 320127 | 96.25 | 116.46 | |
| Anvil (a) | ||||
| 3 | 986052 | 87.59 | 105.98 | |
| Steel Ball D6.35 (10 pieces) | ||||
| 4 | 959150 | 1.35 | 1.63 | |
| SLUITSTUK | ||||
| 5 | 986045 | 98.34 | 118.99 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 6 | 959148 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 7 | 986046 | |||
| No longer available, no replacement | ||||
| 8 | 986047 | |||
| No longer available, no replacement | ||||
| 9 | 986042 | |||
| RING | ||||
| 10 | 986041 | 1.00 | 1.21 | |
| RING | ||||
| 11 | 985980 | 33.55 | 40.60 | |
| Idle Gear Set (2 Pcs.) | ||||
| 12A | 318447 | 75.90 | 91.84 | |
| Spindle Ass'y | ||||
| 13 | 986040 | 93.36 | 112.97 | |
| Socket | ||||
| 14 | 985169 | 1.05 | 1.27 | |
| RING (B) | ||||
| 15 | 985979 | 2.70 | 3.27 | |
| TANDWIELHUISDEKSEL | ||||
| 16 | 985974 | 52.80 | 63.89 | |
| Ball Bearing 608dd | ||||
| 17 | 608DDM | 5.55 | 6.72 | |
| Armature 230v | ||||
| 18 | 986055E | 87.59 | 105.98 | |
| Ball Bearing 608vvc2ps2l | ||||
| 19 | 608VVM | 5.70 | 6.90 | |
| LUCHTGELEIDER | ||||
| 20 | 985973 | 2.10 | 2.54 | |
| Hex. Hd. Tapping Screw D4x50 | ||||
| 21 | 961672 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 23 | 980063 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 24 | 985194 | |||
| Stator 220v-230v | ||||
| 25 | 340109G | 52.53 | 63.56 | |
| Stator 220v-230v | ||||
| 25 | 986049E | 40.84 | 49.41 | |
| Internal wire | ||||
| 26 | 985186 | 4.50 | 5.44 | |
| Housing | ||||
| 27 | 985970 | 58.44 | 70.71 | |
| Spring Washer M4 (10 pieces) | ||||
| 29 | 949453 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x45 | ||||
| 30B | 333318 | 1.80 | 2.18 | |
| Rubber Ring | ||||
| 32 | 985198 | 1.95 | 2.36 | |
| Tail Cover | ||||
| 33 | 985162 | 13.05 | 15.79 | |
| Tapping Screw D4x20 | ||||
| 34 | 956384 | 1.05 | 1.27 | |
| SCHROEF D4X35 | ||||
| 35 | 985984 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 36 | 985983 | 11.85 | 14.34 | |
| Switch | ||||
| 37 | 985103 | 32.18 | 38.93 | |
| Switch Holder | ||||
| 38 | 985176 | 2.55 | 3.09 | |
| Machine Screw (w/washer) M3.5x5 | ||||
| 39 | 980060 | 1.05 | 1.27 | |
| Switch Holder | ||||
| 40 | 985177 | 3.60 | 4.36 | |
| Rubber | ||||
| 42 | 930153 | 1.04 | 1.26 | |
| Choke Coil For Nzl | ||||
| 43 | 955908 | 32.18 | 38.93 | |
| Noise Suppressor | ||||
| 44 | 994273 | 4.29 | 5.19 | |
| Connector 50091 (10 Pcs.) | ||||
| 45 | 959140 | 3.30 | 3.99 | |
| Tapping Screw D4x10 (black) | ||||
| 46A | 302090 | 1.05 | 1.27 | |
| Cap Cover | ||||
| 47 | 985179 | 1.65 | 2.00 | |
| Brush Cap | ||||
| 48 | 931266 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 49 | 999021 | |||
| Brush Holder | ||||
| 50 | 957571 | 2.40 | 2.90 | |
| Internal wire | ||||
| 51 | 985187 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 52 | 957561 | |||
| Hex Adjustment Screw M5x8 | ||||
| 53 | 938477 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 54A | 984750 | |||
| Cord Clip | ||||
| 55 | 937631 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 56 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 56 | 938051 | 1.04 | 1.26 | |
| SNOER 2.5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 50 | ||||
| 57 | 500423Z | 12.87 | 15.57 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 57 | 500247Z | 6.18 | 7.48 | |
| Connector (1) | ||||
| 58 | 953330 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 59 | 983418Z | |||
| Pillar Terminal (a) | ||||
| 59S | 958308Z | 5.55 | 6.72 | |
| O-ring (m) | ||||
| 60 | 318704 | 3.30 | 3.99 | |
| No longer available, no replacement | ||||
| 61 | 320105 | |||
| Spring Washer M4 (10 pieces) | ||||
| 62 | 949453 | 1.05 | 1.27 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 63 | 949429 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 995281 | |||
| Pin | ||||
| 503 | 995296 | 6.30 | 7.62 | |
| No information available, not orderable | ||||
| 504 | 995294 | |||
| No information available, not orderable | ||||
| 505 | 995288 | |||
| O-ring (p-32) | ||||
| 506 | 986374 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 507 | 995289 | |||
| Pin | ||||
| 508 | 995296 | 6.30 | 7.62 | |
| No information available, not orderable | ||||
| 509 | 980901 | |||
| Handle Base | ||||
| 510 | 955089 | 3.60 | 4.36 | |
| RING | ||||
| 511 | 995299 | 7.14 | 8.64 | |
| Square Bolt M8 | ||||
| 512 | 980903 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 601 | 995280 | |||
| No information available, not orderable | ||||
| 602 | 995287 | |||
| No information available, not orderable | ||||
| 604 | 995294 | |||
| Pin | ||||
| 605 | 995296 | 6.30 | 7.62 | |
| O-ring (p-32) | ||||
| 606 | 986374 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 607 | 995282 | |||
| No information available, not orderable | ||||
| 608 | 995290 | |||
| No information available, not orderable | ||||
| 610 | 995295 | |||
| Pin | ||||
| 611 | 995297 | 6.30 | 7.62 | |
| O-ring (p-38) | ||||
| 612 | 995298 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 613 | 995283 | |||
| No information available, not orderable | ||||
| 614 | 995289 | |||
| No information available, not orderable | ||||
| 616 | 995300 | |||
| No information available, not orderable | ||||
| 617 | 995302 | |||
| No information available, not orderable | ||||
| 619 | 995308 | |||
| No information available, not orderable | ||||
| 620 | 996340 | |||
| No information available, not orderable | ||||
| 622 | 996341 | |||
| No information available, not orderable | ||||
| 623 | 996343 | |||
| No information available, not orderable | ||||
| 625 | 943277 | |||
| Grease For Impact Wrench (100g) | ||||
| 626 | 971042 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 627 | 996344 | |||
| No information available, not orderable | ||||
| 628 | 996351 | |||
| No information available, not orderable | ||||
| 629 | 996345 | |||
| No information available, not orderable | ||||
| 630 | 996347 | |||
| No information available, not orderable | ||||
| 631 | 996349 | |||
| No information available, not orderable | ||||
| 632 | 996346 | |||
| No information available, not orderable | ||||
| 633 | 996348 | |||
| No information available, not orderable | ||||
| 634 | 996350 | |||
