Here you will find all available parts and drawings of the 'Hikoki UR18DSL2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

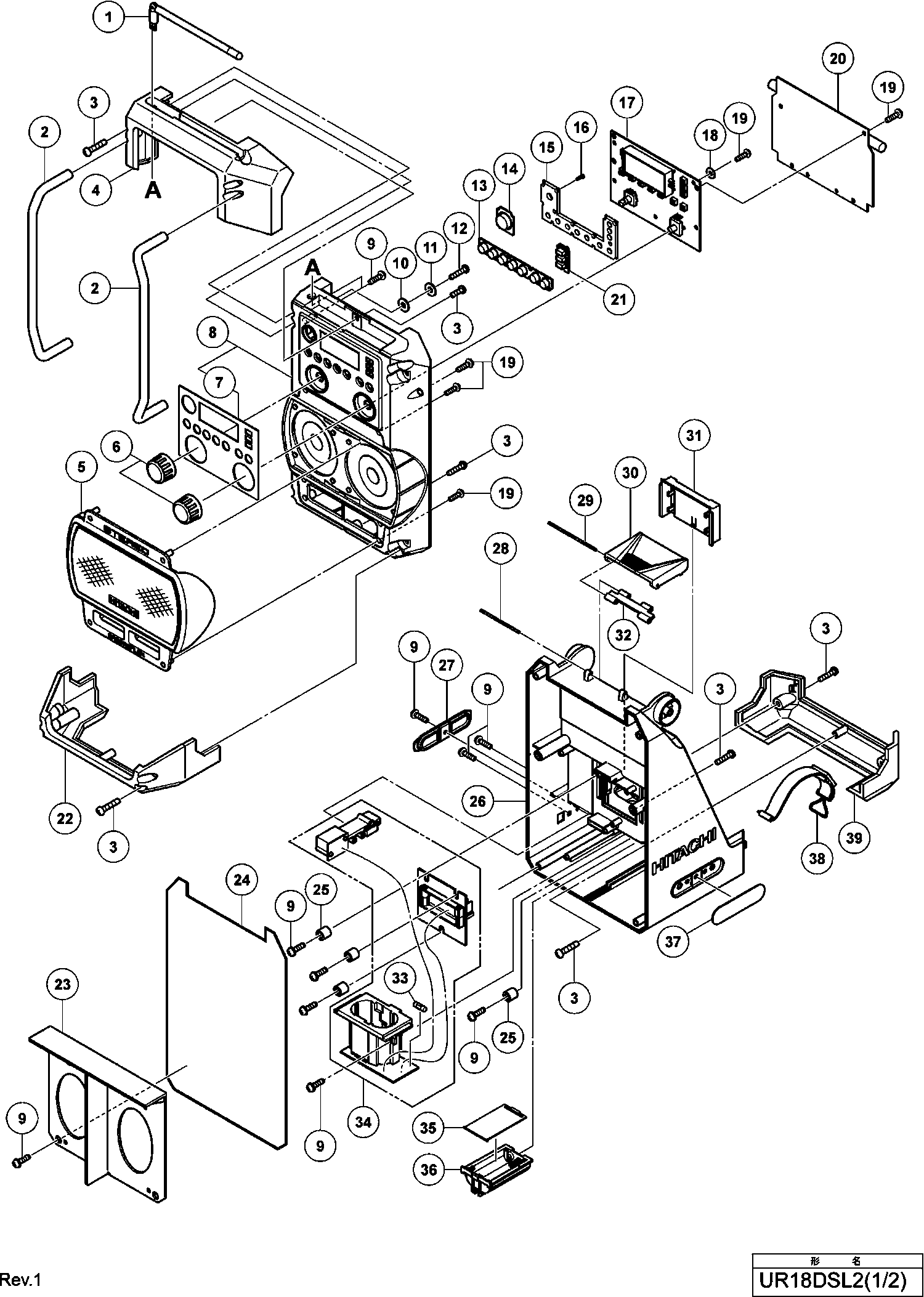

Technical drawing of model Hikoki UR18DSL2
Spare parts list of model Hikoki UR18DSL2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubber Antenna | ||||
| 1 | 335813 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 2 | 331605 | |||
| Machine Screw M4x15 (black) | ||||
| 3 | 331606 | 1.88 | 2.27 | |
| Tpe Cover (a) | ||||
| 4 | 331607 | 7.43 | 8.98 | |
| Speaker Cover | ||||
| 5 | 336291 | 7.35 | 8.89 | |
| Rotary Knob | ||||
| 6 | 331609 | 1.88 | 2.27 | |
| Function Label | ||||
| 7 | 334597 | 3.45 | 4.17 | |
| Front Housing Ass'y Includ.7 | ||||
| 8 | 334598 | 33.55 | 40.60 | |
| Machine Screw (w/flange) M3x10 (black) | ||||
| 9 | 331612 | 1.88 | 2.27 | |
| Rubber Washer | ||||
| 10 | 331613 | 1.88 | 2.27 | |
| No longer available, no replacement | ||||
| 11 | 331614 | |||
| No longer available, no replacement | ||||
| 12 | 331615 | |||
| Function Button | ||||
| 13 | 331616 | 1.88 | 2.27 | |
| No longer available, no replacement | ||||
| 14 | 331617 | |||
| Cover Plate | ||||
| 15 | 331618 | 1.88 | 2.27 | |
| No longer available, no replacement | ||||
| 16 | 331619 | |||
| Controller Pcba (euro) | ||||
| 17 | 336507 | 64.35 | 77.86 | |
| No longer available, no replacement | ||||
| 18 | 331620 | |||
| No longer available, no replacement | ||||
| 19 | 331621 | |||
| Function Pcba (euro) | ||||
| 20 | 336508 | 66.41 | 80.36 | |
| No longer available, no replacement | ||||
| 21 | 331622 | |||
| No longer available, no replacement | ||||
| 22 | 331623 | |||
| Speaker Back Cover | ||||
| 23 | 334601 | 3.45 | 4.17 | |
| Rubber Seal for Radio | ||||
| 24 | 331647 | 1.95 | 2.36 | |
| No longer available, no replacement | ||||
| 25 | 331648 | |||
| Back Housing | ||||
| 26 | 336293 | 41.25 | 49.91 | |
| Jack Cover (l) | ||||
| 27 | 336294 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 28 | 331644 | |||
| Metal Shaft (b) | ||||
| 29 | 331636 | 1.88 | 2.27 | |
| Clamp | ||||
| 30 | 331637 | 1.80 | 2.18 | |
| Covering hood | ||||
| 31 | 331639 | 1.88 | 2.27 | |
| Hinge | ||||
| 32 | 331638 | 1.88 | 2.27 | |
| Fuse (250v-2a) | ||||
| 33 | 331650 | 1.88 | 2.27 | |
| No information available, not orderable | ||||
| 34 | 336509 | |||
| Battery Door | ||||
| 35 | 331653 | 1.88 | 2.27 | |
| Aa Battery Box | ||||
| 36 | 331652 | 3.75 | 4.54 | |
| Jack Cover (r) | ||||
| 37 | 336297 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 38 | 331640 | |||
| No longer available, no replacement | ||||
| 39 | 331657 | |||
| Lock Spring | ||||
| 51 | 336298 | 1.04 | 1.26 | |
| Lock Plate (a) | ||||
| 52 | 335811 | 2.10 | 2.54 | |
| Flat Metal Plate | ||||
| 53 | 336299 | 1.04 | 1.26 | |
| Flat Hd. Screw D2x4 (black) | ||||
| 54 | 336300 | 1.04 | 1.26 | |
| Box Cover | ||||
| 55 | 335808 | 10.05 | 12.16 | |
| Lens Plate | ||||
| 56 | 335812 | 3.75 | 4.54 | |
| Cushion Sheet | ||||
| 57 | 336301 | 2.25 | 2.72 | |
| Box Plate | ||||
| 58 | 335810 | 6.30 | 7.62 | |
| Usa Pcba | ||||
| 59 | 336302 | 8.55 | 10.35 | |
| Flange Screw D3x6 | ||||
| 60 | 336303 | 1.04 | 1.26 | |
| Handle Box | ||||
| 61 | 335809 | 11.70 | 14.16 | |
| Phone Belt | ||||
| 62 | 336304 | 1.35 | 1.63 | |
| METAL SHAFT (D) | ||||
| 63 | 336305 | 1.04 | 1.26 | |
| HANDLE (L) | ||||
| 64 | 335806 | 6.90 | 8.35 | |
| HANDLE | ||||
| 65 | 336306 | 13.80 | 16.70 | |
| HANDLE (R) | ||||
| 66 | 335807 | 6.90 | 8.35 | |
| HANDLE ARM COVER | ||||
| 67 | 336308 | 1.65 | 2.00 | |
| HANDLE BRACKET SPRING (BLACK) | ||||
| 68 | 336307 | 1.04 | 1.26 | |
| Handle Bracket | ||||
| 69 | 331641 | 1.88 | 2.27 | |
| No longer available, no replacement | ||||
| 70 | 331656 | |||
| No longer available, no replacement | ||||
| 71 | 331630 | |||
| No information available, not orderable | ||||
| 72 | 331631 | |||
| Machine Screw M2.6x8 (black) | ||||
| 73 | 331632 | 1.88 | 2.27 | |
| Holder | ||||
| 74 | 331633 | 1.88 | 2.27 | |
| Back Door | ||||
| 75 | 336309 | 38.36 | 46.42 | |
| No longer available, no replacement | ||||
| 76 | 331634 | |||
| AC-ADAPTER (U.K.) (OLD 332839) | ||||
| 501 | 334374 | 36.65 | 44.35 | |
| Ac-adapter (euro) | ||||
| 501A | 338412 | 21.73 | 26.29 | |
