Here you will find all available parts and drawings of the 'Hikoki UR18DSAL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

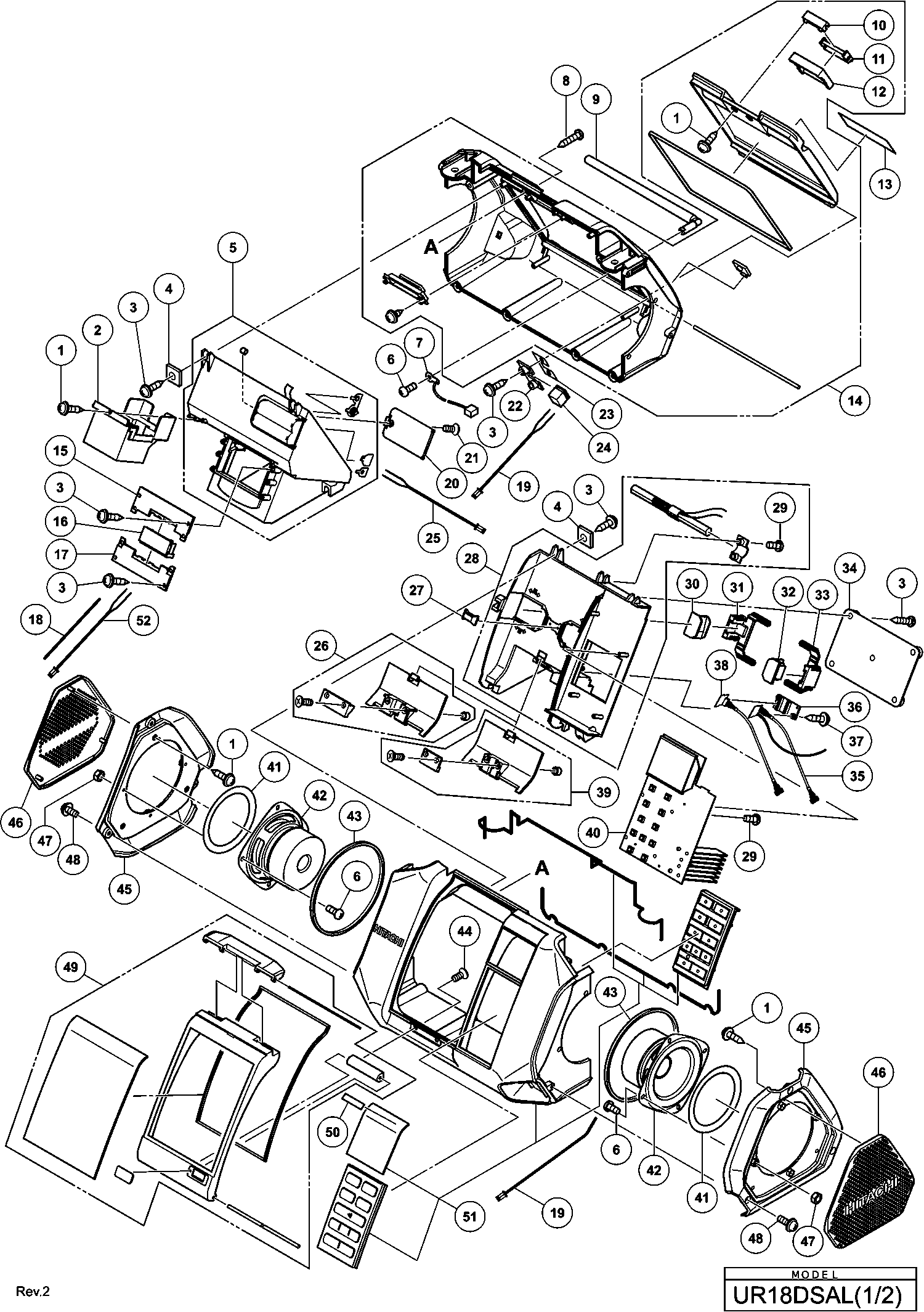

Technical drawing of model Hikoki UR18DSAL
Spare parts list of model Hikoki UR18DSAL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pcb Ass'y (a) | ||||
| *40 | 338424 | 124.71 | 150.90 | |
| Front Cabinet Set B | ||||
| *51A | 338415 | 30.94 | 37.43 | |
| Tapping Screw (w/flange) D2x8 | ||||
| 1 | 338364 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 2 | 338392 | |||
| Tapping Screw (w/flange) D2.3x8 | ||||
| 3 | 338399 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 4 | 338409 | |||
| Battery Compartment Set | ||||
| 5 | 338365 | 9.60 | 11.62 | |
| Machine Screw (w/flange) M3x8 | ||||
| 6 | 338398 | 1.04 | 1.26 | |
| Connector A | ||||
| 7 | 338374 | 1.80 | 2.18 | |
| Tapping Screw D4x18 | ||||
| 8 | 338397 | 2.55 | 3.09 | |
| Rubber Antenna | ||||
| 9 | 338390 | 11.85 | 14.34 | |
| Lower Back Cover Button | ||||
| 10 | 338363 | 1.04 | 1.26 | |
| Upper Back Cover Button | ||||
| 11 | 338362 | 1.04 | 1.26 | |
| Back Cover Latching B | ||||
| 12 | 338361 | 1.04 | 1.26 | |
| Back Cabinet Set Includ.1,10-12 | ||||
| 14 | 338360 | 50.05 | 60.56 | |
| Back Cabinet Set Includ.1,10-12 | ||||
| 14A | 338360 | 50.05 | 60.56 | |
| No information available, not orderable | ||||
| 15 | 338388 | |||
| Battery Terminal | ||||
| 16 | 339154 | 1.80 | 2.18 | |
| BATTERY TERMINAL | ||||
| 16A | 376361 | 1.28 | 1.54 | |
| No information available, not orderable | ||||
| 17 | 338389 | |||
| Internal Wire (b) | ||||
| 18 | 338407 | 1.65 | 2.00 | |
| Connector C | ||||
| 19 | 338405 | 1.80 | 2.18 | |
| Battery Cover | ||||
| 20 | 338387 | 1.04 | 1.26 | |
| Screw M3 | ||||
| 21 | 338410 | 2.55 | 3.09 | |
| Dc Jack Bracket | ||||
| 22 | 338394 | 1.04 | 1.26 | |
| Rubber Sheet (dc Jack) | ||||
| 23 | 339155 | 1.04 | 1.26 | |
| Dc Jack | ||||
| 24 | 338396 | 1.05 | 1.27 | |
| Connector B | ||||
| 25 | 338404 | 1.80 | 2.18 | |
| Cable Holder (android) | ||||
| 26 | 338372 | 1.80 | 2.18 | |
| Support | ||||
| 27 | 338385 | 1.04 | 1.26 | |
| Bracket Set Includ.29 | ||||
| 28 | 338366 | 13.65 | 16.52 | |
| No information available, not orderable | ||||
| 29 | 338400 | |||
| No information available, not orderable | ||||
| 30 | 338383 | |||
| No information available, not orderable | ||||
| 31 | 338378 | |||
| No information available, not orderable | ||||
| 32 | 338384 | |||
| No information available, not orderable | ||||
| 33 | 338379 | |||
| No information available, not orderable | ||||
| 34 | 338386 | |||
| Pcb Ass'y (usb) | ||||
| 35 | 338408 | 5.85 | 7.08 | |
| Pcb Plate | ||||
| 36 | 338403 | 2.25 | 2.72 | |
| No longer available, no replacement | ||||
| 37 | 339113 | |||
| Pcb Ass'y (aux) | ||||
| 38 | 338391 | 6.15 | 7.44 | |
| Cable Holder (apple) | ||||
| 39 | 338371 | 1.65 | 2.00 | |
| Pcb Ass'y (a) | ||||
| 40 | 338424 | 124.71 | 150.90 | |
| No information available, not orderable | ||||
| 41 | 338402 | |||
| Speaker (dsal) | ||||
| 42 | 338421 | 10.95 | 13.25 | |
| Water Resistance Strip E | ||||
| 43 | 339115 | 1.80 | 2.18 | |
| Tapping Screw D2x8 | ||||
| 44 | 338401 | 2.55 | 3.09 | |
| Side Plate | ||||
| 45 | 338377 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 46 | 338370 | |||
| No information available, not orderable | ||||
| 46A | 338370 | |||
| Nut M3 (10 Pcs.) | ||||
| 47 | 949553 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M4x8 (10 Pcs.) | ||||
| 48 | 949811 | 1.50 | 1.82 | |
| Front Cover Set | ||||
| 49 | 338367 | 23.38 | 28.28 | |
| Front Cabinet Set B | ||||
| 51 | 338415 | 30.94 | 37.43 | |
| Connector D | ||||
| 52 | 338406 | 1.80 | 2.18 | |
| Machine Screw M5x30 (black) | ||||
| 71 | 323041 | 1.05 | 1.27 | |
| Nut M5 (black) | ||||
| 72 | 302012 | 1.05 | 1.27 | |
| Dsal Frame (a) Outer | ||||
| 73 | 338417 | 4.65 | 5.63 | |
| Dsal Frame (a) Inner | ||||
| 74 | 338418 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 75 | 339117 | |||
| No information available, not orderable | ||||
| 76 | 339114 | |||
| Tapping Screw D3x8 | ||||
| 77 | 338422 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 78 | 339116 | |||
| Dsal Frame (b) Outer | ||||
| 79 | 338420 | 5.40 | 6.53 | |
| Dsal Frame (b) Inner | ||||
| 80 | 338419 | 4.95 | 5.99 | |
| Machine Screw M5x20 (black) | ||||
| 81 | 302196 | 1.05 | 1.27 | |
| Ac-adapter (euro) | ||||
| 501 | 338412 | 21.73 | 26.29 | |
| Ac-adapter (euro) | ||||
| 501A | 338412 | 21.73 | 26.29 | |
