Here you will find all available parts and drawings of the 'Hikoki UP18DA'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

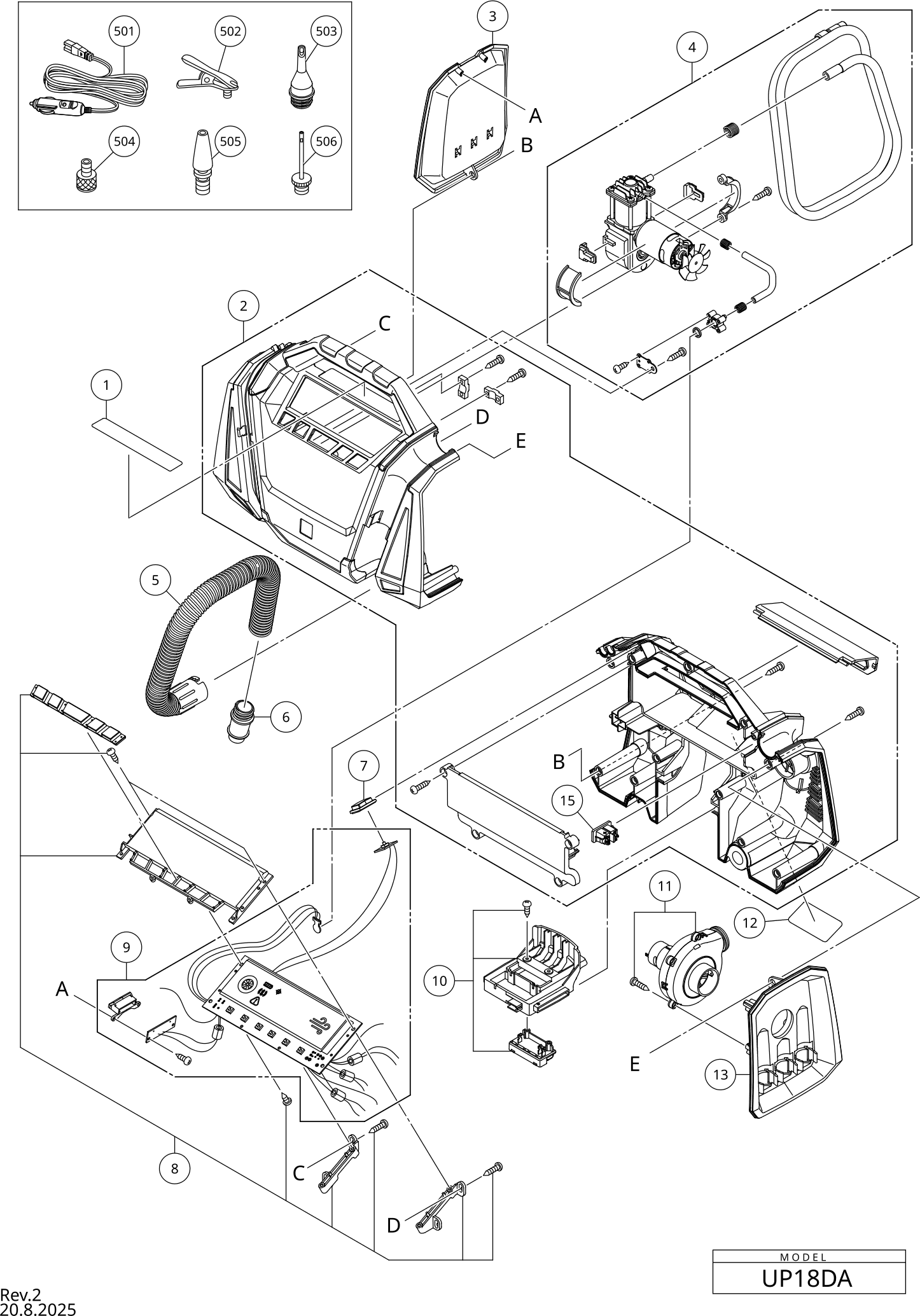

Technical drawing of model Hikoki UP18DA
Spare parts list of model Hikoki UP18DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| HOUSING SET NEW | ||||
| *2 | 381439 | 18.92 | 22.89 | |
| No information available, not orderable | ||||
| *501 | 381451 | |||
| No information available, not orderable | ||||
| *502 | 381447 | |||
| SCREEN COVER SET NEW | ||||
| *8 | 381436 | 4.68 | 5.66 | |
| MAIN PCB SET (A) NEW | ||||
| *9 | 381435 | 64.18 | 77.66 | |
| LEFT COVER NEW | ||||
| 3 | 381441 | 1.08 | 1.31 | |
| COMPRESSOR SET NEW | ||||
| 4 | 381440 | 33.44 | 40.46 | |
| BELLOWS NEW | ||||
| 5 | 381444 | 1.50 | 1.82 | |
| LARGE HIGH VOLUME ADAPTER NEW | ||||
| 6 | 381445 | 1.00 | 1.21 | |
| LED SWITCH BUTTON NEW | ||||
| 7 | 381443 | 1.00 | 1.21 | |
| BATTERY HOLDER SET NEW | ||||
| 10 | 381437 | 4.44 | 5.37 | |
| FAN MOTOR SET NEW | ||||
| 12 | 381438 | 4.68 | 5.66 | |
| RIGHT COVER NEW | ||||
| 13 | 381442 | 1.26 | 1.52 | |
| No information available, not orderable | ||||
| 15 | 383441 | |||
| No information available, not orderable | ||||
| 503 | 381446 | |||
| No information available, not orderable | ||||
| 504 | 381450 | |||
| No information available, not orderable | ||||
| 505 | 381449 | |||
| No information available, not orderable | ||||
| 506 | 381448 | |||
