Here you will find all available parts and drawings of the 'Hikoki UM22VYSTUAZ'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

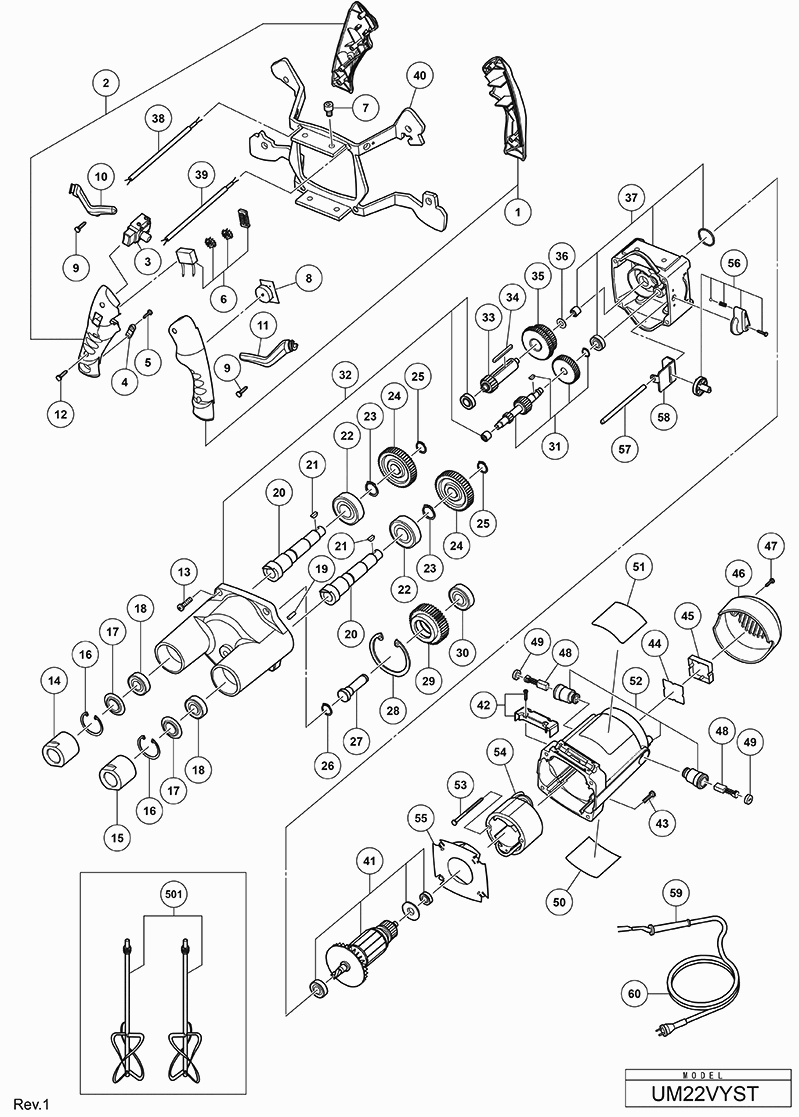

Technical drawing of model Hikoki UM22VYSTUAZ
Spare parts list of model Hikoki UM22VYSTUAZ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| HANDLE ASS'Y (L) | ||||
| 1 | 375046 | 8.40 | 10.16 | |
| HANDLE ASS'Y (R) | ||||
| 2 | 375047 | 8.40 | 10.16 | |
| SWITCH | ||||
| 3 | 375067 | 5.55 | 6.72 | |
| Clamp (1) | ||||
| 4 | 333609 | 1.04 | 1.26 | |
| SCREW ST4.2X12 (2 PCS.) | ||||
| 5 | 375060 | 1.04 | 1.26 | |
| Inductance Unit | ||||
| 6 | 375058 | 3.60 | 4.36 | |
| SCREW M8X14 (4 PCS.) | ||||
| 7 | 375056 | 2.85 | 3.45 | |
| CIRCUITRY BOARD | ||||
| 8 | 375068 | 6.45 | 7.80 | |
| SCREW ST3X14 (2 PCS.) NEW | ||||
| 9 | 375059 | 1.04 | 1.26 | |
| WIRING GROOVE (R) | ||||
| 10 | 375049 | 1.50 | 1.82 | |
| WIRING GROOVE (L) | ||||
| 11 | 375048 | 1.50 | 1.82 | |
| SCREW ST3.9X16 (6 PCS.) | ||||
| 12 | 375053 | 1.04 | 1.26 | |
| Screw M5x20 (4 Pcs.) | ||||
| 13 | 333615 | 1.04 | 1.26 | |
| SLEEVE (R) | ||||
| 14 | 375083 | 8.40 | 10.16 | |
| SLEEVE (L) | ||||
| 15 | 375084 | 8.40 | 10.16 | |
| Shaft Washer D40 | ||||
| 16 | 375091 | 1.04 | 1.26 | |
| DUST COVER | ||||
| 17 | 375092 | 1.50 | 1.82 | |
| Bearing 6203RS | ||||
| 18 | 375094 | 6.00 | 7.26 | |
| Pin | ||||
| 19 | 333620 | 1.04 | 1.26 | |
| SPINDLE | ||||
| 20 | 375086 | 10.35 | 12.52 | |
| KEY | ||||
| 21 | 375087 | 1.04 | 1.26 | |
| Bearing 6002Z | ||||
| 22 | 375093 | 3.90 | 4.72 | |
| SHAFT RING D17 | ||||
| 23 | 375088 | 1.04 | 1.26 | |
| SPINDLE GEAR | ||||
| 24 | 375089 | 8.40 | 10.16 | |
| SHAFT RING D12 | ||||
| 25 | 375090 | 1.04 | 1.26 | |
| SHAFT WASHER D9 | ||||
| 26 | 375075 | 1.04 | 1.26 | |
| SHAFT | ||||
| 27 | 375077 | 5.55 | 6.72 | |
| SHAFT WASHER D26 | ||||
| 28 | 375078 | 1.04 | 1.26 | |
| GEAR | ||||
| 29 | 375079 | 10.95 | 13.25 | |
| BEARING 6000Z | ||||
| 30 | 375080 | 3.60 | 4.36 | |
| Second Pinion Set | ||||
| 31 | 375102 | 13.75 | 16.64 | |
| Bearing Cover Set | ||||
| 32 | 375085 | 39.33 | 47.58 | |
| Pinion (1) | ||||
| 33 | 375095 | 10.80 | 13.07 | |
| Parallel Key | ||||
| 34 | 375096 | 1.04 | 1.26 | |
| Double Gear | ||||
| 35 | 375097 | 12.75 | 15.43 | |
| Washer M16 | ||||
| 36 | 375098 | 1.04 | 1.26 | |
| Gear Box Set | ||||
| 37 | 375076 | 29.15 | 35.27 | |
| CABLE 0.75 (5 PCS.) | ||||
| 38 | 375682 | 4.20 | 5.08 | |
| CABLE 3X0.5X0.23 | ||||
| 39 | 375050 | 2.10 | 2.54 | |
| Hob | ||||
| 40 | 375057 | 26.54 | 32.11 | |
| Armature Ass'y 230v-240v Includ.37 | ||||
| 41 | 375081 | 68.34 | 82.69 | |
| CABLE COVER ASS'Y | ||||
| 42 | 375055 | 1.65 | 2.00 | |
| Screw M5x25 (4 Pcs.) | ||||
| 43 | 333630 | 1.04 | 1.26 | |
| Controller | ||||
| 44 | 375069 | 32.73 | 39.60 | |
| Protective Guard for UM16VST | ||||
| 45 | 333634 | 1.05 | 1.27 | |
| Rear Cover for UM16VST | ||||
| 46 | 333635 | 3.60 | 4.36 | |
| SCREW ST3.5X16 (2 PCS.) | ||||
| 47 | 375061 | 1.04 | 1.26 | |
| CARBON BRUSH (2 PCS.) | ||||
| 48 | 375072 | 9.00 | 10.89 | |
| Brush Cap (2 Pcs.) | ||||
| 49 | 333632 | 1.04 | 1.26 | |
| Motor Box Set | ||||
| 52 | 375071 | 21.45 | 25.95 | |
| SCREW ST5X65 (2 PCS.) | ||||
| 53 | 375070 | 1.04 | 1.26 | |
| Stator UM22VYST | ||||
| 54 | 375101 | 33.41 | 40.43 | |
| AIR GUIDE SHIM | ||||
| 55 | 375054 | 1.50 | 1.82 | |
| Lever Set | ||||
| 56 | 375082 | 2.85 | 3.45 | |
| Pivot D6X90 | ||||
| 57 | 375099 | 1.04 | 1.26 | |
| Connection member KS 60 | ||||
| 58 | 375100 | 1.50 | 1.82 | |
| Sleeve | ||||
| 59 | 333636 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 60 | 333637 | |||
| No information available, not orderable | ||||
| 501 | 375615 | |||
