Here you will find all available parts and drawings of the 'Hikoki UM15'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

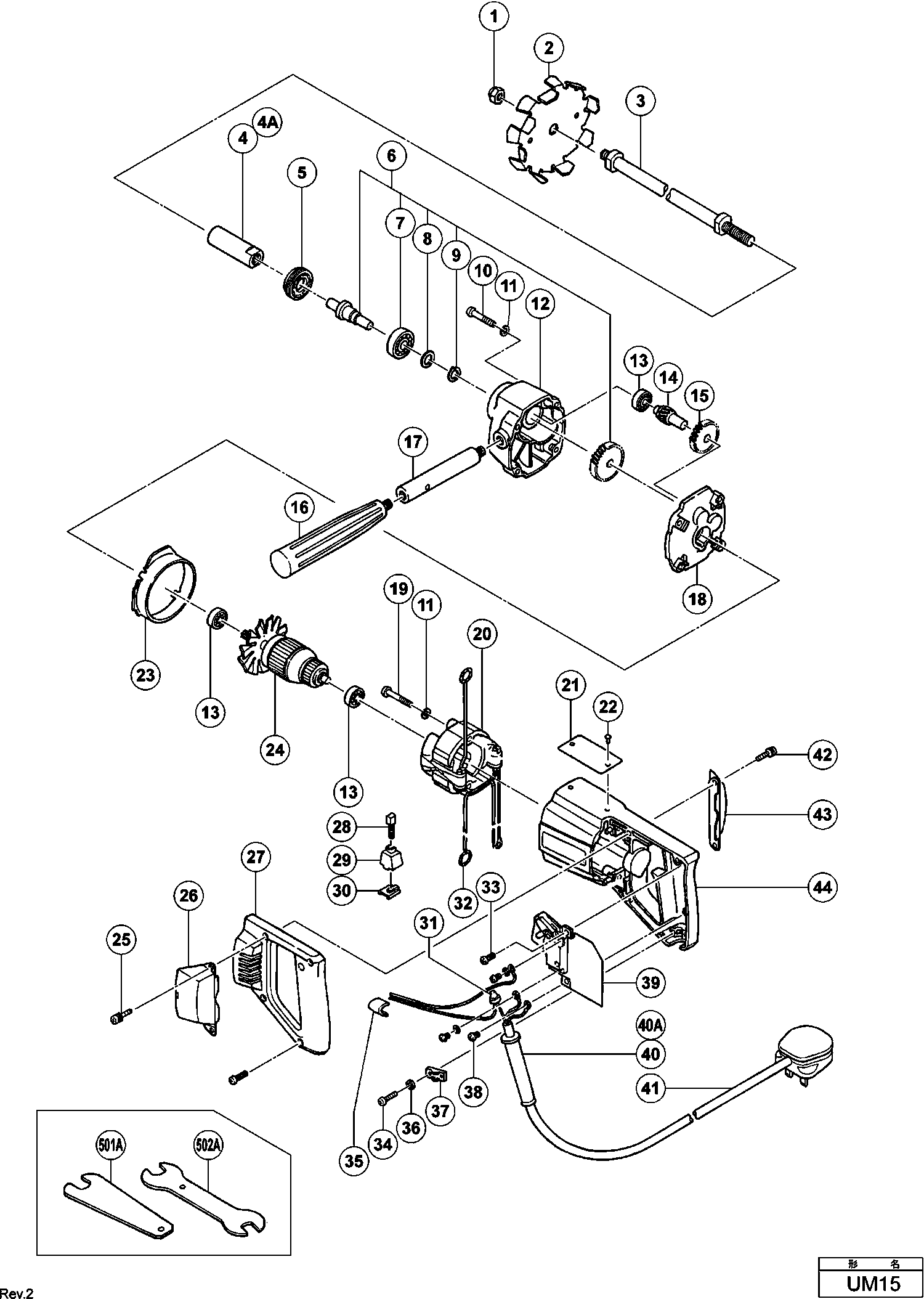

Technical drawing of model Hikoki UM15
Spare parts list of model Hikoki UM15
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cap Nut M10 | ||||
| 1 | 981708 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 2 | 981706 | |||
| No information available, not orderable | ||||
| 3 | 981704 | |||
| No information available, not orderable | ||||
| 4A | 981738 | |||
| Bearing Cap | ||||
| 5 | 930214 | 3.60 | 4.36 | |
| Spindle And Gear Set Includ.7-9 | ||||
| 6 | 960380 | 22.83 | 27.62 | |
| Ball Bearing 6201vv | ||||
| 7 | 6201VV | 6.45 | 7.80 | |
| Ring | ||||
| 8 | 930334 | 1.05 | 1.27 | |
| Spring Washer D12 (10 pieces) | ||||
| 9 | 939542 | 1.50 | 1.82 | |
| Machine Screw M5x35 (10 Pcs.) | ||||
| 10 | 949247 | 1.65 | 2.00 | |
| Spring Washer M5 (10 pieces) | ||||
| 11 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 12 | 980400 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 13 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 14 | 930850 | |||
| No information available, not orderable | ||||
| 15 | 930368 | |||
| No information available, not orderable | ||||
| 16 | 961073 | |||
| No information available, not orderable | ||||
| 17 | 930886 | |||
| Inner Cover | ||||
| 18 | 980403 | 5.40 | 6.53 | |
| Machine Screw M5x40 (OLD 949248Z) | ||||
| 19 | 949248 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 20 | 980441E | |||
| No information available, not orderable | ||||
| 22 | 949509 | |||
| No information available, not orderable | ||||
| 23 | 930329 | |||
| No information available, not orderable | ||||
| 24 | 930383E | |||
| No information available, not orderable | ||||
| 25 | 676386 | |||
| No information available, not orderable | ||||
| 26 | 981702 | |||
| No information available, not orderable | ||||
| 27 | 980381 | |||
| Carbon Brush (1 Pair) | ||||
| 28 | 999041 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 29 | 931745 | |||
| No information available, not orderable | ||||
| 30 | 930204 | |||
| Connector 50091 (10 Pcs.) | ||||
| 31 | 959140 | 3.30 | 3.99 | |
| Brush Terminal | ||||
| 32 | 931867 | 1.05 | 1.27 | |
| Machine Screw M4x6 (10 Pcs.) | ||||
| 33 | 949214 | 1.05 | 1.27 | |
| Machine Screw M4x14 (10 Pcs.) | ||||
| 34 | 949218 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 35 | 950744 | |||
| Washer M4 (10 Pcs.) | ||||
| 36 | 949423 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 37 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 38 | 949292 | |||
| Switch | ||||
| 39 | 930244 | 20.21 | 24.46 | |
| Cord Armor D8.8 | ||||
| 40A | 380090 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 41 | 500427Z | |||
| Machine Screw (w/washers) M4x12 | ||||
| 42 | 986348 | 1.05 | 1.27 | |
| Cover (a) | ||||
| 43 | 981701 | 1.65 | 2.00 | |
| Housing (1) | ||||
| 44 | 981700 | 26.95 | 32.61 | |
| No information available, not orderable | ||||
| 501A | 936638 | |||
| No information available, not orderable | ||||
| 502A | 931161 | |||
| No information available, not orderable | ||||
| 601 | 981707 | |||
| No information available, not orderable | ||||
| 603 | 981703 | |||
