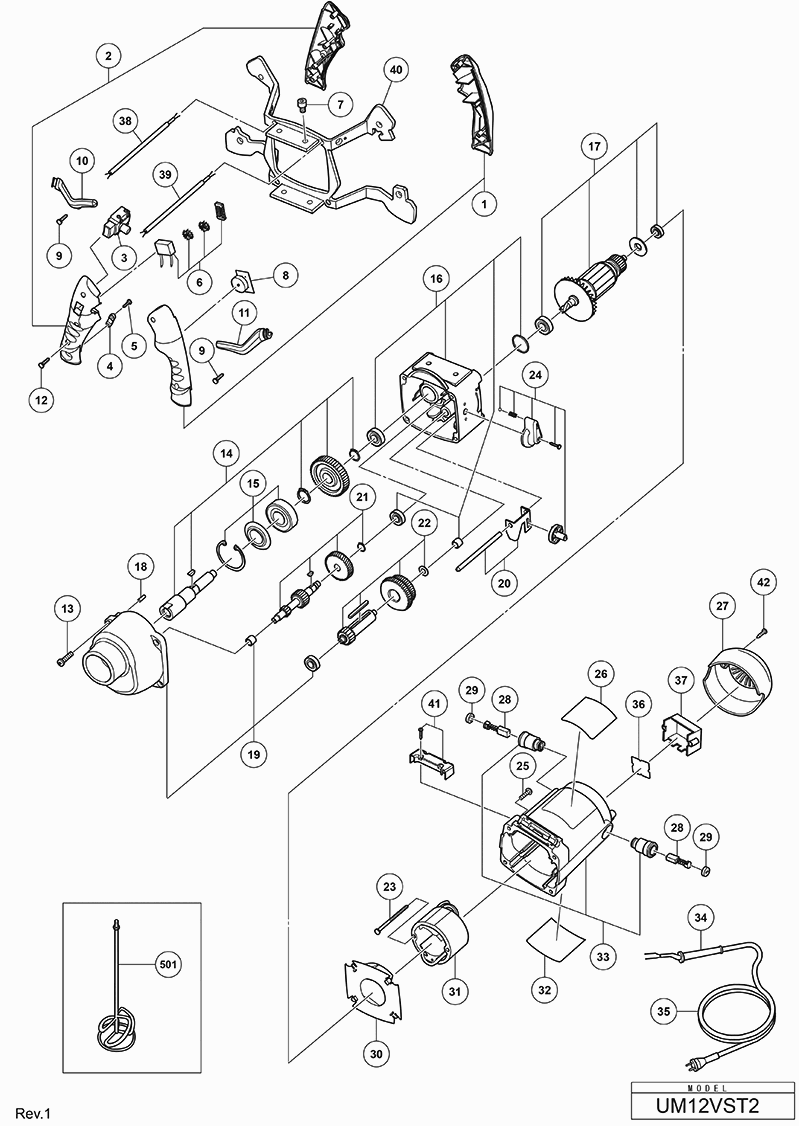

Technical drawing of model Hikoki UM12VST2UAZ
Spare parts list of model Hikoki UM12VST2UAZ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| HANDLE ASS'Y (L) | ||||
| 1 | 375046 | 8.40 | 10.16 | |
| HANDLE ASS'Y (R) | ||||
| 2 | 375047 | 8.40 | 10.16 | |
| SWITCH | ||||
| 3 | 375063 | 4.95 | 5.99 | |
| Clamp (1) | ||||
| 4 | 333609 | 1.04 | 1.26 | |
| SCREW ST4.2X12 (2 PCS.) | ||||
| 5 | 375060 | 1.04 | 1.26 | |
| Inductance Unit | ||||
| 6 | 375058 | 3.60 | 4.36 | |
| SCREW M8X14 (4 PCS.) | ||||
| 7 | 375056 | 2.85 | 3.45 | |
| CIRCUITRY BOARD | ||||
| 8 | 375062 | 6.45 | 7.80 | |
| SCREW ST3X14 (2 PCS.) NEW | ||||
| 9 | 375059 | 1.04 | 1.26 | |
| WIRING GROOVE (R) | ||||
| 10 | 375049 | 1.50 | 1.82 | |
| WIRING GROOVE (L) | ||||
| 11 | 375048 | 1.50 | 1.82 | |
| SCREW ST3.9X16 (6 PCS.) | ||||
| 12 | 375053 | 1.04 | 1.26 | |
| Screw M5x20 (4 Pcs.) | ||||
| 13 | 333615 | 1.04 | 1.26 | |
| Spindle Gear Set | ||||
| 14 | 333617 | 12.00 | 14.52 | |
| Bearing With Cover | ||||
| 15 | 333618 | 3.75 | 4.54 | |
| Gear Box Set | ||||
| 16 | 333619 | 24.48 | 29.61 | |
| Armature | ||||
| 17 | 333596 | 36.85 | 44.59 | |
| Pin | ||||
| 18 | 333620 | 1.04 | 1.26 | |
| Bearing Cover Set | ||||
| 19 | 375681 | 15.95 | 19.30 | |
| Pivot Set | ||||
| 20 | 333623 | 1.80 | 2.18 | |
| Second Pinion Set | ||||
| 21 | 333621 | 13.75 | 16.64 | |
| Third Pinion Set | ||||
| 22 | 333622 | 15.26 | 18.47 | |
| Screw St4.2x70 (2 Pcs.) | ||||
| 23 | 333627 | 1.04 | 1.26 | |
| Lever Set | ||||
| 24 | 375052 | 2.55 | 3.09 | |
| Screw M5x25 (4 Pcs.) | ||||
| 25 | 333630 | 1.04 | 1.26 | |
| Rear Cover | ||||
| 27 | 375798 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 28 | 333631 | |||
| Brush Cap (2 Pcs.) | ||||
| 29 | 333600 | 1.04 | 1.26 | |
| AIR GUIDE SHIM | ||||
| 30 | 375054 | 1.50 | 1.82 | |
| Stator (um 12vst) | ||||
| 31 | 333598 | 16.36 | 19.80 | |
| Motor Box Set | ||||
| 33 | 333599 | 12.15 | 14.70 | |
| Sleeve | ||||
| 34 | 333636 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 35 | 333637 | |||
| Controller | ||||
| 36 | 375051 | 15.81 | 19.13 | |
| PROTECTIVE GUARD | ||||
| 37 | 375683 | 1.50 | 1.82 | |
| CABLE 0.75 (5 PCS.) | ||||
| 38 | 375682 | 4.20 | 5.08 | |
| CABLE 3X0.5X0.23 | ||||
| 39 | 375050 | 2.10 | 2.54 | |
| Hob | ||||
| 40 | 375057 | 26.54 | 32.11 | |
| CABLE COVER ASS'Y | ||||
| 41 | 375055 | 1.65 | 2.00 | |
| SCREW ST3.5X16 (2 PCS.) | ||||
| 42 | 375061 | 1.04 | 1.26 | |
