Here you will find all available parts and drawings of the 'Hikoki UC9SD'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

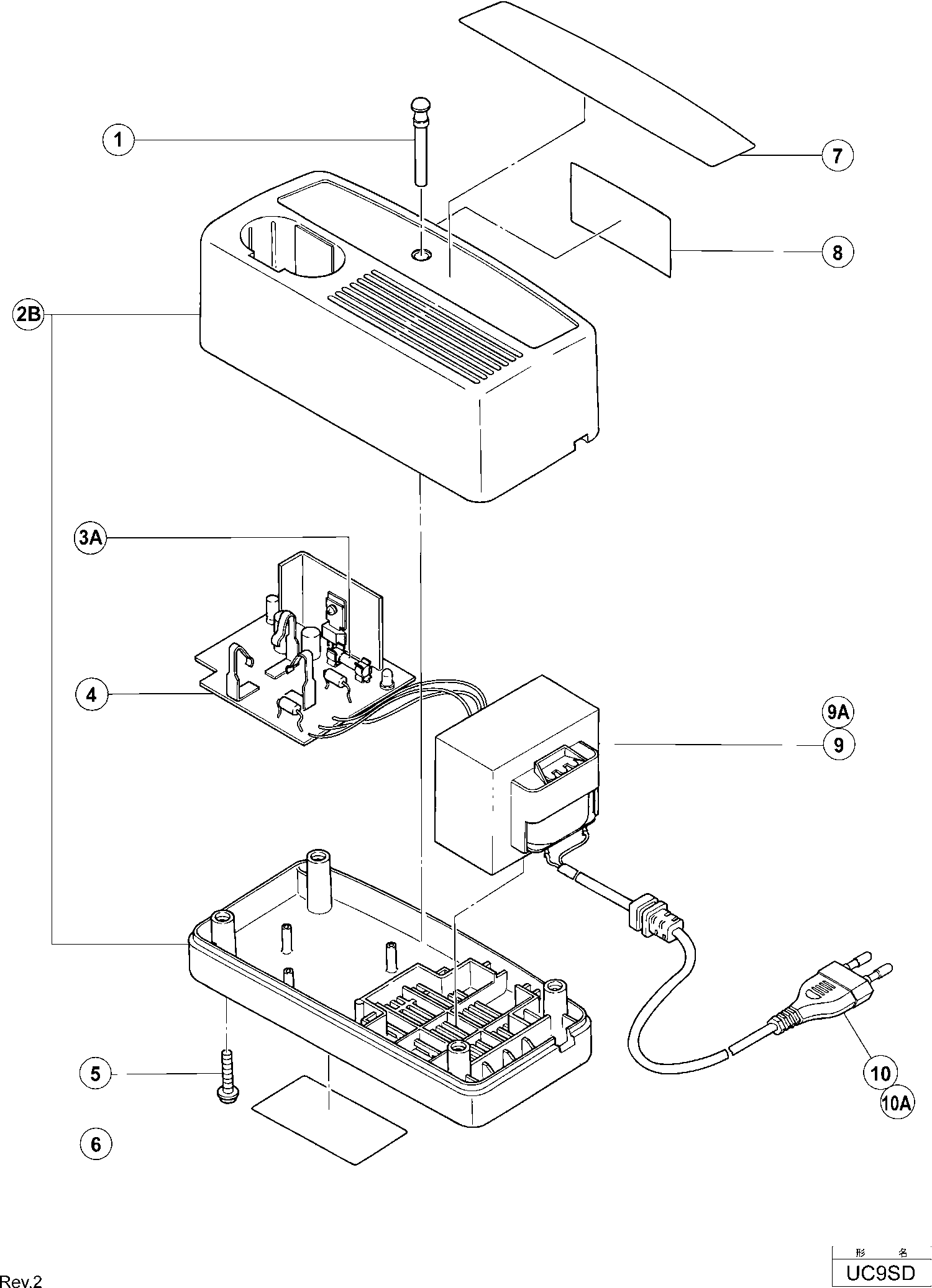

Technical drawing of model Hikoki UC9SD
Spare parts list of model Hikoki UC9SD
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 318258 | |||
| No information available, not orderable | ||||
| 2A | 318267 | |||
| No information available, not orderable | ||||
| 2B | 318268 | |||
| Fuse 6.3/250v | ||||
| 3A | 320682 | 3.30 | 3.99 | |
| Printed Circuit Board Uc9/uc12sd | ||||
| 4 | 318256 | 26.40 | 31.94 | |
| P-tite Screw D4x20 Since 7.2016 | ||||
| 5 | 994806 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 9 | 318270 | |||
| No information available, not orderable | ||||
| 9A | 318272 | |||
| No information available, not orderable | ||||
| 10 | 319327 | |||
| No information available, not orderable | ||||
| 10A | 318262 | |||
